Model # 24A464B762 Official MTD gas chipper shredder/vac

Here are the diagrams and repair parts for Official MTD 24A464B762 gas chipper shredder/vac, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Blade 781-0490
#31

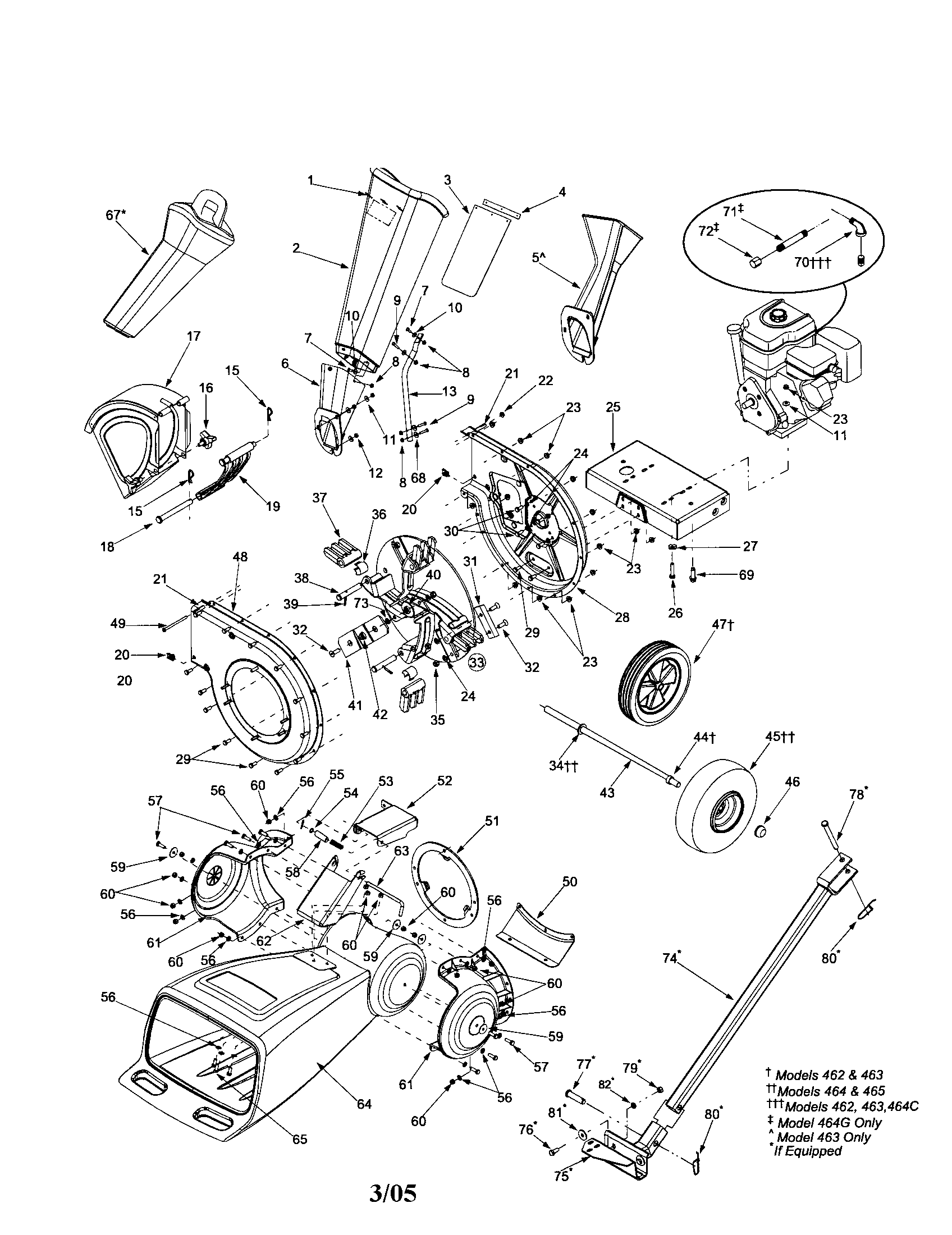

Chipper/shredder diagram

Blade

Part #781-0490

Replaced by #981-0490

?
Manufacturer substitution
This part replaces 781-0490. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$30.78 |
16% OFF Phone Price : $36.78
In Stock
Blade 742-0571
#41

Chipper/shredder diagram

Blade

Part #742-0571

Replaced by #942-0571

?
Manufacturer substitution
This part replaces 742-0571. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$37.78 |
14% OFF Phone Price : $43.78
In Stock
Chipper/shredder Flail Blade 719-0329
#37

Chipper/shredder diagram

Chipper/shredder flail blade

Part #719-0329

Get free shipping with Automatic Reorder

$32.18 |
16% OFF Phone Price : $38.18
In Stock
Lawn Vacuum Chipper/shredder Retainer Clip 781-0735
#36

Chipper/shredder diagram

Lawn vacuum chipper/shredder retainer clip

Part #781-0735

This item is not returnable
$6.55 |
13% OFF Phone Price : $7.55
In Stock
Lawn & Garden Equipment Screw 710-1054
#32

Chipper/shredder diagram

Lawn & garden equipment screw

Part #710-1054

Replaced by #710-1054

?
Manufacturer substitution
This part replaces 710-1054. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Vacuum Chipper/shredder Roll Pin 715-0166
#39

Chipper/shredder diagram

Lawn vacuum chipper/shredder roll pin

Part #715-0166

This item is not returnable
$10.46 |
16% OFF Phone Price : $12.46
In Stock
Hex Flange 712-3027
Hex flange

Part #712-3027

Replaced by #912-3027

?
Manufacturer substitution
This part replaces 712-3027. Substitute parts can look different from the original.
This item is not returnable
$5.44 |
16% OFF Phone Price : $6.44
In Stock
Lawn & Garden Equipment Push Cap (replaces 1917798, 926-0214) 726-0214
#46

Chipper/shredder diagram

Lawn & garden equipment push cap (replaces 1917798, 926-0214)

Part #726-0214

This item is not returnable
$15.99 |
11% OFF Phone Price : $17.99
In Stock
Screen 781-0457
#19

Chipper/shredder diagram

Screen

Part #781-0457

Replaced by #781-0457-0637

?
Manufacturer substitution
This part replaces 781-0457. Substitute parts can look different from the original.
$52.74 |
10% OFF Phone Price : $58.74
In Stock
Ryobi Stop Nut 712-0429
#60

Chipper/shredder diagram

Ryobi stop nut

Part #712-0429

This item is not returnable
$7.06
In Stock
