Model # 48GX024060300 Official Carrier central package

Here are the diagrams and repair parts for Official Carrier 48GX024060300 central package, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

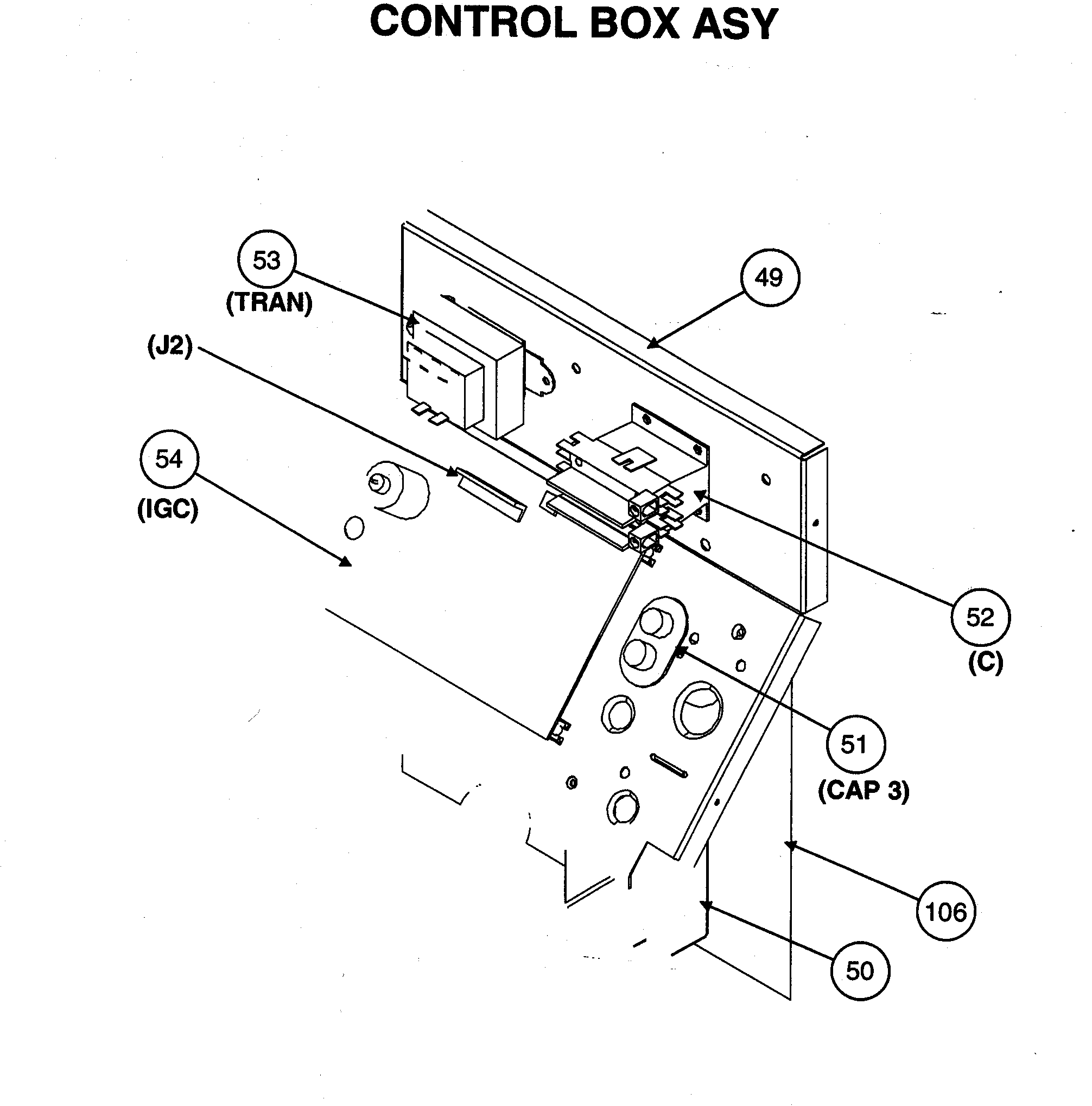

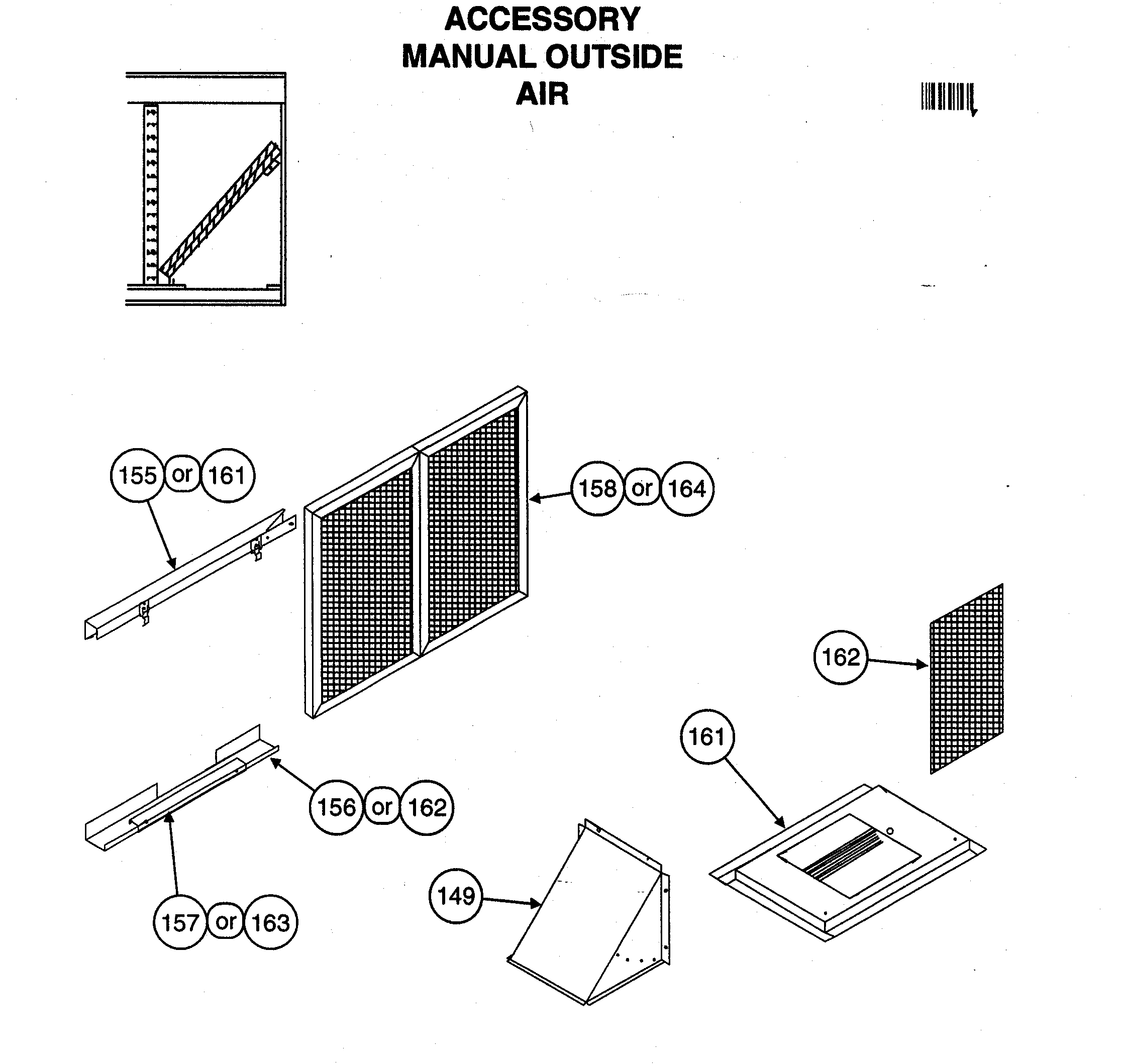

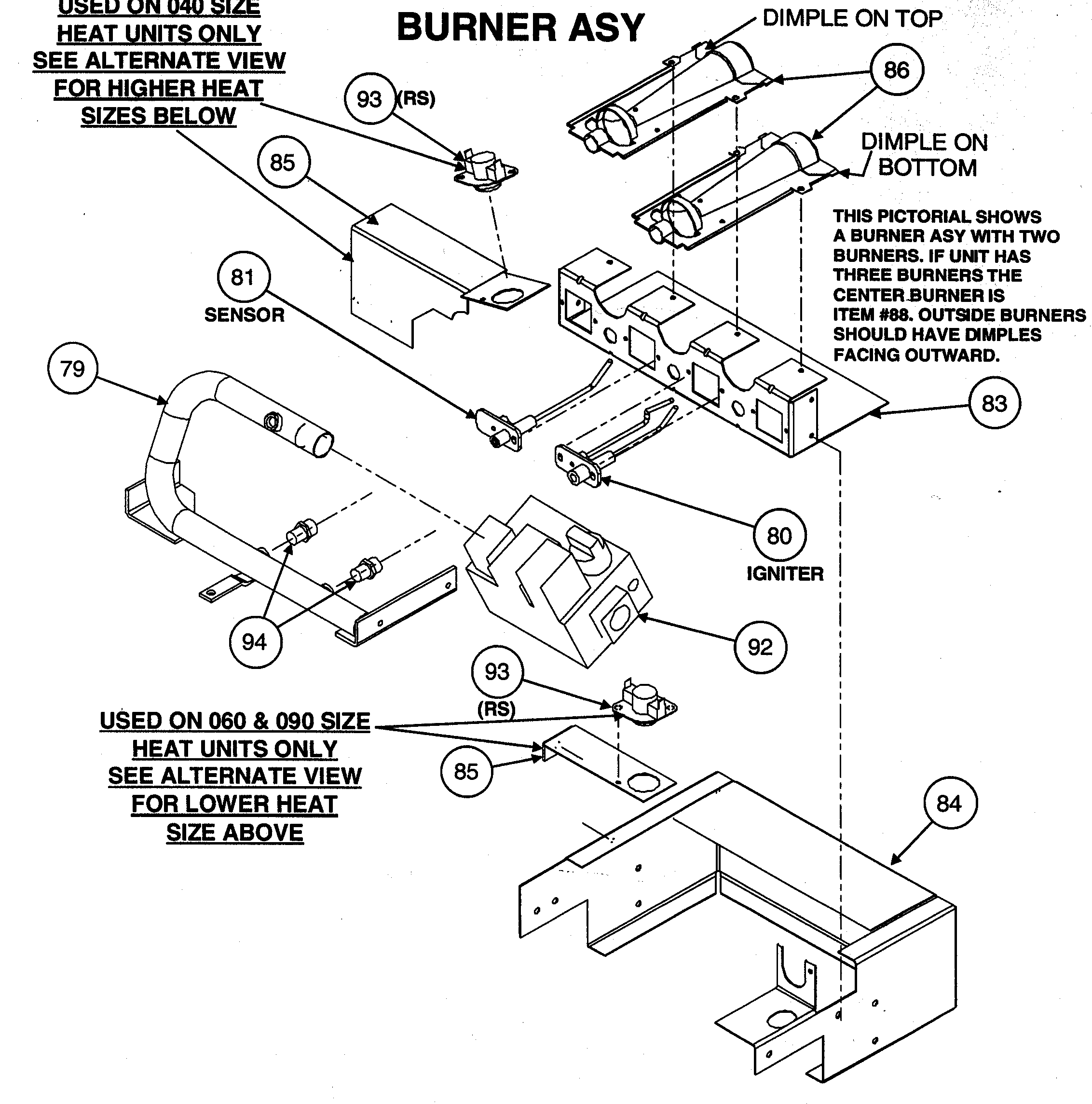

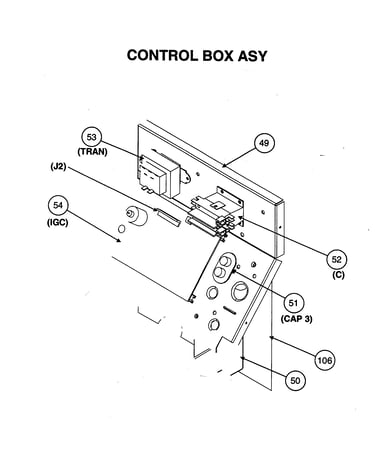

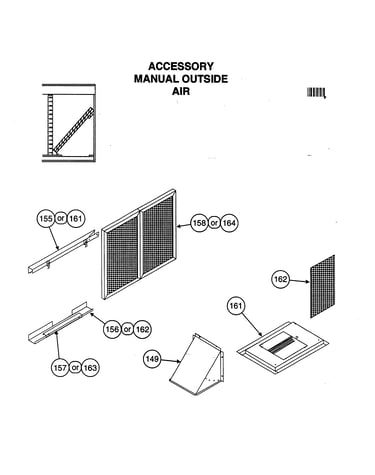

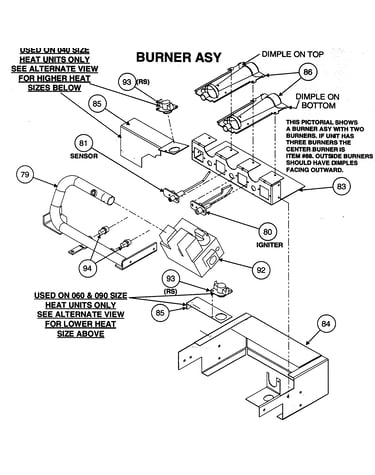

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |

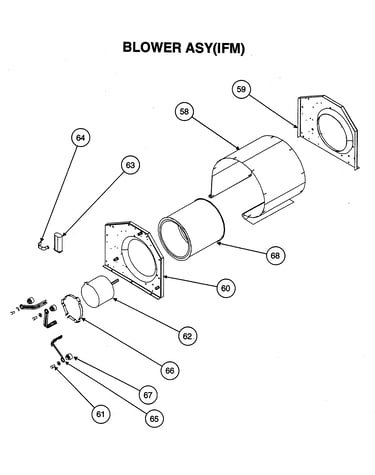

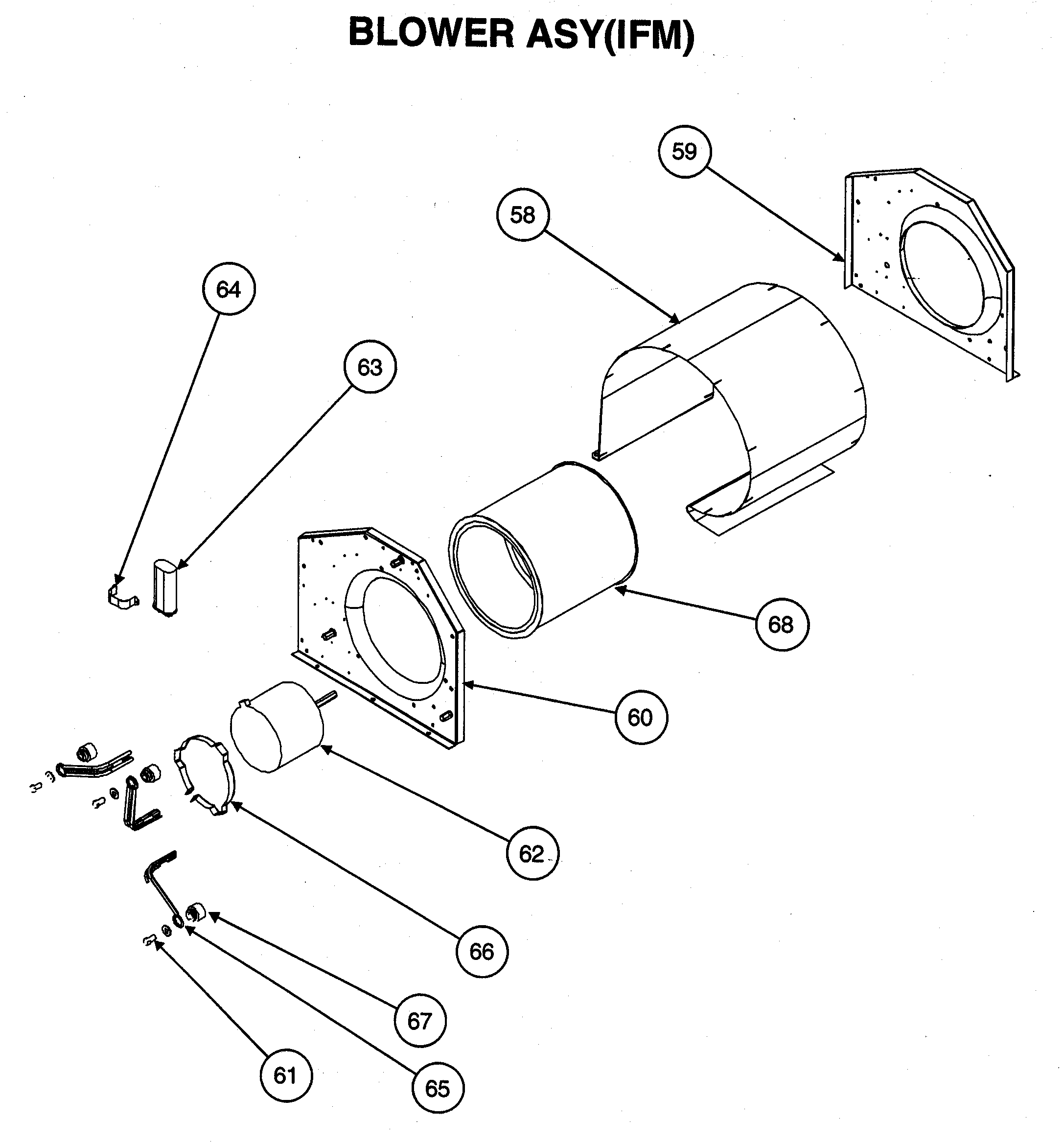

Blower Assembly 48GS400106
Blower assembly

Part #48GS400106

Replaced by #48GS400649

?
Manufacturer substitution
This part replaces 48GS400106. Substitute parts can look different from the original.
$708.46 |
$12.00 OFF Phone Price : $720.46
In Stock

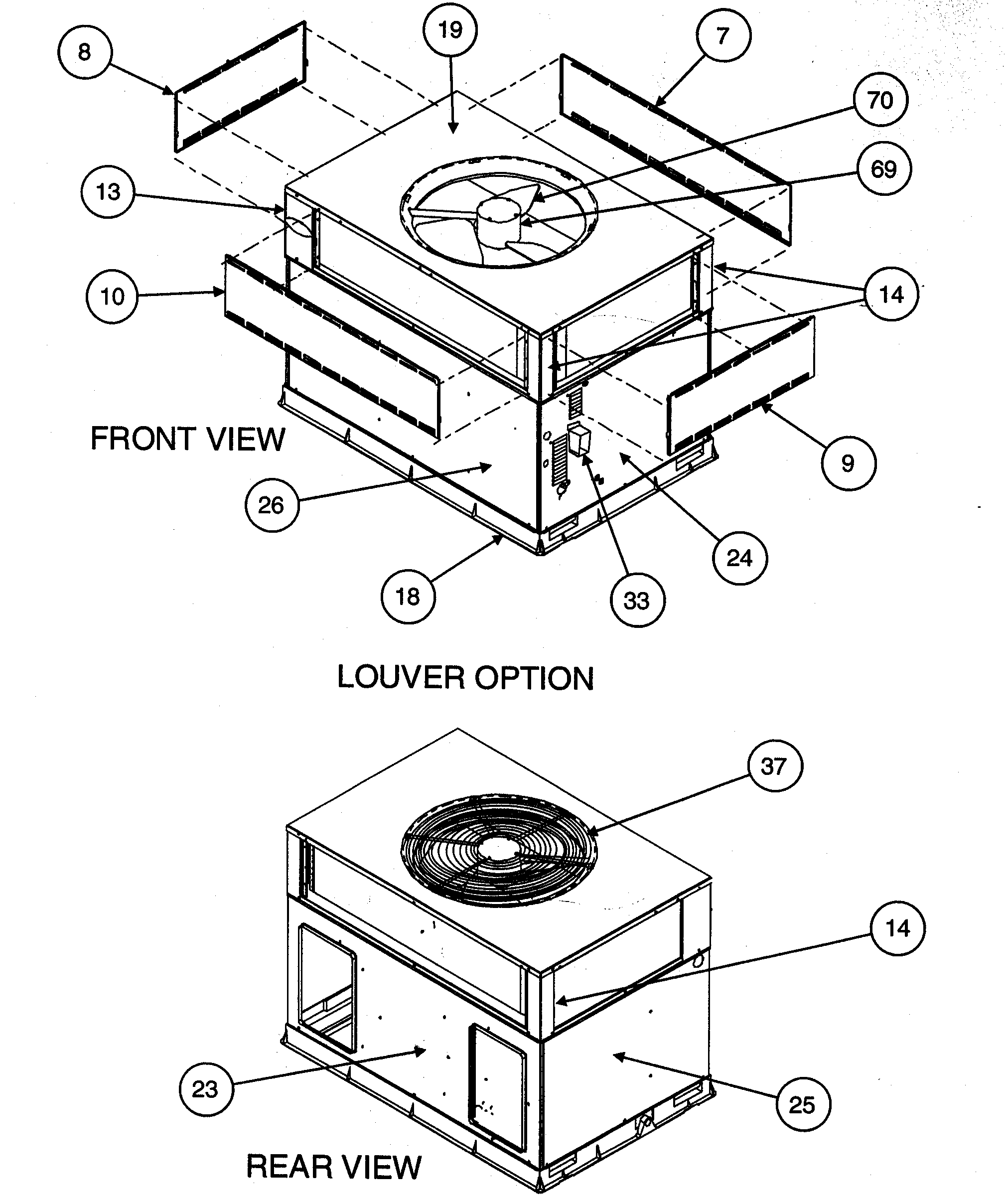

Central Air Conditioner Condenser Fan Motor HC35GE235
#69

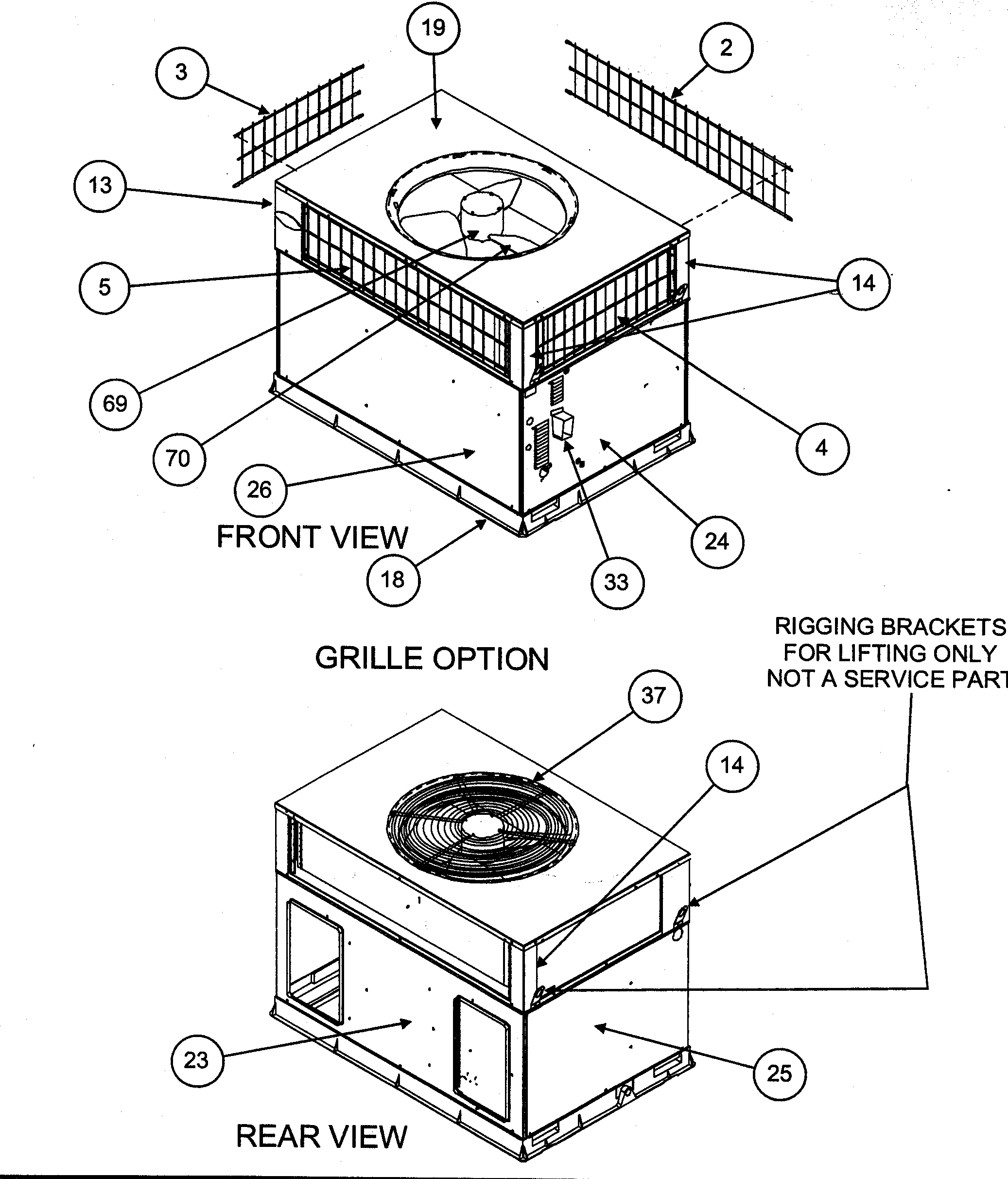

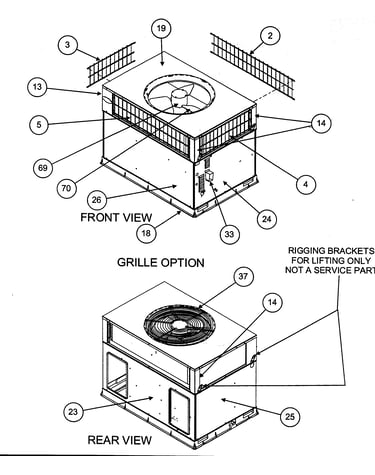

Grille option diagram

Central air conditioner condenser fan motor

Part #HC35GE235

$509.50
In Stock

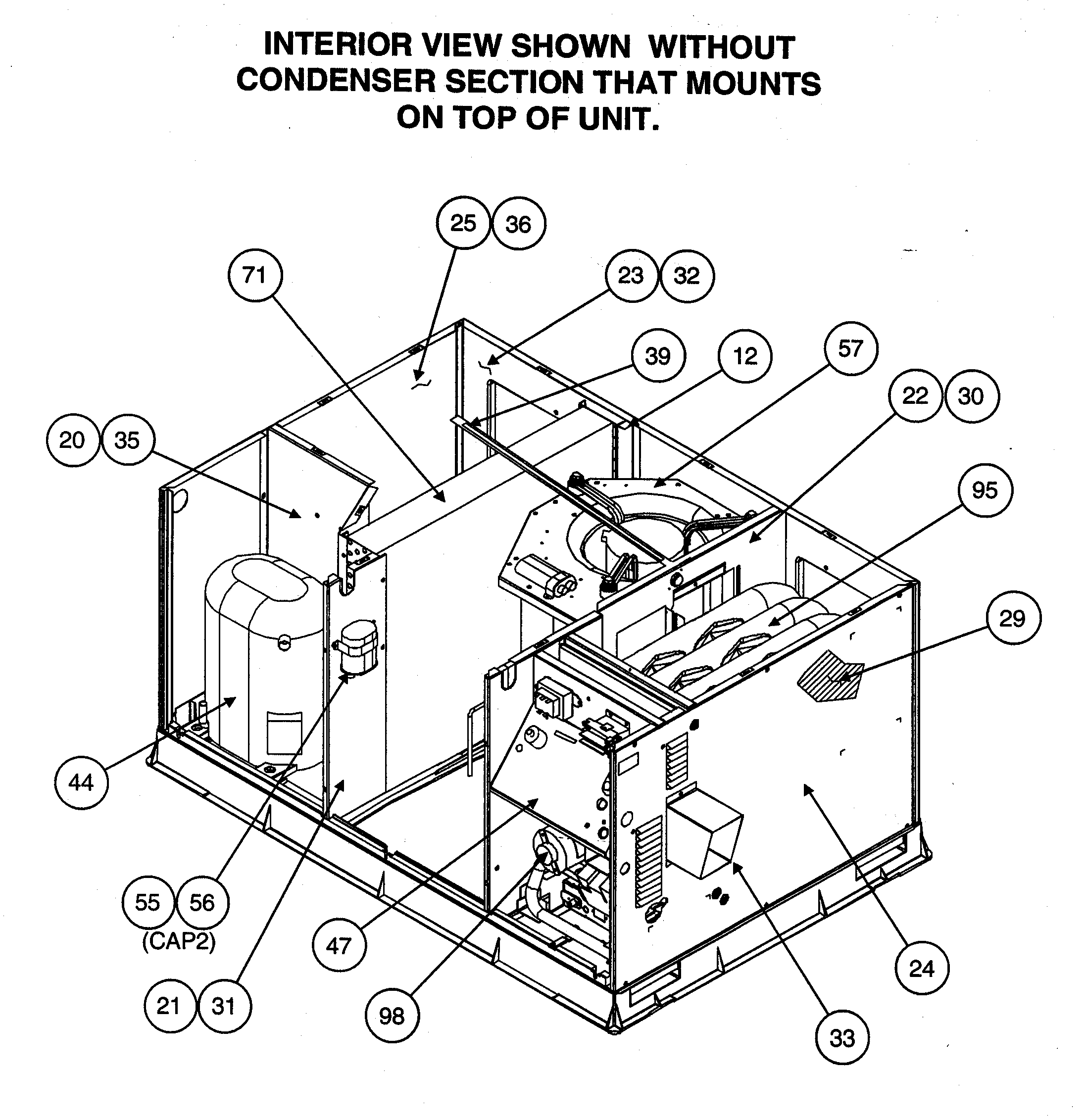

Central Air Conditioner Heat Exchanger 48GS660002
#95

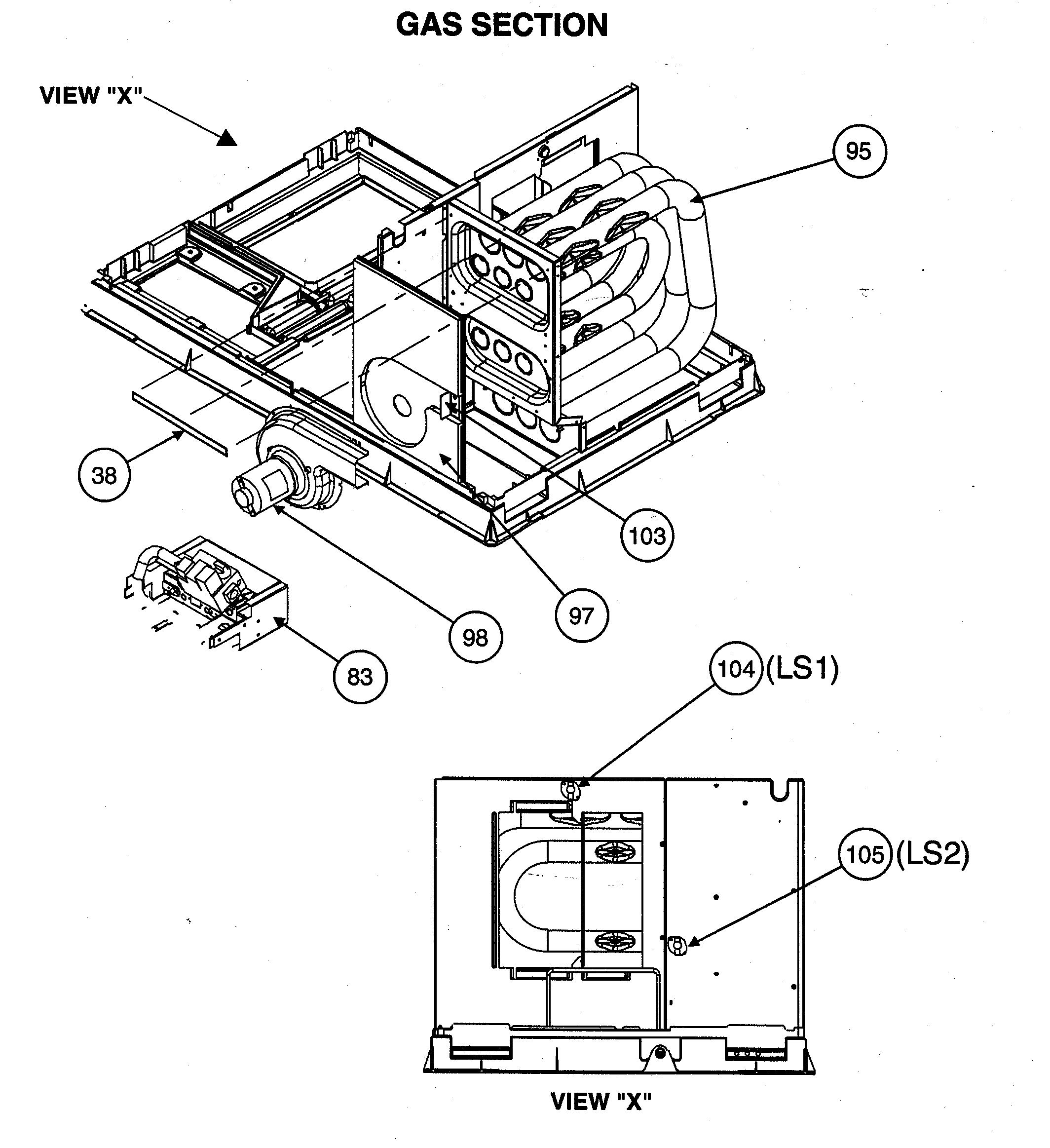

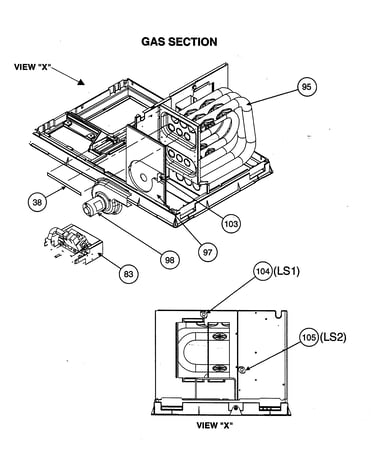

Gas section diagram

Central air conditioner heat exchanger

Part #48GS660002

$659.08
In Stock

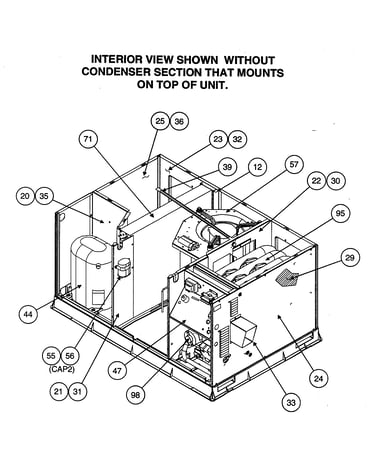

Panel 48GS500011
#25

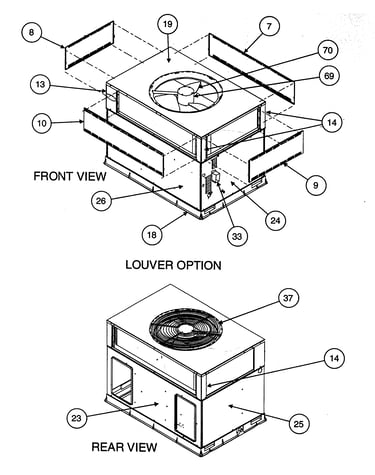

Grille option diagram

Panel

Part #48GS500011

$267.82
In Stock
Motor M7415A1006
#109

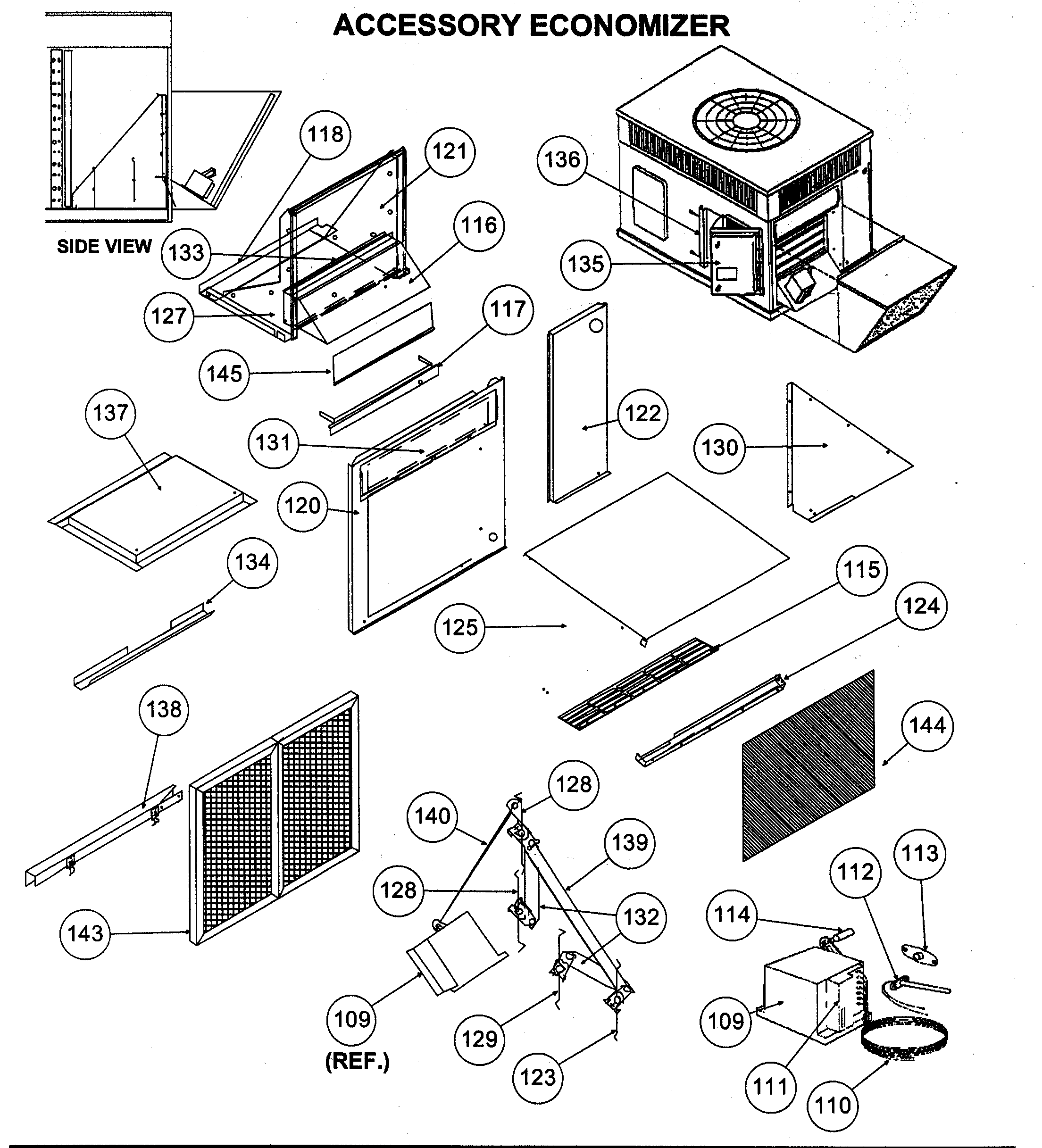

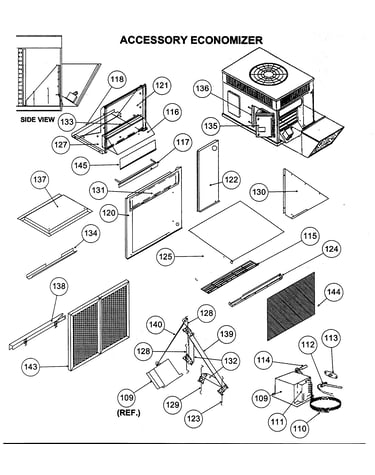

Accessory i diagram

Motor

Part #M7415A1006

$701.20
In Stock
Coil Cond 48GS400124
#73

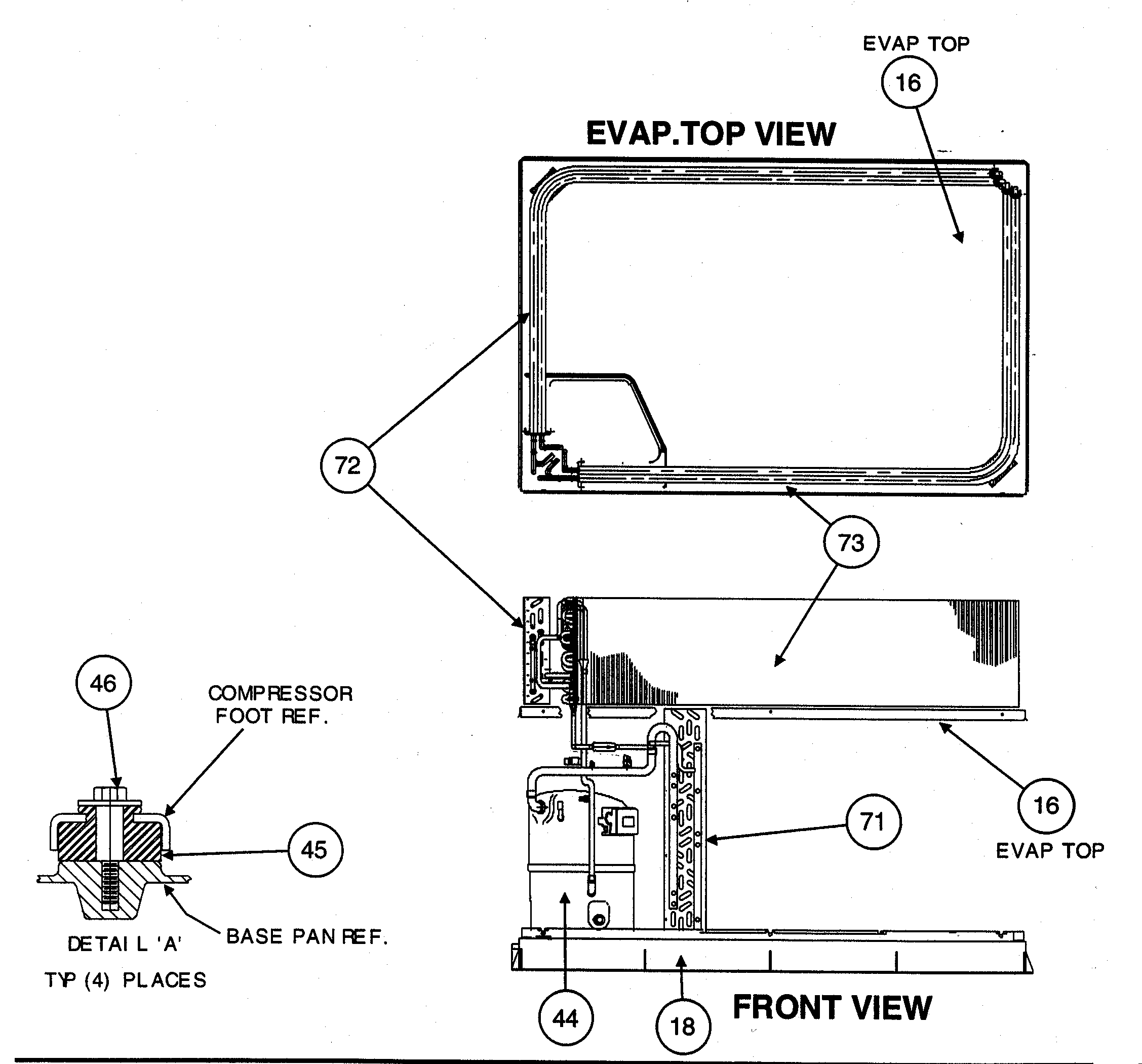

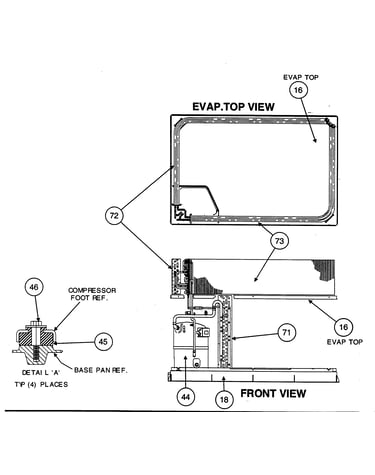

Compressor diagram

Coil cond

Part #48GS400124

$2721.95
In Stock
Rack 0900003A
Rack

Part #0900003A

$176.16
In Stock
Central Air Conditioner Wire Harness 9962-0083
#110

Accessory i diagram

Central air conditioner wire harness

Part #9962-0083

$357.73
In Stock
Insulation 48SS500601
#97

Gas section diagram

Insulation

Part #48SS500601

$39.82
In Stock
Switch HH18HA460
#105

Gas section diagram

Switch

Part #HH18HA460

$77.49
In Stock
