Model # 137242750 Official Craftsman saw

Here are the diagrams and repair parts for Official Craftsman 137242750 saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 162 parts  |
Nut Chuck 2705FBD110
#40

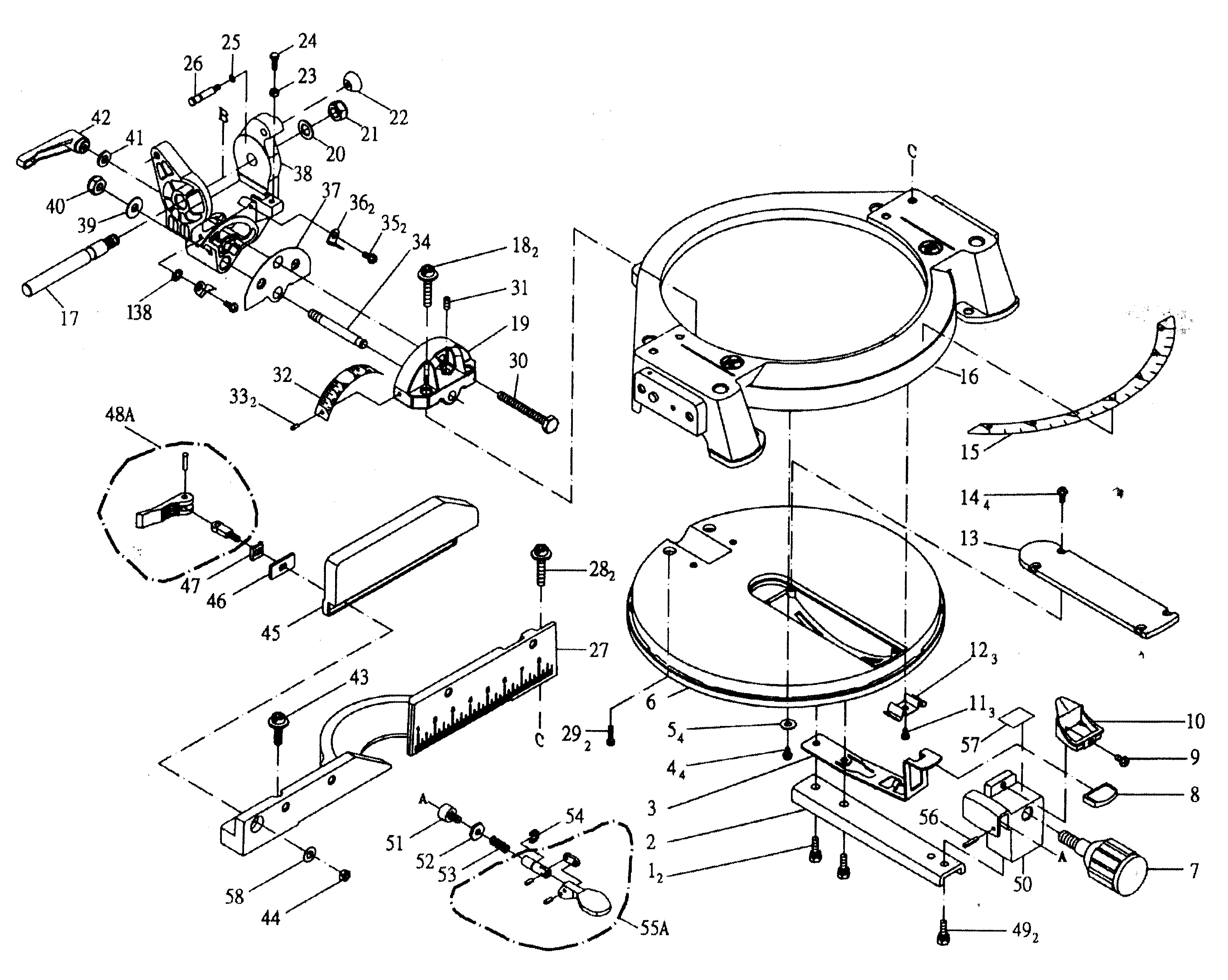

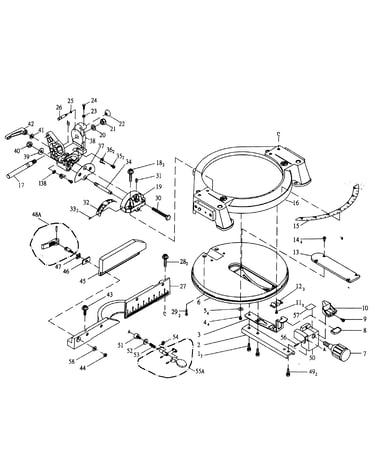

Base assy diagram

Nut chuck

Part #2705FBD110

The manufacturer no longer makes this part, and there's no substitute part

Armature 83966141A1
#14A

Motor assy diagram

Armature

Part #83966141A1

The manufacturer no longer makes this part, and there's no substitute part

Pc Guard 16511204A2
#71

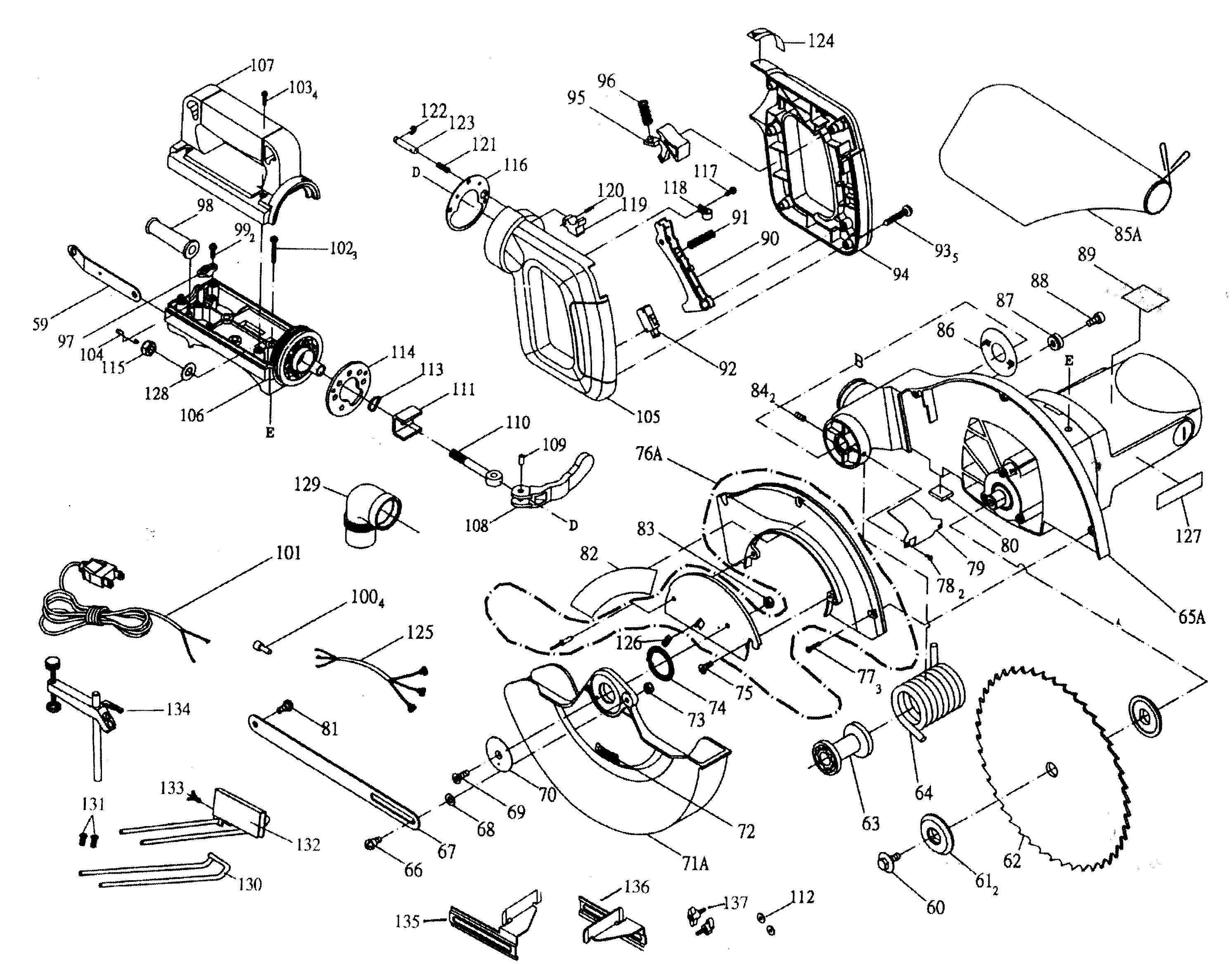

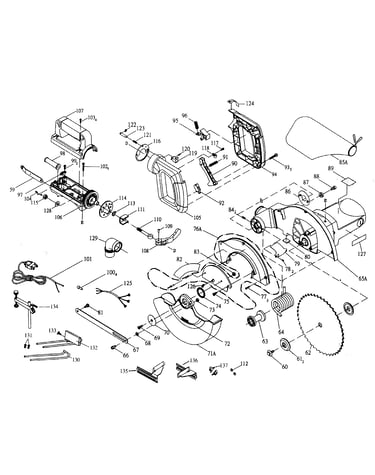

Arm assy diagram

Pc guard

Part #16511204A2

The manufacturer no longer makes this part, and there's no substitute part

Arm, Upper 8396511C
#11

Motor assy diagram

Arm, upper

Part #8396511C

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Vise Assembly 12740301A1
#134

Arm assy diagram

Miter saw vise assembly

Part #12740301A1

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire Assembly 280655563Y
#15

Motor assy diagram

Lead wire assembly

Part #280655563Y

The manufacturer no longer makes this part, and there's no substitute part

Helix Gear 83965071
#7

Motor assy diagram

Helix gear

Part #83965071

The manufacturer no longer makes this part, and there's no substitute part

Bumper 16211001
#126

Arm assy diagram

Bumper

Part #16211001

The manufacturer no longer makes this part, and there's no substitute part

Handle Assembly 12706501A1
#55A

Base assy diagram

Handle assembly

Part #12706501A1

The manufacturer no longer makes this part, and there's no substitute part

Assist Fence 12704901
#45

Base assy diagram

Assist fence

Part #12704901

The manufacturer no longer makes this part, and there's no substitute part
