Model # FIM35OD Official Franklin Chef ice maker

Here are the diagrams and repair parts for Official Franklin Chef FIM35OD ice maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Condenser Bracket 1860507700
#2

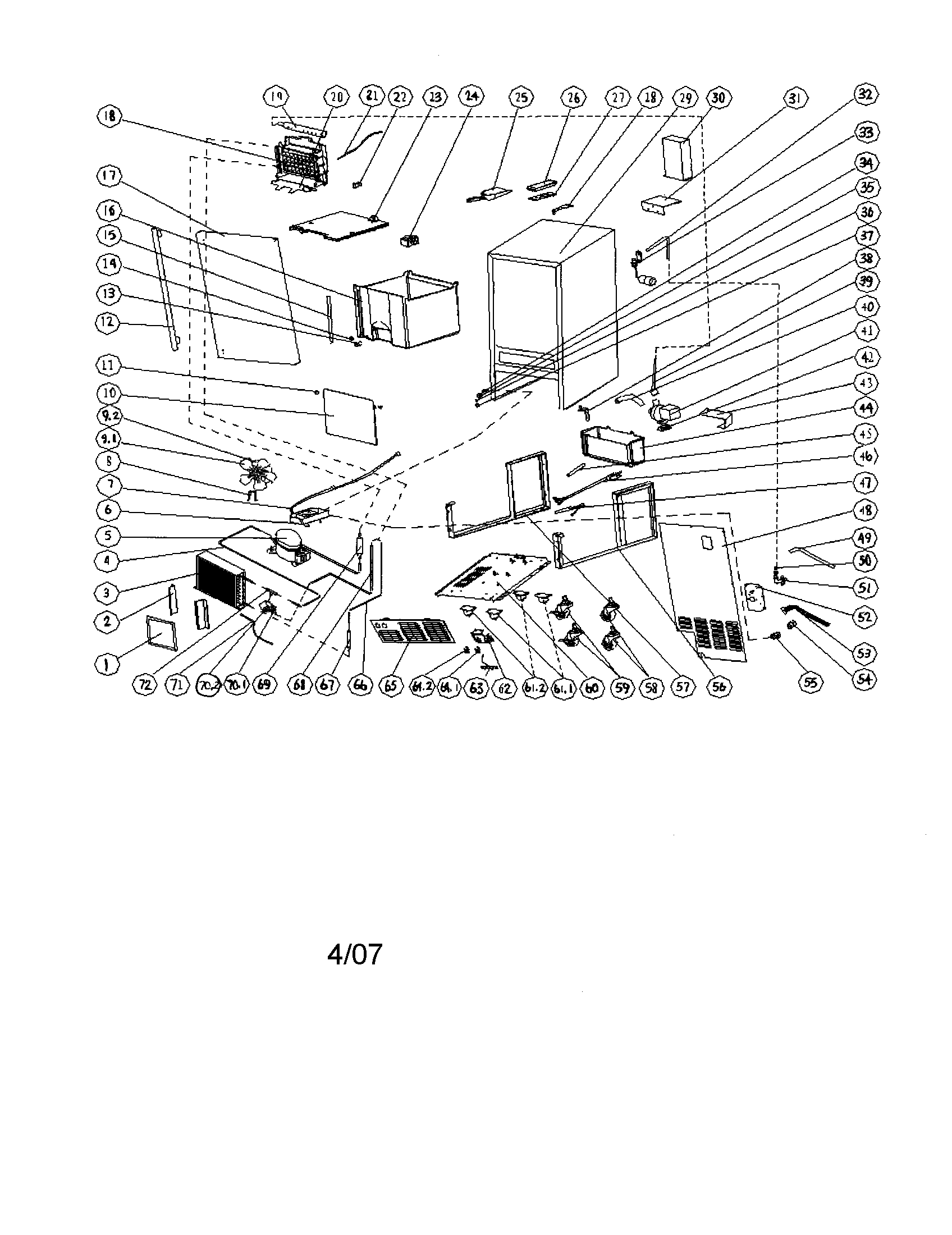

Ice maker diagram

Condenser bracket

Part #1860507700

The manufacturer no longer makes this part, and there's no substitute part

Support 1864515100
#50

Ice maker diagram

Support

Part #1864515100

The manufacturer no longer makes this part, and there's no substitute part

Drainage Nut Link 1864619200
#34

Ice maker diagram

Drainage nut link

Part #1864619200

The manufacturer no longer makes this part, and there's no substitute part

Ice Bin 1864901400
#23

Ice maker diagram

Ice bin

Part #1864901400

The manufacturer no longer makes this part, and there's no substitute part

Valve 1880001700
#33

Ice maker diagram

Valve

Part #1880001700

The manufacturer no longer makes this part, and there's no substitute part

Drain Pipe 1864507400
#53

Ice maker diagram

Drain pipe

Part #1864507400

The manufacturer no longer makes this part, and there's no substitute part

Chock 1864508100
#36

Ice maker diagram

Chock

Part #1864508100

The manufacturer no longer makes this part, and there's no substitute part

Top Hinge Mat 1860600603
#27

Ice maker diagram

Top hinge mat

Part #1860600603

The manufacturer no longer makes this part, and there's no substitute part

Outlet Tube 1811206006
#39

Ice maker diagram

Outlet tube

Part #1811206006

The manufacturer no longer makes this part, and there's no substitute part

Tube 1880001600
#19

Ice maker diagram

Tube

Part #1880001600

The manufacturer no longer makes this part, and there's no substitute part
