York
Heating & Cooling Combined Unit

Model # D1NA060N09006A Official York heating & cooling unit

Here are the diagrams and repair parts for Official York D1NA060N09006A heating & cooling unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

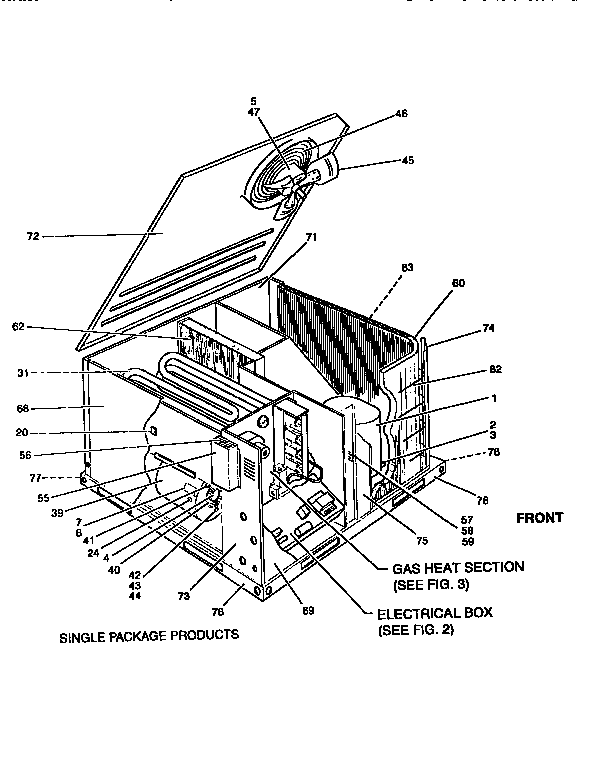

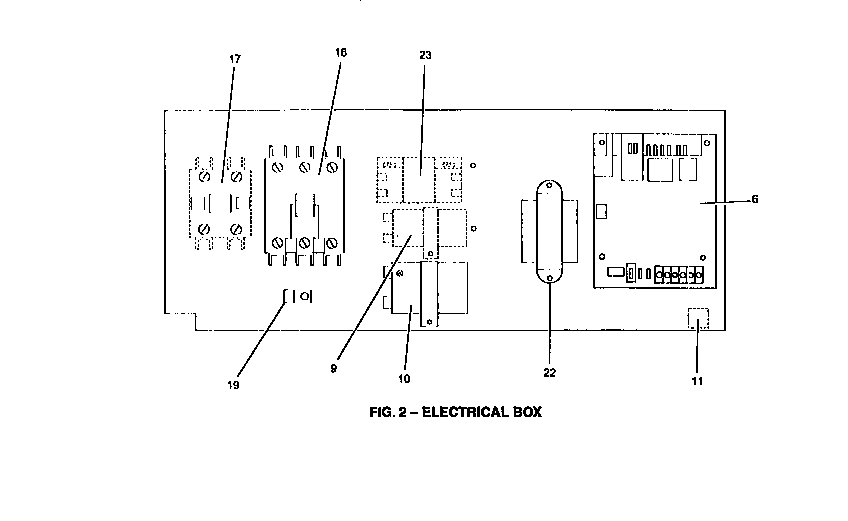

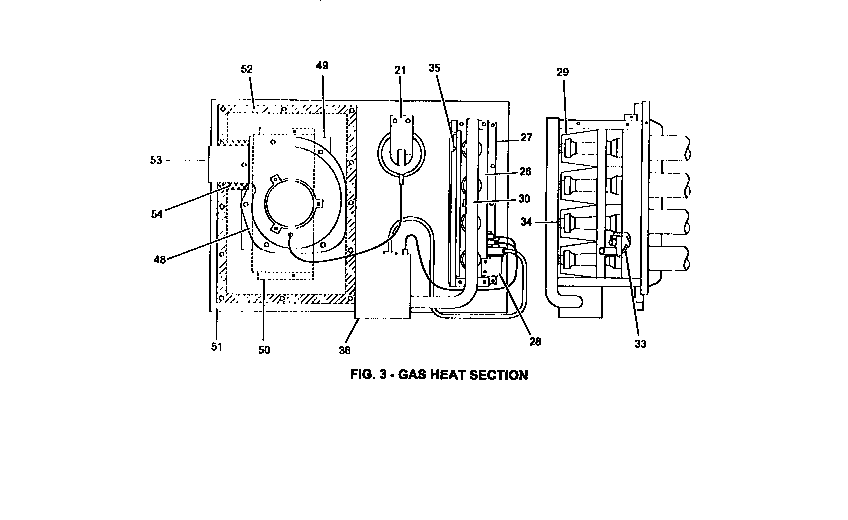

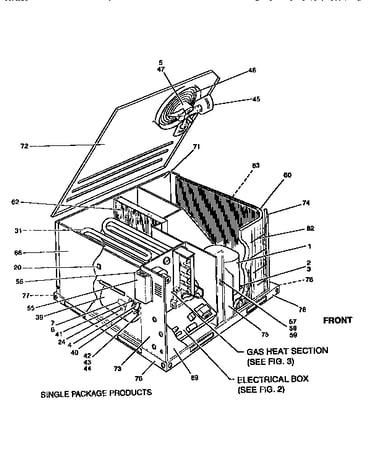

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Central Air Conditioner Run Capacitor 024-26037-000

#9

All parts diagram

Central air conditioner run capacitor

Part #024-26037-000

The manufacturer no longer makes this part, and there's no substitute part

Vent Motor 026-33999-001

#48

All parts diagram

Vent motor

Part #026-33999-001

The manufacturer no longer makes this part, and there's no substitute part

Air Pressure 024-25975-000

#21

All parts diagram

Air pressure

Part #024-25975-000

The manufacturer no longer makes this part, and there's no substitute part

Gas Valve 025-30859-000

#36

All parts diagram

Gas valve

Part #025-30859-000

Replaced by #SV9501M2528

?
Manufacturer substitution
This part replaces 025-30859-000. Substitute parts can look different from the original.
$641.87
In Stock
Gasket Motor 028-12467-000

#49

All parts diagram

Gasket motor

Part #028-12467-000

The manufacturer no longer makes this part, and there's no substitute part

Panel Access (elect. And Heat Ctl's) 073-14981-002

#69

All parts diagram

Panel access (elect. and heat ctl's)

Part #073-14981-002

The manufacturer no longer makes this part, and there's no substitute part

Hermetic Scroll Compressor 015-02620-004

#1

All parts diagram

Hermetic scroll compressor

Part #015-02620-004

The manufacturer no longer makes this part, and there's no substitute part

Guard Fan 026-33381-001

#46

All parts diagram

Guard fan

Part #026-33381-001

The manufacturer no longer makes this part, and there's no substitute part

Igniter 025-30860-000

#33

All parts diagram

Igniter

Part #025-30860-000

The manufacturer no longer makes this part, and there's no substitute part

Afitting, Copper Solder (drain Pan) 023-16384-000

#85

All parts diagram

Afitting, copper solder (drain pan)

Part #023-16384-000

The manufacturer no longer makes this part, and there's no substitute part
