Model # KDL-32EX340 Official Sony lcd television

Here are the diagrams and repair parts for Official Sony KDL-32EX340 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Lvds Cable 191010650
#203

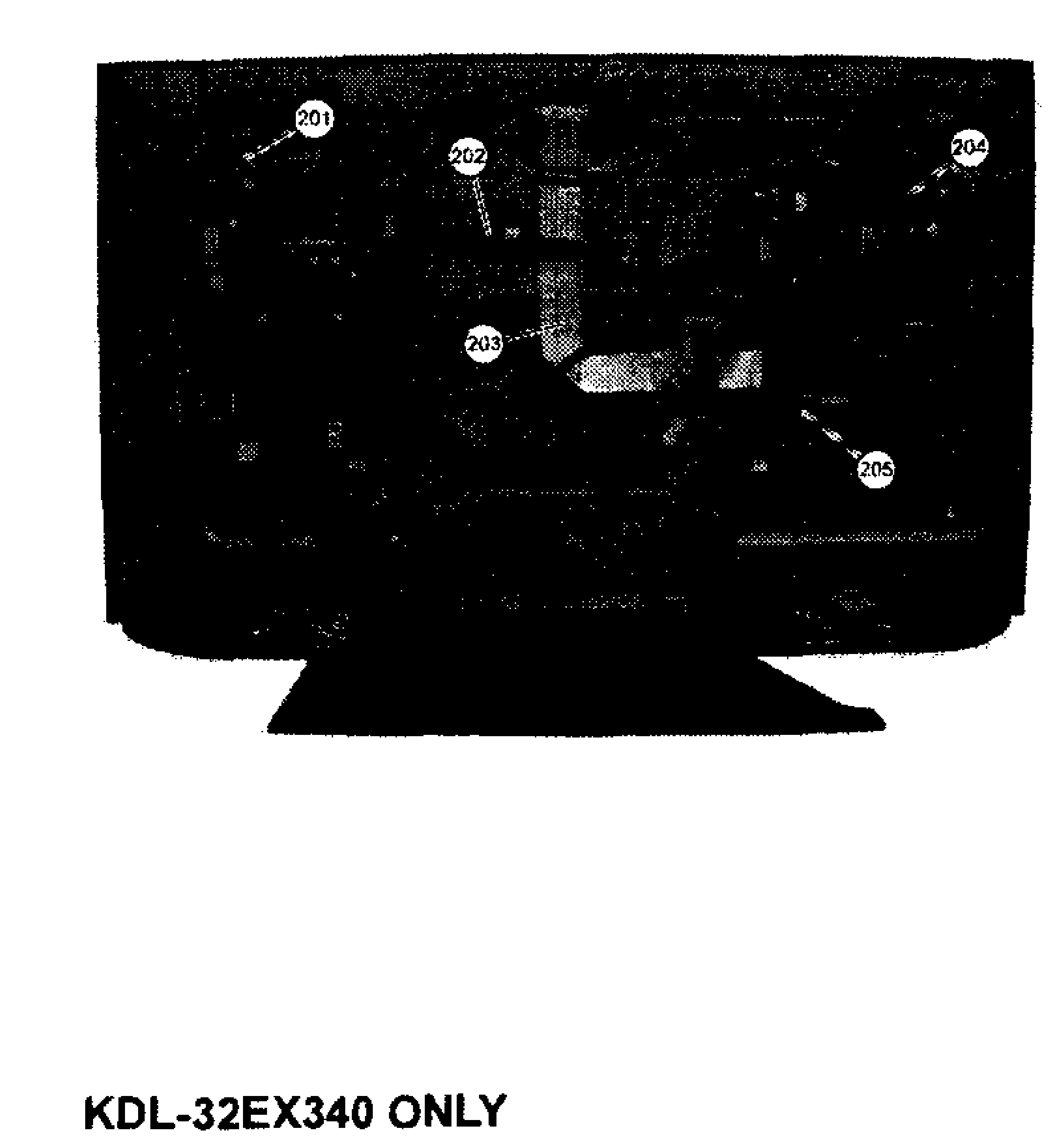

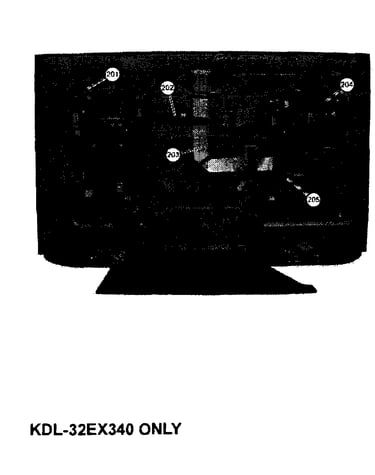

Cables diagram

Lvds cable

Part #191010650

The manufacturer no longer makes this part, and there's no substitute part

Frame 441989001
#55

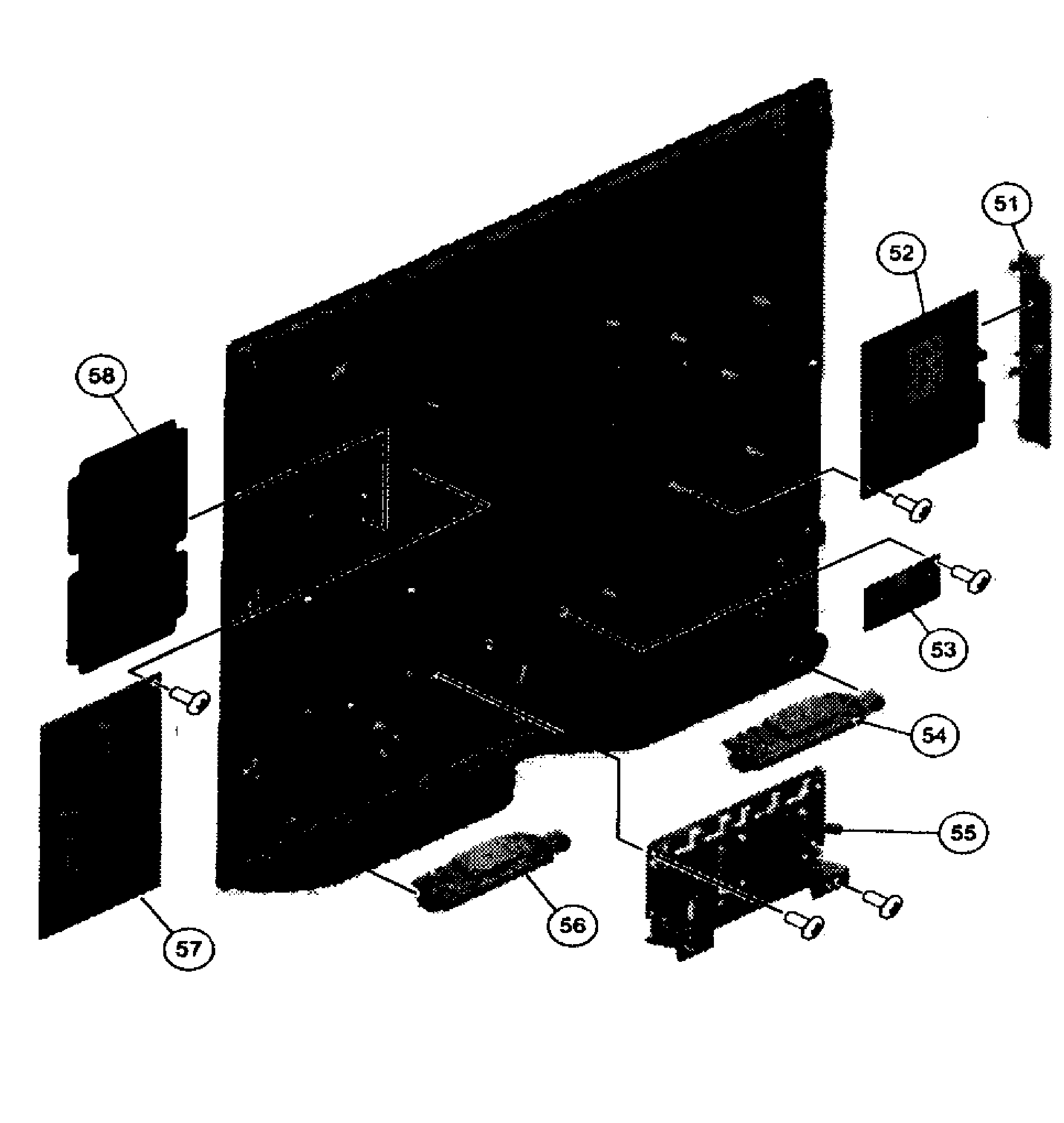

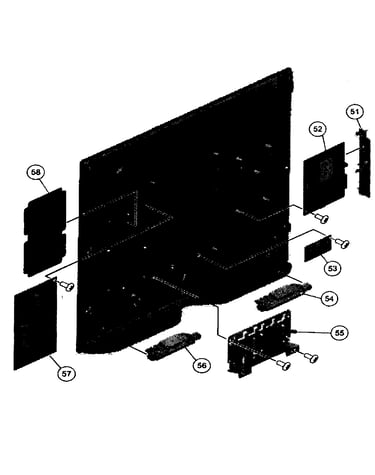

Pcb layout diagram

Frame

Part #441989001

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Rr 443036511
#1

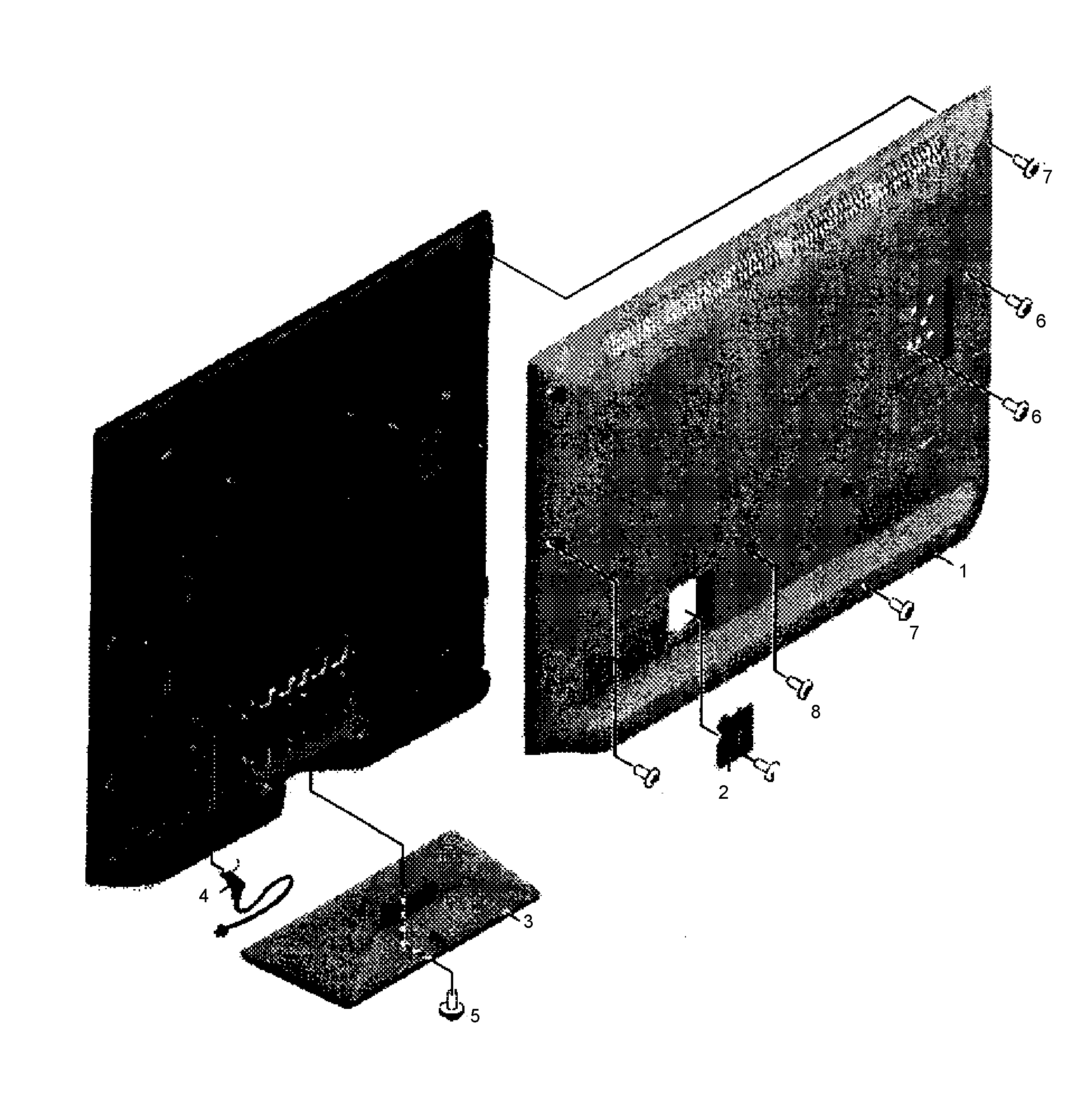

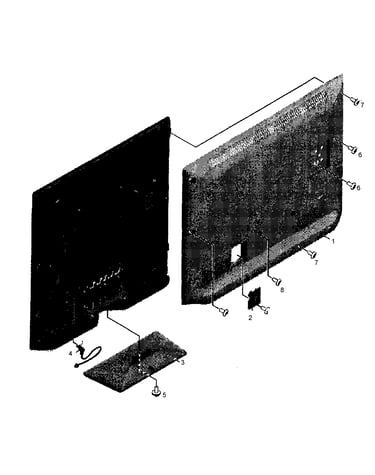

Rear cabinet diagram

Cabinet rr

Part #443036511

The manufacturer no longer makes this part, and there's no substitute part

Supply Belt 441447001
#NI

Rear cabinet diagram

Supply belt

Part #441447001

The manufacturer no longer makes this part, and there's no substitute part

Home Electronics Loud Speaker 185879621
#56

Pcb layout diagram

Home electronics loud speaker

Part #185879621

The manufacturer no longer makes this part, and there's no substitute part

Insulation Sheet 443729201
#58

Pcb layout diagram

Insulation sheet

Part #443729201

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 183963911
#4

Rear cabinet diagram

Power cord

Part #183963911

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Front A1892746A
#101

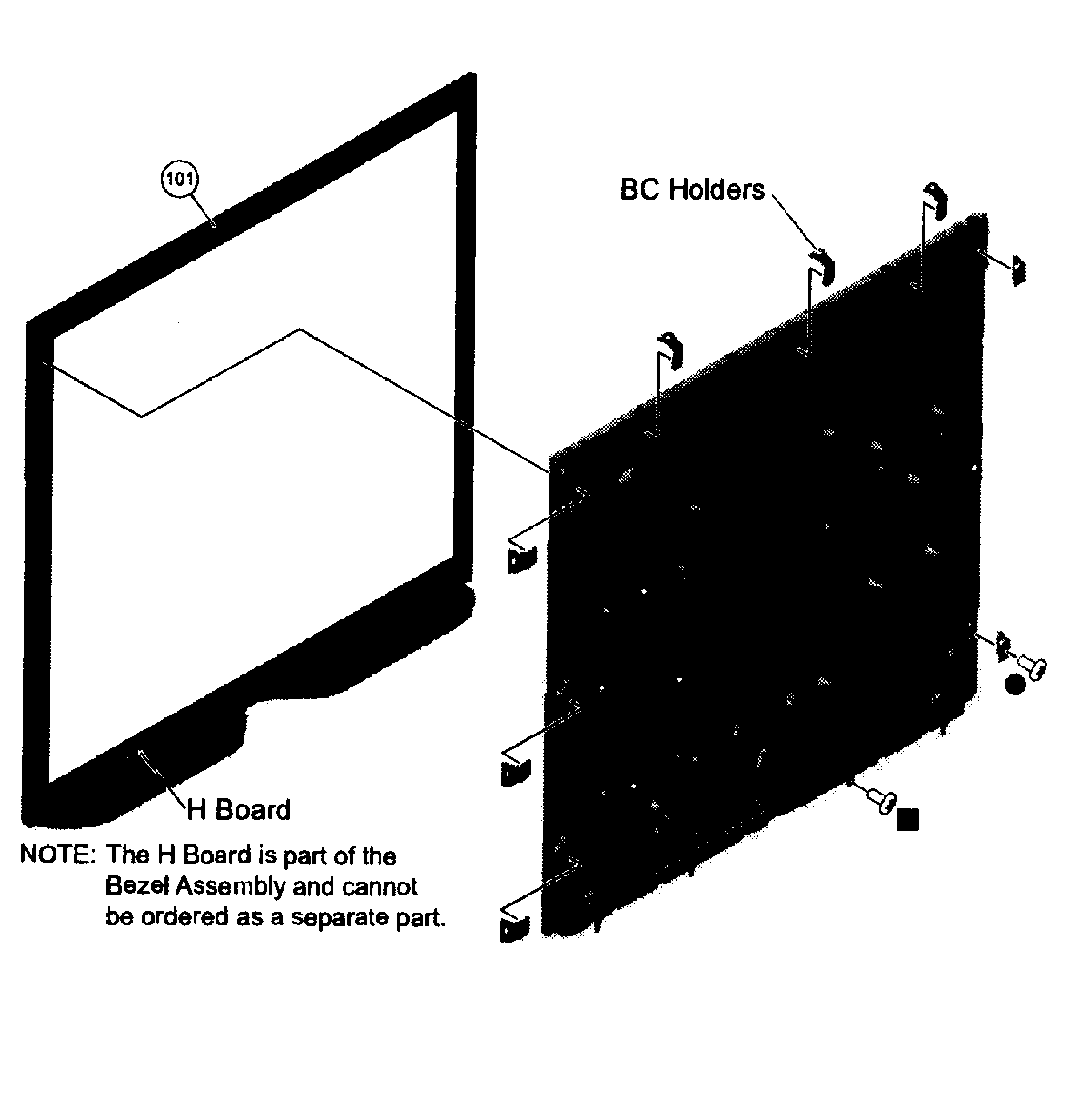

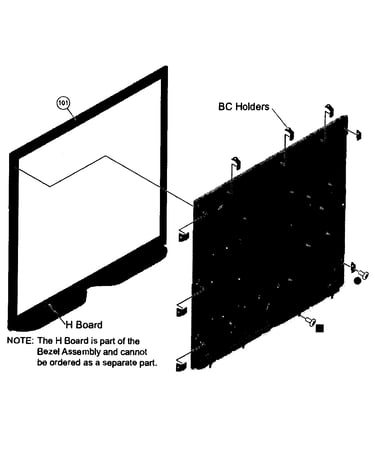

Front cabinet diagram

Cabinet front

Part #A1892746A

The manufacturer no longer makes this part, and there's no substitute part

Speaker, Right 185879611
#54

Pcb layout diagram

Speaker, right

Part #185879611

The manufacturer no longer makes this part, and there's no substitute part

Cable 4p 191010648
#204

Cables diagram

Cable 4p

Part #191010648

The manufacturer no longer makes this part, and there's no substitute part
