Model # TBF18EAB Official GE top-mount refrigerator

Here are the diagrams and repair parts for Official GE TBF18EAB top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

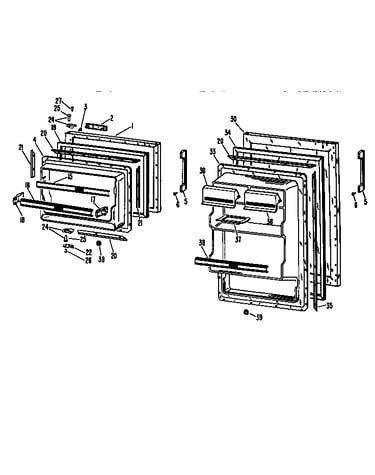

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 189 parts  |
Power Cord WR23X108
#86

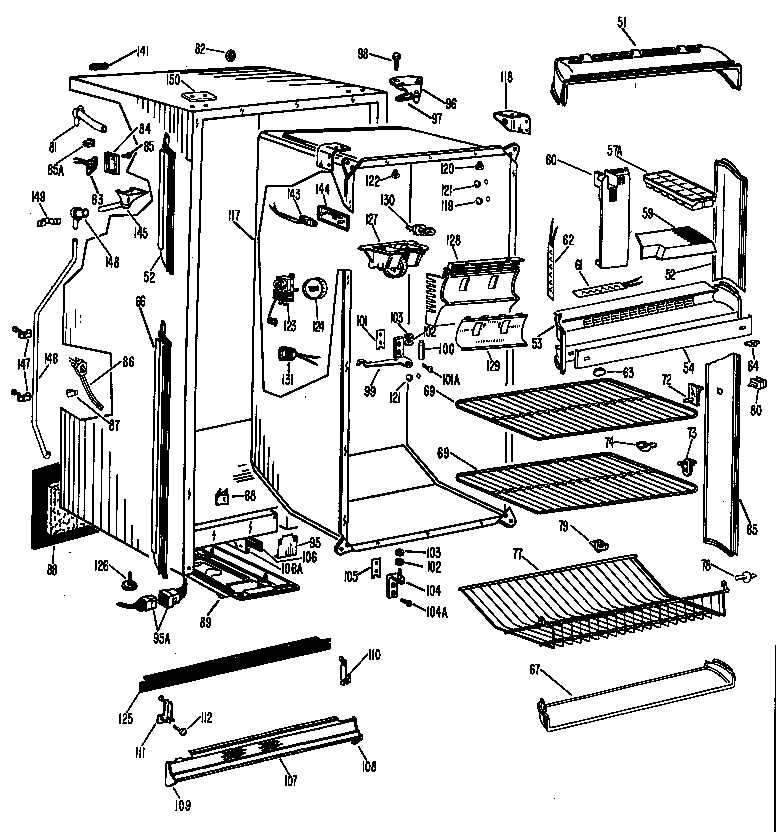

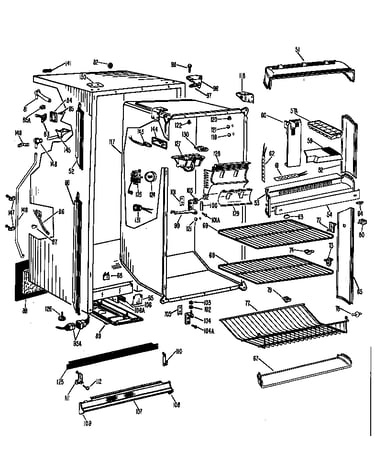

Cabinet/shelves diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Refrigerator Defrost Control WR9X335
#227

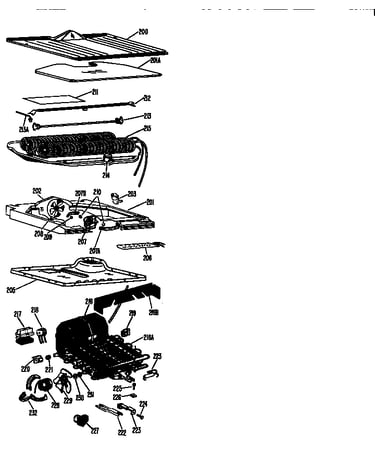

Unit diagram

Refrigerator defrost control

Part #WR9X335

Replaced by #WR9X480

?
Manufacturer substitution
This part replaces WR9X335. Substitute parts can look different from the original.
$35.25 |
15% OFF Phone Price : $41.25
In Stock
Refrigerator Cabinet Sealer Plug WR2X4097
#141

Cabinet/shelves diagram

Refrigerator cabinet sealer plug

Part #WR2X4097

$17.96 |
10% OFF Phone Price : $19.96
In Stock
Refrigerator Water Tubing Clip WR1X5278
#88

Cabinet/shelves diagram

Refrigerator water tubing clip

Part #WR1X5278

$7.57 |
12% OFF Phone Price : $8.57
In Stock
Refrigerator Clip WR2X3859
#68

Cabinet/shelves diagram

Refrigerator clip

Part #WR2X3859

This item is not returnable
$2.16
In Stock
Refrigerator Evaporator Fan Blade (replaces Swr2x3198, Swr60x114, Wr2x3198, Wr60x0114, Wr60x107, Wr60x113, Wr60x247, Wr60x55, Wr60x80) WR60X114
#208

Unit diagram

Refrigerator evaporator fan blade (replaces swr2x3198, swr60x114, wr2x3198, wr60x0114, wr60x107, wr60x113, wr60x247, wr60x55, wr60x80)

Part #WR60X114

This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Glide WR2X4978
#126

Cabinet/shelves diagram

Glide

Part #WR2X4978

$38.44
In Stock
Freezer Liner Button Plug WR2X3139
#121

Cabinet/shelves diagram

Freezer liner button plug

Part #WR2X3139

This item is not returnable
$5.00
In Stock
Refrigerator Screw, 2-pack WR1X5048
#227

Unit diagram

Refrigerator screw, 2-pack

Part #WR1X5048

Replaced by #WZ5X158D

?
Manufacturer substitution
This part replaces WR1X5048. Substitute parts can look different from the original.
$34.63 |
15% OFF Phone Price : $40.63
In Stock
Refrigerator Cable Clamp WR2X4445
#87

Cabinet/shelves diagram

Refrigerator cable clamp

Part #WR2X4445

Replaced by #WR1X5278

?
Manufacturer substitution
This part replaces WR2X4445. Substitute parts can look different from the original.
$7.57 |
12% OFF Phone Price : $8.57
In Stock
