Kenmore
Electric Range

Model # 1039887540 Official Kenmore 30" electric range with glass cooktop

Here are the diagrams and repair parts for Official Kenmore 1039887540 30" electric range with glass cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

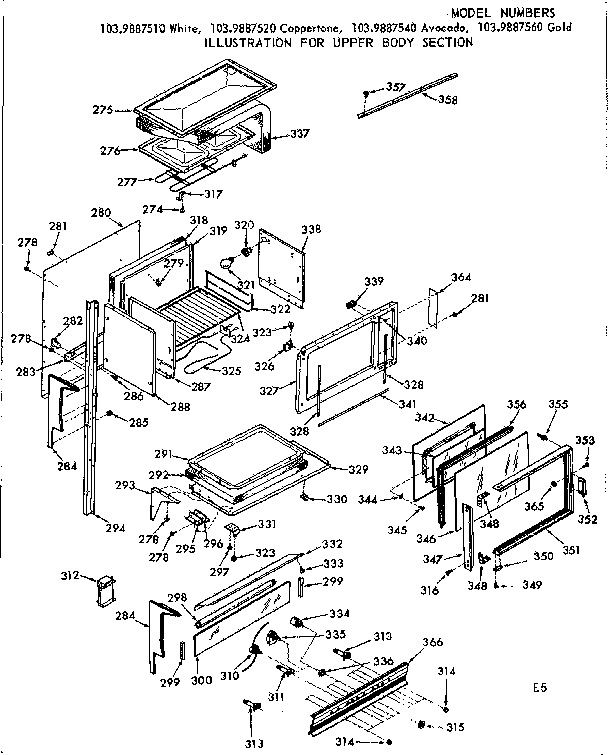

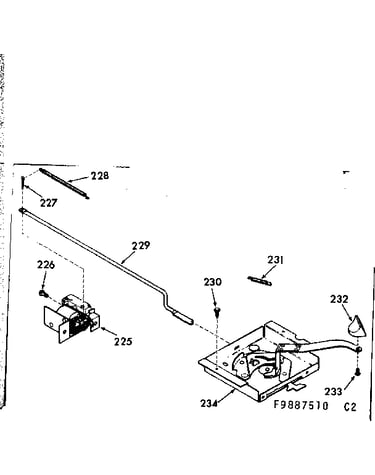

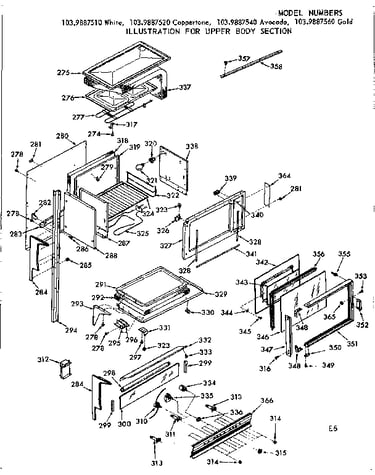

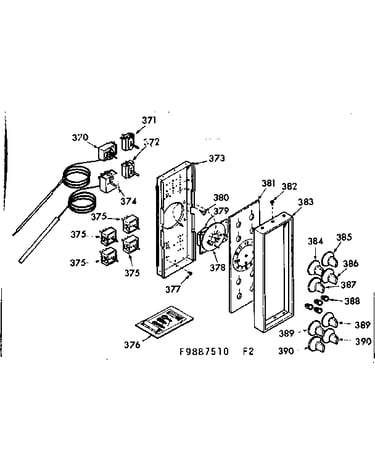

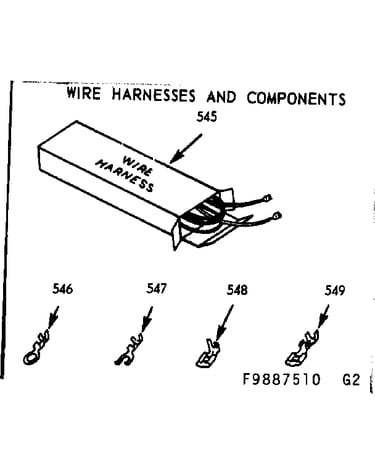

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 303 parts  |
Range Oven Light Bulb 111257
Range oven light bulb

Part #111257

Replaced by #40A15

?
Manufacturer substitution
This part replaces 111257. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Screw 102428
Screw

Part #102428

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 102428. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 295849
Screw

Part #295849

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 295849. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 102430
#67

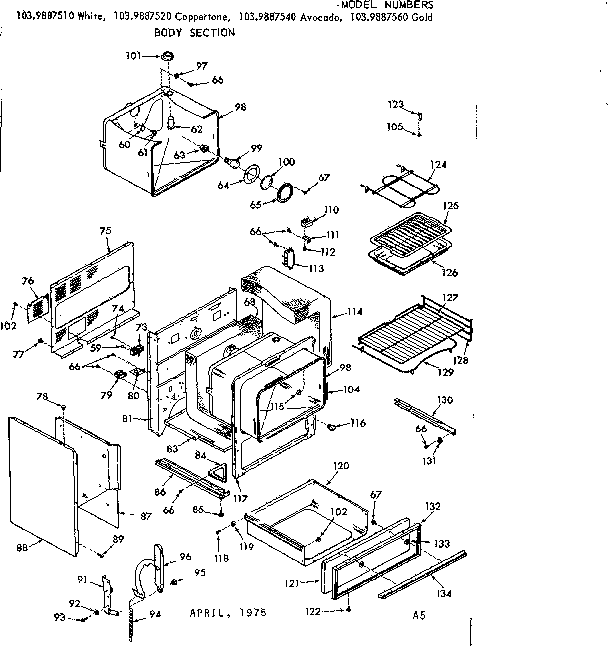

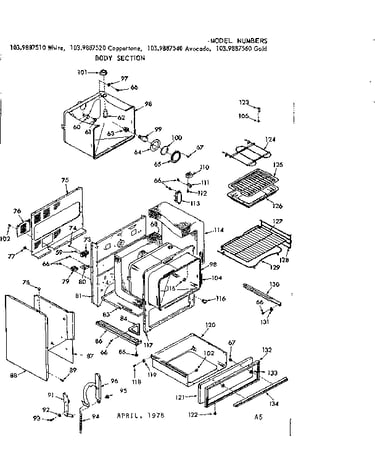

Body section diagram

Screw

Part #102430

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 102430. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Broil Element 293105
#124

Body section diagram

Broil element

Part #293105

Replaced by #WB44M5

?
Manufacturer substitution
This part replaces 293105. Substitute parts can look different from the original.
$68.07 |
8% OFF Phone Price : $74.07
In Stock
Screw 299424
#59

Body section diagram

Screw

Part #299424

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 299424. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Seal 288182
#167

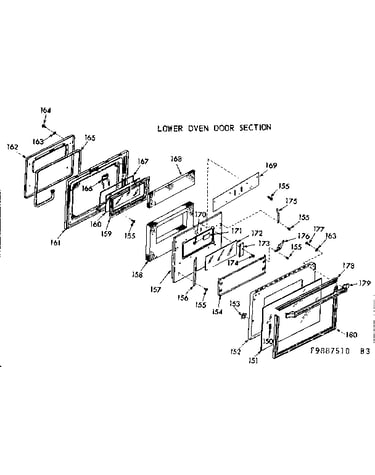

Lower oven door section diagram

Seal

Part #288182

Replaced by #WB2X9168

?
Manufacturer substitution
This part replaces 288182. Substitute parts can look different from the original.
This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Door Lining 299878
#161

Lower oven door section diagram

Door lining

Part #299878

$83.49
In Stock
Lead Wire (white) 284278
#262A

Optional rotisserie diagram

Lead wire (white)

Part #284278

This item is not returnable
$2.29
In Stock
Screw 75871
#261

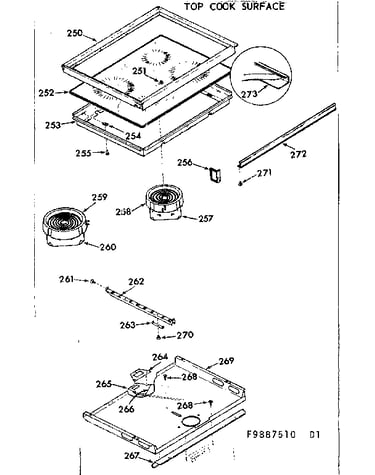

Main top cook surface diagram

Screw

Part #75871

This item is not returnable
$2.16
In Stock
