GE
Top-Mount Refrigerator

Model # TBF17SBCR Official GE refrigerator

Here are the diagrams and repair parts for Official GE TBF17SBCR refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

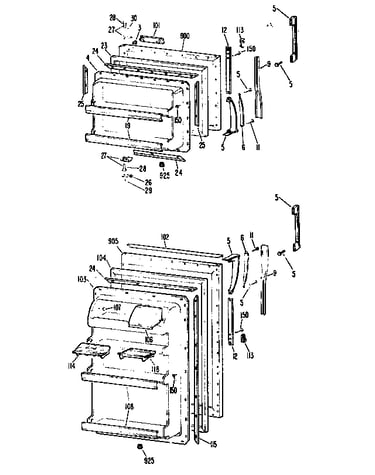

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 216 parts  |
Light Switch WR23X193
#609

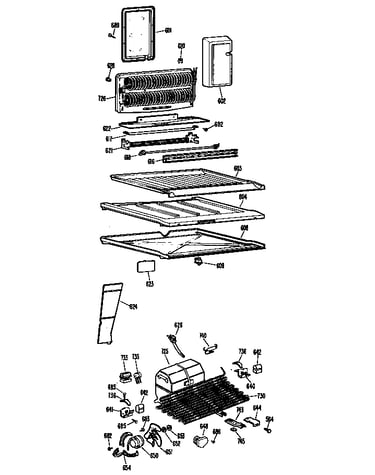

Unit diagram

Light switch

Part #WR23X193

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X193. Substitute parts can look different from the original.
$8.11
In Stock
Refrigerator Evaporator Fan Blade WR60X123
#613B

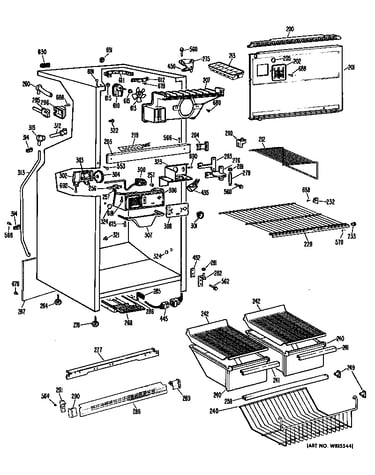

Cabinet diagram

Refrigerator evaporator fan blade

Part #WR60X123

$65.59 |
8% OFF Phone Price : $71.59
In Stock
Power Cord WR23X108
#626B

Unit diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Refrigerator Water Tubing Clip WR1X5278
#626A

Unit diagram

Refrigerator water tubing clip

Part #WR1X5278

$7.57 |
12% OFF Phone Price : $8.57
In Stock
Refrigerator Screw WR1X1596
#685

Unit diagram

Refrigerator screw

Part #WR1X1596

This item is not returnable
$2.49
In Stock
Cvr Mtg B WR2X7029
#736

Unit diagram

Cvr mtg b

Part #WR2X7029

This item is not returnable
$2.49
In Stock
Glide WR2X4978
#278

Cabinet diagram

Glide

Part #WR2X4978

$38.44
In Stock
Refrigerator Cabinet Sealer Plug WR2X4097
#630

Cabinet diagram

Refrigerator cabinet sealer plug

Part #WR2X4097

$17.96 |
10% OFF Phone Price : $19.96
In Stock
Refrigerator Crisper Drawer Cover WR32X5206
#242

Cabinet diagram

Refrigerator crisper drawer cover

Part #WR32X5206

$57.18 |
9% OFF Phone Price : $63.18
In Stock
Refrigerator Screw, 2-pack WR1X5048
#686

Unit diagram

Refrigerator screw, 2-pack

Part #WR1X5048

Replaced by #WZ5X158D

?
Manufacturer substitution
This part replaces WR1X5048. Substitute parts can look different from the original.
$34.63 |
15% OFF Phone Price : $40.63
In Stock
