Model # CPLE42-1 Official Goodman split-system heat pump

Here are the diagrams and repair parts for Official Goodman CPLE42-1 split-system heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Capacitor CAP050350440RSS
#141

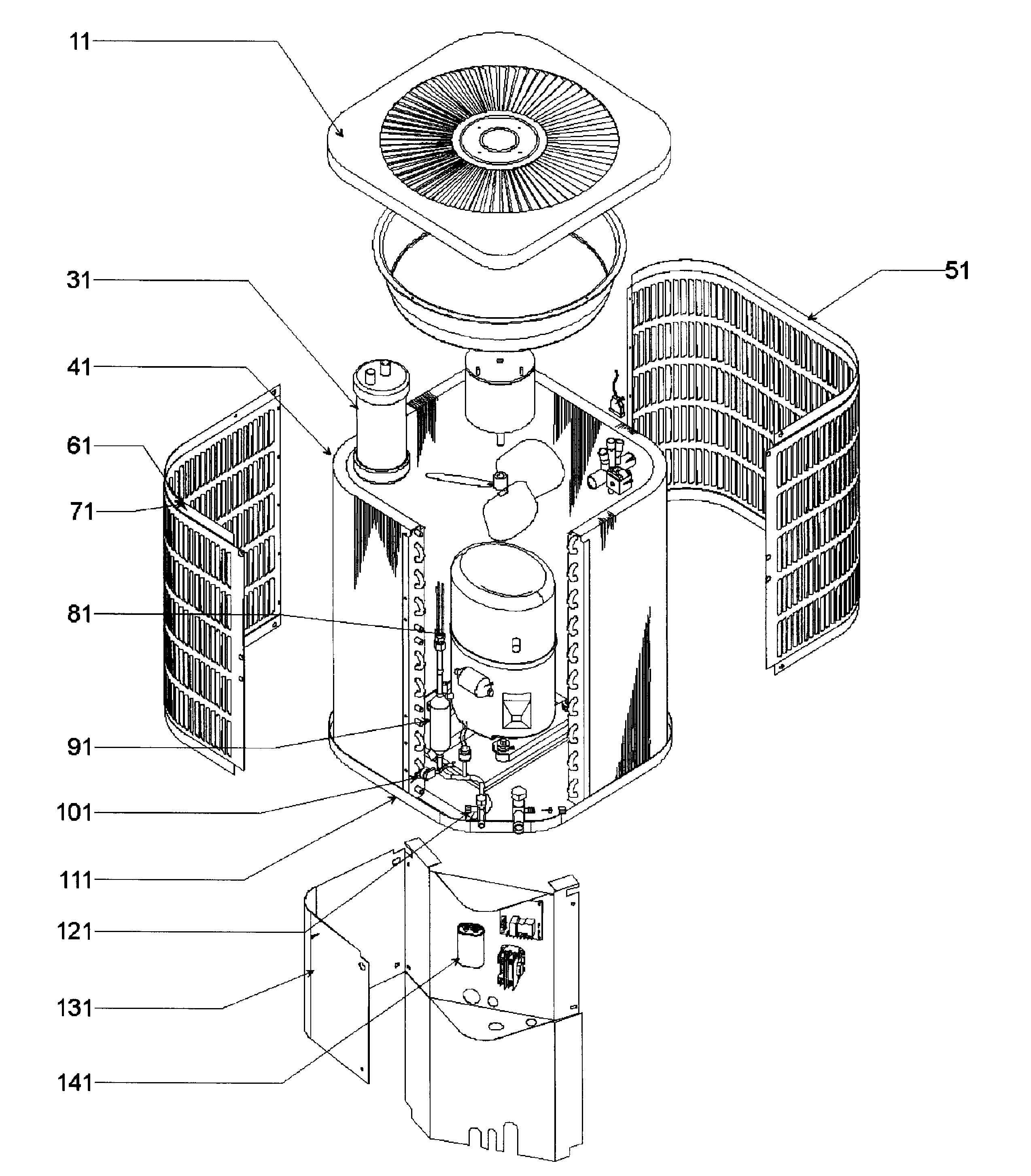

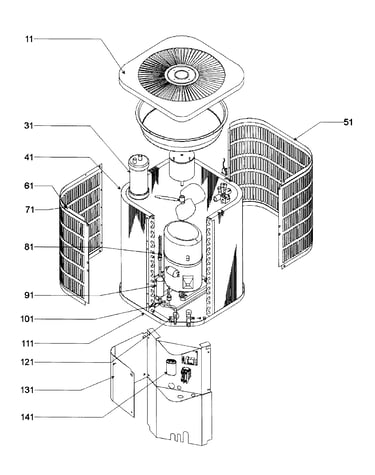

Main asy 1 diagram

Capacitor

Part #CAP050350440RSS

Replaced by #CAP050350440RSP

?
Manufacturer substitution
This part replaces CAP050350440RSS. Substitute parts can look different from the original.
This item is not returnable
$33.18 |
15% OFF Phone Price : $39.18
In Stock
Accumulatr B1226207
#31

Main asy 1 diagram

Accumulatr

Part #B1226207

$171.82
In Stock
Muffler B1219301
#221

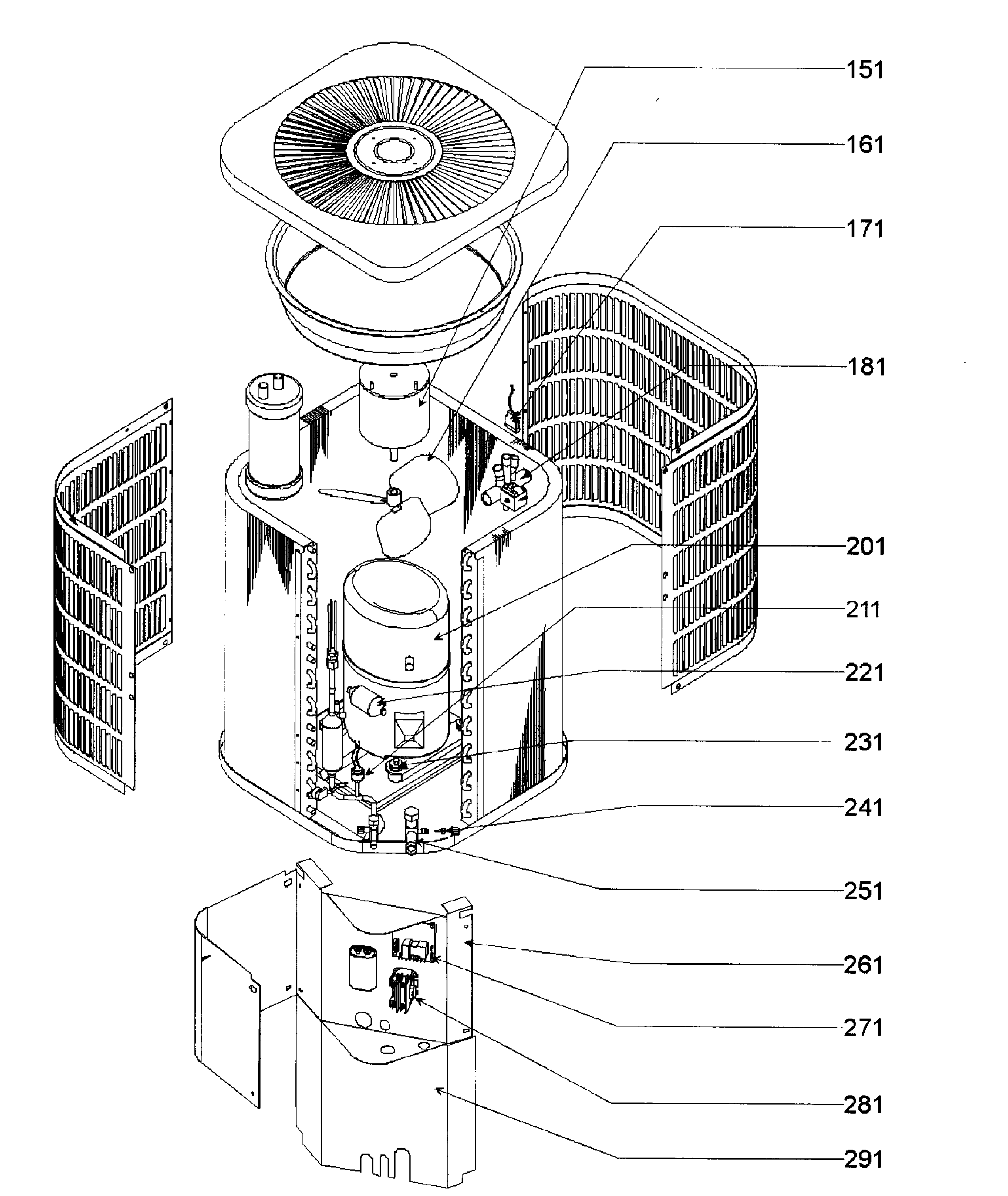

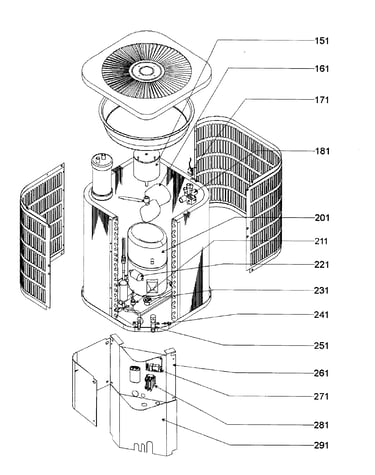

Main asy diagram

Muffler

Part #B1219301

$40.36
In Stock
Core,valve B1787000
#241

Main asy diagram

Core,valve

Part #B1787000

$8.29
In Stock
Louv Panel 1259561P
#51

Main asy 1 diagram

Louv panel

Part #1259561P

$84.16
In Stock
Grommet B1339530
#231

Main asy diagram

Grommet

Part #B1339530

This item is not returnable
$2.40
Back Order
Rev Valve B1227317S
#181

Main asy diagram

Rev valve

Part #B1227317S

Replaced by #0151R00070SP

?
Manufacturer substitution
This part replaces B1227317S. Substitute parts can look different from the original.
$227.24
In Stock
Sw,low-pre B1360719
#211

Main asy diagram

Sw,low-pre

Part #B1360719

Replaced by #0130R00058

?
Manufacturer substitution
This part replaces B1360719. Substitute parts can look different from the original.
$30.73
In Stock
Board B1226008
#271

Main asy diagram

Board

Part #B1226008

Replaced by #ICM318

?
Manufacturer substitution
This part replaces B1226008. Substitute parts can look different from the original.
$78.08 |
7% OFF Phone Price : $84.08
In Stock
Base B12825171
#121

Main asy 1 diagram

Base

Part #B12825171

The manufacturer no longer makes this part, and there's no substitute part
