Model # EBP3000A1 Official ICP fan coil

Here are the diagrams and repair parts for Official ICP EBP3000A1 fan coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 51 parts |

#AA

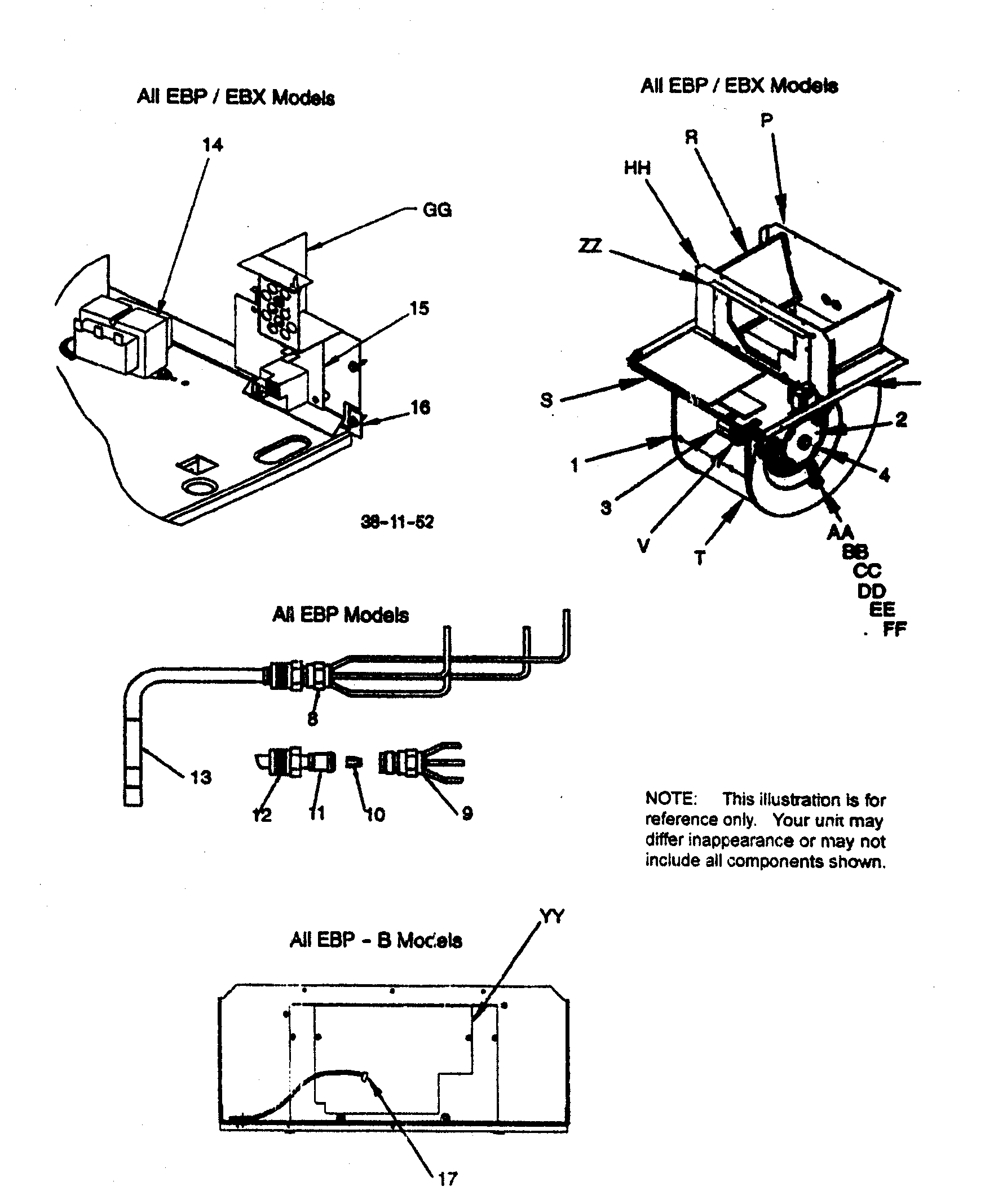

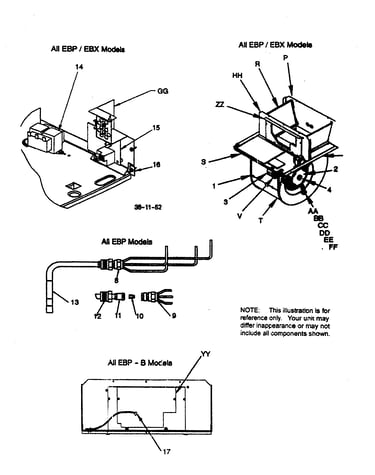

Blower assy diagram

Mtr mount

Part #1170649

$7.54

In Stock

Qty

Blower assy diagram

Bracket

Part #1171591

This item is not returnable

$5.97

In Stock

Qty

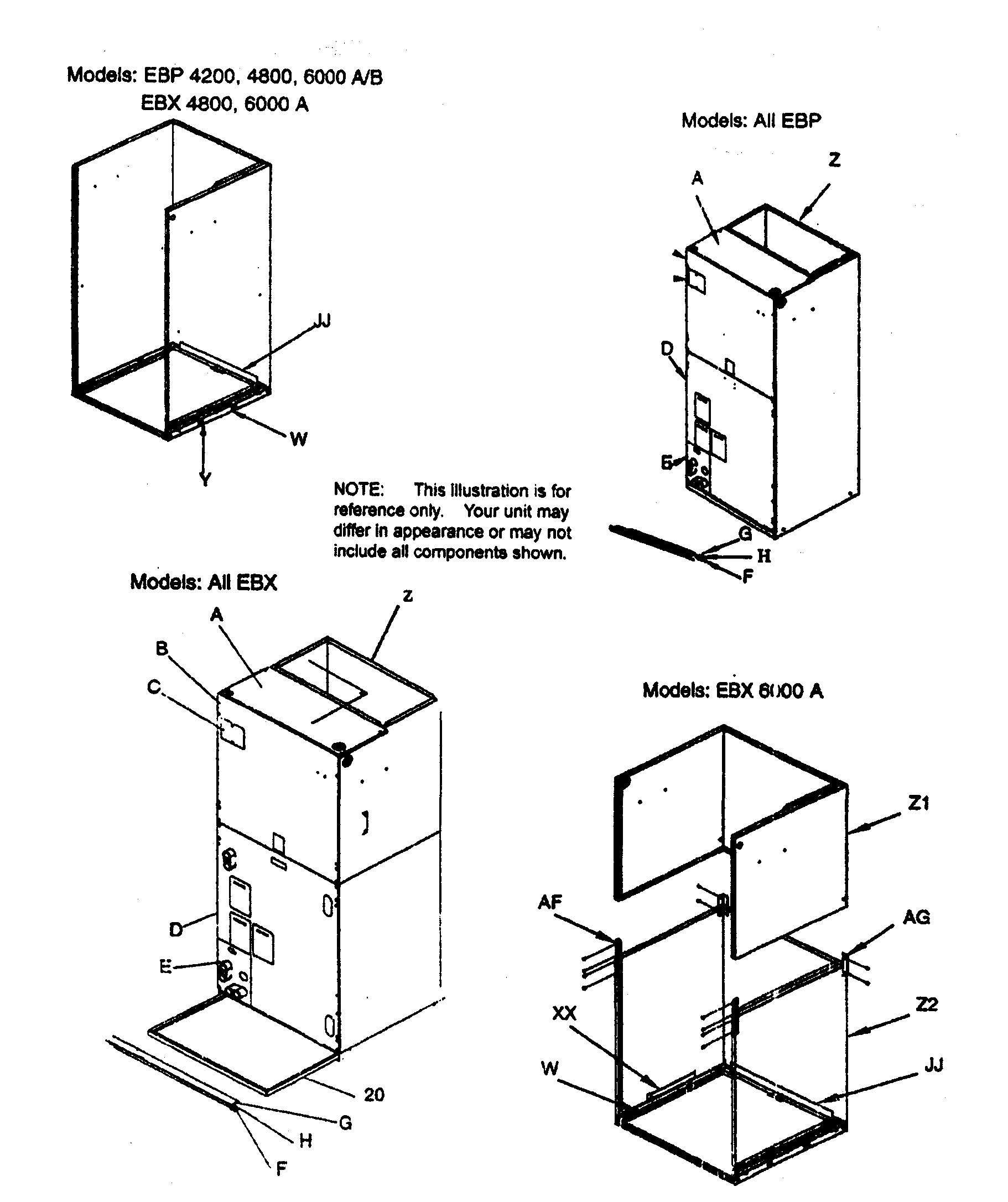

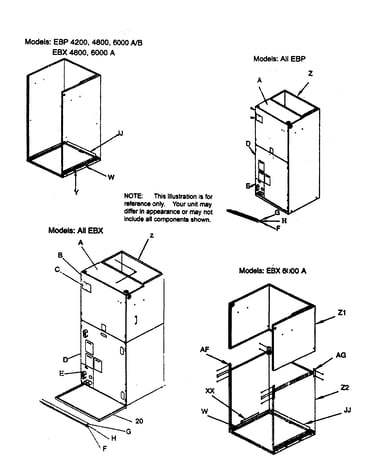

Cabinet assy 2 diagram

Latch

Part #1171573

This item is not returnable

$2.16

In Stock

Qty

#NI

Blower assy diagram

Grommet

Part #1171737

This item is not returnable

$2.34

In Stock

Qty

#NI

Blower assy diagram

Filter bracket

Part #1171656

$23.14

In Stock

Qty

#CC

Blower assy diagram

Screw

Part #1170636

This item is not returnable

$2.40

In Stock

Qty

#15

Blower assy diagram

Pcb

Part #1171000

$68.60

In Stock

Qty

#13

Blower assy diagram

Strainer

Part #1171739

$42.16

In Stock

Qty

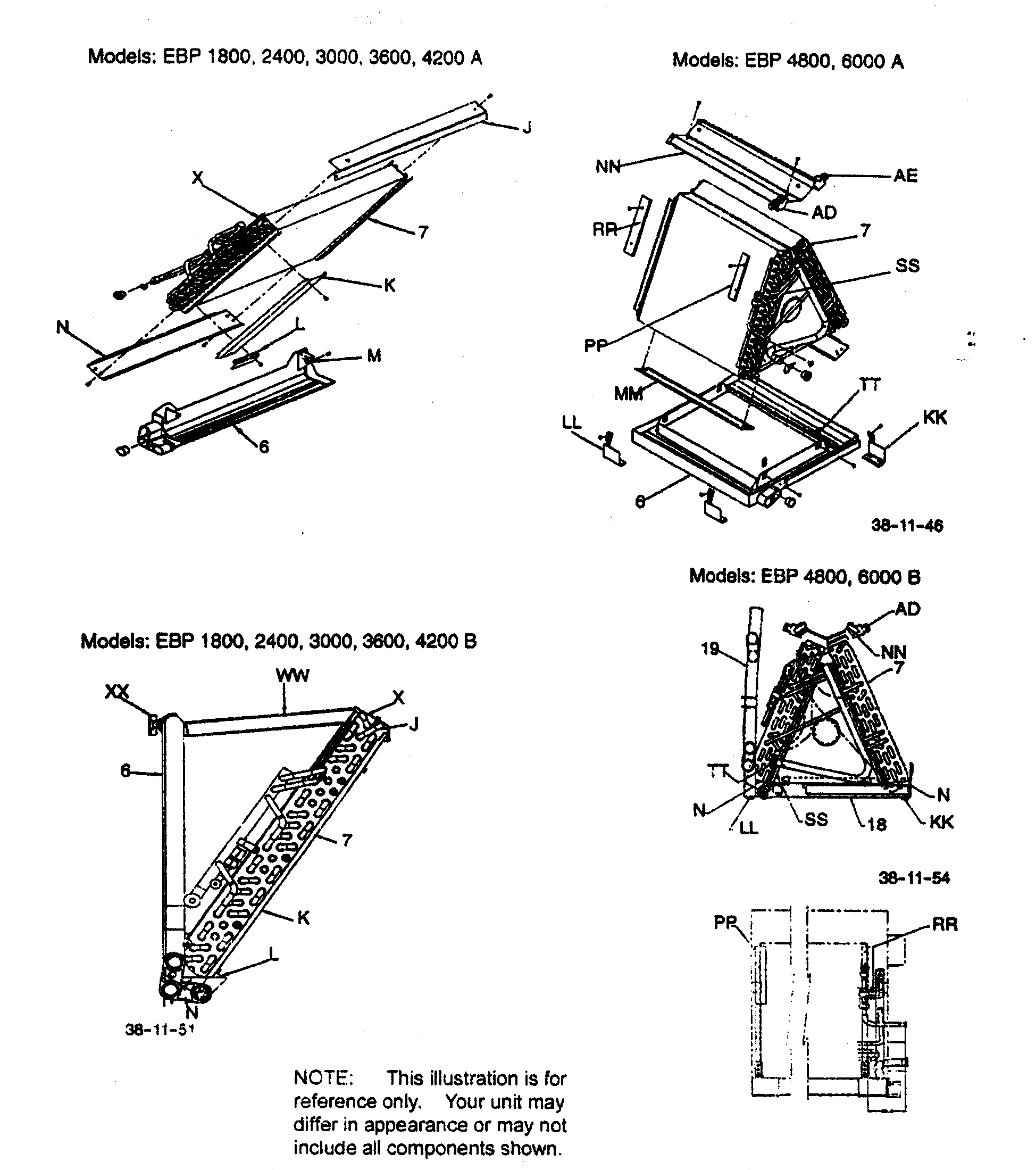

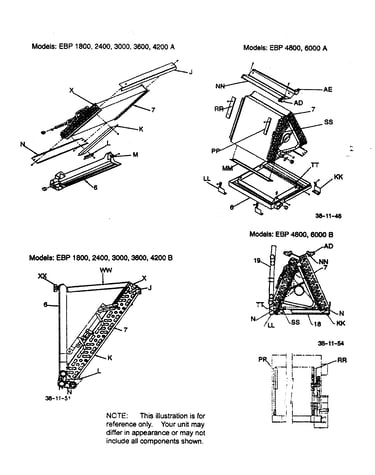

Coil assy diagram

Bracket

Part #1171630

$46.93

In Stock

Qty

#12

Blower assy diagram

Nut pist.retainer

Part #1170874

$12.29

In Stock

Qty
