Room Air Conditioner

Model # ACD125R Official Haier room air conditioner

Here are the diagrams and repair parts for Official Haier ACD125R room air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
ACD125R Room Air Conditioner
Amana Cover AC-1950-189
#21

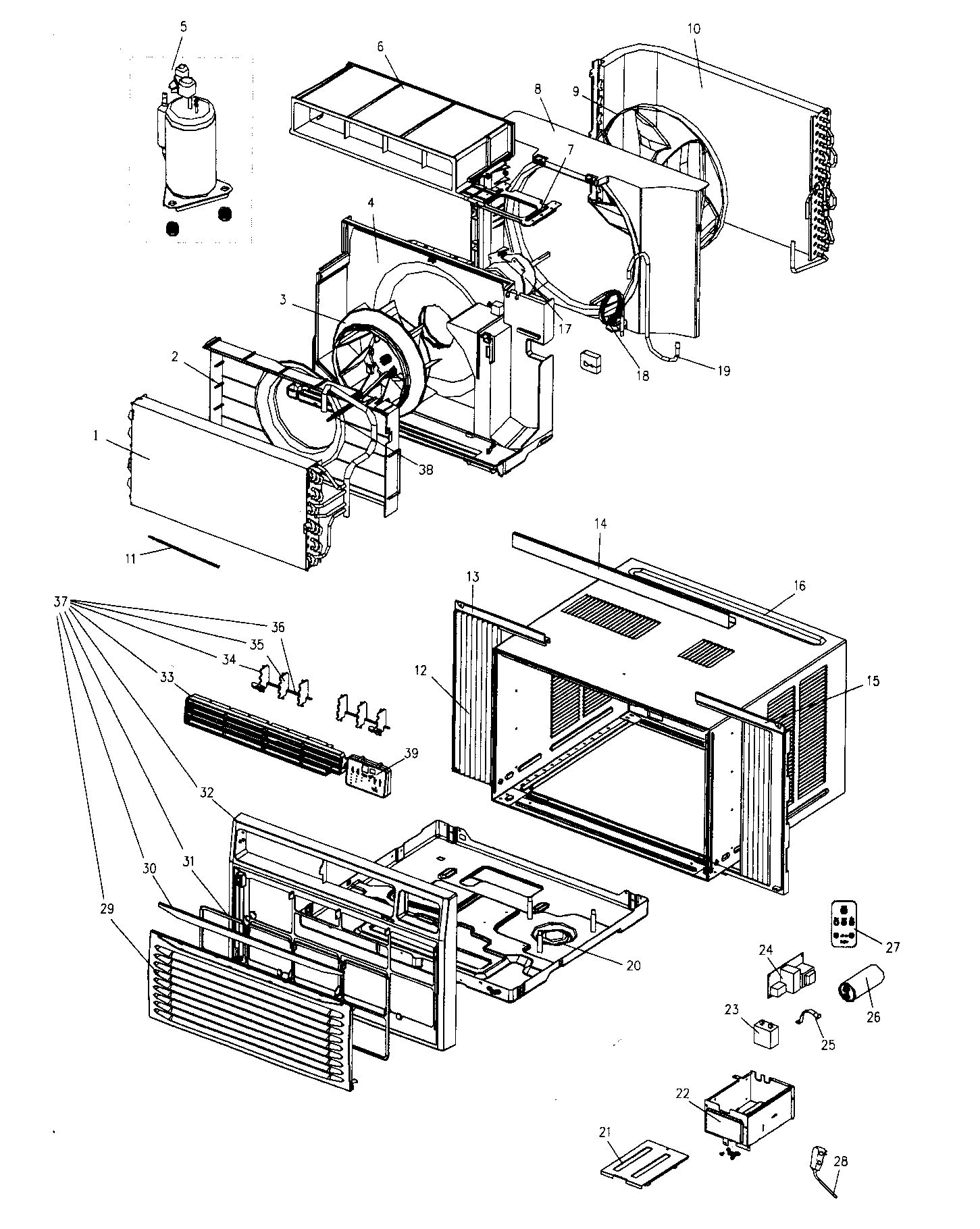

Cabinet parts diagram

Amana cover

Part #AC-1950-189

$8.99
In Stock
Haier Condenser AC-1800-80
#10

Cabinet parts diagram

Haier condenser

Part #AC-1800-80

$113.49
In Stock
Chassis AC-1620-10
#20

Cabinet parts diagram

Chassis

Part #AC-1620-10

$39.49
In Stock
Amana Plate AC-5300-176
#7

Cabinet parts diagram

Amana plate

Part #AC-5300-176

This item is not returnable
$3.49
In Stock
Haier Compressor AC-1750-30
#5

Cabinet parts diagram

Haier compressor

Part #AC-1750-30

$227.49
In Stock
Evaporator AC-2650-66
#1

Cabinet parts diagram

Evaporator

Part #AC-2650-66

$84.49
In Stock
Clip AC-1650-44
#25

Cabinet parts diagram

Clip

Part #AC-1650-44

This item is not returnable
$2.99
In Stock
Amana Vert Flap AC-2850-20
#35

Cabinet parts diagram

Amana vert flap

Part #AC-2850-20

This item is not returnable
$2.49
In Stock
Amana Panel AC-5200-265
#2

Cabinet parts diagram

Amana panel

Part #AC-5200-265

$10.99
In Stock
Amana Panel AC-5200-267
#6

Cabinet parts diagram

Amana panel

Part #AC-5200-267

$11.99
In Stock
