Model # C1409910 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover C1409910 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Release Lever Handle 38458022
#30

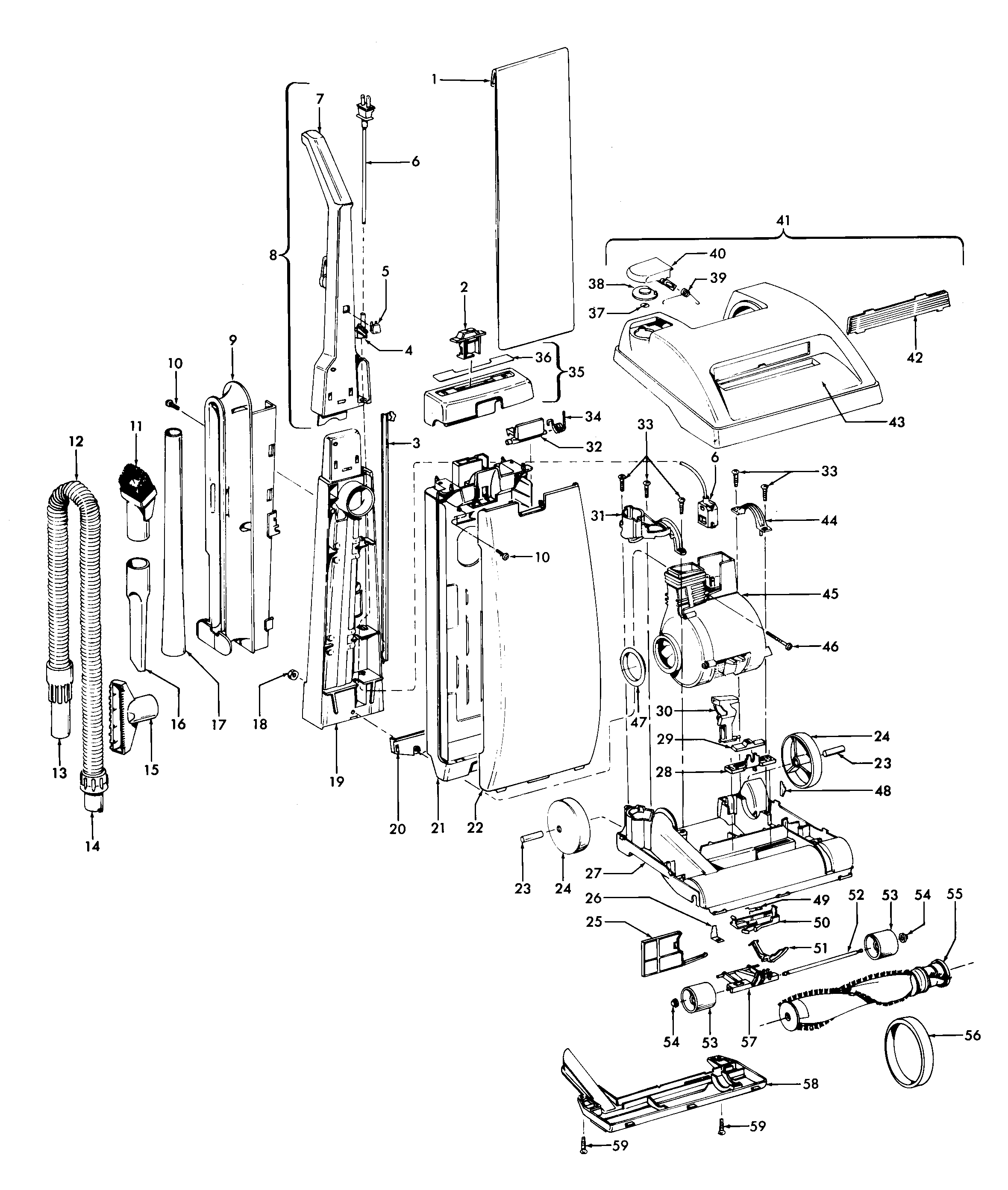

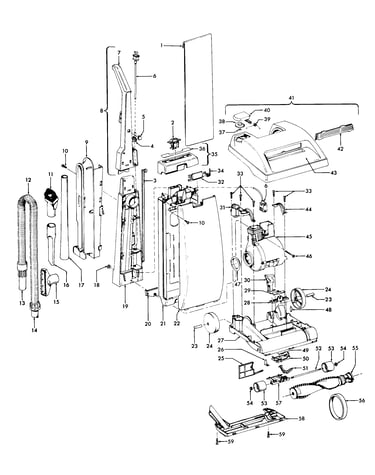

Mainbody, handle, outerbag diagram

Release lever handle

Part #38458022

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447217
#33

Mainbody, handle, outerbag diagram

Regina vacuum screw

Part #21447217

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 38522011
#24

Mainbody, handle, outerbag diagram

Vacuum wheel

Part #38522011

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Spring 38355008
#34

Mainbody, handle, outerbag diagram

Kenmore spring

Part #38355008

The manufacturer no longer makes this part, and there's no substitute part

Valve Gate 38718005
#25

Mainbody, handle, outerbag diagram

Valve gate

Part #38718005

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Conical Washer 21347003
#21

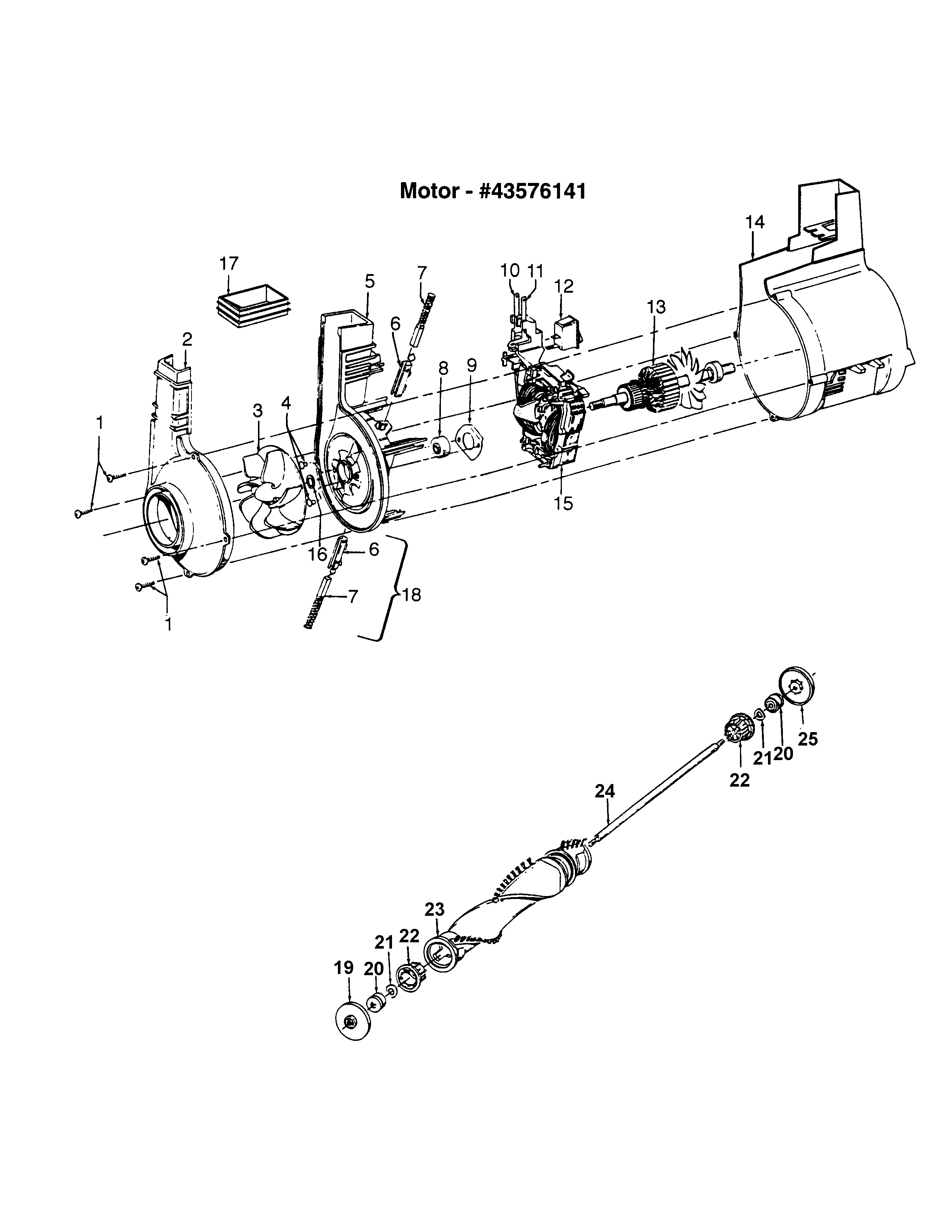

Agitator, motor assembly diagram

Vacuum conical washer

Part #21347003

The manufacturer no longer makes this part, and there's no substitute part

In Cloth Bag 43667034
#60D

Mainbody, handle, outerbag diagram

In cloth bag

Part #43667034

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Speed Nut 21362006
#37

Mainbody, handle, outerbag diagram

Kenmore speed nut

Part #21362006

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Assembly 43576201
#1A

Agitator, motor assembly diagram

Vacuum motor assembly

Part #43576201

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel Axle 31531008
#23

Mainbody, handle, outerbag diagram

Vacuum wheel axle

Part #31531008

The manufacturer no longer makes this part, and there's no substitute part
