Model # JRS04BW2BB Official GE electric wall oven

Here are the diagrams and repair parts for Official GE JRS04BW2BB electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Sensor WB21X5347
#253

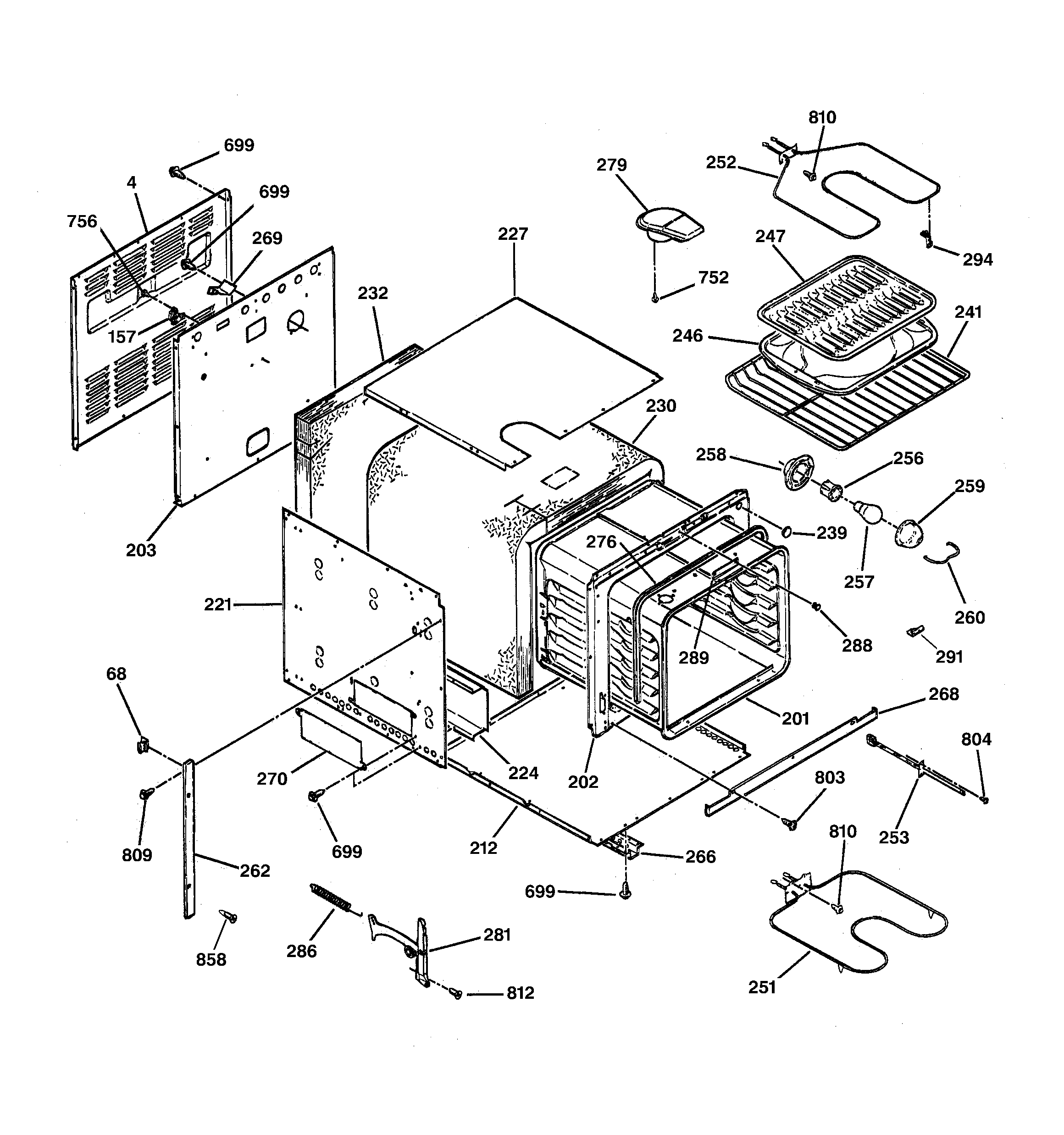

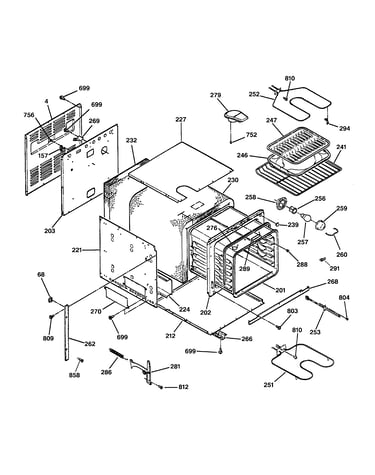

Body parts diagram

Sensor

Part #WB21X5347

Replaced by #WB21X5301

?
Manufacturer substitution
This part replaces WB21X5347. Substitute parts can look different from the original.
BEST SELLER
$147.17 |
8% OFF Phone Price : $159.17
In Stock
Range Bake Element (replaces 347753, Wb44k5008) WB44K5013
#251

Body parts diagram

Range bake element (replaces 347753, wb44k5008)

Part #WB44K5013

BEST SELLER
$69.19 |
8% OFF Phone Price : $75.19
In Stock
Broil Support WB02X9719
#294

Body parts diagram

Broil support

Part #WB02X9719

Replaced by #WB2X9719

?
Manufacturer substitution
This part replaces WB02X9719. Substitute parts can look different from the original.
BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Oven Rack WB48X0218
#241

Body parts diagram

Oven rack

Part #WB48X0218

Replaced by #WB48T10094

?
Manufacturer substitution
This part replaces WB48X0218. Substitute parts can look different from the original.
$30.47 |
16% OFF Phone Price : $36.47
Back Order
Wall Oven Light Lens WB36X0389
#259

Body parts diagram

Wall oven light lens

Part #WB36X0389

Replaced by #WB36X192

?
Manufacturer substitution
This part replaces WB36X0389. Substitute parts can look different from the original.
This item is not returnable
$9.54 |
9% OFF Phone Price : $10.54
In Stock
Dr Hndl Ecap WB15K5069
#397

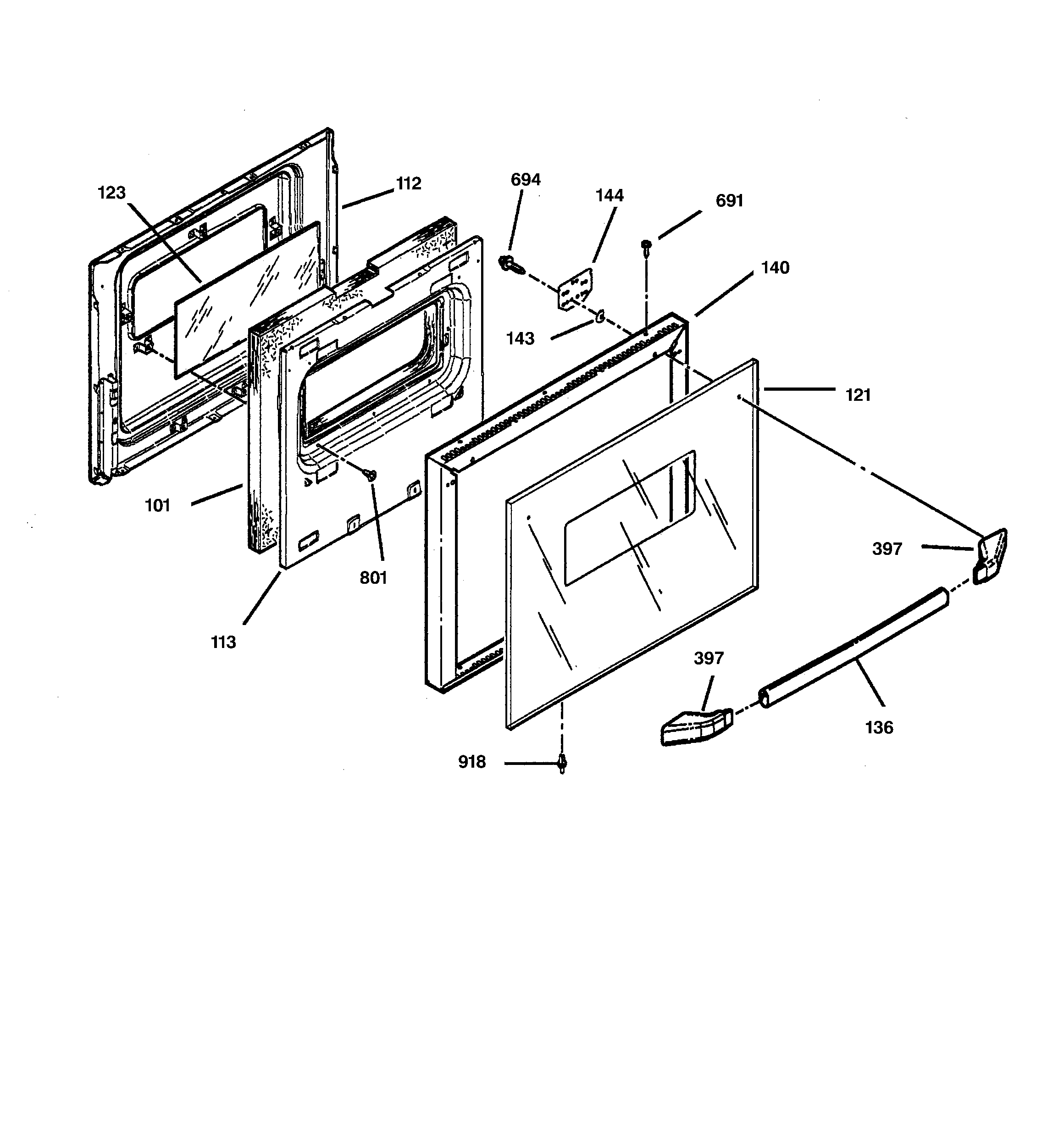

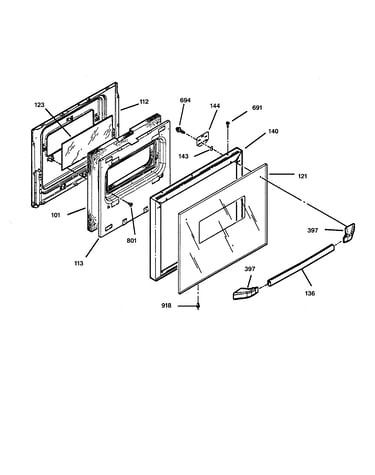

Door diagram

Dr hndl ecap

Part #WB15K5069

Replaced by #WB7X7183

?
Manufacturer substitution
This part replaces WB15K5069. Substitute parts can look different from the original.
$15.82 |
11% OFF Phone Price : $17.82
In Stock
Wall Oven Door Outer Panel (black) (replaces Wb57k5060, Wb57k5258) WB57K5256
#121

Door diagram

Wall oven door outer panel (black) (replaces wb57k5060, wb57k5258)

Part #WB57K5256

$67.37 |
8% OFF Phone Price : $73.37
In Stock
Screw WB01X1137
#809

Body parts diagram

Screw

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB01K5073
#756

Body parts diagram

Screw

Part #WB01K5073

Replaced by #WB1X536

?
Manufacturer substitution
This part replaces WB01K5073. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB01K5028
#760

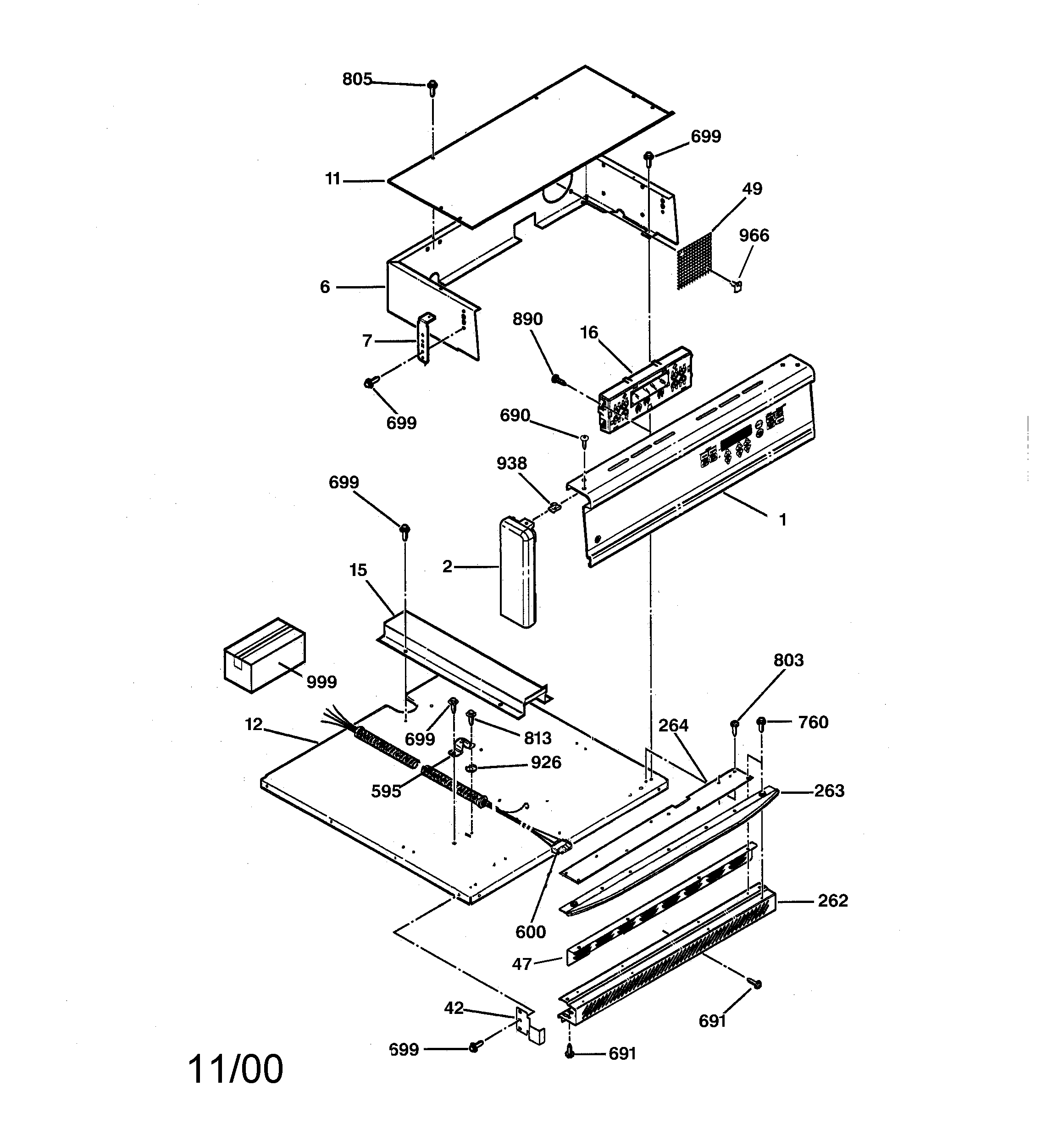

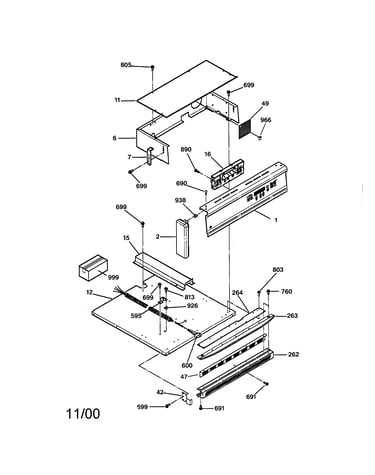

Control panel diagram

Screw

Part #WB01K5028

Replaced by #WB1X536

?
Manufacturer substitution
This part replaces WB01K5028. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
