Model # 390304300 Official Craftsman 1/3-hp submersible sump pump

Here are the diagrams and repair parts for Official Craftsman 390304300 1/3-hp submersible sump pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

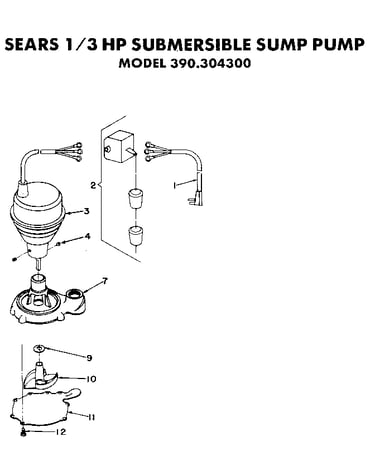

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 10 parts  |
Impeller S5-12
#10

Sears 1/3 hp submersible sump pump diagram

Impeller

Part #S5-12

$18.96
In Stock
Motor PS218-73
#3

Sears 1/3 hp submersible sump pump diagram

Motor

Part #PS218-73

The manufacturer no longer makes this part, and there's no substitute part

Switch 42-3029
#2

Sears 1/3 hp submersible sump pump diagram

Switch

Part #42-3029

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw U30-785SS
#12

Sears 1/3 hp submersible sump pump diagram

Cap screw

Part #U30-785SS

The manufacturer no longer makes this part, and there's no substitute part

Drain S1-27PA
#7

Sears 1/3 hp submersible sump pump diagram

Drain

Part #S1-27PA

The manufacturer no longer makes this part, and there's no substitute part

Screw U30-376SS
#4

Sears 1/3 hp submersible sump pump diagram

Screw

Part #U30-376SS

The manufacturer no longer makes this part, and there's no substitute part

Volute Cover S4-15P
#11

Sears 1/3 hp submersible sump pump diagram

Volute cover

Part #S4-15P

The manufacturer no longer makes this part, and there's no substitute part

Thrust Washer S43-13
#9

Sears 1/3 hp submersible sump pump diagram

Thrust washer

Part #S43-13

The manufacturer no longer makes this part, and there's no substitute part

Cord Plug PS17-31
#1

Sears 1/3 hp submersible sump pump diagram

Cord plug

Part #PS17-31

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual F642-14784

#NI

All parts diagram

Owner's manual

Part #F642-14784

The manufacturer no longer makes this part, and there's no substitute part
