Carrier
Heating & Cooling Combined Unit

Model # 50XZ024300 Official Carrier heat pump

Here are the diagrams and repair parts for Official Carrier 50XZ024300 heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Contactor HN51KB024
#90

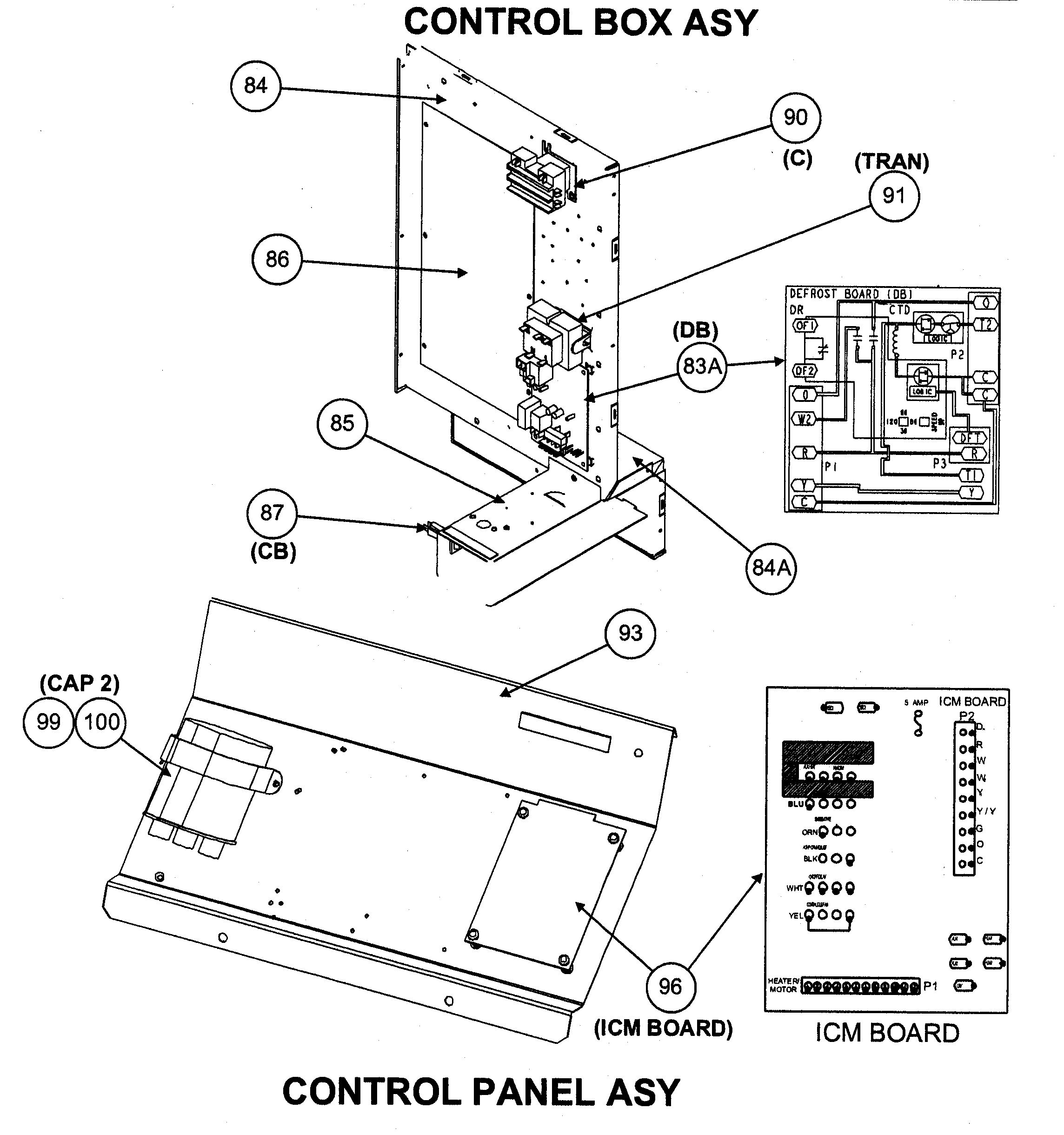

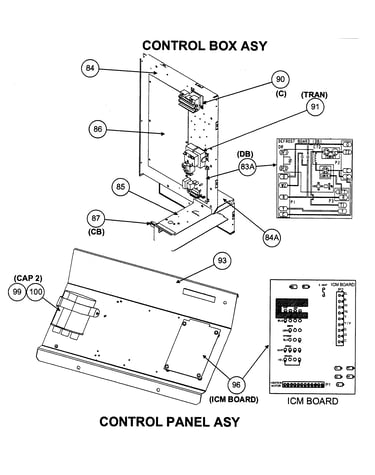

Control box ass/control panel assy diagram

Contactor

Part #HN51KB024

Replaced by #90-244

?
Manufacturer substitution
This part replaces HN51KB024. Substitute parts can look different from the original.
BEST SELLER
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Central Air Conditioner Filter Dryer KH43LG072
#110

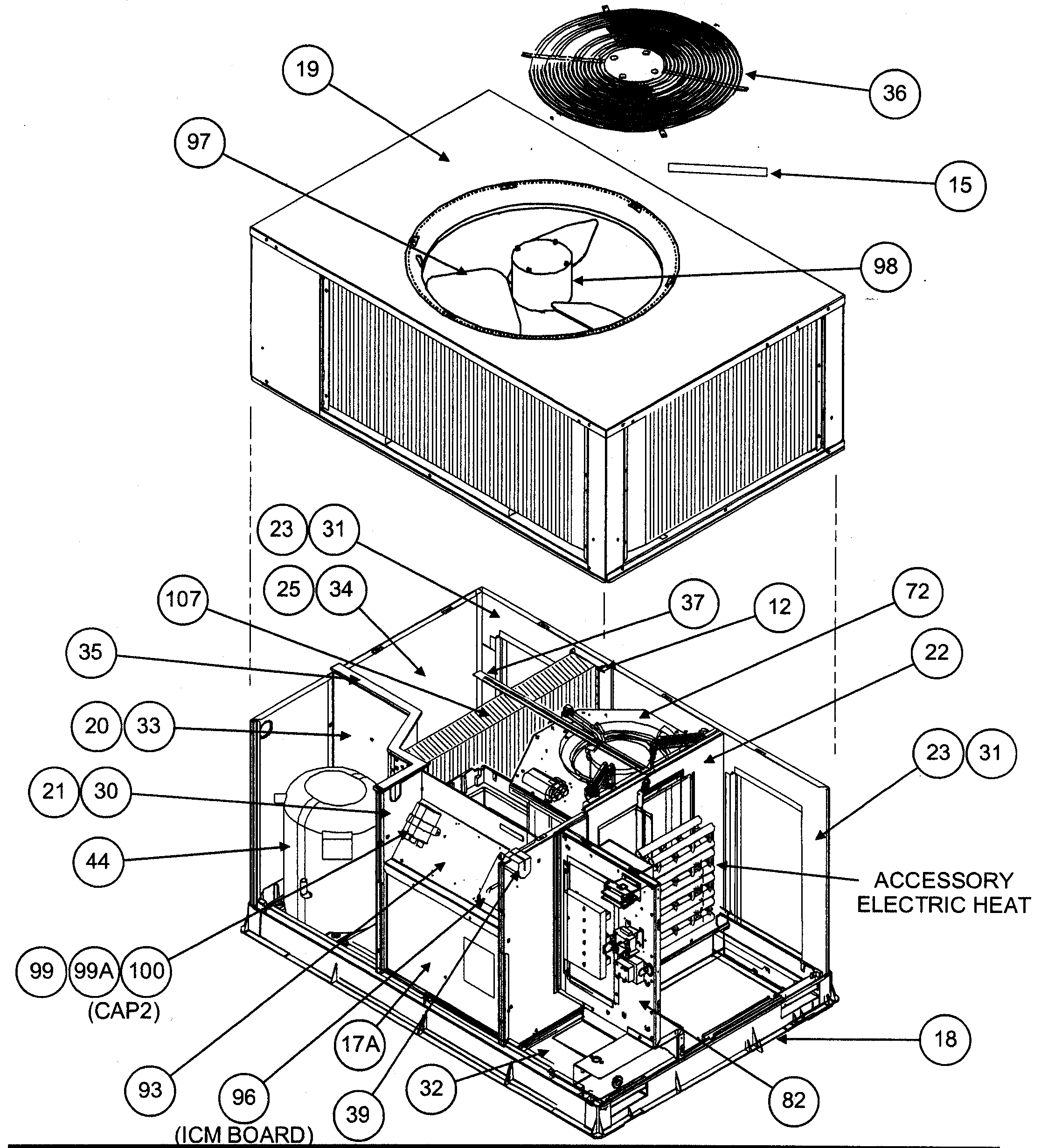

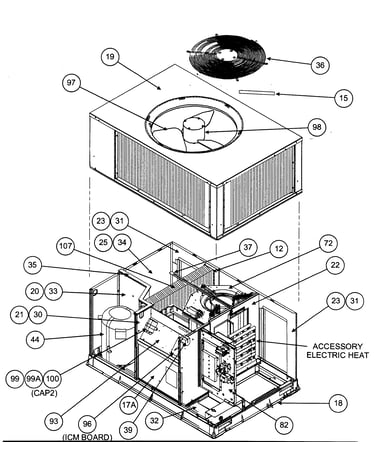

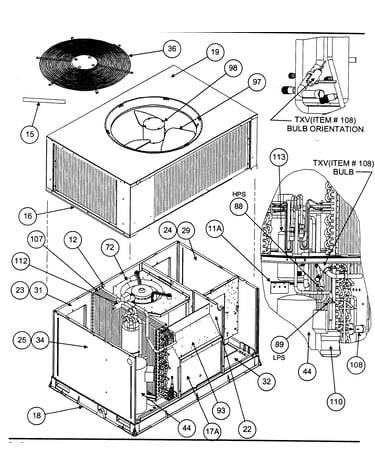

Inside view 2 diagram

Central air conditioner filter dryer

Part #KH43LG072

$120.16 |
9% OFF Phone Price : $132.16
In Stock
Payne Panel 48GS400495
#10

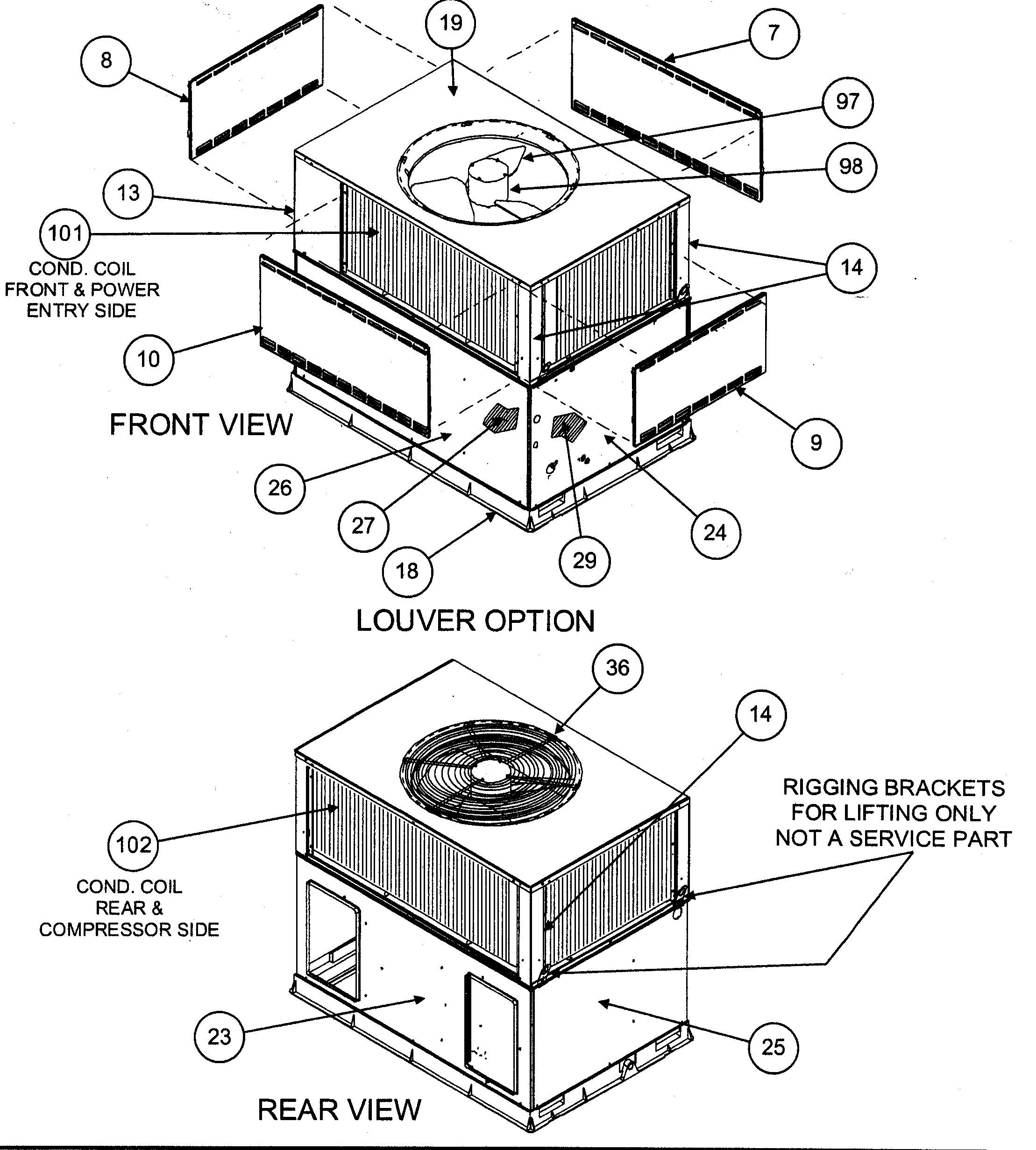

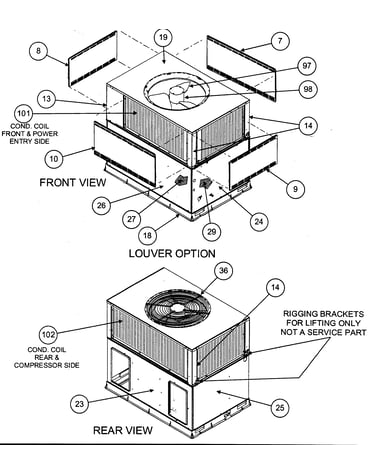

Front view/louver option/rear view diagram

Payne panel

Part #48GS400495

$219.82
In Stock
Blower Assembly 48GS400594
Blower assembly

Part #48GS400594

$3024.29
In Stock
Payne Propeller LA01RA031
Payne propeller

Part #LA01RA031

$242.58
In Stock
Grommet KA56DS001
#39

Inside view 1 diagram

Grommet

Part #KA56DS001

This item is not returnable
$2.63
In Stock
Partition 48GS500006
#22

Inside view 1 diagram

Partition

Part #48GS500006

$219.64
In Stock
Switch HK02ZA402
#88

Inside view 2 diagram

Switch

Part #HK02ZA402

$159.92
In Stock
Bolt AA06BS228
#76

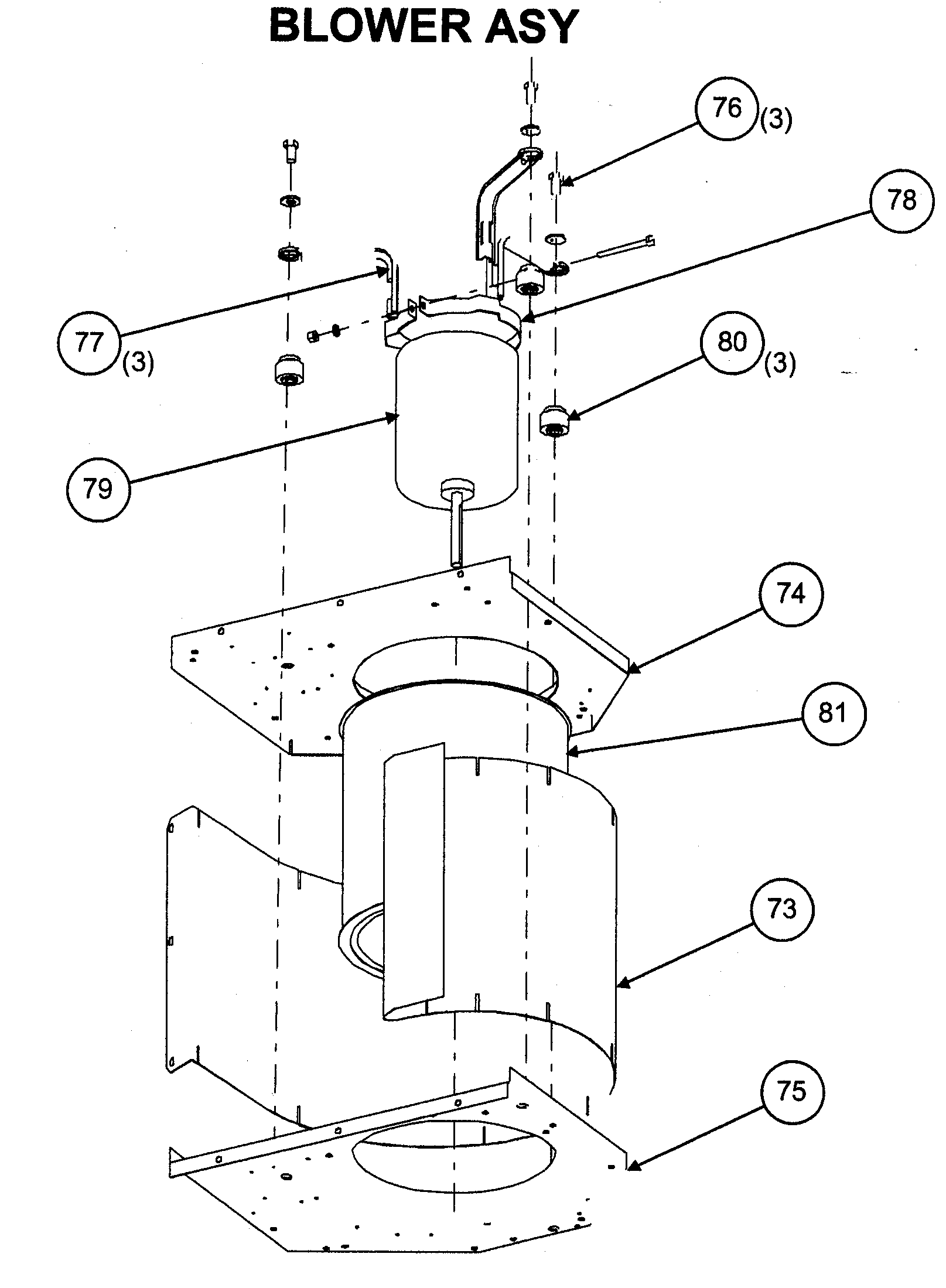

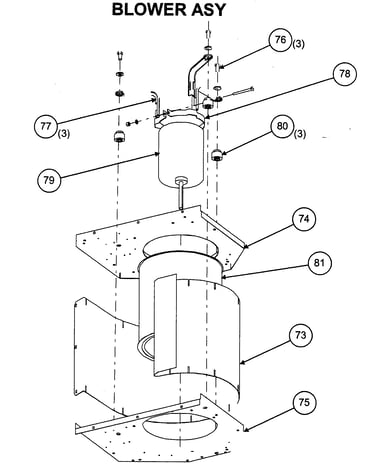

Blower assy diagram

Bolt

Part #AA06BS228

This item is not returnable
$3.83
In Stock
Top Assembly 48GS400058
#16

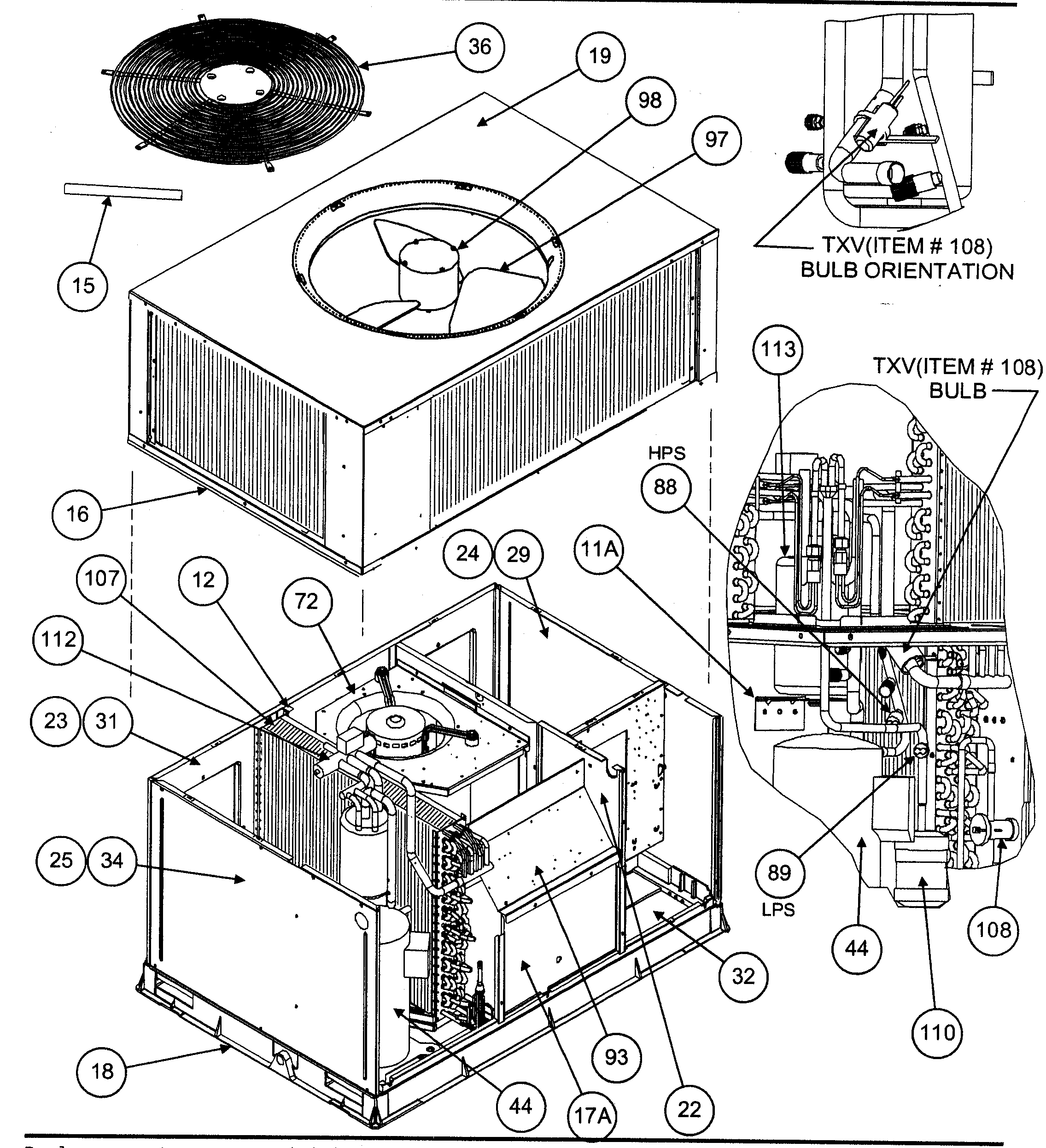

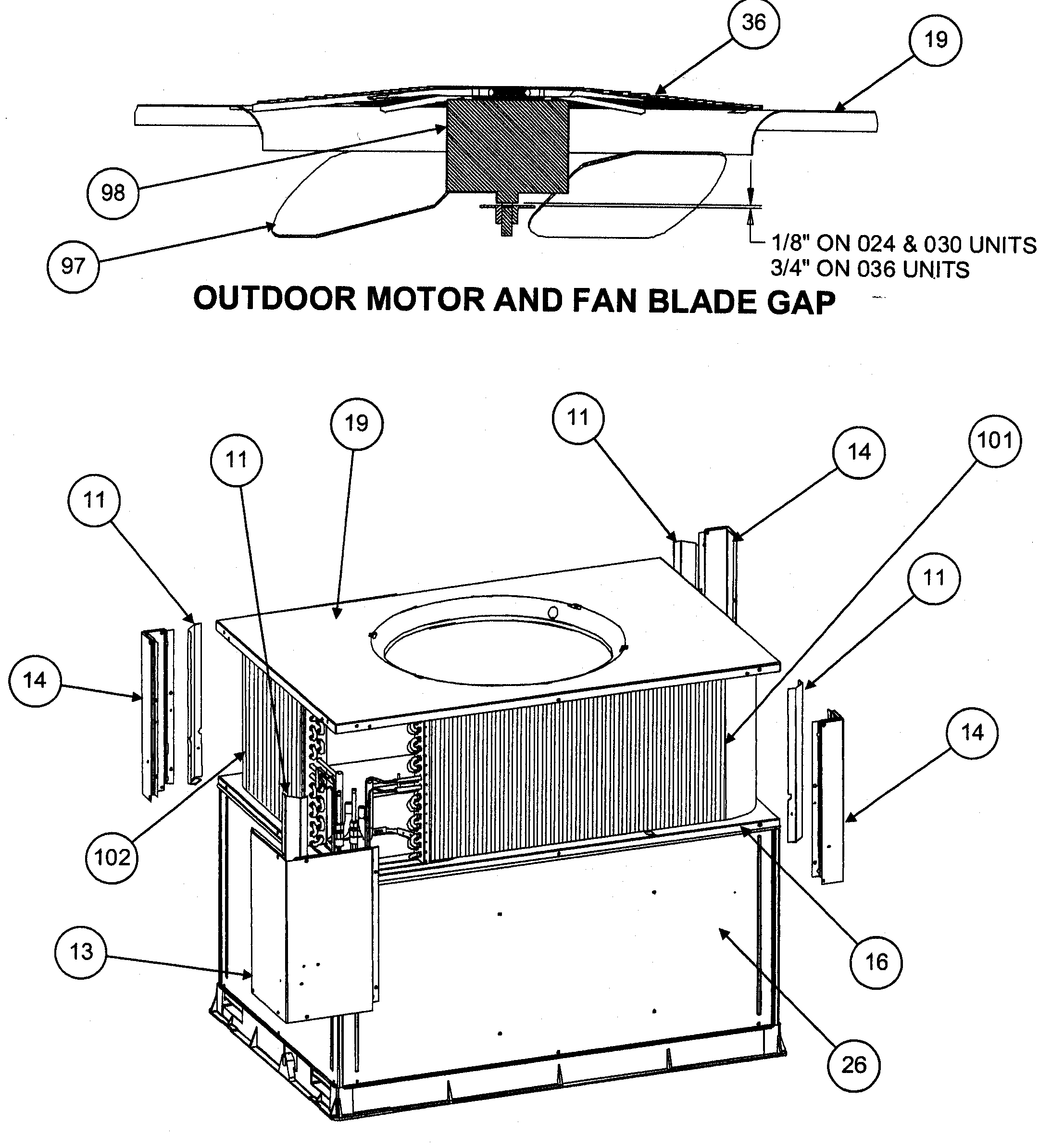

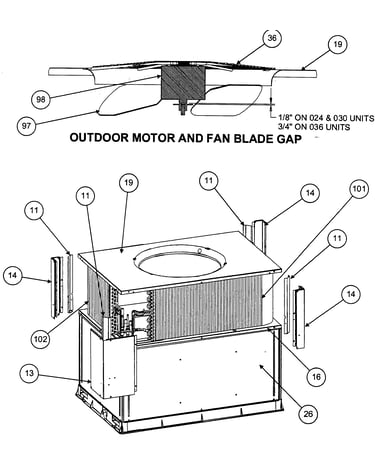

Inside view 2 diagram

Top assembly

Part #48GS400058

$327.00
In Stock
