Model # RWG321T/P1118501M Official Amana microwave

Here are the diagrams and repair parts for Official Amana RWG321T-P1118501M microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

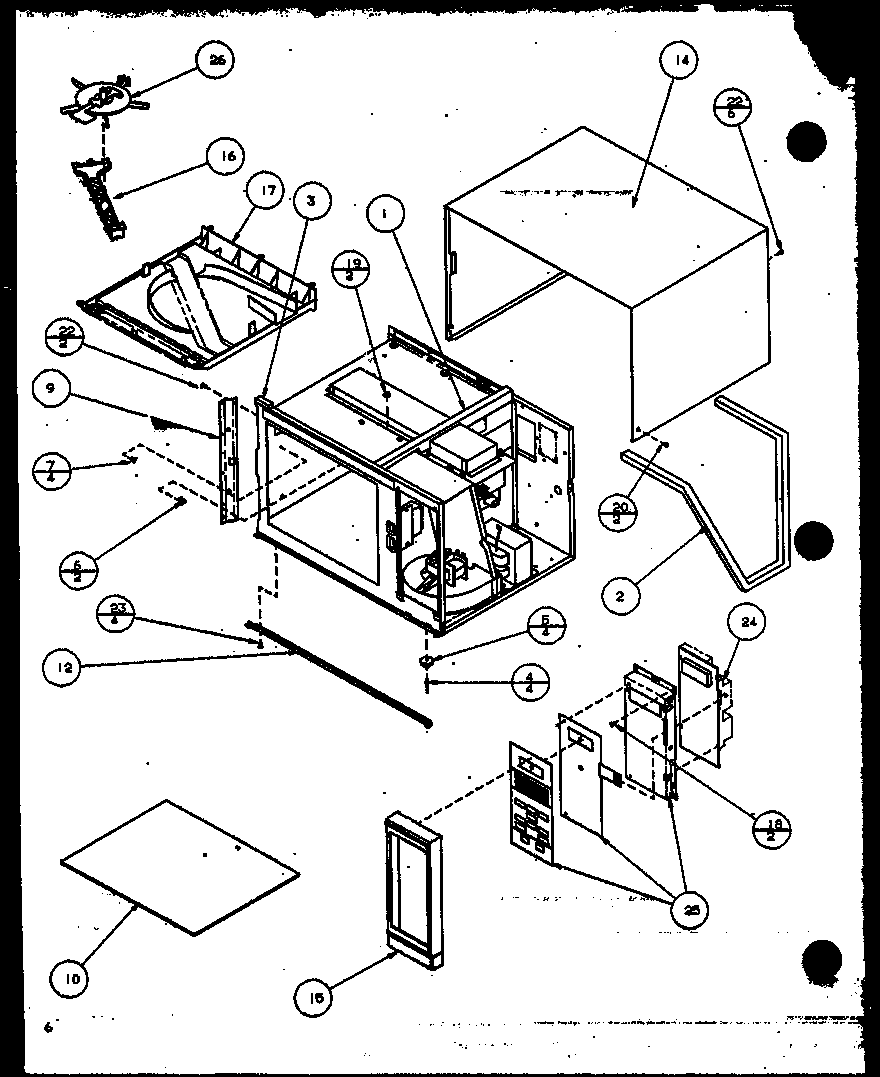

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Lamp A0282805
#1

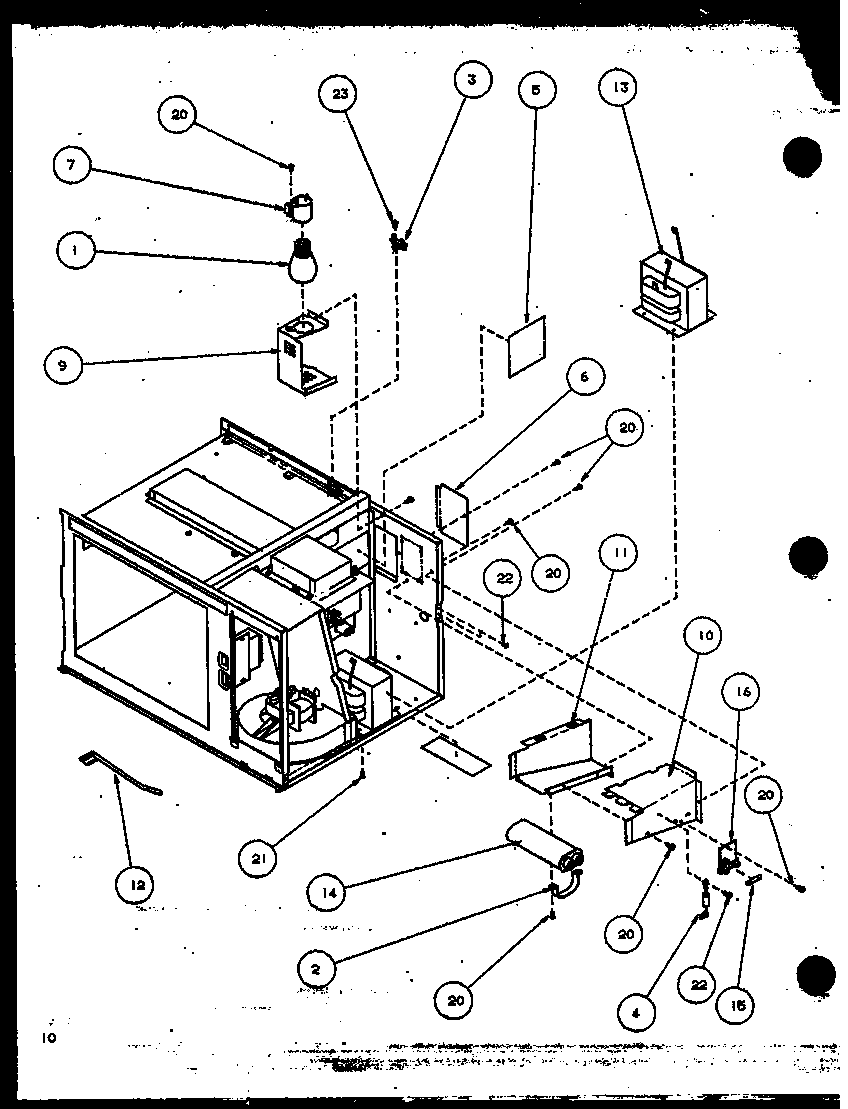

Transformer/capacitor/fuse diagram

Lamp

Part #A0282805

Replaced by #40A15

?
Manufacturer substitution
This part replaces A0282805. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Paint White A0050702

#NI

All parts diagram

Paint white

Part #A0050702

Replaced by #350930

?
Manufacturer substitution
This part replaces A0050702. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Screw M0216729
#21

Transformer/capacitor/fuse diagram

Screw

Part #M0216729

Replaced by #WP3390631

?
Manufacturer substitution
This part replaces M0216729. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Capacitor D8547921
#14

Transformer/capacitor/fuse diagram

Capacitor

Part #D8547921

Replaced by #WP59001168

?
Manufacturer substitution
This part replaces D8547921. Substitute parts can look different from the original.
$85.65 |
7% OFF Phone Price : $91.65
In Stock
Capacitor D8547909

#NI

All parts diagram

Capacitor

Part #D8547909

Replaced by #WP59001168

?
Manufacturer substitution
This part replaces D8547909. Substitute parts can look different from the original.
$85.65 |
7% OFF Phone Price : $91.65
In Stock
Torx Screw M0234016
#19

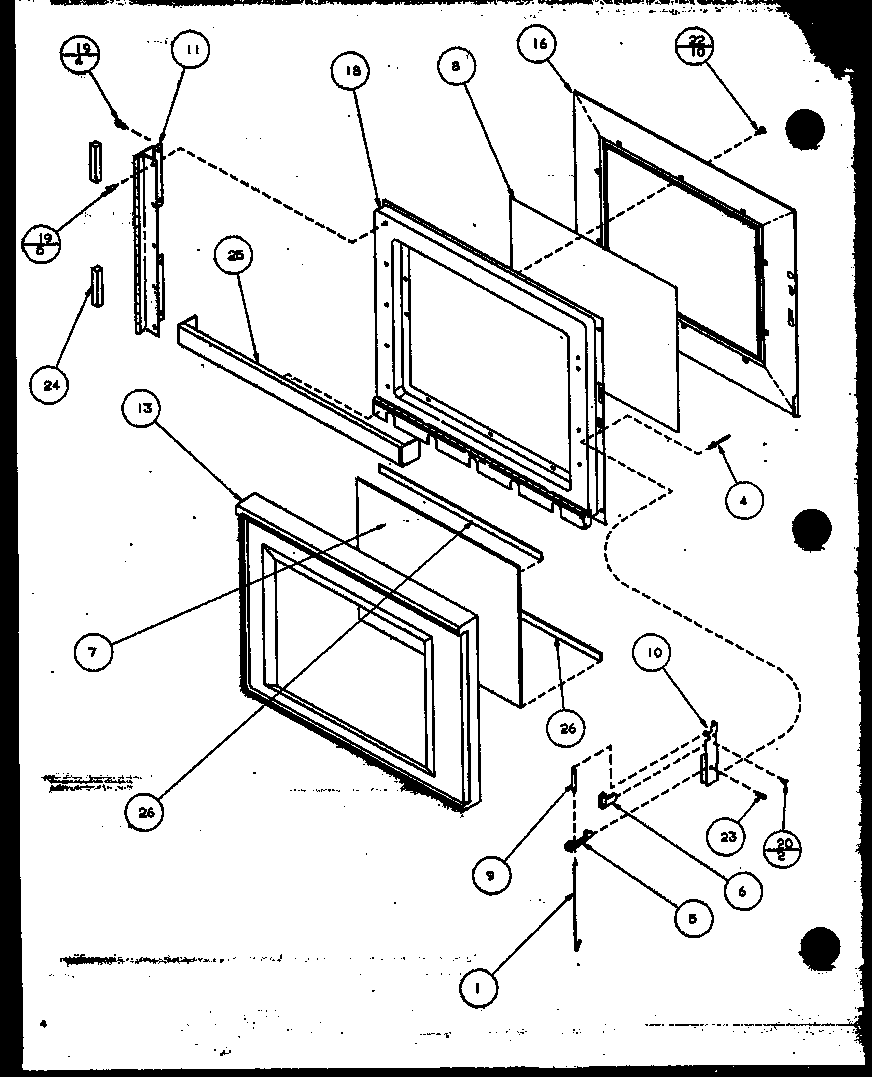

Door diagram

Torx screw

Part #M0234016

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces M0234016. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Door Guide B8370401
#6

Door diagram

Door guide

Part #B8370401

Replaced by #B8370401

?
Manufacturer substitution
This part replaces B8370401. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Screw M0234422
#23

Transformer/capacitor/fuse diagram

Screw

Part #M0234422

Replaced by #M0234422

?
Manufacturer substitution
This part replaces M0234422. Substitute parts can look different from the original.
This item is not returnable
$4.22
In Stock
Screw M0254706
#28

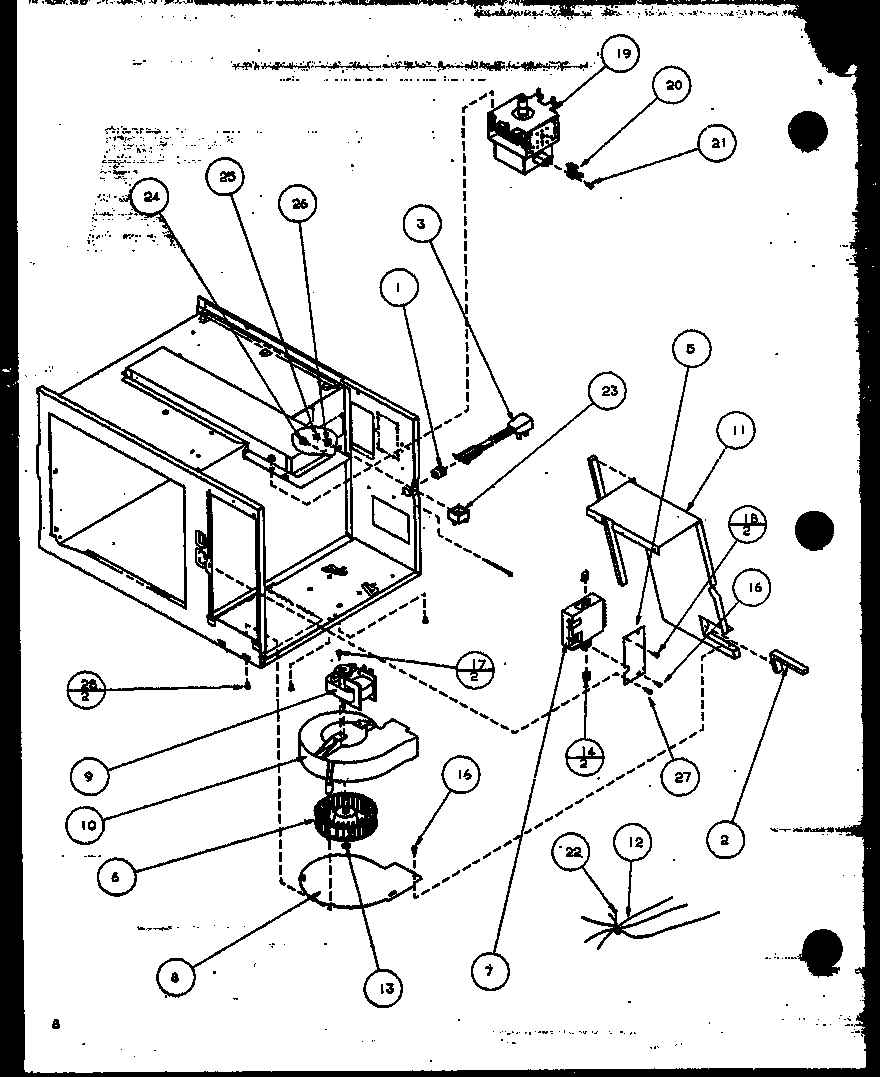

Blower/magnetron diagram

Screw

Part #M0254706

Replaced by #67006692

?
Manufacturer substitution
This part replaces M0254706. Substitute parts can look different from the original.
This item is not returnable
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Screw M0216515
Screw

Part #M0216515

Replaced by #WP489349

?
Manufacturer substitution
This part replaces M0216515. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
