Model # 917377423 Official Craftsman rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917377423 rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

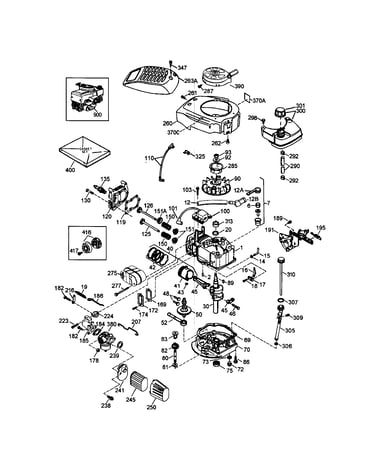

  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 254 parts  |
Pipe Fitting 132010
#36

Wheel and tire assembly diagram

Pipe fitting

Part #132010

Replaced by #532409149

?
Manufacturer substitution
This part replaces 132010. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lock Nut 83923
#45

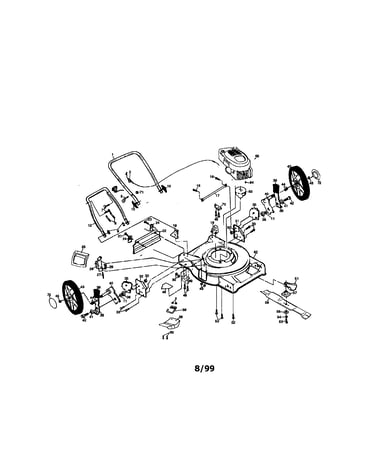

Rotary lawn mower - 917377423 diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hex Flange Lock Nut 145212
#26

Wheel and tire assembly diagram

Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Blade 152202
#56

Rotary lawn mower - 917377423 diagram

Lawn mower blade

Part #152202

Replaced by #532406713

?
Manufacturer substitution
This part replaces 152202. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$28.29 |
17% OFF Phone Price : $34.29
In Stock
Handle Knob 136376
#10

Rotary lawn mower - 917377423 diagram

Handle knob

Part #136376

Replaced by #532185577

?
Manufacturer substitution
This part replaces 136376. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Handle Bolt 131959
#7

Rotary lawn mower - 917377423 diagram

Handle bolt

Part #131959

Replaced by #532191574

?
Manufacturer substitution
This part replaces 131959. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn Mower Height Adjuster Knob 701037
Lawn mower height adjuster knob

Part #701037

Replaced by #532701037

?
Manufacturer substitution
This part replaces 701037. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Lawn Mower Blade Adapter 851514
#57

Rotary lawn mower - 917377423 diagram

Lawn mower blade adapter

Part #851514

Replaced by #581547901

?
Manufacturer substitution
This part replaces 851514. Substitute parts can look different from the original.
BEST SELLER
$18.44 |
10% OFF Phone Price : $20.44
In Stock
Torsion Spring 152124
#29

Rotary lawn mower - 917377423 diagram

Torsion spring

Part #152124

Replaced by #532152124

?
Manufacturer substitution
This part replaces 152124. Substitute parts can look different from the original.
This item is not returnable
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Rope Guide 153638
#5

Rotary lawn mower - 917377423 diagram

Rope guide

Part #153638

Replaced by #586122501

?
Manufacturer substitution
This part replaces 153638. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
