Craftsman
Gas Chainsaw

Model # 917353810 Official Craftsman 3.1 chainsaw

Here are the diagrams and repair parts for Official Craftsman 917353810 3.1 chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 205 parts  |
Chain 7200J
#12

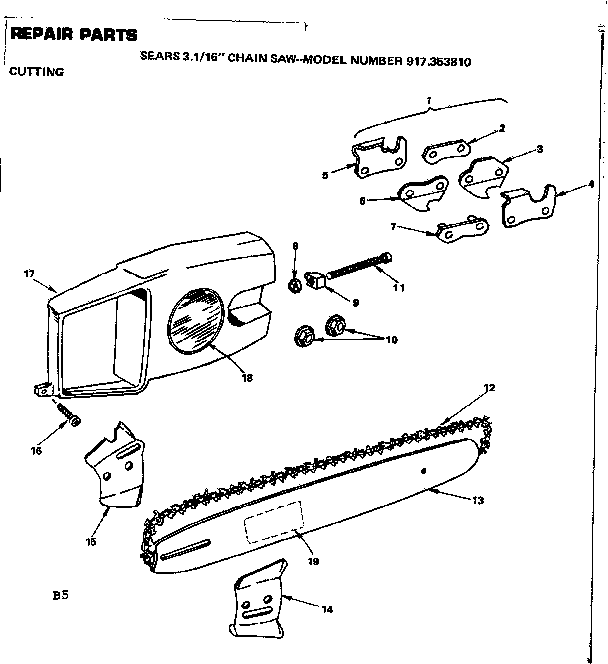

16 in. chain saw/cutting diagram

Chain

Part #7200J

Replaced by #20BPX068G

?
Manufacturer substitution
This part replaces 7200J. Substitute parts can look different from the original.
$50.96
In Stock
3/16 In. Fil 36548
#9

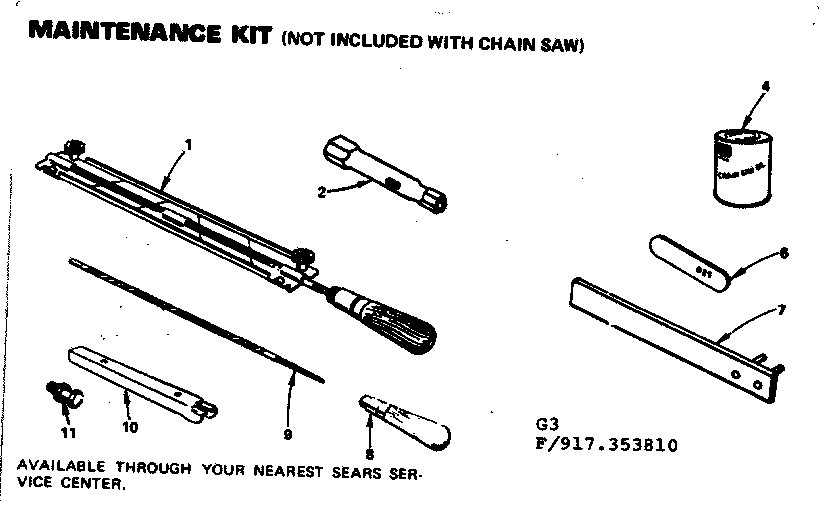

16 in. chain saw/maintenance kit diagram

3/16 in. fil

Part #36548

Replaced by #23727

?
Manufacturer substitution
This part replaces 36548. Substitute parts can look different from the original.
$8.49
In Stock
Sprocket 9137H
#29

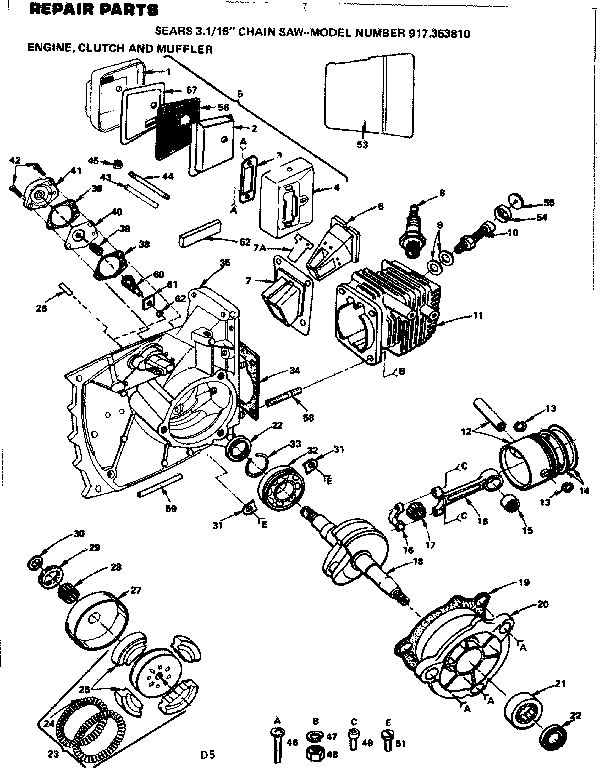

16 in. chain saw/engine clutch and muffler diagram

Sprocket

Part #9137H

Replaced by #11891

?
Manufacturer substitution
This part replaces 9137H. Substitute parts can look different from the original.
This item is not returnable
$14.37
In Stock
Bolt STD522507
#39

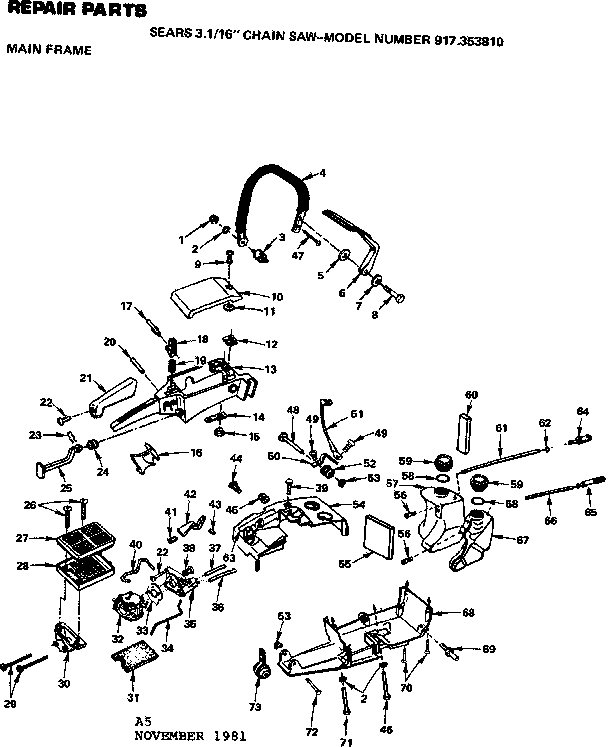

16 in. chain saw/main frame diagram

Bolt

Part #STD522507

The manufacturer no longer makes this part, and there's no substitute part

Retainer 3732J
#7

16 in. chain saw/engine clutch and muffler diagram

Retainer

Part #3732J

The manufacturer no longer makes this part, and there's no substitute part

Housing 673H294
#7

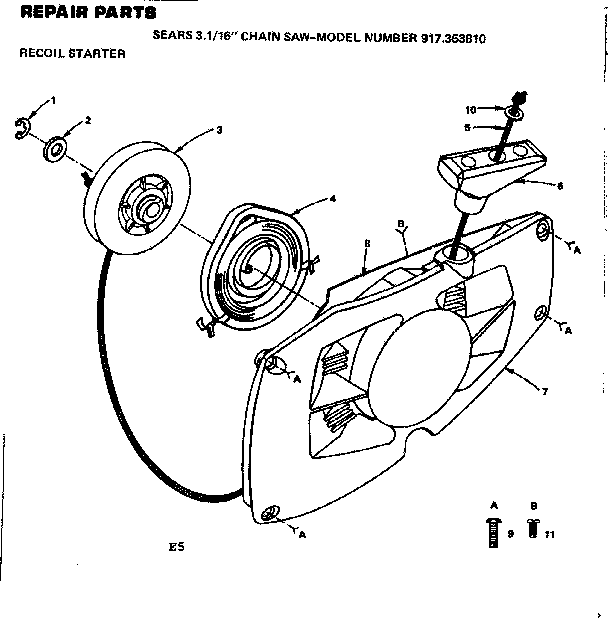

16 in. chain saw/recoil starter diagram

Housing

Part #673H294

The manufacturer no longer makes this part, and there's no substitute part

Clutch 632A137
#23

16 in. chain saw/engine clutch and muffler diagram

Clutch

Part #632A137

The manufacturer no longer makes this part, and there's no substitute part

Lever 3692R
#18

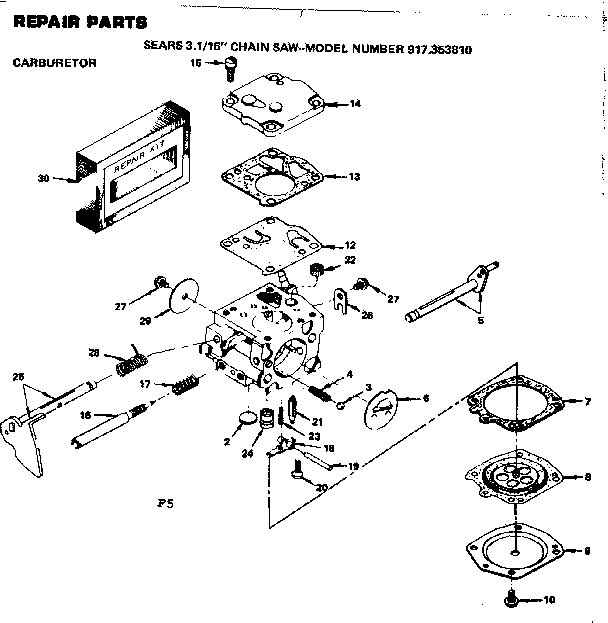

16 in. chain saw/carburetor diagram

Lever

Part #3692R

The manufacturer no longer makes this part, and there's no substitute part

Screw 8J
#44

16 in. chain saw/main frame diagram

Screw

Part #8J

The manufacturer no longer makes this part, and there's no substitute part

Mount 6806R
#52

16 in. chain saw/main frame diagram

Mount

Part #6806R

The manufacturer no longer makes this part, and there's no substitute part
