Model # 4351DT-2 Official Eureka upright vacuum

Here are the diagrams and repair parts for Official Eureka 4351DT-2 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Shield 38689-2
#31

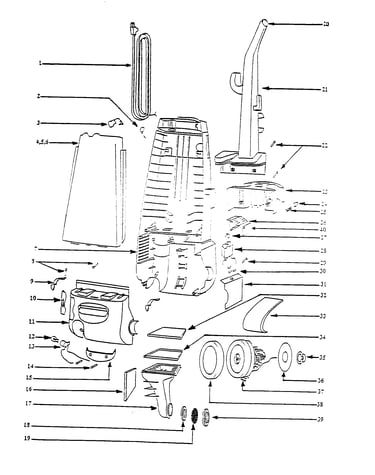

Handle and motor housing diagram

Shield

Part #38689-2

The manufacturer no longer makes this part, and there's no substitute part

Lens 15072-313N
#15

Handle and motor housing diagram

Lens

Part #15072-313N

The manufacturer no longer makes this part, and there's no substitute part

Motor Shield 38688
#36

Handle and motor housing diagram

Motor shield

Part #38688

The manufacturer no longer makes this part, and there's no substitute part

Switch 15377-7
#28

Handle and motor housing diagram

Switch

Part #15377-7

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Vacuum Spring 54943
#8

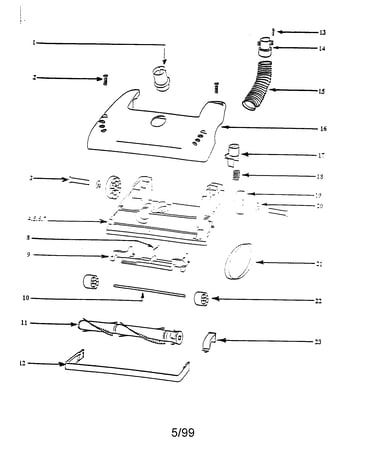

Base diagram

Electrolux vacuum spring

Part #54943

The manufacturer no longer makes this part, and there's no substitute part

Gasket 58506-1
#6

Base diagram

Gasket

Part #58506-1

The manufacturer no longer makes this part, and there's no substitute part

Cut-off 59213
#28A

Handle and motor housing diagram

Cut-off

Part #59213

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 60165
#27

Handle and motor housing diagram

Retaining ring

Part #60165

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw, 10-pack 60068-2
#14

Handle and motor housing diagram

Vacuum screw, 10-pack

Part #60068-2

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose 38479-2
#15

Base diagram

Vacuum hose

Part #38479-2

The manufacturer no longer makes this part, and there's no substitute part
