Model # 45-02601 Official Agri-Fab lawn sweeper

Here are the diagrams and repair parts for Official Agri-Fab 45-02601 lawn sweeper, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Lawn Sweeper Brush (replaces Af-46780) 46780
#21

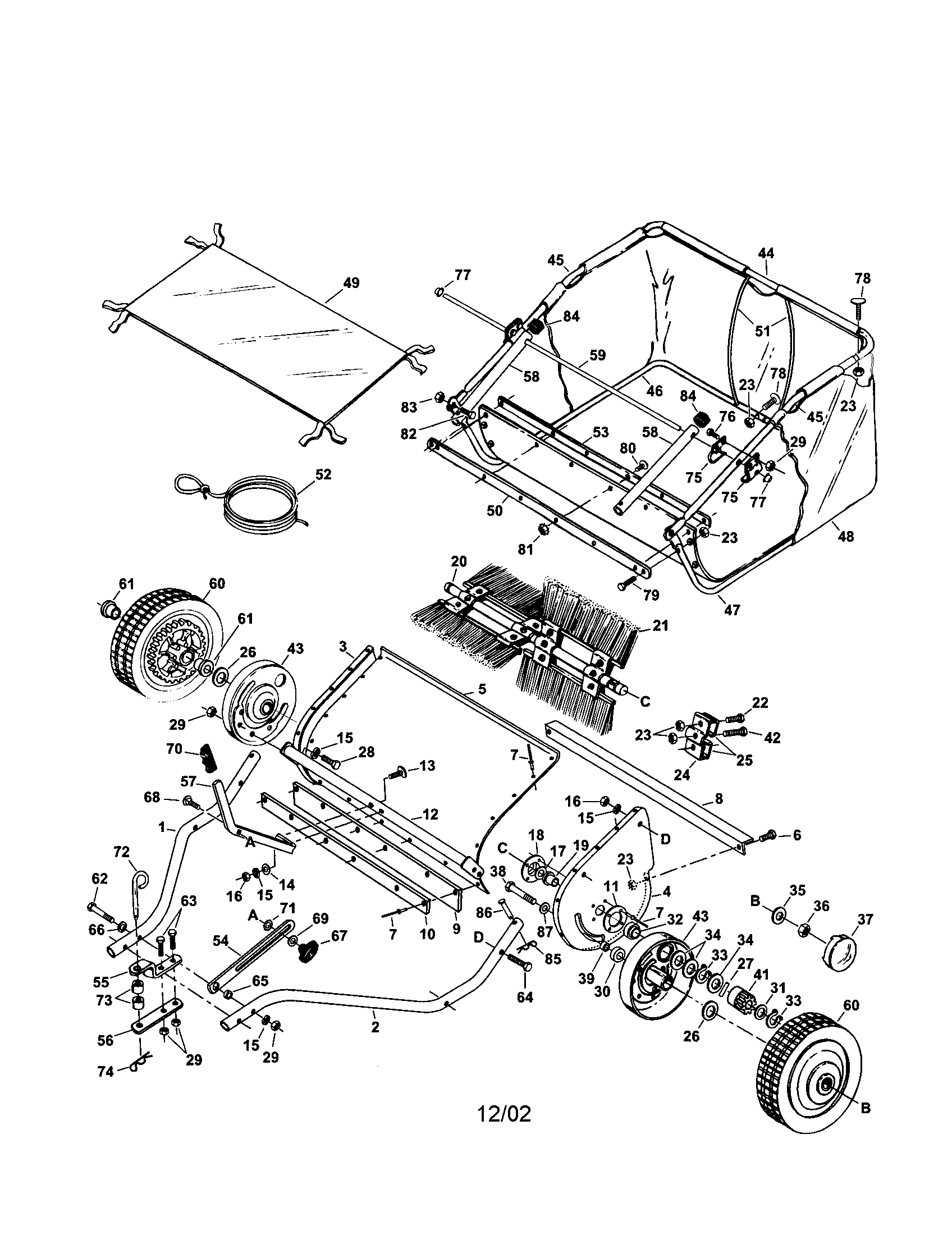

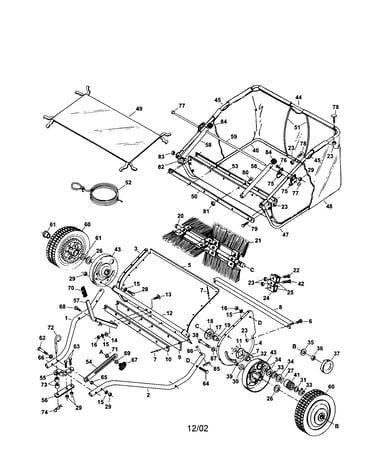

42" lawn sweeper diagram

Lawn sweeper brush (replaces af-46780)

Part #46780

BEST SELLER
$16.79 |
11% OFF Phone Price : $18.79
Back Order
Lawn & Garden Equipment Wing Knob (replaces Af-43720) 43720
#67

42" lawn sweeper diagram

Lawn & garden equipment wing knob (replaces af-43720)

Part #43720

BEST SELLER
This item is not returnable
$3.39 |
23% OFF Phone Price : $4.39
In Stock
Lawn Tractor Attachment Hitch Pin (replaces Af-43343) 43343
#74

42" lawn sweeper diagram

Lawn tractor attachment hitch pin (replaces af-43343)

Part #43343

BEST SELLER
This item is not returnable
$2.16
Back Order
Lawn & Garden Equipment Push Cap Nut, 3/8-in 44917
#77

42" lawn sweeper diagram

Lawn & garden equipment push cap nut, 3/8-in

Part #44917

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Lawn Tractor Lawn Sweeper Attachment Hopper Bag Frame, Rear (replaces Af-47477) 47477
#44

42" lawn sweeper diagram

Lawn tractor lawn sweeper attachment hopper bag frame, rear (replaces af-47477)

Part #47477

BEST SELLER
$23.66 |
20% OFF Phone Price : $29.66
In Stock
Lawn Sweeper Brush Retainer (replaces Af-23581) 23581
#25

42" lawn sweeper diagram

Lawn sweeper brush retainer (replaces af-23581)

Part #23581

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Lock Washer 43086
#15

42" lawn sweeper diagram

Lawn & garden equipment lock washer

Part #43086

This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Washer 44008
#26

42" lawn sweeper diagram

Lawn & garden equipment washer

Part #44008

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Attachment Washer, 3/8-in (replaces Af-43070) 43070
#87

42" lawn sweeper diagram

Lawn tractor attachment washer, 3/8-in (replaces af-43070)

Part #43070

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Lawn Sweeper Attachment Hopper Rope (replaces Af-43737) 43737
#52

42" lawn sweeper diagram

Lawn tractor lawn sweeper attachment hopper rope (replaces af-43737)

Part #43737

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
