Model # DWFP55130 TYPE 2 Official DeWalt air compressor

Here are the diagrams and repair parts for Official DeWalt DWFP55130-TYPE-2 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |
Dewalt Micro-switch N423911
#24

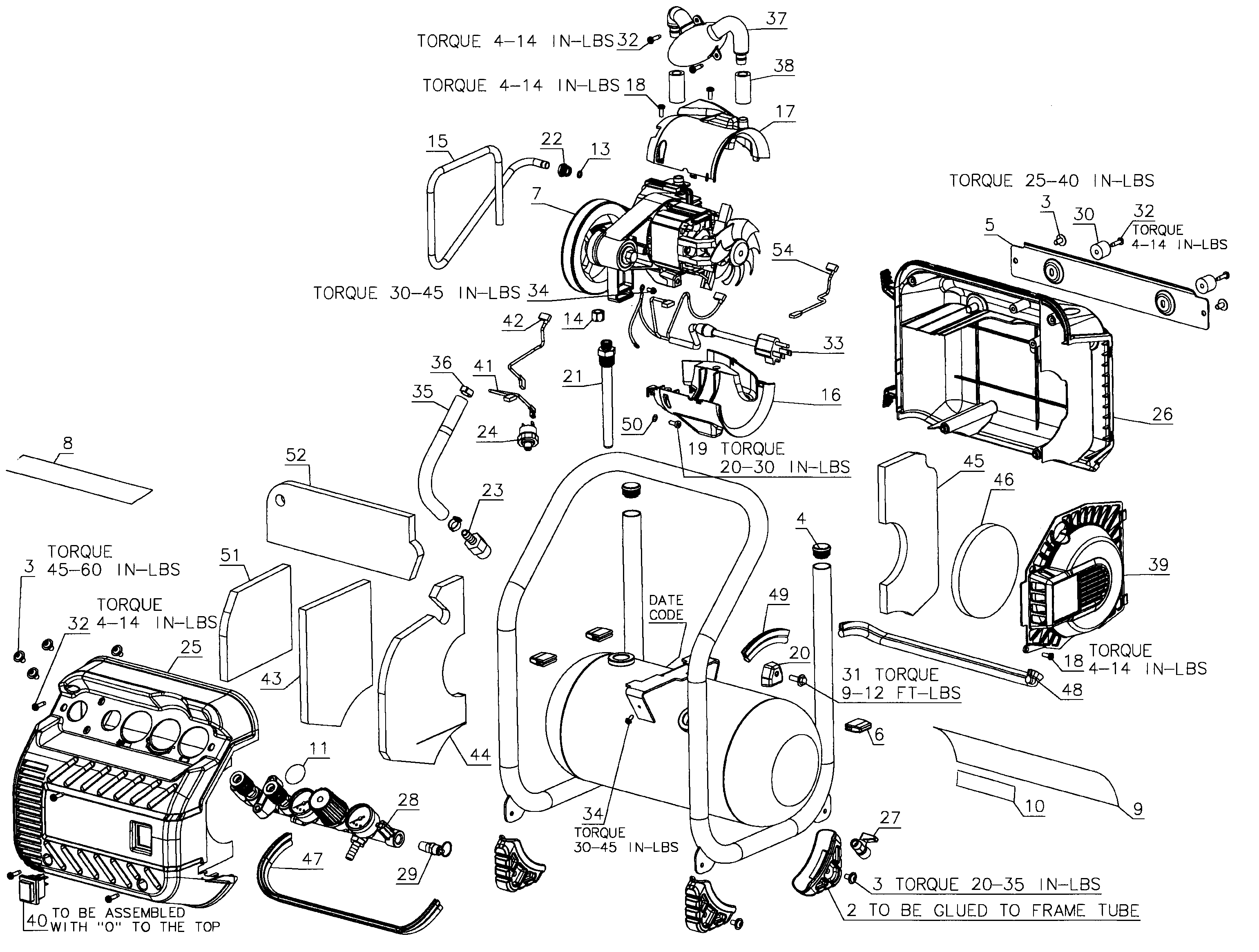

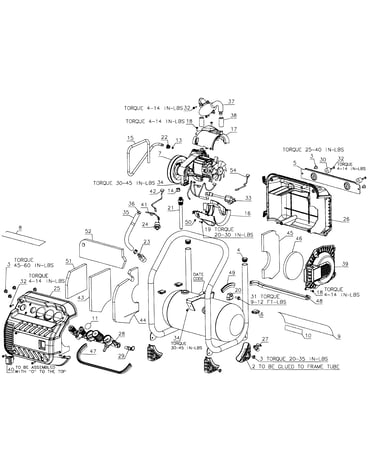

Main asy diagram

Dewalt micro-switch

Part #N423911

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Rubber Bumper N178742
#30

Main asy diagram

Dewalt rubber bumper

Part #N178742

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Foam N125109
#46

Main asy diagram

Dewalt foam

Part #N125109

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Label N268539
#8

Main asy diagram

Dewalt label

Part #N268539

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Warning Label N268540
#9

Main asy diagram

Dewalt warning label

Part #N268540

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Inner Shroud N093234
#16

Main asy diagram

Dewalt inner shroud

Part #N093234

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Seal N115122
#47

Main asy diagram

Dewalt seal

Part #N115122

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Foam N125230
#51

Main asy diagram

Dewalt foam

Part #N125230

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Muffler N299059
#37

Main asy diagram

Dewalt muffler

Part #N299059

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Mount N266360
#5

Main asy diagram

Dewalt mount

Part #N266360

The manufacturer no longer makes this part, and there's no substitute part
