Wall Oven/Microwave Combo

Model # 79049609318 Official Kenmore built-in oven/microwave combo

Here are the diagrams and repair parts for Official Kenmore 79049609318 built-in oven/microwave combo, as well as links to manuals and error code tables, if available.

By Schematic
By Part

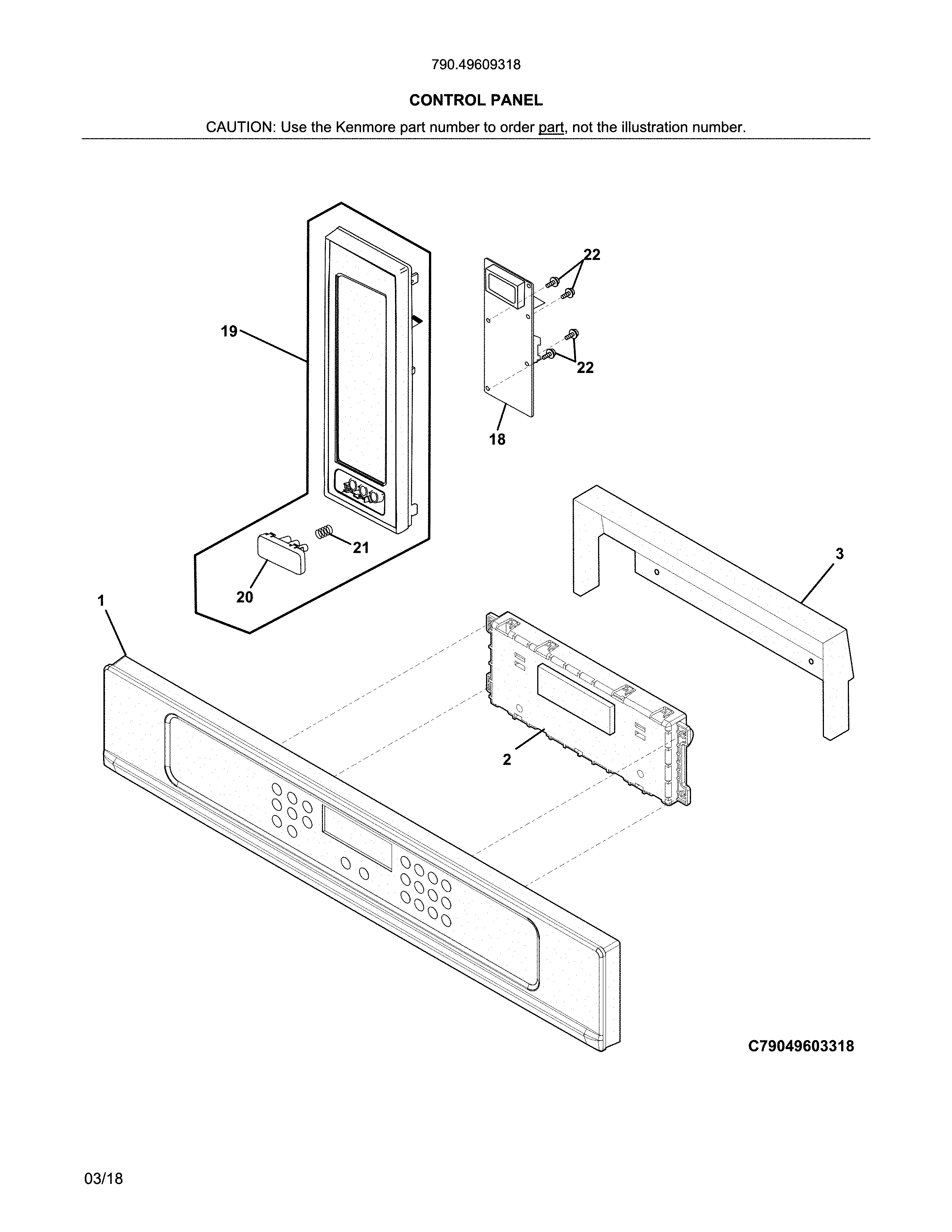

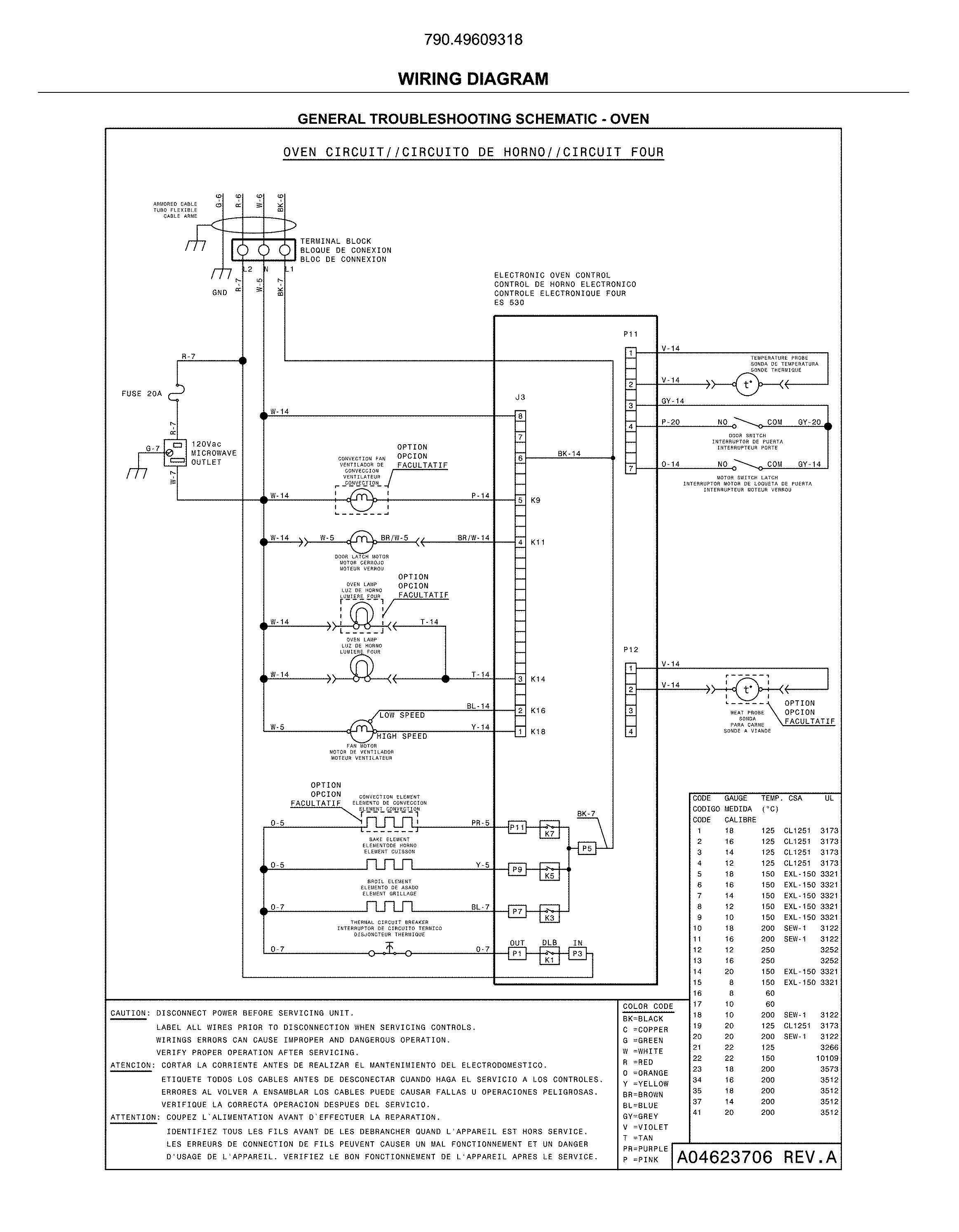

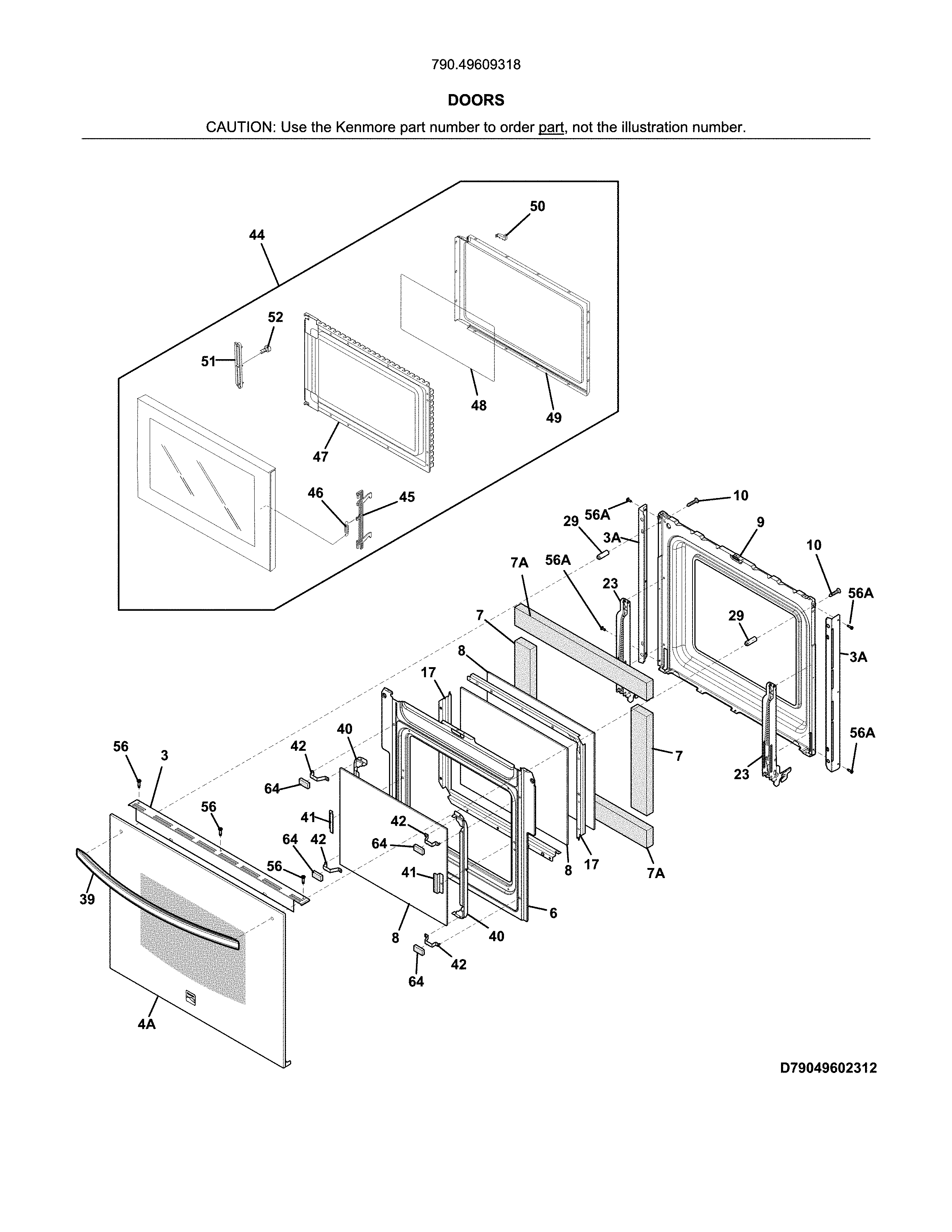

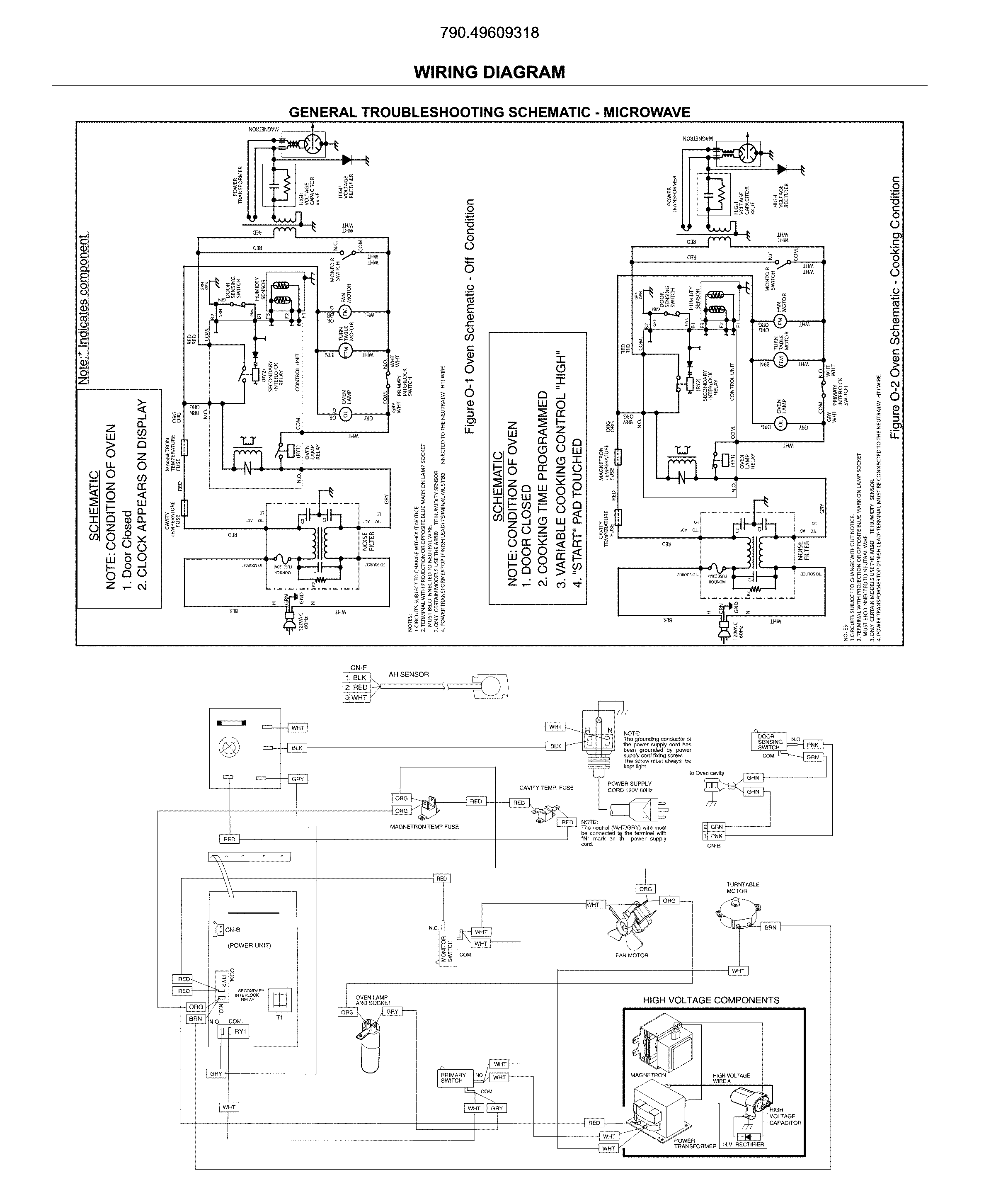

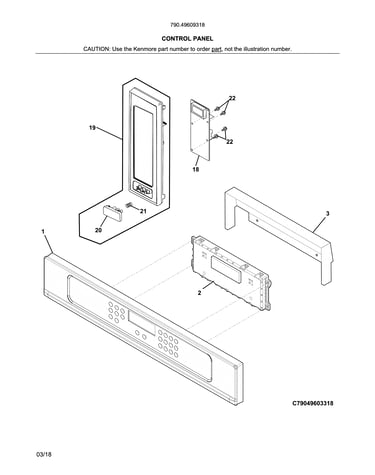

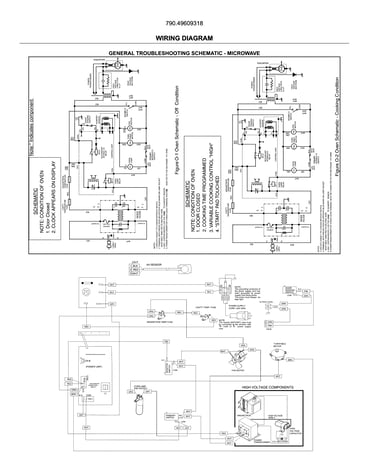

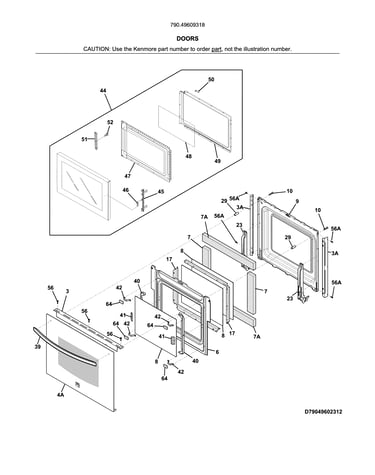

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
79049609318 Built-In Oven/Microwave Combo
Frigidaire Range High-limit Thermostat (replaces 318578501) 318578506
#119

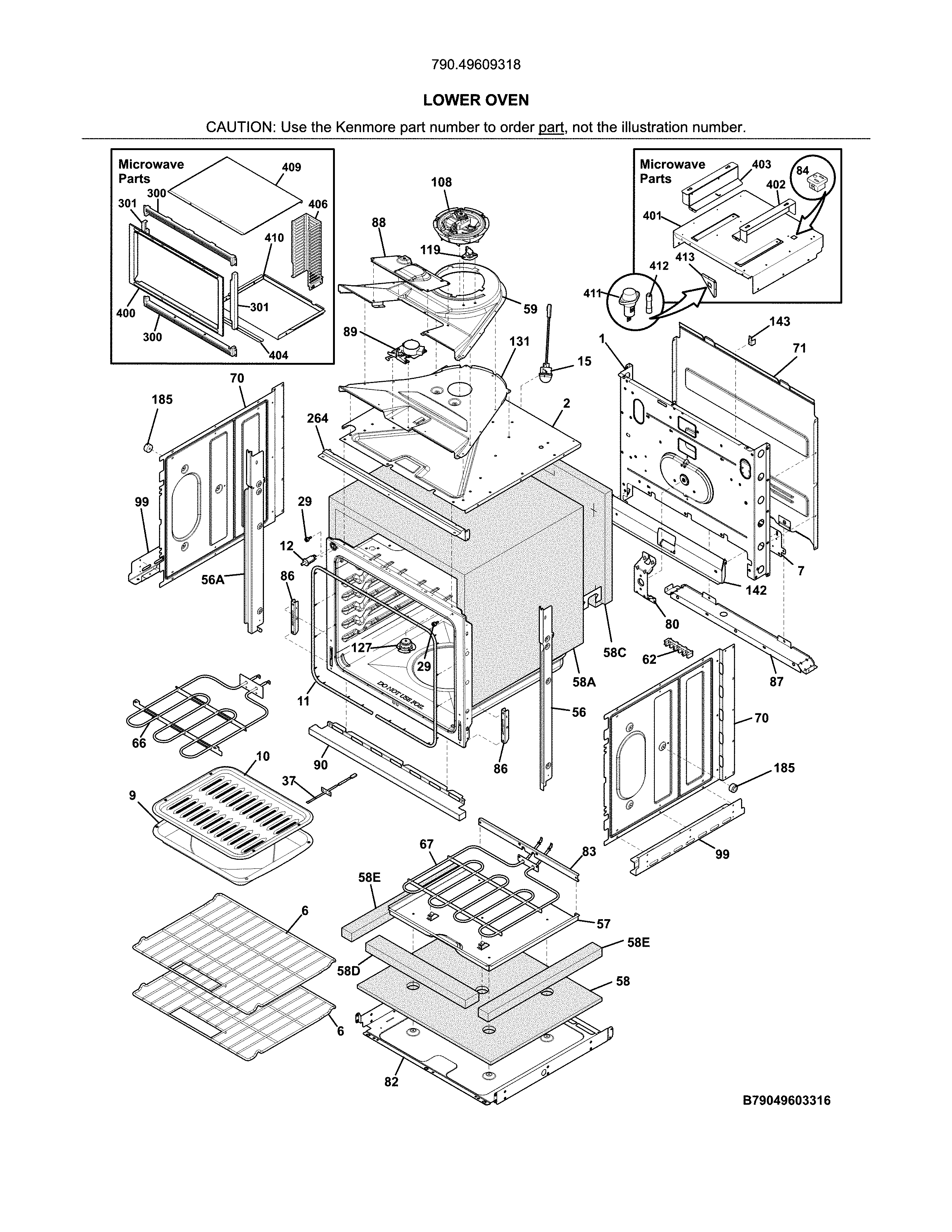

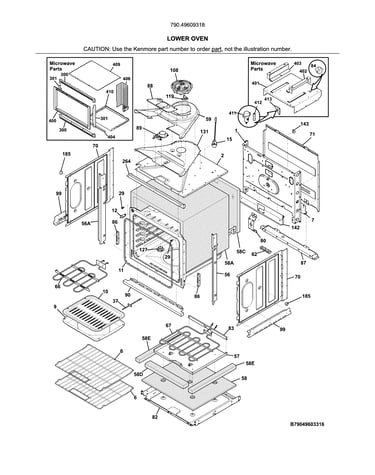

Lower oven diagram

Frigidaire range high-limit thermostat (replaces 318578501)

Part #318578506

3.25 (8)
BEST SELLER
$35.07 |
15% OFF Phone Price : $41.07
In Stock
Microwave Door Interlock Switch (replaces 5304440026) 5304493153
#6

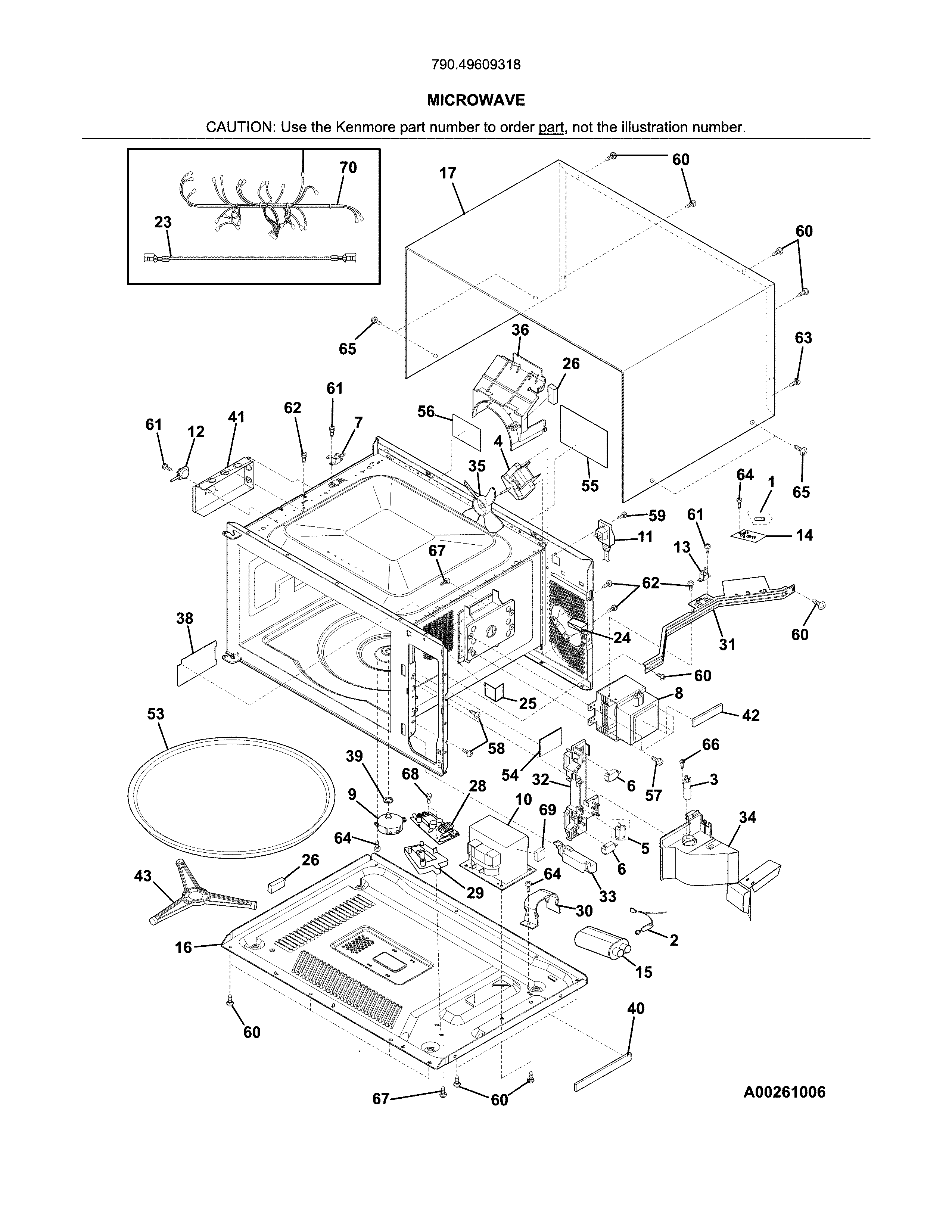

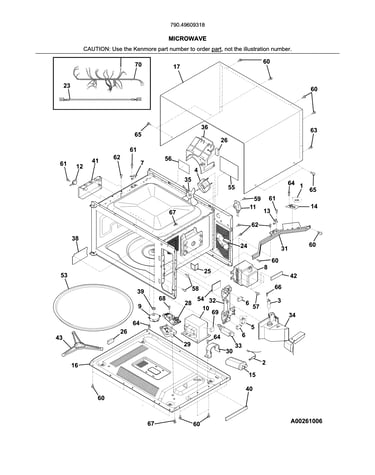

Microwave diagram

Microwave door interlock switch (replaces 5304440026)

Part #5304493153

BEST SELLER
$28.60 |
17% OFF Phone Price : $34.60
In Stock
Wall Oven Microwave Magnetron 5304472253
#8

Microwave diagram

Wall oven microwave magnetron

Part #5304472253

Replaced by #5304521745

?
Manufacturer substitution
This part replaces 5304472253. Substitute parts can look different from the original.
5 (3)
BEST SELLER
$136.06 |
8% OFF Phone Price : $148.06
In Stock
Microwave Latch Body 5304503439
#32

Microwave diagram

Microwave latch body

Part #5304503439

BEST SELLER
$48.11 |
11% OFF Phone Price : $54.11
In Stock
Lever 5304464899
#33

Microwave diagram

Lever

Part #5304464899

Replaced by #5304485407

?
Manufacturer substitution
This part replaces 5304464899. Substitute parts can look different from the original.
4.67 (6)
BEST SELLER
$51.29 |
10% OFF Phone Price : $57.29
In Stock
Range Screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109) 316021109
#NI

Lower oven diagram

Range screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109)

Part #316021109

$14.89 |
12% OFF Phone Price : $16.89
In Stock
Range Hex Head Screw, #8-18 X 3/8-in 316021105
Range hex head screw, #8-18 x 3/8-in

Part #316021105

Replaced by #316021109

?
Manufacturer substitution
This part replaces 316021105. Substitute parts can look different from the original.
$14.89 |
12% OFF Phone Price : $16.89
In Stock
Range Screw 316021110
Range screw

Part #316021110

Replaced by #316021109

?
Manufacturer substitution
This part replaces 316021110. Substitute parts can look different from the original.
$14.89 |
12% OFF Phone Price : $16.89
In Stock
Cover 5304478947
#38

Microwave diagram

Cover

Part #5304478947

Replaced by #5304462314

?
Manufacturer substitution
This part replaces 5304478947. Substitute parts can look different from the original.
3 (2)
$49.09 |
11% OFF Phone Price : $55.09
In Stock
Range Door Light Switch 318394802
#12

Lower oven diagram

Range door light switch

Part #318394802

Replaced by #808136601

?
Manufacturer substitution
This part replaces 318394802. Substitute parts can look different from the original.
5 (1)
$32.29 |
16% OFF Phone Price : $38.29
In Stock
