GE
Microwave/Hood Combo

Model # JVM1740SMSS01 Official GE microwave/hood combo

Here are the diagrams and repair parts for Official GE JVM1740SMSS01 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Switch-micro WB24X10038
#29

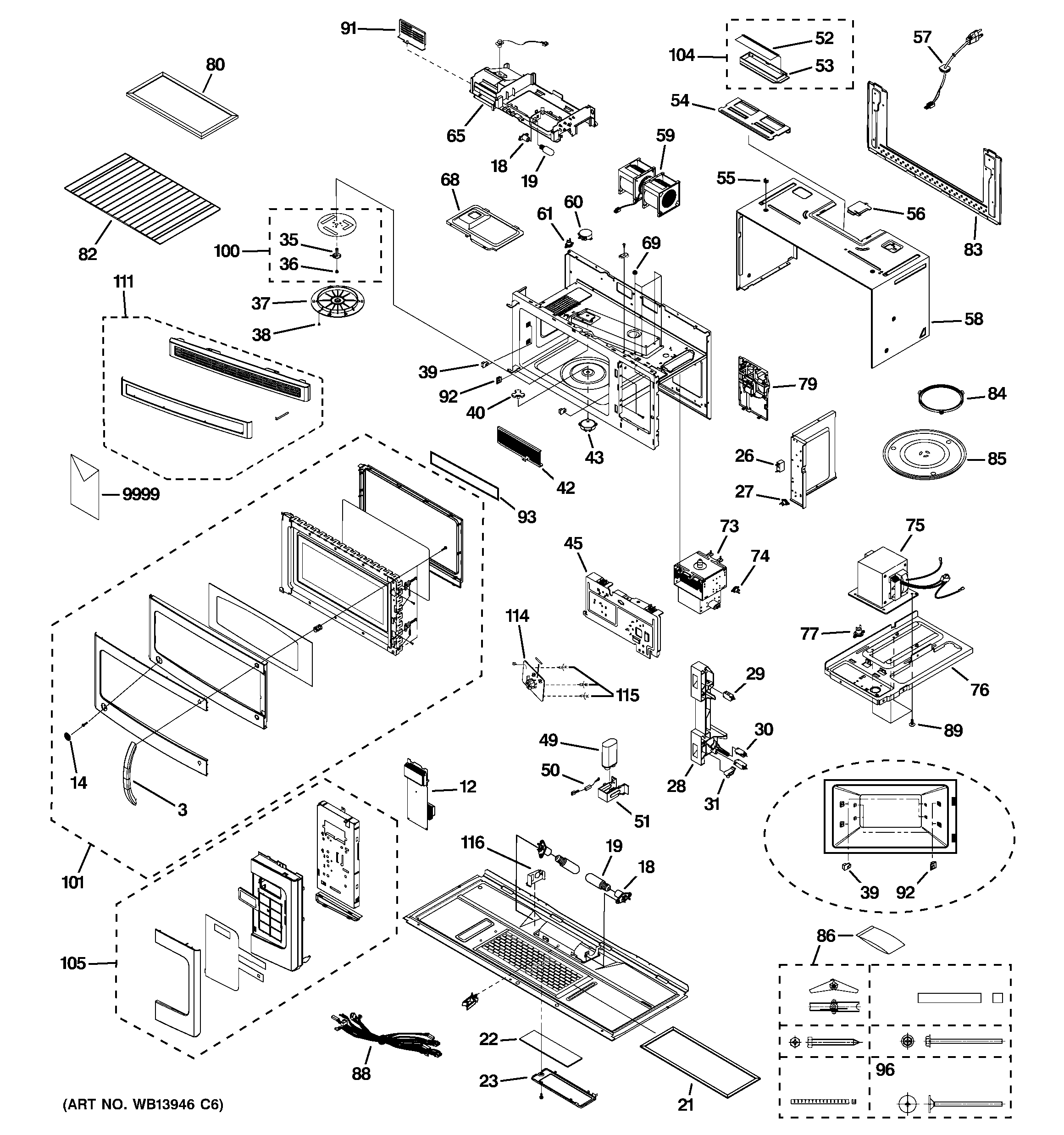

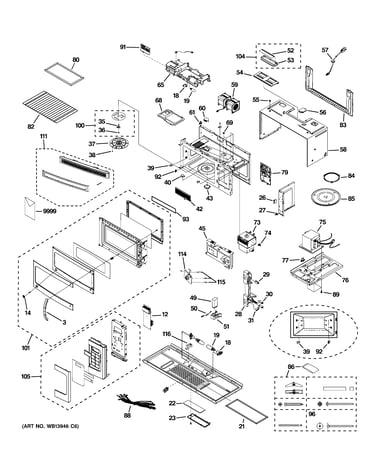

Microwave diagram

Switch-micro

Part #WB24X10038

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X10038. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Microwave High-voltage Capacitor (replaces Wb27x585) WB27X10011
#49

Microwave diagram

Microwave high-voltage capacitor (replaces wb27x585)

Part #WB27X10011

BEST SELLER
$46.74 |
11% OFF Phone Price : $52.74
In Stock
Micro-switch WB24X10075
#30

Microwave diagram

Micro-switch

Part #WB24X10075

Replaced by #WB24X830

?
Manufacturer substitution
This part replaces WB24X10075. Substitute parts can look different from the original.
BEST SELLER
$26.26 |
19% OFF Phone Price : $32.26
In Stock
Microwave Door Interlock Switch Lever (replaces Wb6x10128) WB06X10128
#31

Microwave diagram

Microwave door interlock switch lever (replaces wb6x10128)

Part #WB06X10128

BEST SELLER
$9.13 |
10% OFF Phone Price : $10.13
In Stock
Microwave Magnetron WB27X10939
#73

Microwave diagram

Microwave magnetron

Part #WB27X10939

BEST SELLER
$148.42 |
7% OFF Phone Price : $160.42
In Stock
Microwave Light Bulb (replaces Wb2x4235, Wb36x0898, Wb36x0936, Wb36x10306, Wb36x898, Wb36x936, Wb6x15) WB36X10003
#19

Microwave diagram

Microwave light bulb (replaces wb2x4235, wb36x0898, wb36x0936, wb36x10306, wb36x898, wb36x936, wb6x15)

Part #WB36X10003

This item is not returnable
$13.60 |
13% OFF Phone Price : $15.60
In Stock
Microwave Light Socket WB08X10016
#18

Microwave diagram

Microwave light socket

Part #WB08X10016

This item is not returnable
$21.30 |
22% OFF Phone Price : $27.30
In Stock
Microwave Mounting Nut (replaces Wb1x10071) WB01X10071
#55

Microwave diagram

Microwave mounting nut (replaces wb1x10071)

Part #WB01X10071

This item is not returnable
$7.06 |
12% OFF Phone Price : $8.06
In Stock
Power Board WB27X10938
#75

Microwave diagram

Power board

Part #WB27X10938

Replaced by #WB27X10868

?
Manufacturer substitution
This part replaces WB27X10938. Substitute parts can look different from the original.
$226.03 |
5% OFF Phone Price : $238.03
In Stock
Cooking Tray WB49X10002
#85

Microwave diagram

Cooking tray

Part #WB49X10002

Replaced by #WB39X10003

?
Manufacturer substitution
This part replaces WB49X10002. Substitute parts can look different from the original.
$68.03 |
8% OFF Phone Price : $74.03
In Stock
