Model # WA40A3005AW/A4-00 Official Samsung washer
Here are the diagrams and repair parts for Official Samsung WA40A3005AW/A4-00 washer, as well as links to manuals and error code tables, if available.
By Schematic
By Part

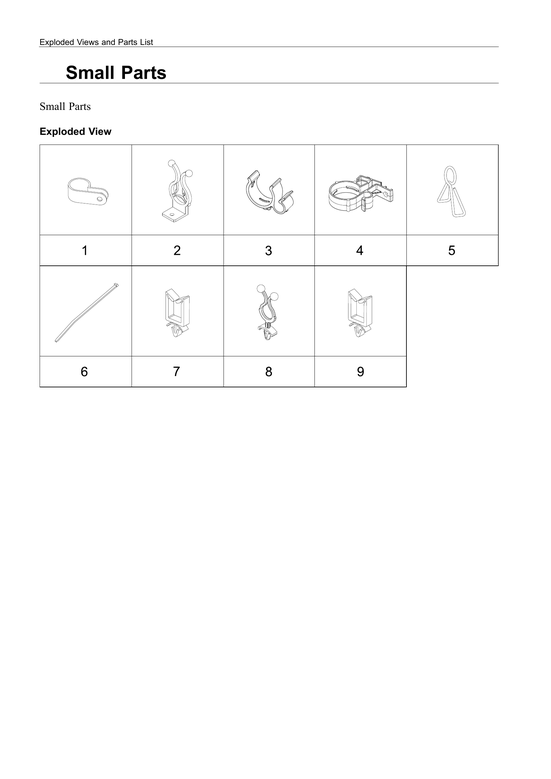

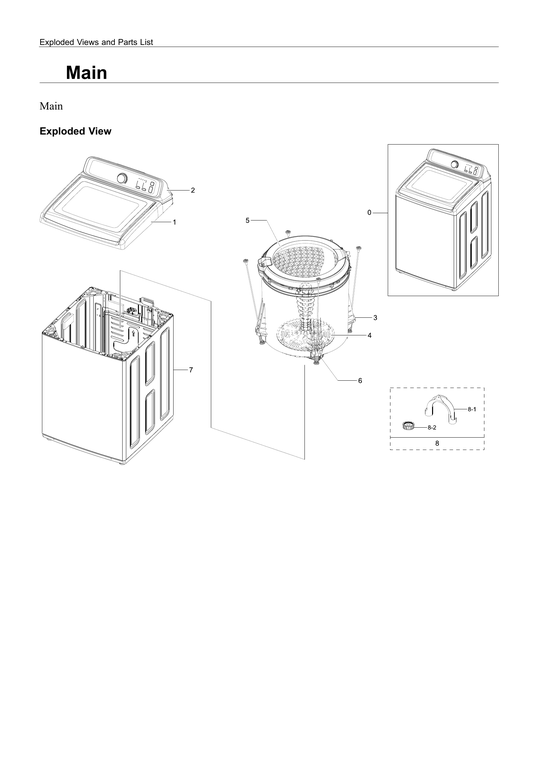

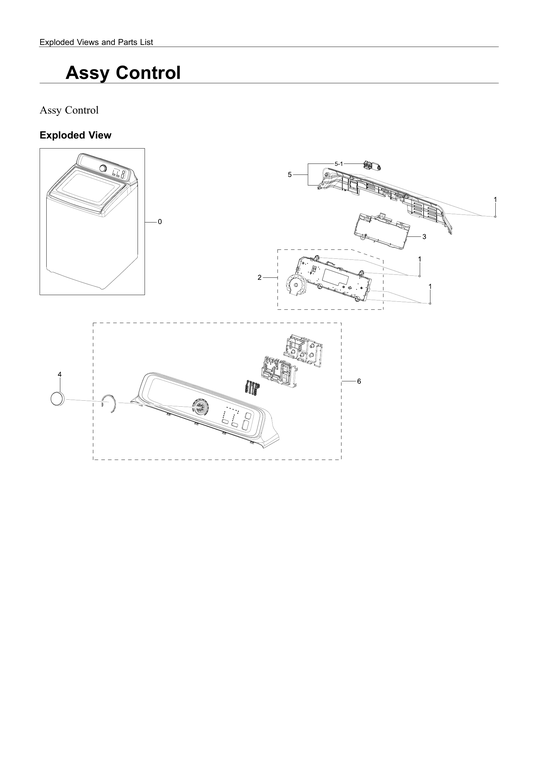

SELECT DIAGRAM
Browse Parts for
WA40A3005AW/A4-00 WASHER
#5-6-2

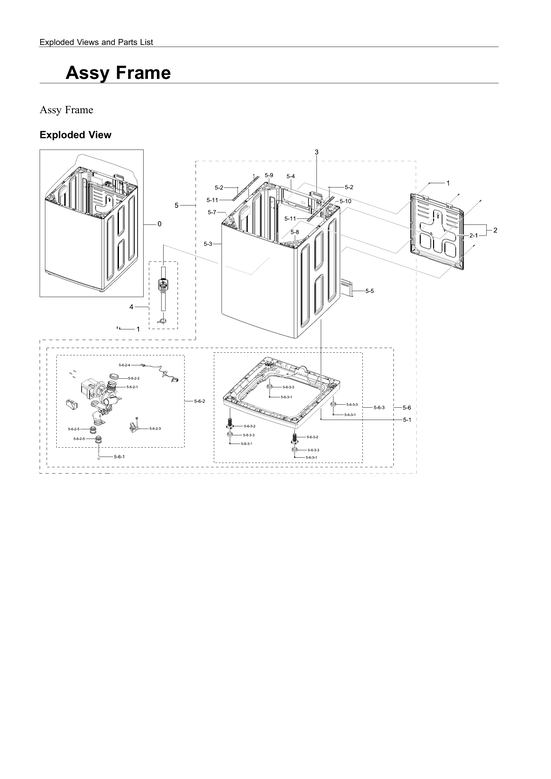

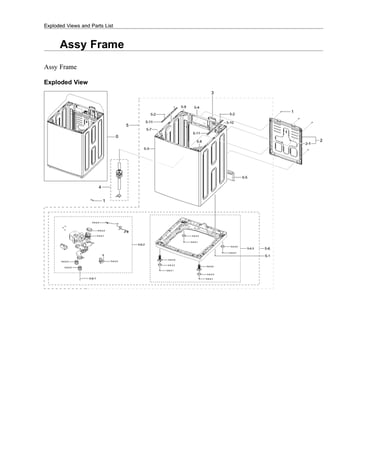

Frame assy diagram
Samsung washing machine drain pump assembly (replaces dc97-19289b)
Part #DC97-19289F
$63.29 |
9% OFF Phone Price : $69.29
In Stock
#1-8

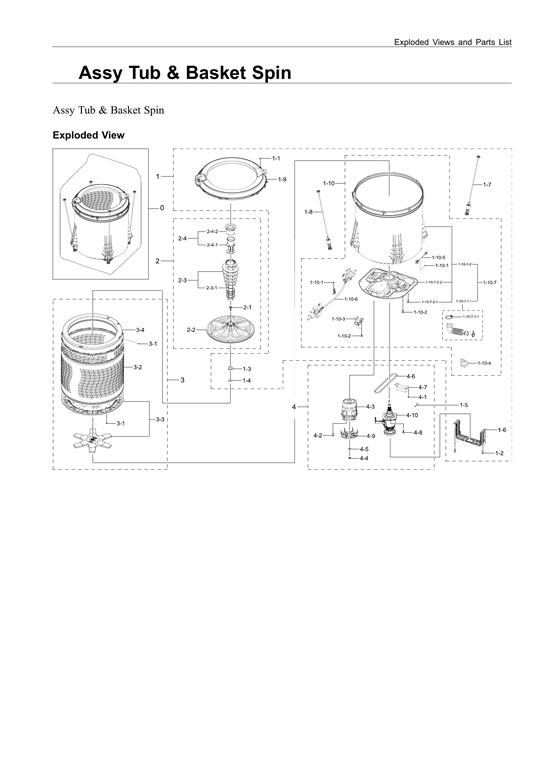

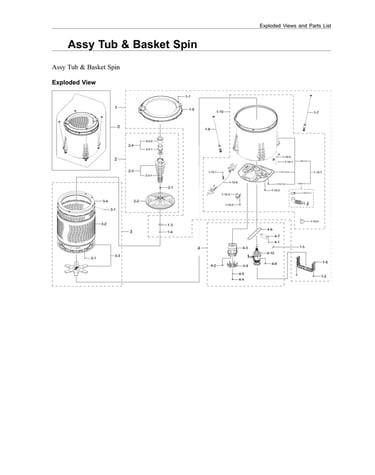

Tub & basket spin assy diagram
Samsung washer suspension rod and spring assembly
Part #DC97-16350T
$105.53 |
10% OFF Phone Price : $117.53
In Stock
#1-7
Tub & basket spin assy diagram
Washer suspension rod and spring assembly
Part #DC97-16350S
$98.60 |
11% OFF Phone Price : $110.60
In Stock
#4
Frame assy diagram
Samsung washer drain hose (replaces dc97-18682a, dc97-18682b)
Part #DC97-18682D
$106.77 |
10% OFF Phone Price : $118.77
In Stock
#1-10-3
Tub & basket spin assy diagram
Washer clutch
Part #DC31-20014C
$116.07 |
9% OFF Phone Price : $128.07
In Stock
#5-4

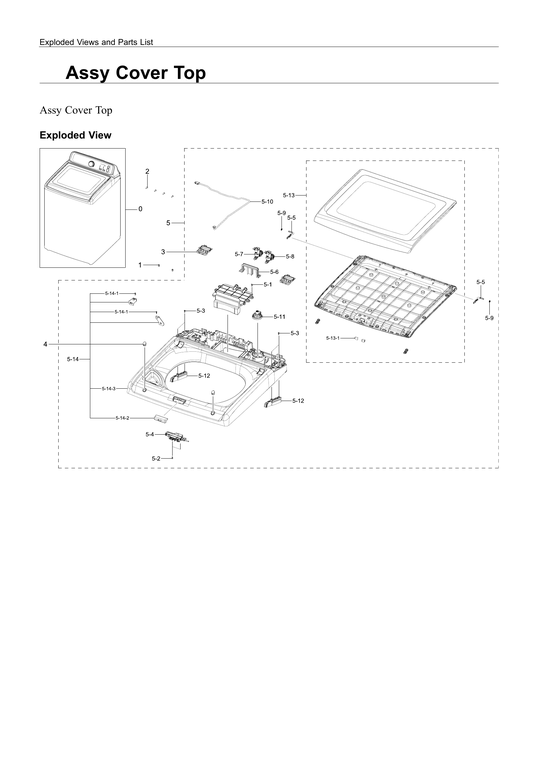

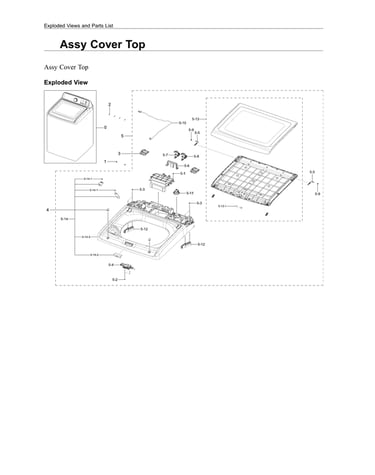

Top cover assy diagram
Washer lid lock assembly (replaces dc34-00025a)
Part #DC34-00025E
$113.95 |
10% OFF Phone Price : $125.95
In Stock
#1-10-7-1
Tub & basket spin assy diagram
Washer tub-to-pump hose
Part #DC97-17345B
$89.36 |
6% OFF Phone Price : $95.36
In Stock
#4-10
Tub & basket spin assy diagram
Washer clutch
Part #DC97-16984C
$250.30 |
5% OFF Phone Price : $262.30
In Stock
#1-10-5
Tub & basket spin assy diagram
Washer thermistor (replaces dc90-10128h)
Part #DC90-10128N
$43.26 |
12% OFF Phone Price : $49.26
In Stock
#4-6
Tub & basket spin assy diagram
Washer drive belt
Part #DC66-10170B
$39.24 |
13% OFF Phone Price : $45.24
In Stock
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
- $7.36 |12% OFF Phone Price : $8.36
Most common symptoms to help you fix your washers
Choose a symptom to see related washer repairs.
Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…
