Samsung
Side-By-Side Refrigerator

Model # RH29H8000SR/AA-00 Official Samsung refrigerator

Here are the diagrams and repair parts for Official Samsung RH29H8000SR-AA-00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

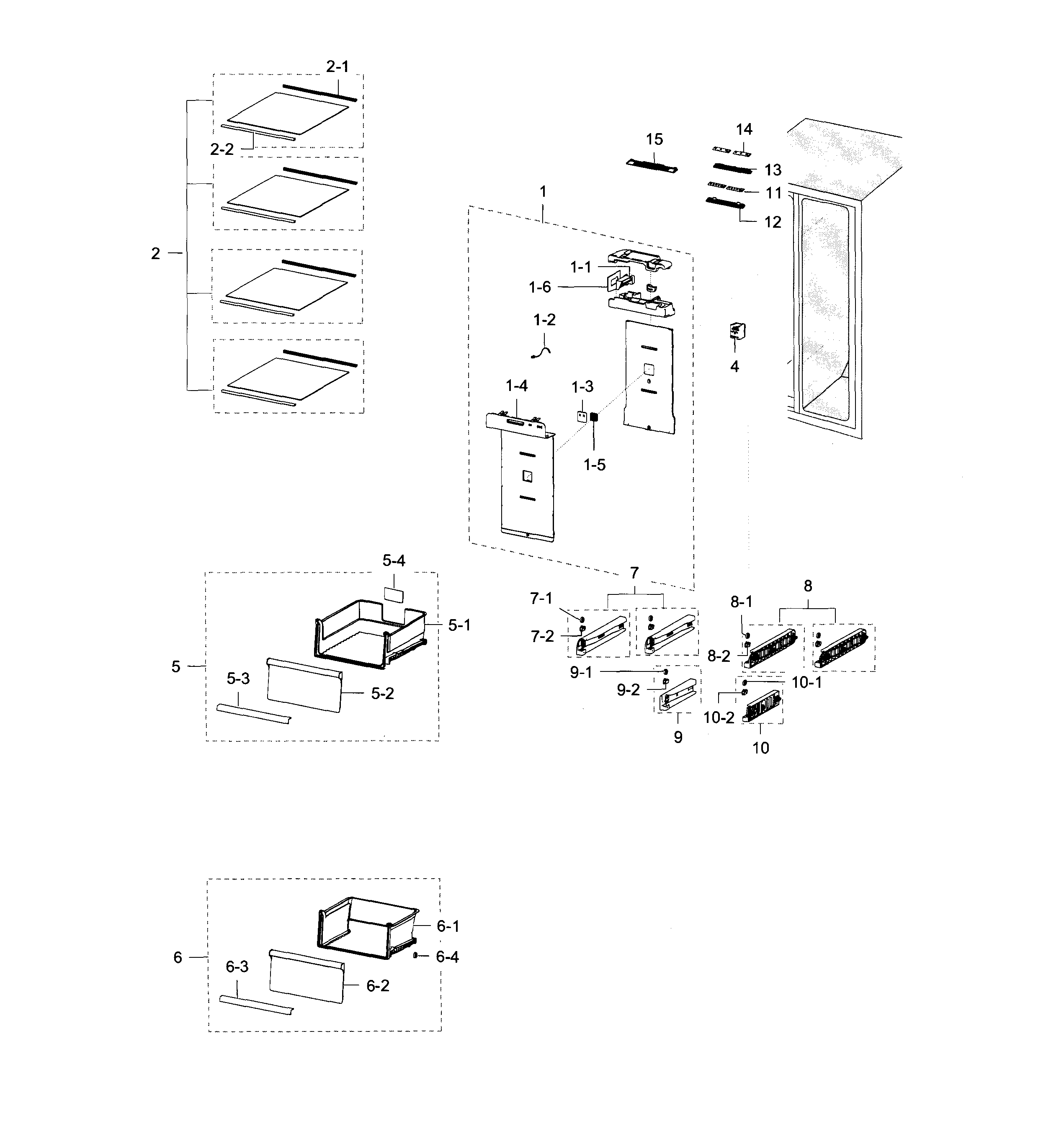

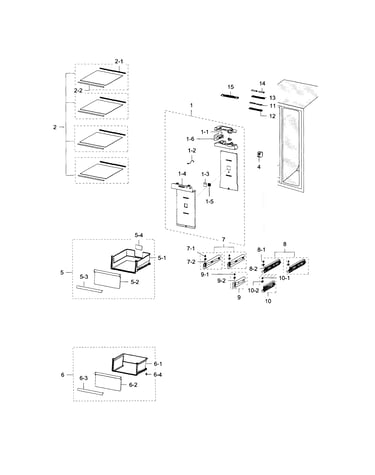

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 230 parts  |
Filtr Dryr DA62-04309B
#22

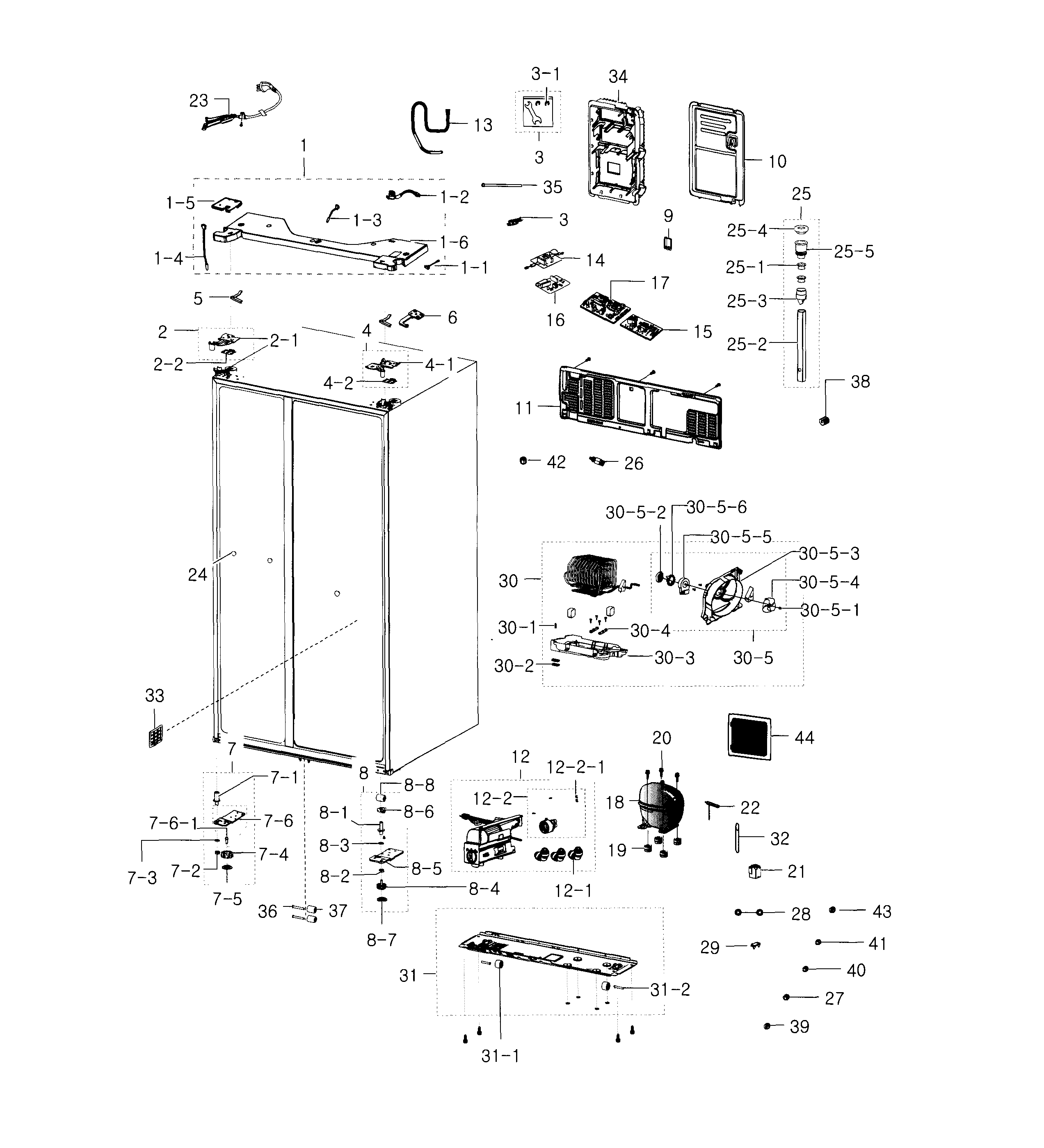

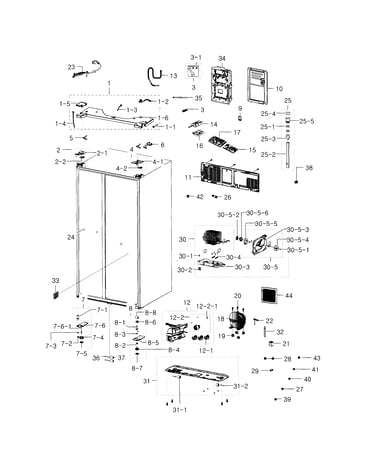

Cabinet assy diagram

Filtr dryr

Part #DA62-04309B

Replaced by #DA81-06006B

?
Manufacturer substitution
This part replaces DA62-04309B. Substitute parts can look different from the original.
BEST SELLER
$90.27 |
6% OFF Phone Price : $96.27
In Stock
Refrigerator Ice Maker By Samsung DA97-13415B
#8-2

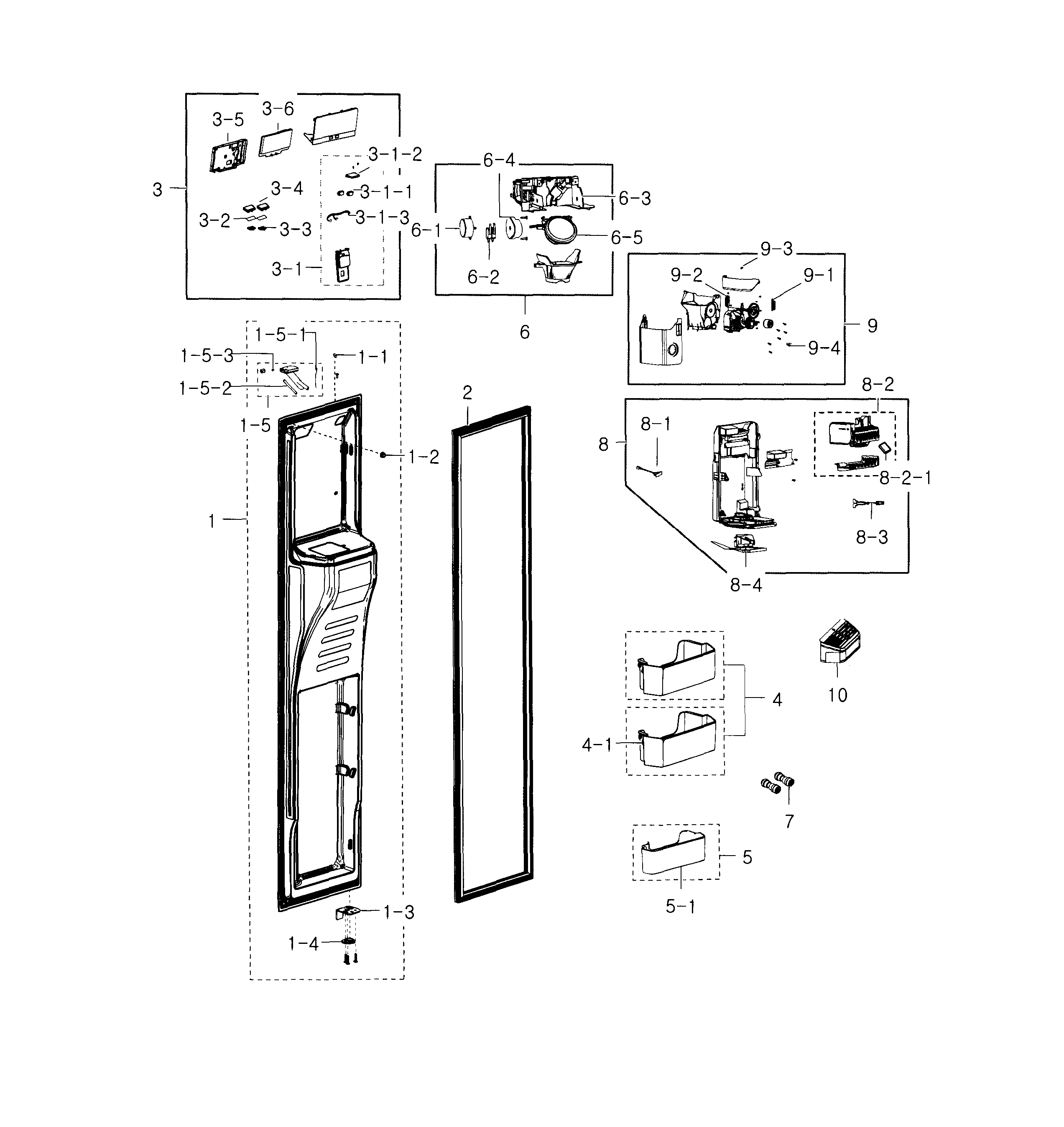

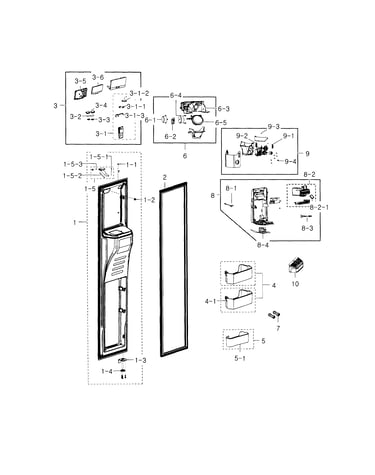

Freezer door diagram

Refrigerator ice maker by samsung

Part #DA97-13415B

BEST SELLER
$165.79 |
7% OFF Phone Price : $177.79
In Stock
Refrigerator Power Control Board DA92-00486A
#16

Cabinet assy diagram

Refrigerator power control board

Part #DA92-00486A

BEST SELLER
$124.06 |
9% OFF Phone Price : $136.06
In Stock
Refrigerator Drain Tube Kit (replaces Da97-04049j) DA97-04049E
#25

Cabinet assy diagram

Refrigerator drain tube kit (replaces da97-04049j)

Part #DA97-04049E

BEST SELLER
$27.20 |
18% OFF Phone Price : $33.20
In Stock
Refrigerator Door Closer (replaces Da66-00558a) DA66-00558B
#1-4

Freezer door diagram

Refrigerator door closer (replaces da66-00558a)

Part #DA66-00558B

BEST SELLER
This item is not returnable
$5.89 |
15% OFF Phone Price : $6.89
In Stock
Refrigerator Compressor Overload Protector DA34-00004D
#29

Cabinet assy diagram

Refrigerator compressor overload protector

Part #DA34-00004D

BEST SELLER
$43.34 |
12% OFF Phone Price : $49.34
In Stock
Refrigerator Drain Cap DA67-01301A
#25-5

Cabinet assy diagram

Refrigerator drain cap

Part #DA67-01301A

Replaced by #DA97-04049D

?
Manufacturer substitution
This part replaces DA67-01301A. Substitute parts can look different from the original.
BEST SELLER
$28.75 |
17% OFF Phone Price : $34.75
In Stock
Refrigerator Door Reed Switch DA34-00043A
#1-1

Cabinet assy diagram

Refrigerator door reed switch

Part #DA34-00043A

Replaced by #DA34-00043J

?
Manufacturer substitution
This part replaces DA34-00043A. Substitute parts can look different from the original.
$22.11 |
21% OFF Phone Price : $28.11
In Stock
Refrigerator Pantry Drawer Thermistor DA32-00006R
#3-4

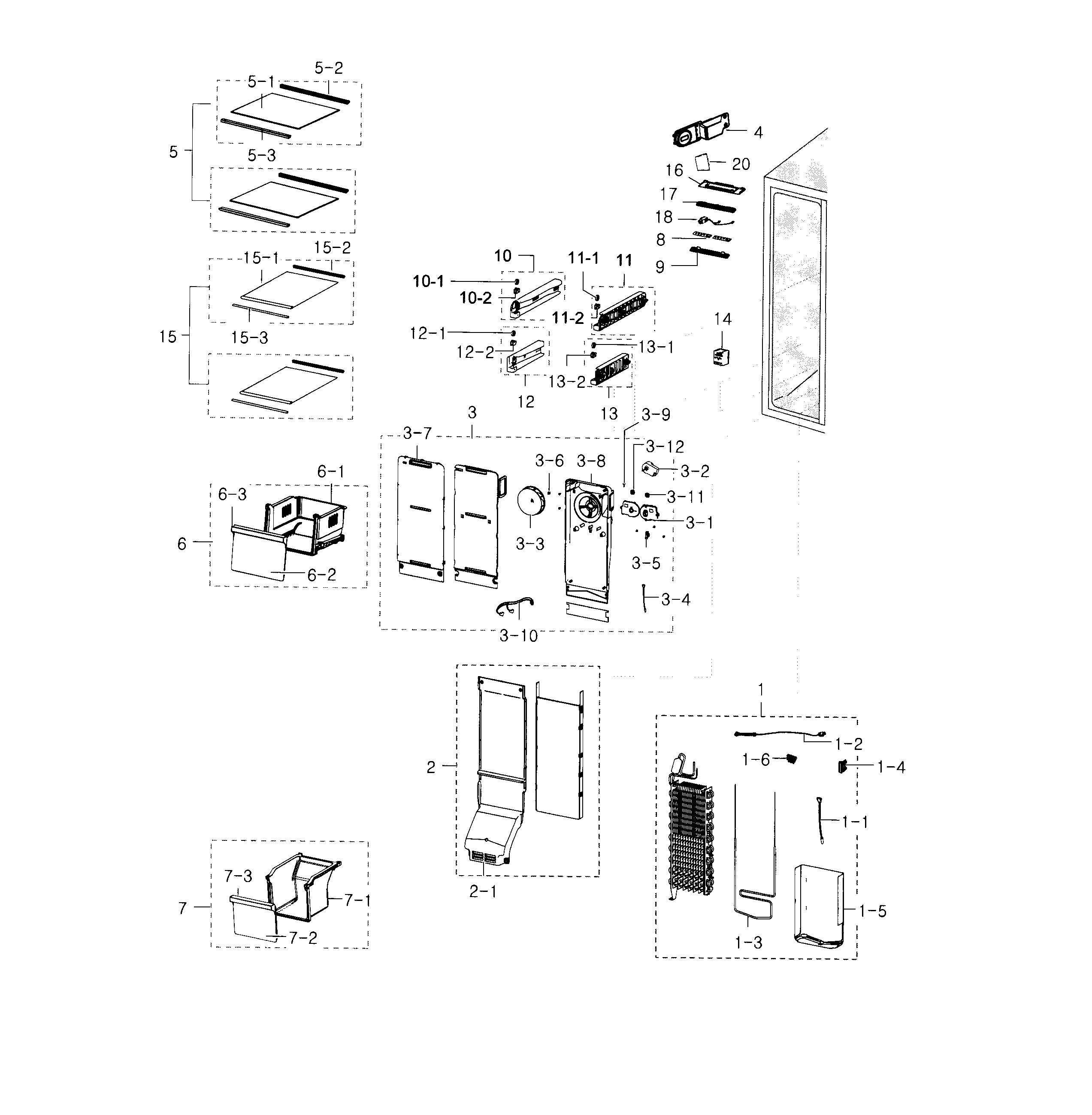

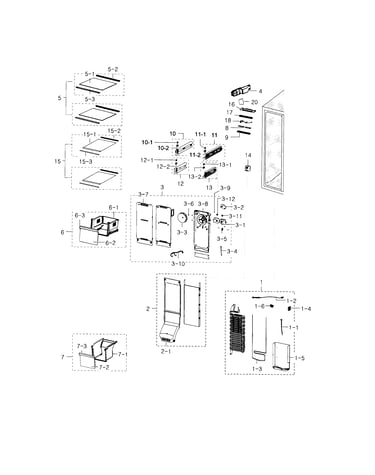

Freezer side diagram

Refrigerator pantry drawer thermistor

Part #DA32-00006R

This item is not returnable
$22.11 |
21% OFF Phone Price : $28.11
In Stock
Refrigerator Door Handle Mounting Stud DA61-03734A
#1

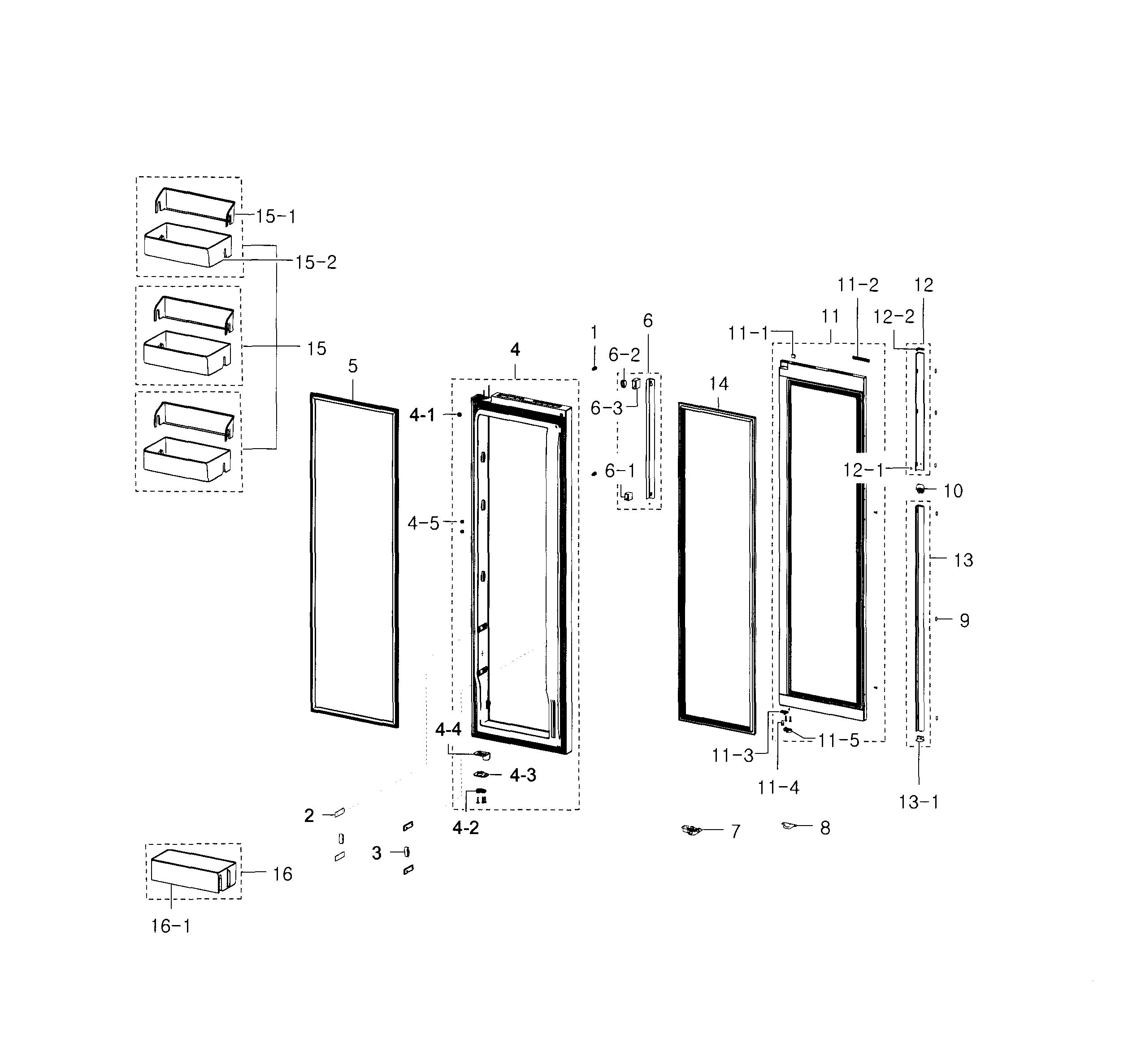

Fridge door diagram

Refrigerator door handle mounting stud

Part #DA61-03734A

This item is not returnable
$6.20 |
14% OFF Phone Price : $7.20
Back Order
