Model # SC4580AT-2 Official Eureka sanitaire commercial upright vacuum cleaner

Here are the diagrams and repair parts for Official Eureka SC4580AT-2 sanitaire commercial upright vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

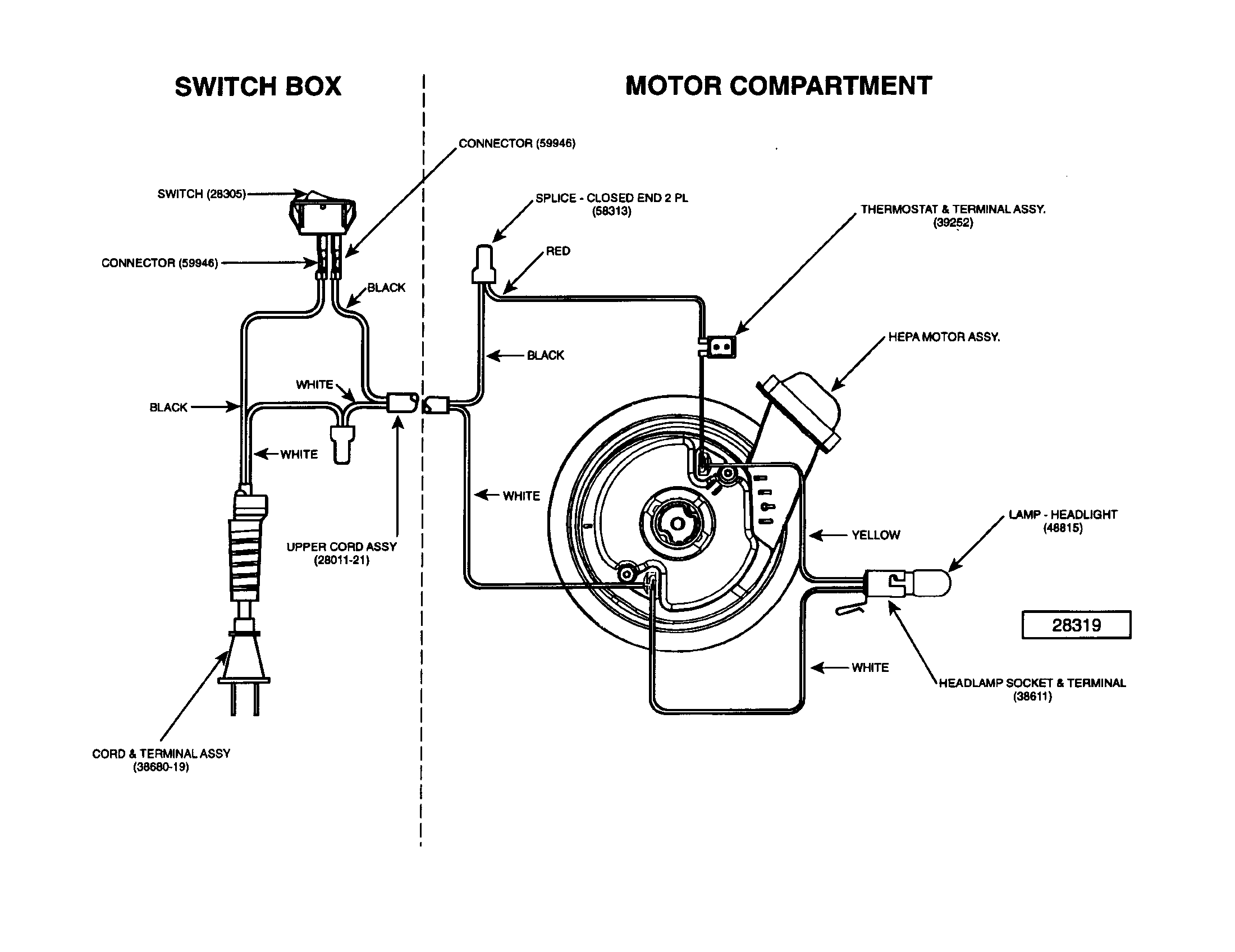

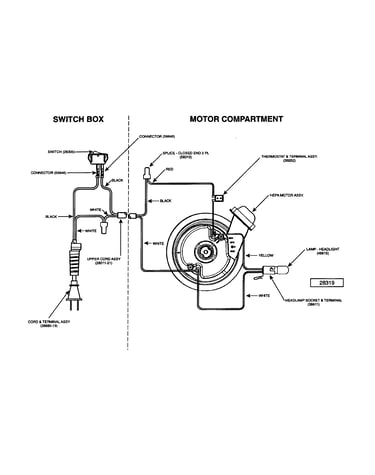

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Electrolux Vacuum Spring 54943
#20

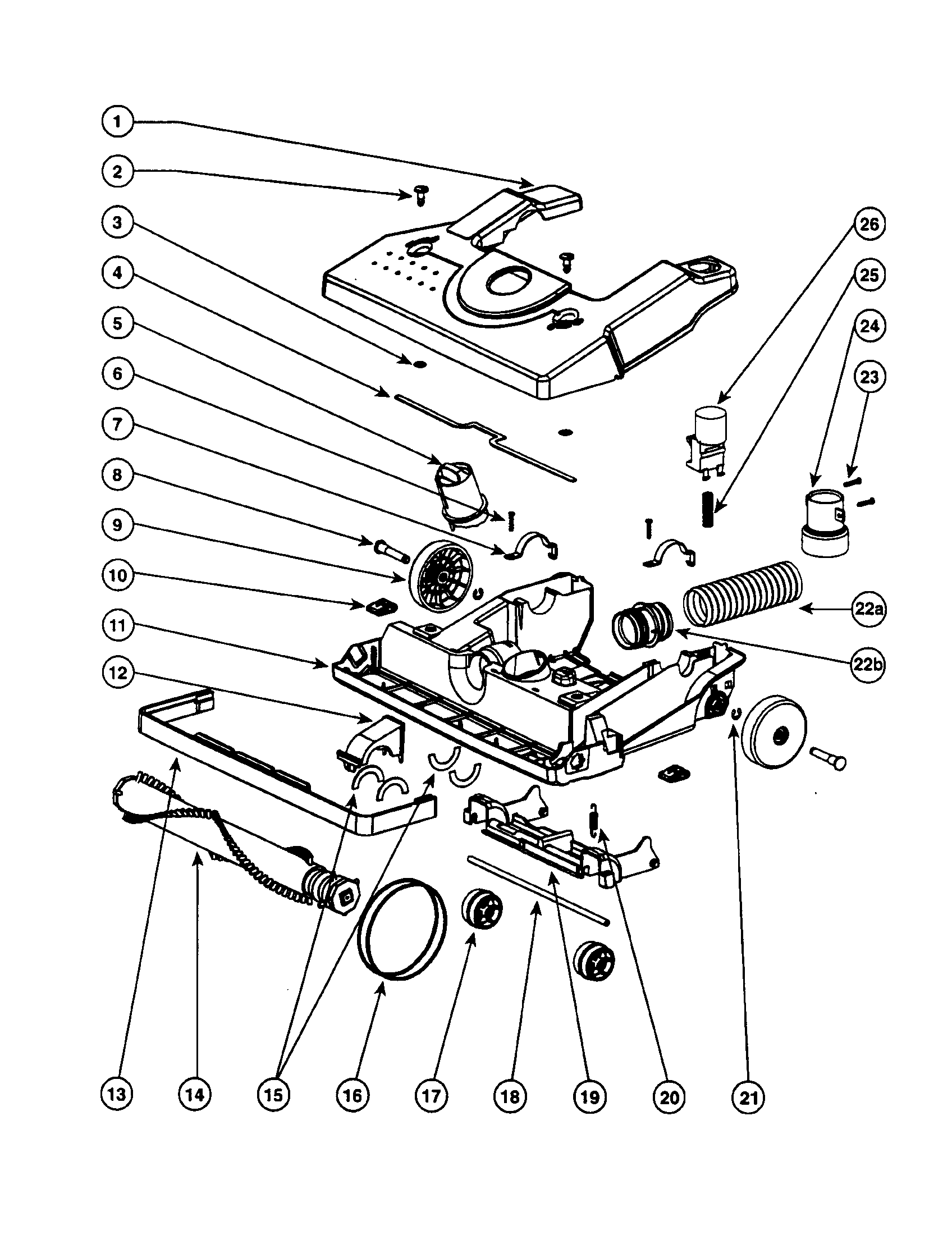

Hood diagram

Electrolux vacuum spring

Part #54943

The manufacturer no longer makes this part, and there's no substitute part

Cord 38680-19
#3

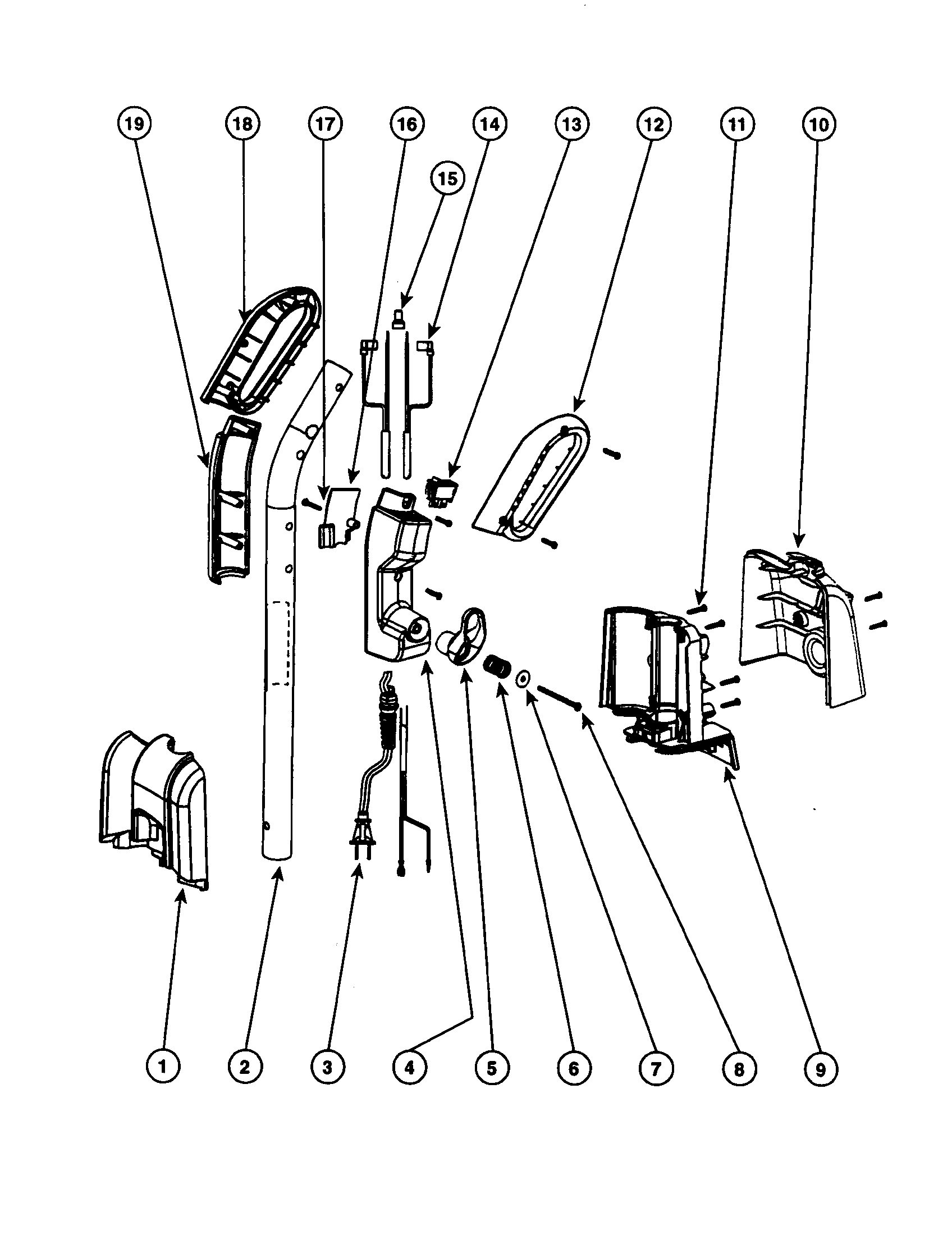

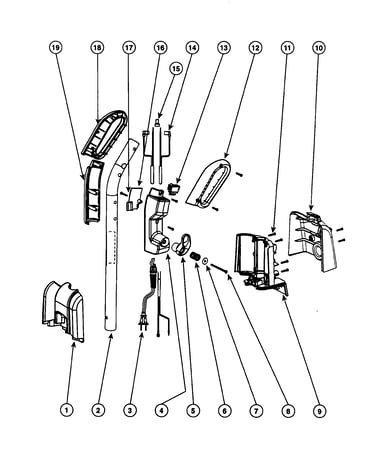

Handle diagram

Cord

Part #38680-19

The manufacturer no longer makes this part, and there's no substitute part

Cuff Hose 27468D-119N
#24

Hood diagram

Cuff hose

Part #27468D-119N

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Adapter 28243A-316N
#22B

Hood diagram

Vacuum adapter

Part #28243A-316N

The manufacturer no longer makes this part, and there's no substitute part

Rear Housing 60944-2
#18

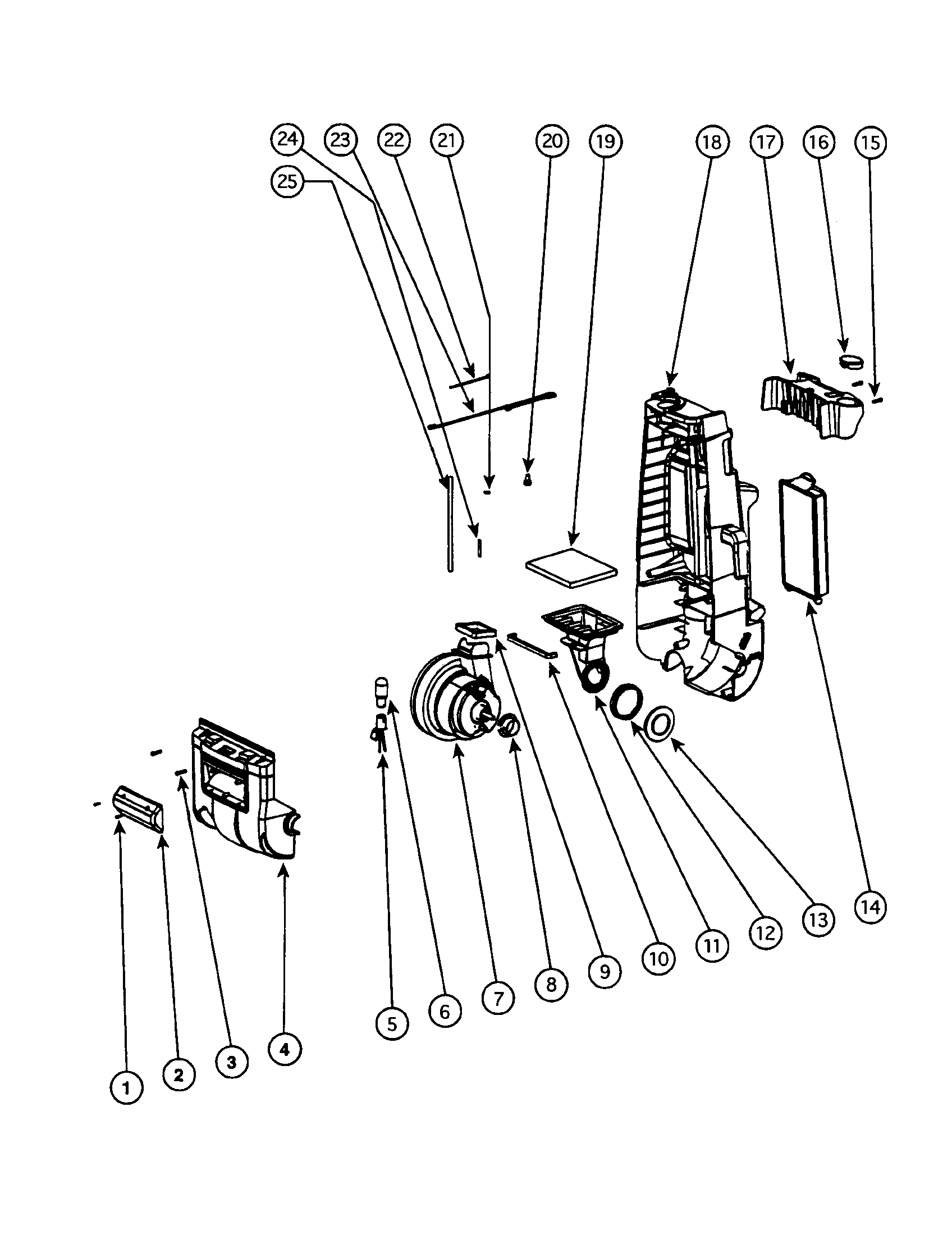

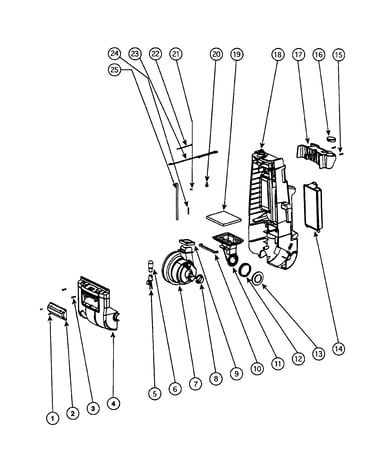

Housing diagram

Rear housing

Part #60944-2

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 70478A

#NI

All parts diagram

Owner's manual

Part #70478A

The manufacturer no longer makes this part, and there's no substitute part

Retainer 28316-288N
#5

Handle diagram

Retainer

Part #28316-288N

The manufacturer no longer makes this part, and there's no substitute part

Shield 59741-316N
#16

Handle diagram

Shield

Part #59741-316N

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel, Front 39173A-119N
#17

Hood diagram

Vacuum wheel, front

Part #39173A-119N

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Light Bulb 48815
#6

Housing diagram

Vacuum light bulb

Part #48815

The manufacturer no longer makes this part, and there's no substitute part
