Model # AAC141SRA-PAAC141SRA0 Official Amana room air conditioner

Here are the diagrams and repair parts for Official Amana AAC141SRA-PAAC141SRA0 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

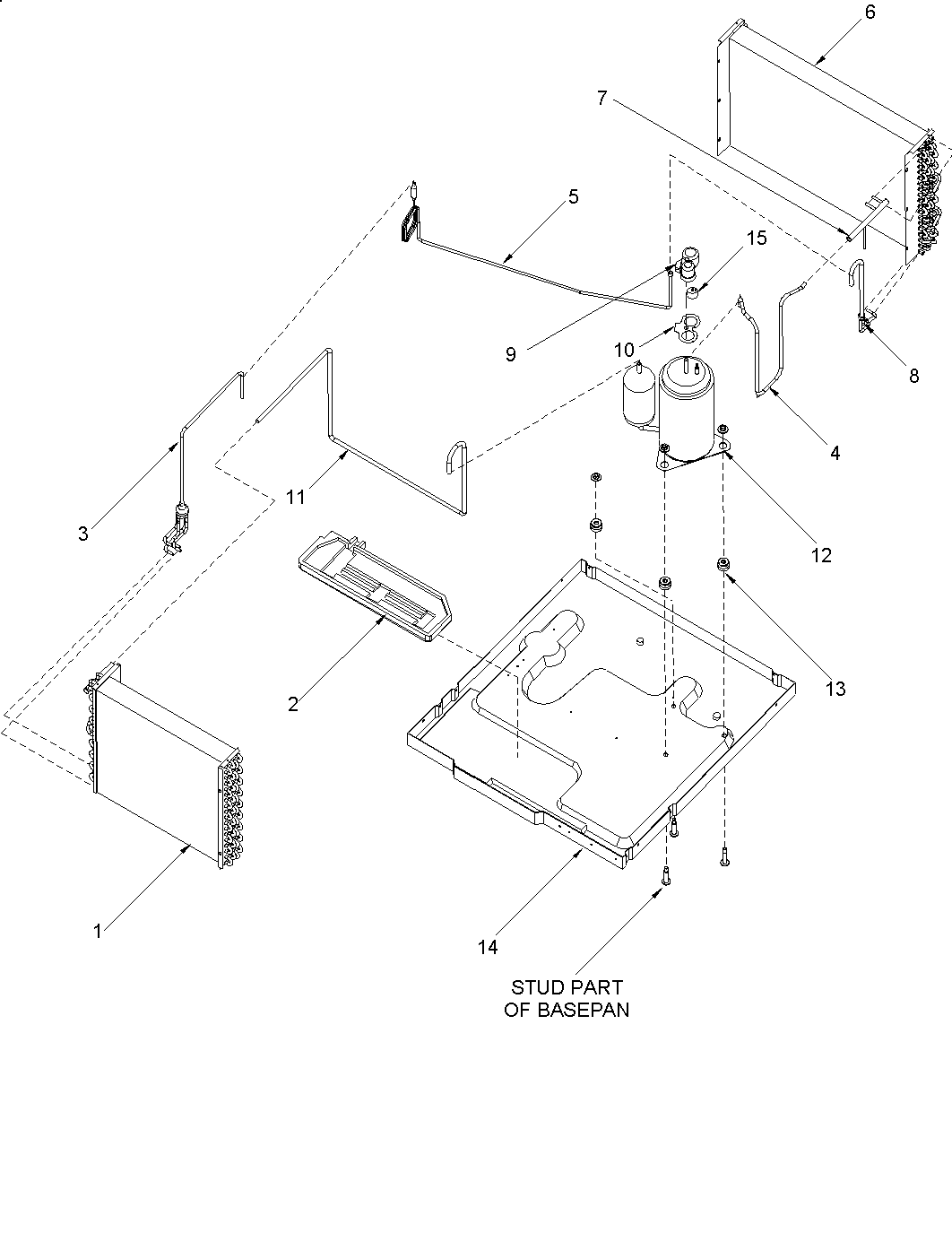

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Rod, Vert Louver Connecting R0130238
#26

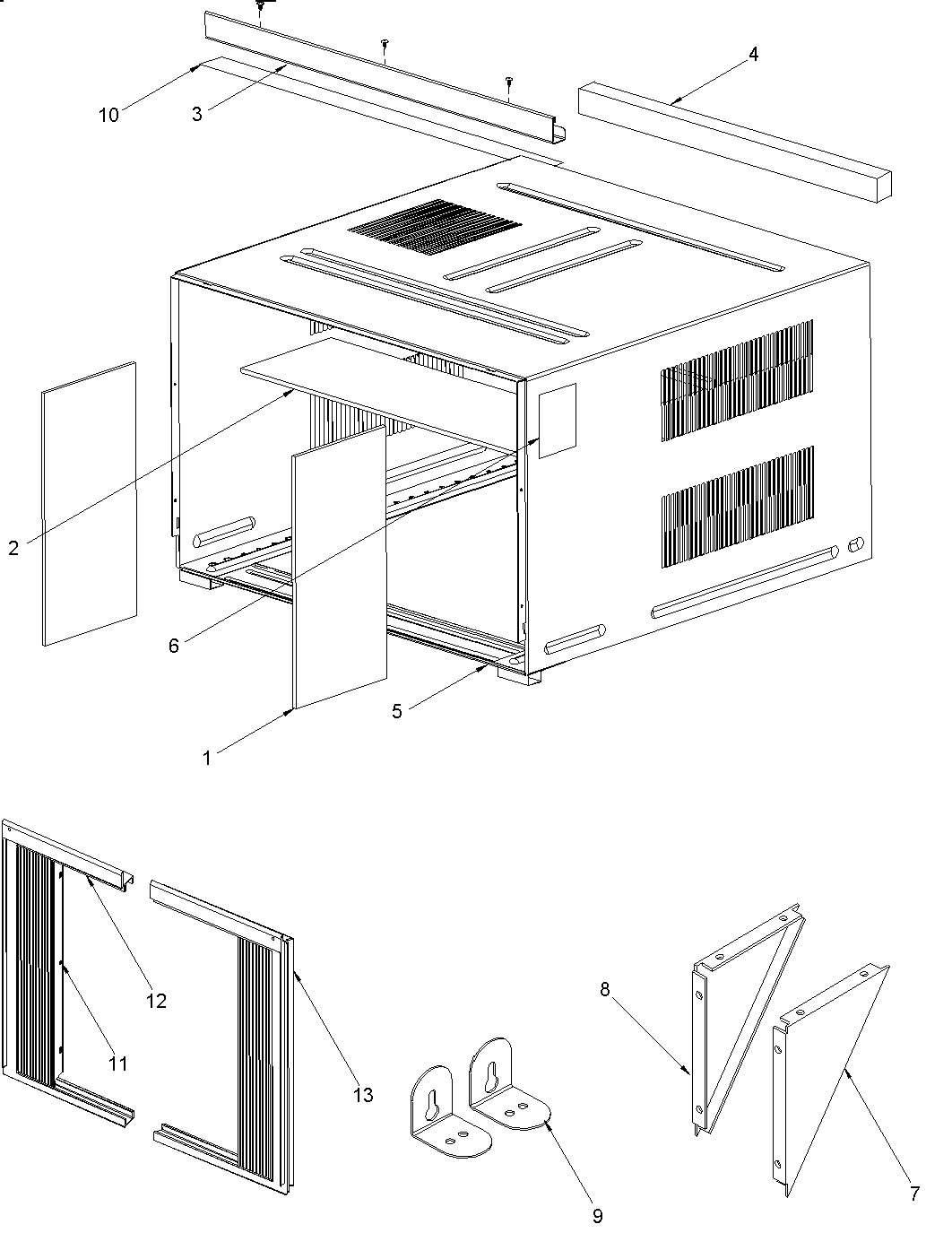

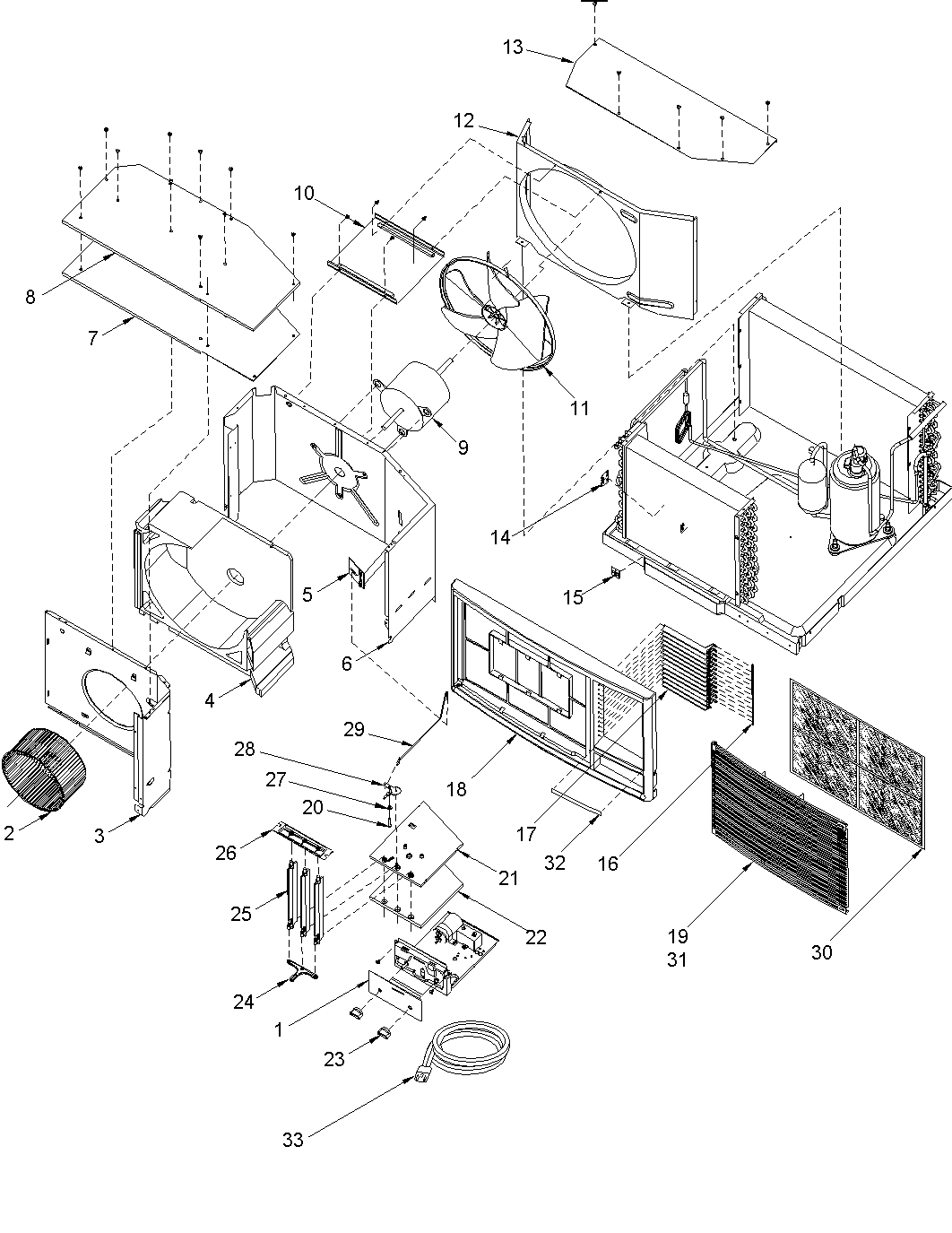

Chassis assembly diagram

Rod, vert louver connecting

Part #R0130238

The manufacturer no longer makes this part, and there's no substitute part

Thermostat R0130204
#3

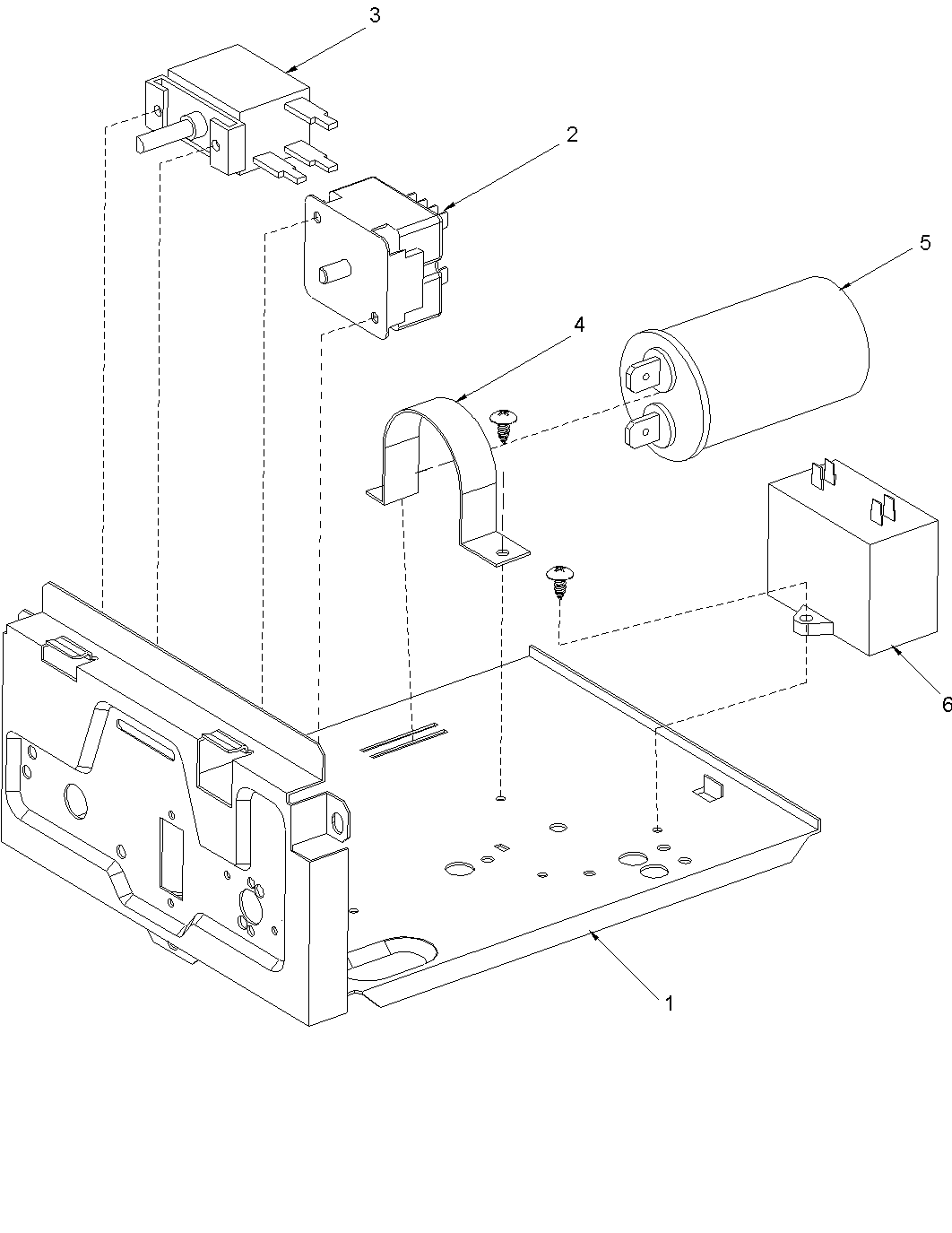

Control assembly diagram

Thermostat

Part #R0130204

The manufacturer no longer makes this part, and there's no substitute part

Gang Bar Vert Louv R0130236
#24

Chassis assembly diagram

Gang bar vert louv

Part #R0130236

The manufacturer no longer makes this part, and there's no substitute part

Clip Therm Sensor R0130239
#14

Chassis assembly diagram

Clip therm sensor

Part #R0130239

The manufacturer no longer makes this part, and there's no substitute part

Control Barrier R0130235
#22

Chassis assembly diagram

Control barrier

Part #R0130235

The manufacturer no longer makes this part, and there's no substitute part

Partition Panel R0130218
#6

Chassis assembly diagram

Partition panel

Part #R0130218

The manufacturer no longer makes this part, and there's no substitute part

Manual Parts RP4110033
#0

Miscellaeous information diagram

Manual parts

Part #RP4110033

The manufacturer no longer makes this part, and there's no substitute part

Compressor Capacitor R0130206
#5

Control assembly diagram

Compressor capacitor

Part #R0130206

The manufacturer no longer makes this part, and there's no substitute part

Vent Actuator R0130574
#28

Chassis assembly diagram

Vent actuator

Part #R0130574

The manufacturer no longer makes this part, and there's no substitute part

Gasket Control Panel (qty Ar) R0130228
#21

Chassis assembly diagram

Gasket control panel (qty ar)

Part #R0130228

The manufacturer no longer makes this part, and there's no substitute part
