Model # C1405--- Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover C1405- upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

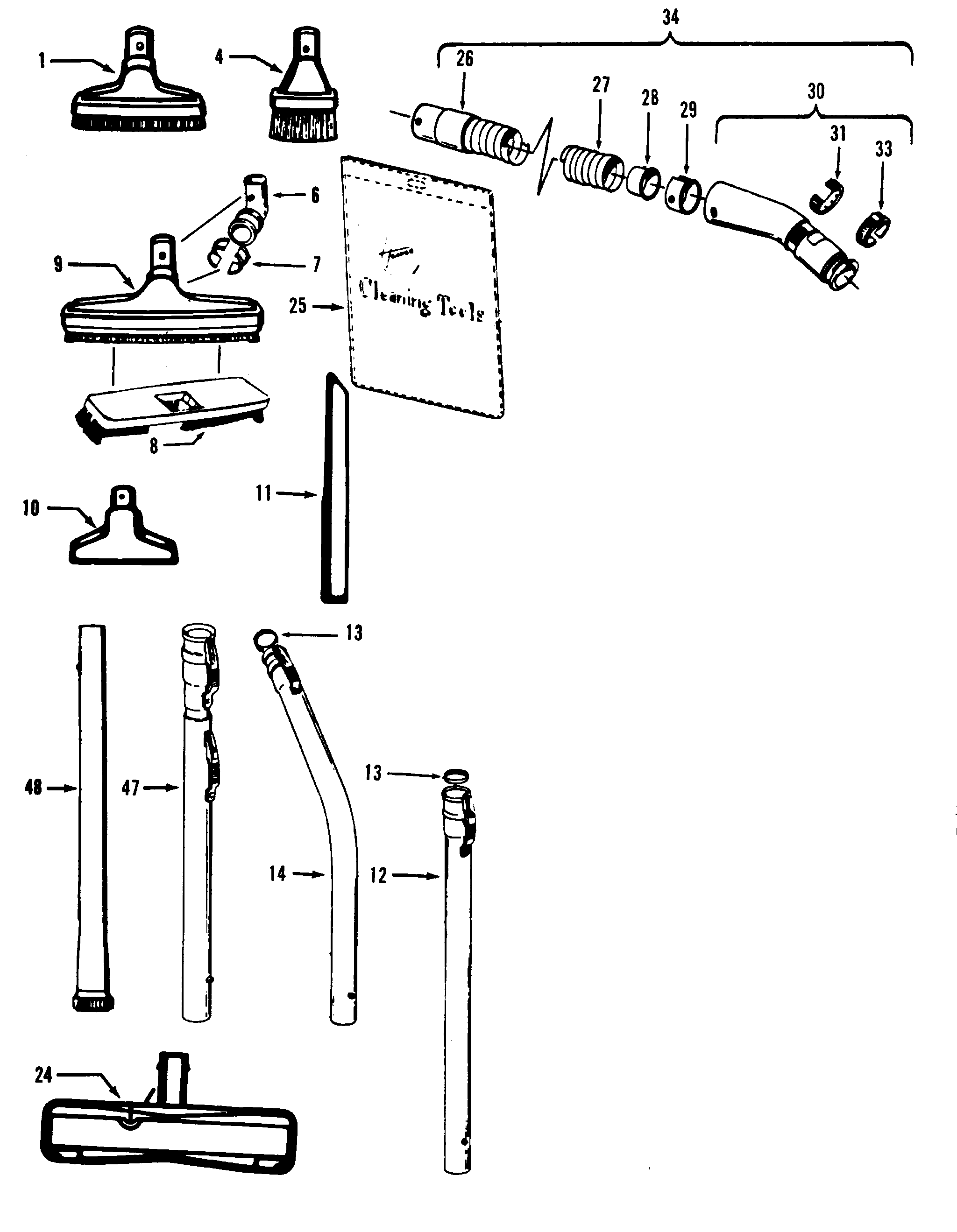

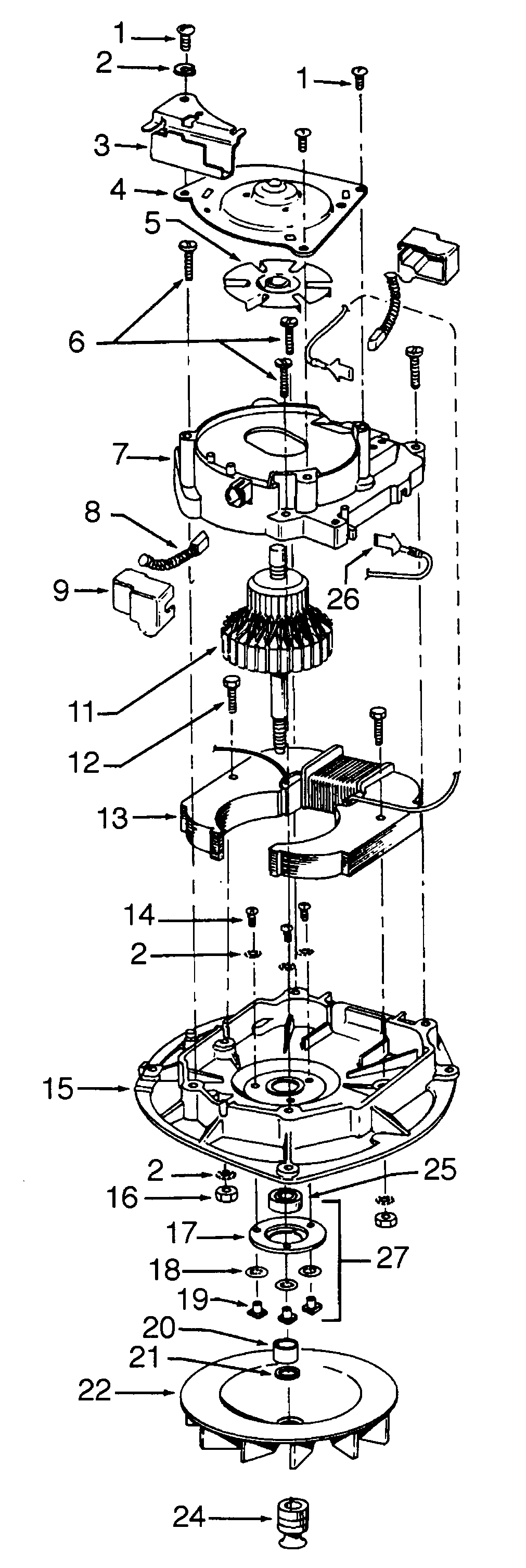

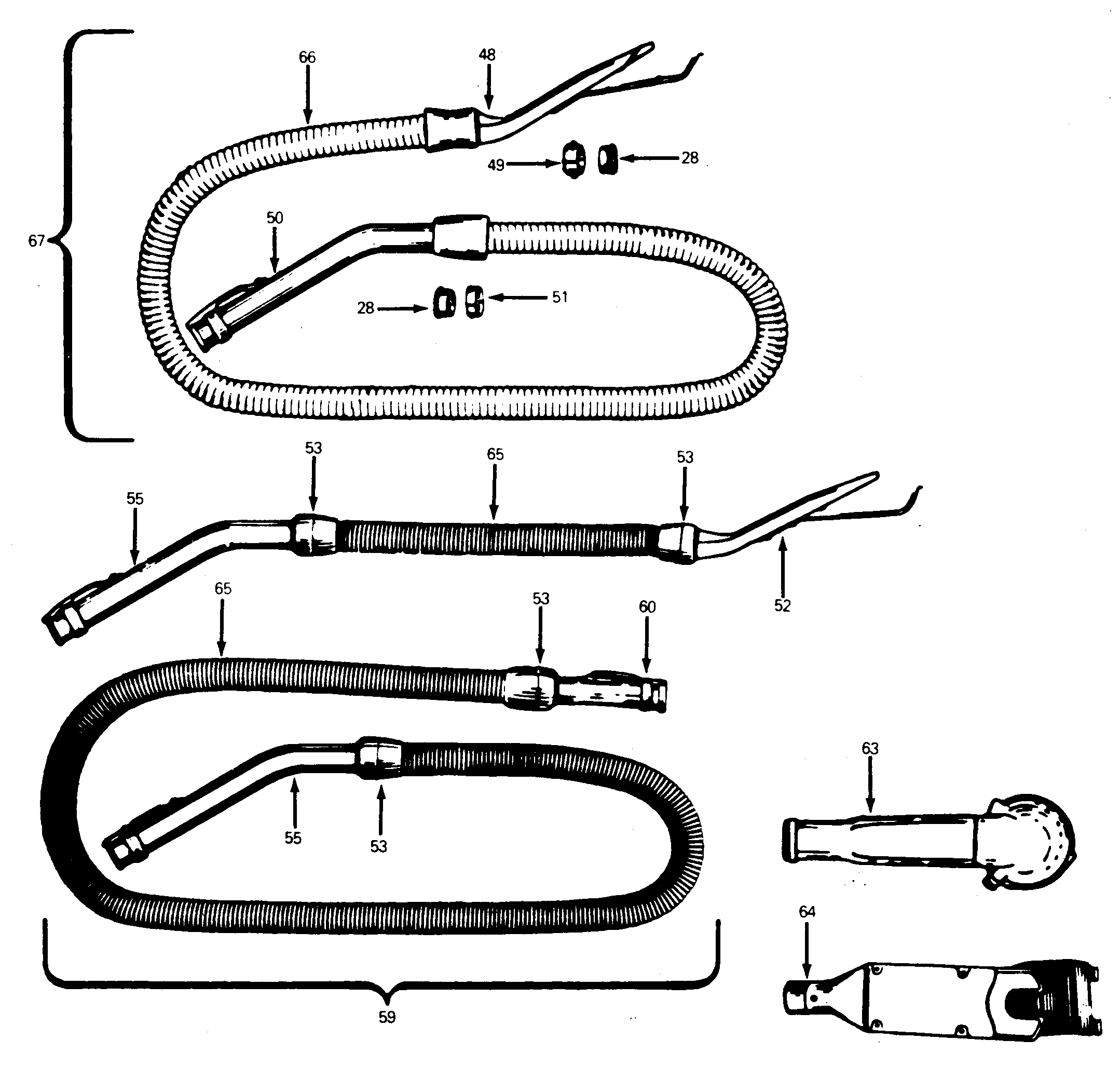

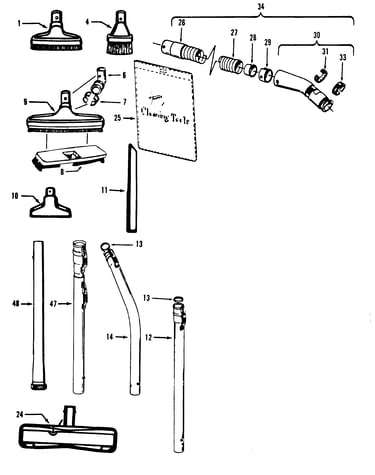

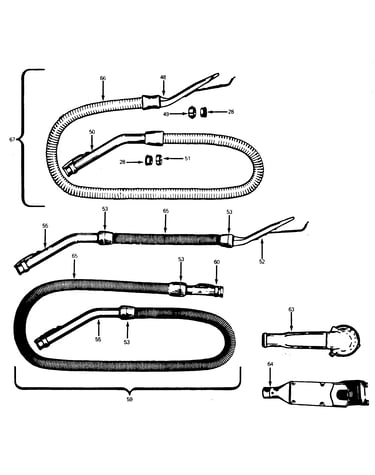

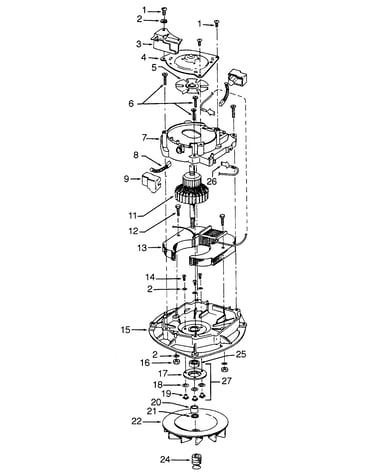

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |

Spt Bellows 41427006
#30

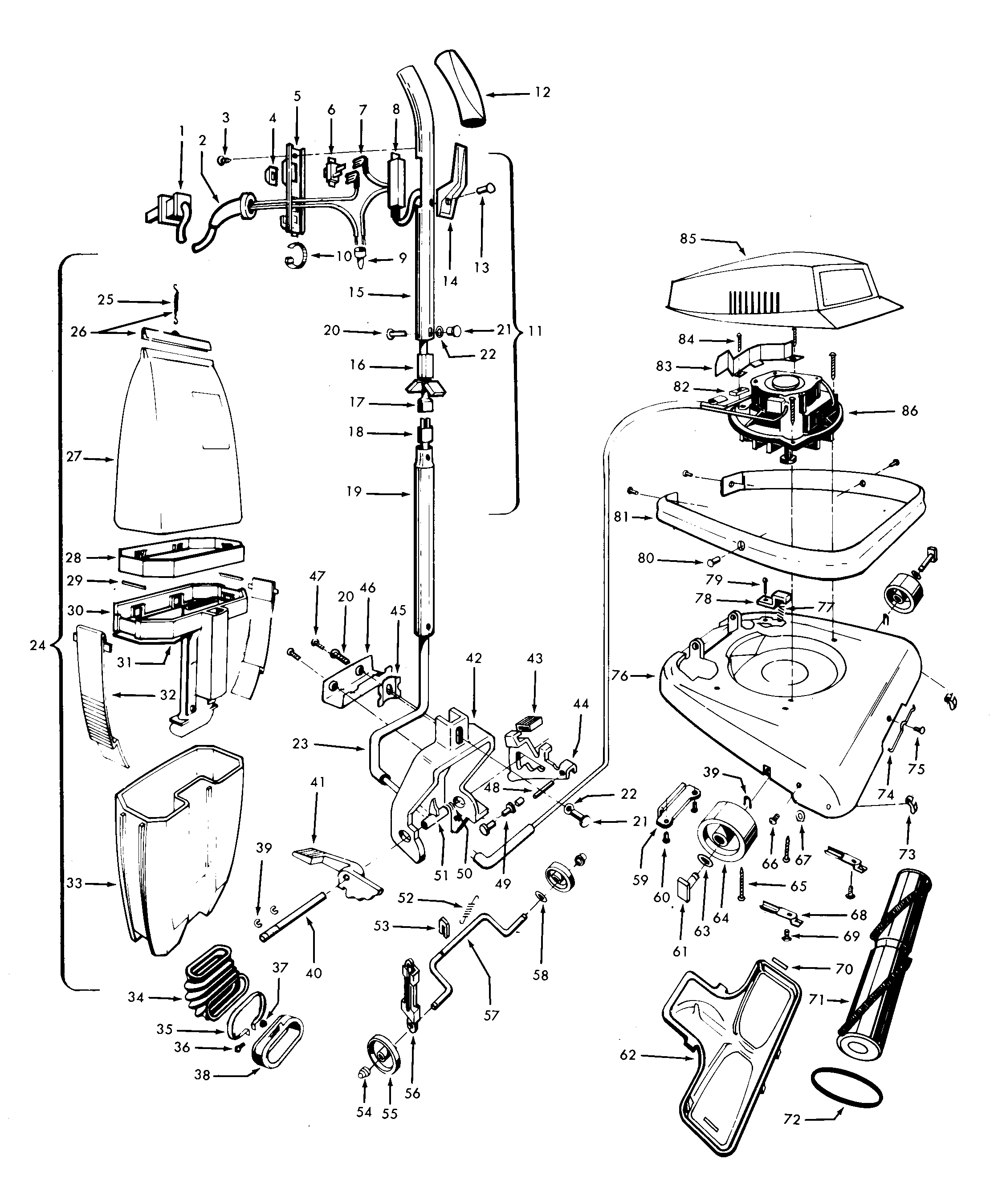

Agitator, handle, mainbody, outerbag diagram

Spt bellows

Part #41427006

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Terminal 27666702
#7

Agitator, handle, mainbody, outerbag diagram

Kenmore terminal

Part #27666702

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Dust Bin Latch 36155011
#32

Agitator, handle, mainbody, outerbag diagram

Vacuum dust bin latch

Part #36155011

The manufacturer no longer makes this part, and there's no substitute part

Motor 43574193
#86

Agitator, handle, mainbody, outerbag diagram

Motor

Part #43574193

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Plate 42246008
#62

Agitator, handle, mainbody, outerbag diagram

Vacuum plate

Part #42246008

The manufacturer no longer makes this part, and there's no substitute part

Clip And S 41128021
#26

Agitator, handle, mainbody, outerbag diagram

Clip and s

Part #41128021

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Yoke 34252005
#53

Agitator, handle, mainbody, outerbag diagram

Kenmore yoke

Part #34252005

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Screw 21465314
#3

Agitator, handle, mainbody, outerbag diagram

Kenmore vacuum screw

Part #21465314

The manufacturer no longer makes this part, and there's no substitute part

Hdl Cont Lvr 43137047
#44

Agitator, handle, mainbody, outerbag diagram

Hdl cont lvr

Part #43137047

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Pvt Pn Rtnr 34665007
#78

Agitator, handle, mainbody, outerbag diagram

Kenmore pvt pn rtnr

Part #34665007

The manufacturer no longer makes this part, and there's no substitute part
