Frigidaire
Room Air Conditioner

Model # A08ME2E4 Official Frigidaire room air conditioner - 5995202800

Here are the diagrams and repair parts for Official Frigidaire A08ME2E4 room air conditioner - 5995202800, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |

Washer 3007766
#17

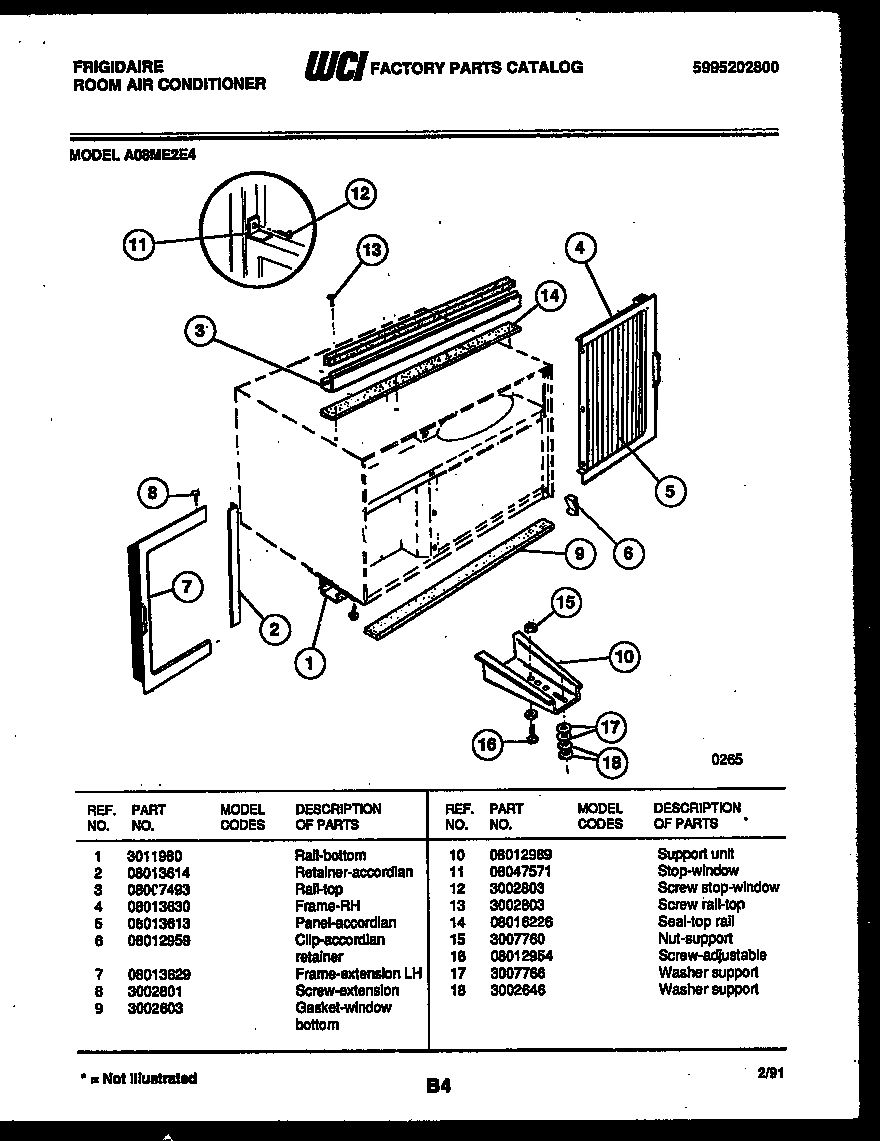

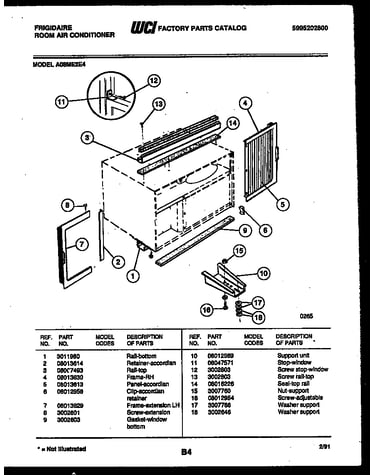

Window mounting parts diagram

Washer

Part #3007766

This item is not returnable
In Stock
Kenmore Support (replaces 000253701, 000253701, 253701, 253701, A000253701, Wa253701) 08007493
#3

Window mounting parts diagram

Kenmore support (replaces 000253701, 000253701, 253701, 253701, a000253701, wa253701)

Part #08007493

In Stock
Louver 08013695
#13

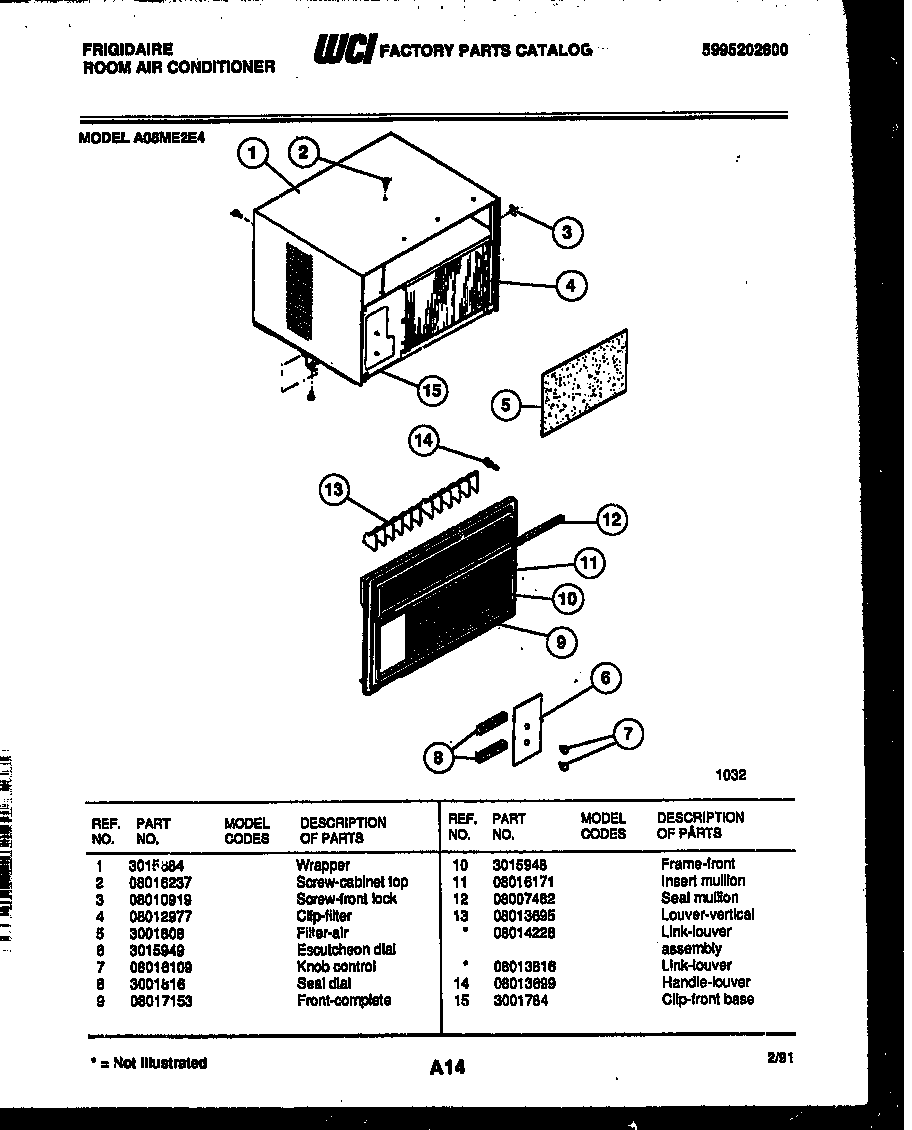

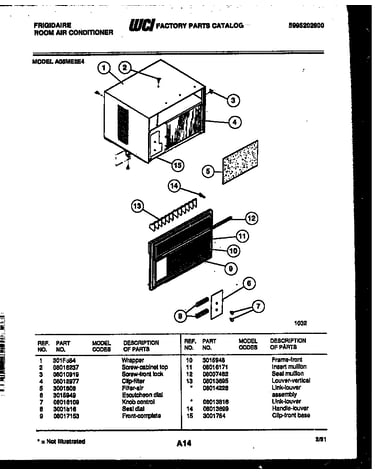

Cabinet parts diagram

Louver

Part #08013695

This item is not returnable
In Stock
Screw 08012954
#16

Window mounting parts diagram

Screw

Part #08012954

This item is not returnable
In Stock
Strainer 3017512
#2

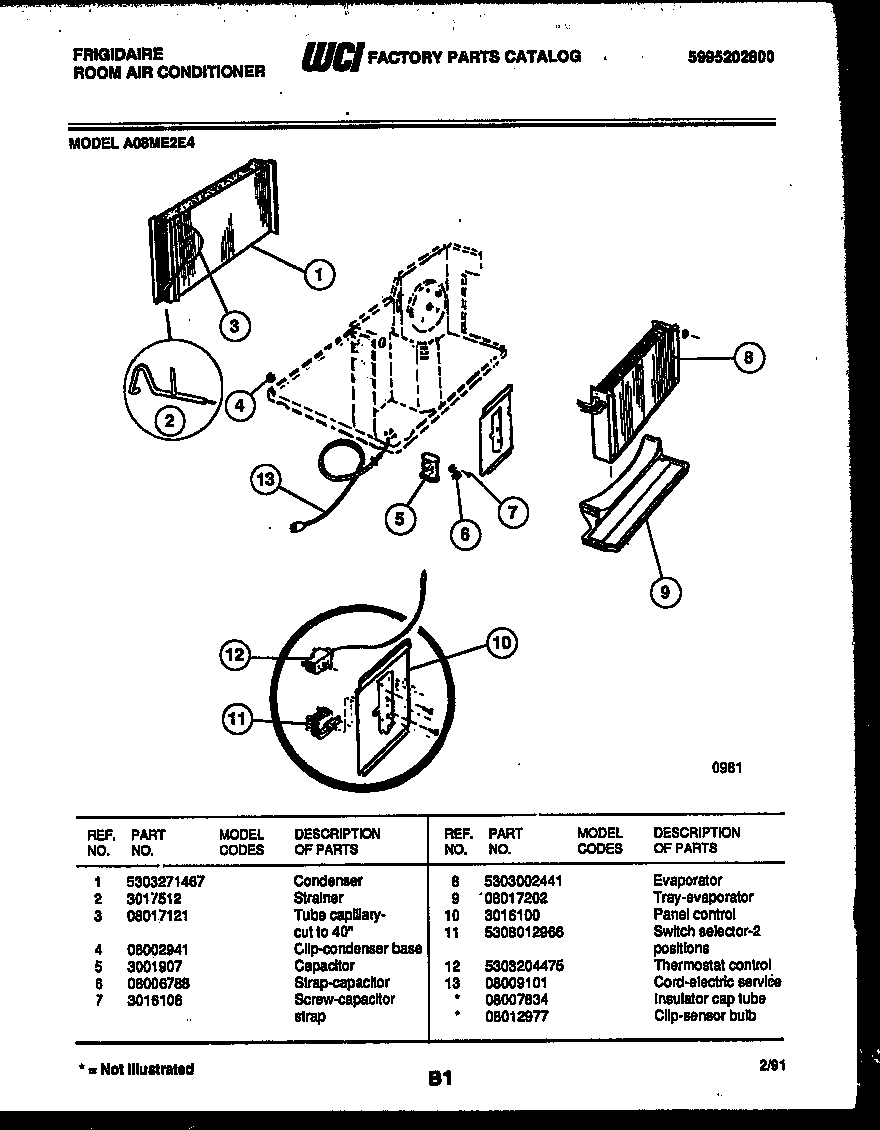

Unit parts diagram

Strainer

Part #3017512

Replaced by #5300265301

?
Manufacturer substitution
This part replaces 3017512. Substitute parts can look different from the original.
In Stock
Screw 08007473
#5

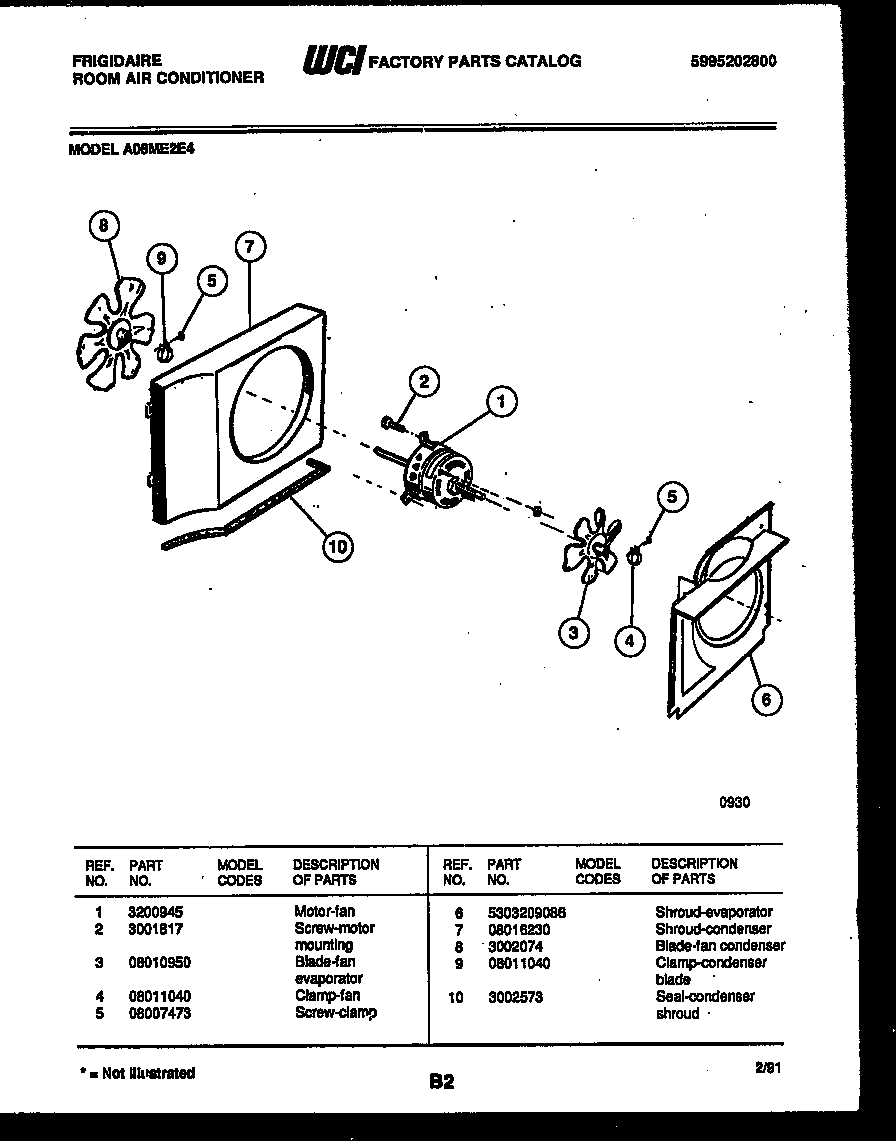

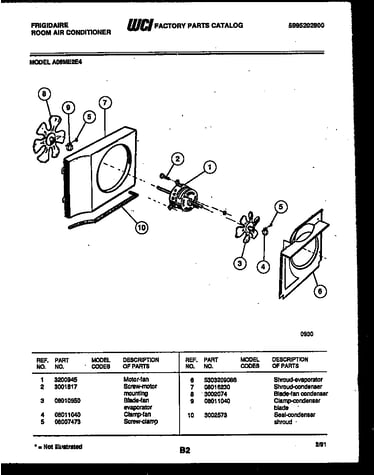

Air handling parts diagram

Screw

Part #08007473

Replaced by #5304455651

?
Manufacturer substitution
This part replaces 08007473. Substitute parts can look different from the original.
In Stock
Gasket 3002603
#9

Window mounting parts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
In Stock
Link 08014228
#13A

Cabinet parts diagram

Link

Part #08014228

The manufacturer no longer makes this part, and there's no substitute part

Terminal Cover Nut 5303211017
#6

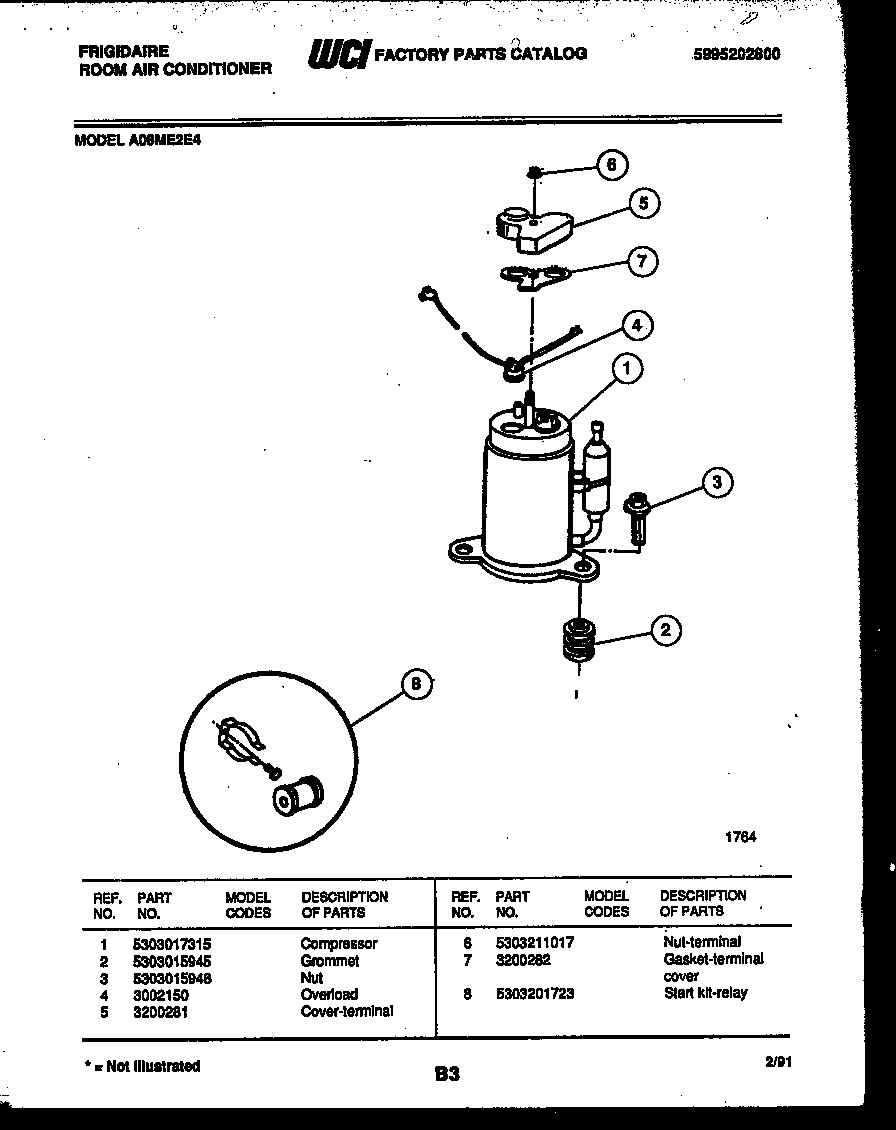

Compressor parts diagram

Terminal cover nut

Part #5303211017

The manufacturer no longer makes this part, and there's no substitute part

Rail 3011980
#1

Window mounting parts diagram

Rail

Part #3011980

The manufacturer no longer makes this part, and there's no substitute part
