Model # 917253591 Official Craftsman rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917253591 rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 144 parts  |
Idler 2083R
#29

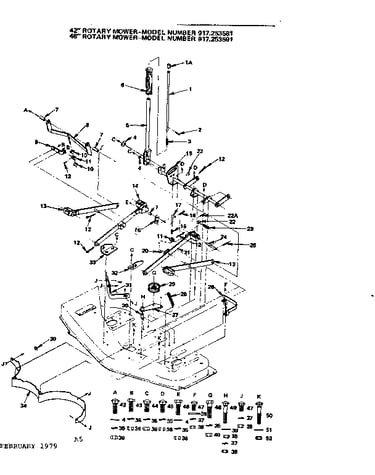

Lift assembly diagram

Idler

Part #2083R

Replaced by #532102403

?
Manufacturer substitution
This part replaces 2083R. Substitute parts can look different from the original.
$34.98 |
15% OFF Phone Price : $40.98
In Stock
Idler 634A565
#9

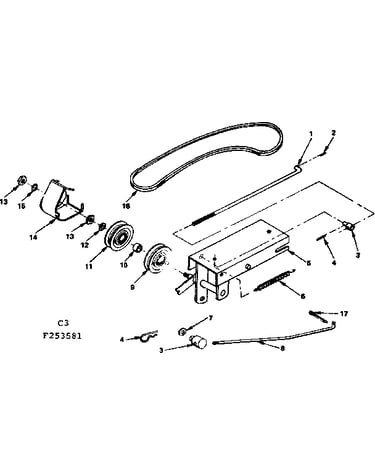

Ilder assembly diagram

Idler

Part #634A565

Replaced by #583771401

?
Manufacturer substitution
This part replaces 634A565. Substitute parts can look different from the original.
$54.98 |
10% OFF Phone Price : $60.98
In Stock
Wizard Lawn Tractor Grease Fitting (replaces 1641, 40493, 532006855, 532124836, 532155595, 62569, 706, Lp-706) 6855M
#46

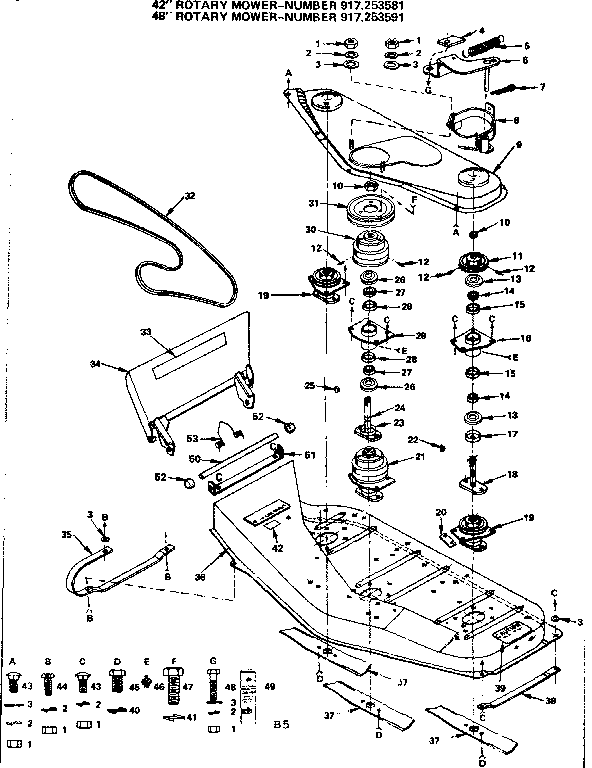

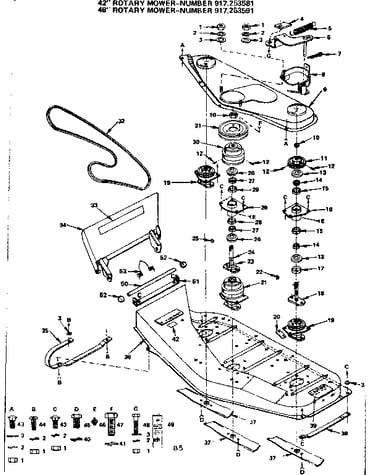

Mandrel assembly diagram

Wizard lawn tractor grease fitting (replaces 1641, 40493, 532006855, 532124836, 532155595, 62569, 706, lp-706)

Part #6855M

Replaced by #532183226

?
Manufacturer substitution
This part replaces 6855M. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Spring 3770R
#5

Mandrel assembly diagram

Spring

Part #3770R

Replaced by #583733001

?
Manufacturer substitution
This part replaces 3770R. Substitute parts can look different from the original.
$32.98 |
15% OFF Phone Price : $38.98
In Stock
Lawn Tractor Mower Attachment Idler Pulley 634A566
#11

Ilder assembly diagram

Lawn tractor mower attachment idler pulley

Part #634A566

Replaced by #583771501

?
Manufacturer substitution
This part replaces 634A566. Substitute parts can look different from the original.
$46.64
In Stock
Brake Shoe 2629R
#4

Mandrel assembly diagram

Brake shoe

Part #2629R

Replaced by #583730801

?
Manufacturer substitution
This part replaces 2629R. Substitute parts can look different from the original.
$26.64
In Stock
V-belt 6943R
#32B

Mandrel assembly diagram

V-belt

Part #6943R

Replaced by #583774301

?
Manufacturer substitution
This part replaces 6943R. Substitute parts can look different from the original.
$51.98
In Stock
Hitch Pin, 2-pack 4939M
#2

Ilder assembly diagram

Hitch pin, 2-pack

Part #4939M

Replaced by #596919601

?
Manufacturer substitution
This part replaces 4939M. Substitute parts can look different from the original.
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Carriage Bolt, 5/16-18 X 3/4-in STD533107
Carriage bolt, 5/16-18 x 3/4-in

Part #STD533107

The manufacturer no longer makes this part, and there's no substitute part

Spring 2876H
#3

Lift assembly diagram

Spring

Part #2876H

Replaced by #532002876

?
Manufacturer substitution
This part replaces 2876H. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
