Model # JB640SF1SS Official GE electric range

Here are the diagrams and repair parts for Official GE JB640SF1SS electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 115 parts  |
Range Oven Light Bulb WX12X1510
#257

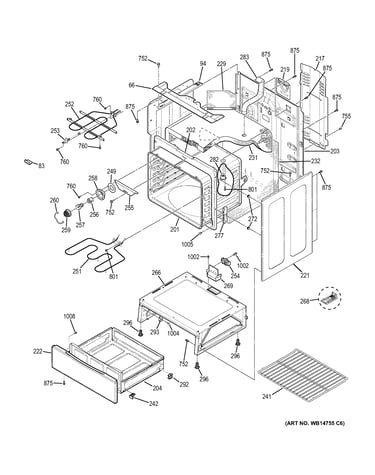

Body parts diagram

Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Range Oven Control Board (replaces Wb27t11486) WB18X20153
#16

Control panel diagram

Range oven control board (replaces wb27t11486)

Part #WB18X20153

Replaced by #WB27X45466

?
Manufacturer substitution
This part replaces WB18X20153. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$142.37 |
8% OFF Phone Price : $154.37
In Stock
Wall Oven Temperature Sensor WB21T10007
#253

Body parts diagram

Wall oven temperature sensor

Part #WB21T10007

Replaced by #WB21X22134

?
Manufacturer substitution
This part replaces WB21T10007. Substitute parts can look different from the original.
BEST SELLER
$24.05 |
20% OFF Phone Price : $30.05
In Stock
Range Radiant Surface Element, 5-1/2-in (replaces Wb30t10127) WB30T10145
#56

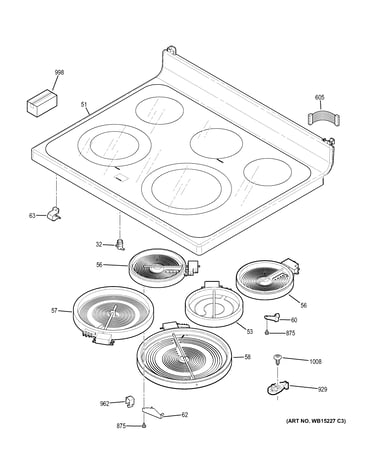

Cooktop diagram

Range radiant surface element, 5-1/2-in (replaces wb30t10127)

Part #WB30T10145

BEST SELLER
$89.97 |
6% OFF Phone Price : $95.97
In Stock
Range Surface Element Control Switch WB24T10146
#22

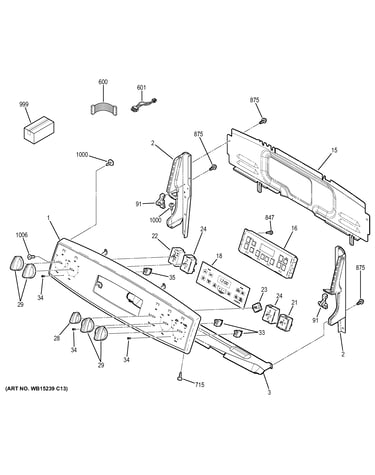

Control panel diagram

Range surface element control switch

Part #WB24T10146

BEST SELLER
$35.14 |
15% OFF Phone Price : $41.14
In Stock
Range Surface Element Control Switch (replaces Wb27t10384) WB24T10153
#21

Control panel diagram

Range surface element control switch (replaces wb27t10384)

Part #WB24T10153

BEST SELLER
$98.13 |
11% OFF Phone Price : $110.13
In Stock
Range Radiant Surface Element, 8-in (replaces Wb30t10128) WB30T10132
#57

Cooktop diagram

Range radiant surface element, 8-in (replaces wb30t10128)

Part #WB30T10132

BEST SELLER
$51.57 |
10% OFF Phone Price : $57.57
In Stock
Oven Door Glass WB55T10191
#338

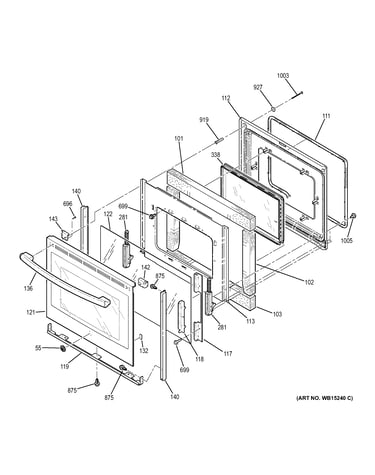

Door diagram

Oven door glass

Part #WB55T10191

Replaced by #WB56T10105

?
Manufacturer substitution
This part replaces WB55T10191. Substitute parts can look different from the original.
BEST SELLER
$101.93 |
11% OFF Phone Price : $113.93
In Stock
Range Light Socket (replaces Wb08t10004) WB08T10026
#256

Body parts diagram

Range light socket (replaces wb08t10004)

Part #WB08T10026

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Wall Oven Light Lens WB36X0389
#259

Body parts diagram

Wall oven light lens

Part #WB36X0389

Replaced by #WB36X192

?
Manufacturer substitution
This part replaces WB36X0389. Substitute parts can look different from the original.
This item is not returnable
$9.54 |
9% OFF Phone Price : $10.54
In Stock
