Frigidaire
Countertop Microwave

Model # PLMB186CC1 Official Frigidaire microwave

Here are the diagrams and repair parts for Official Frigidaire PLMB186CC1 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

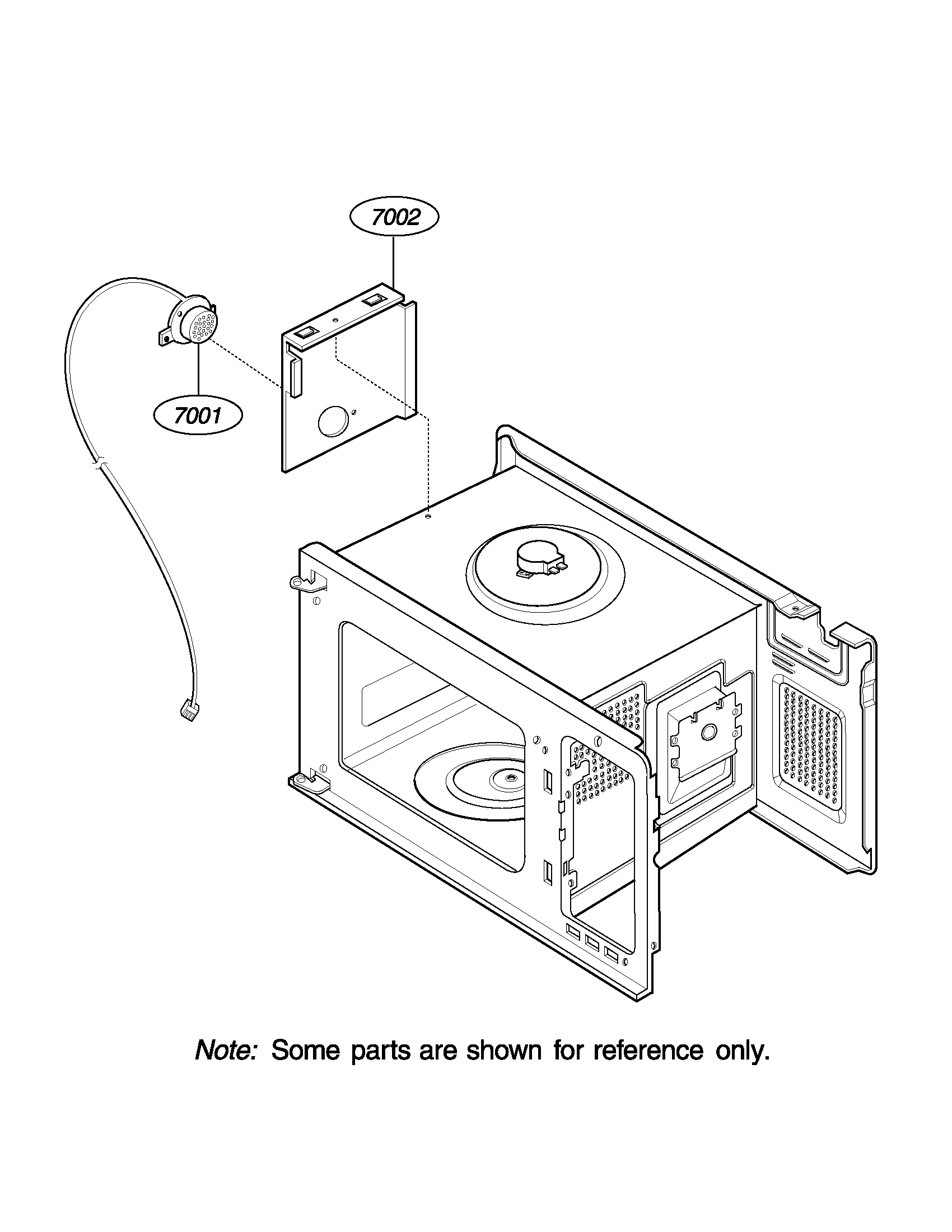

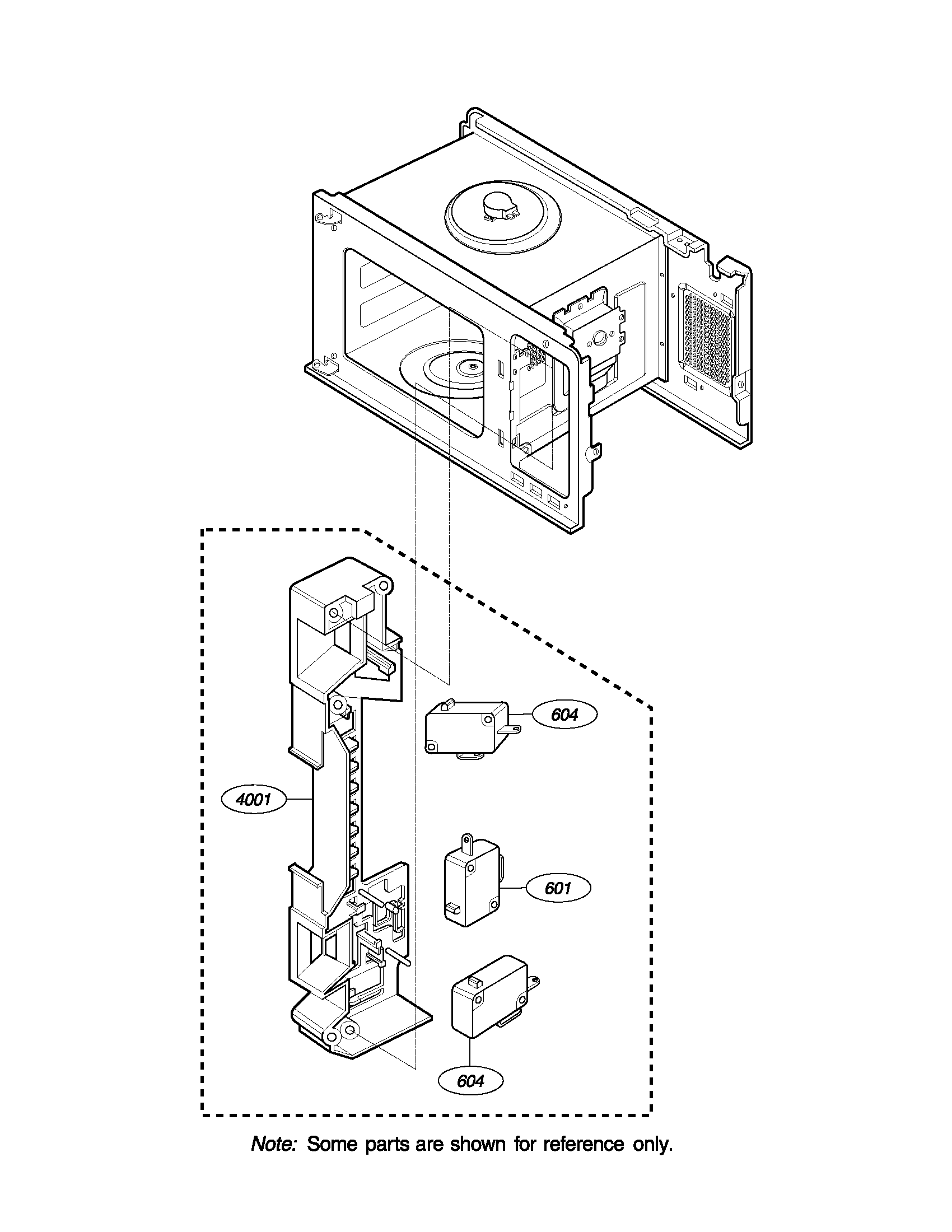

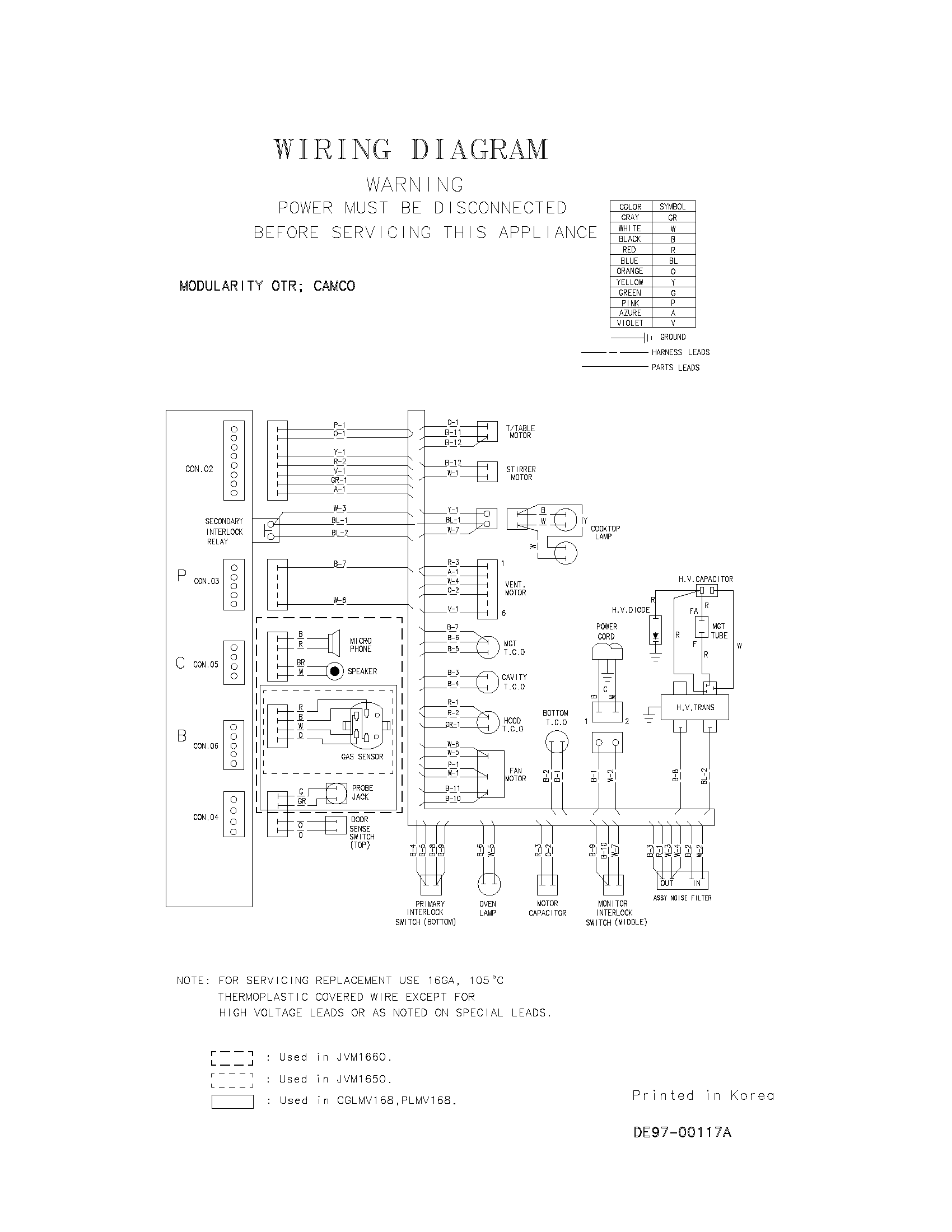

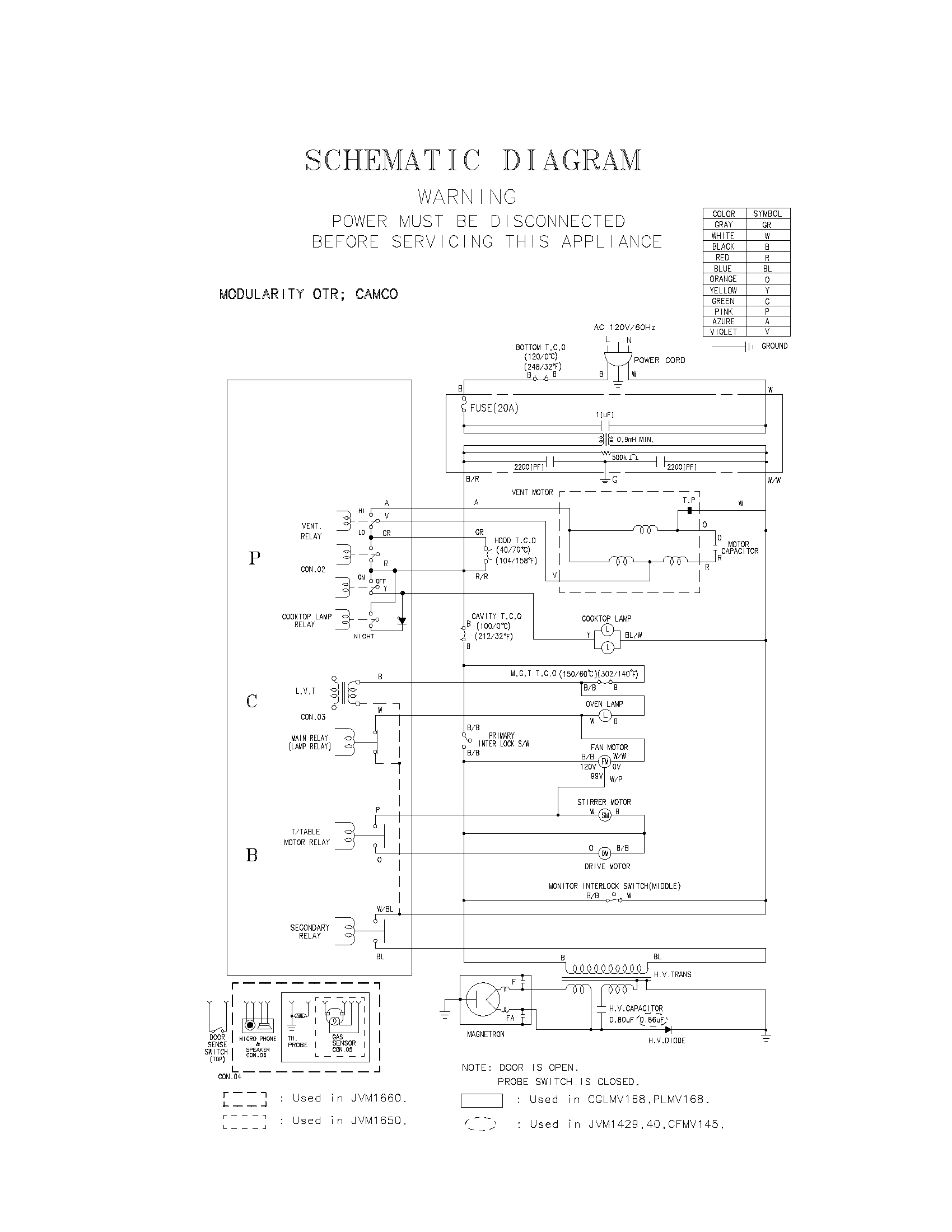

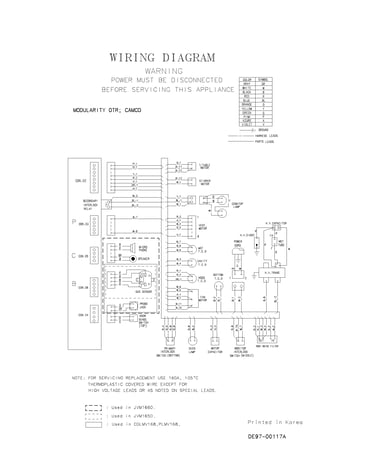

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |

Cover 5304423496
#120

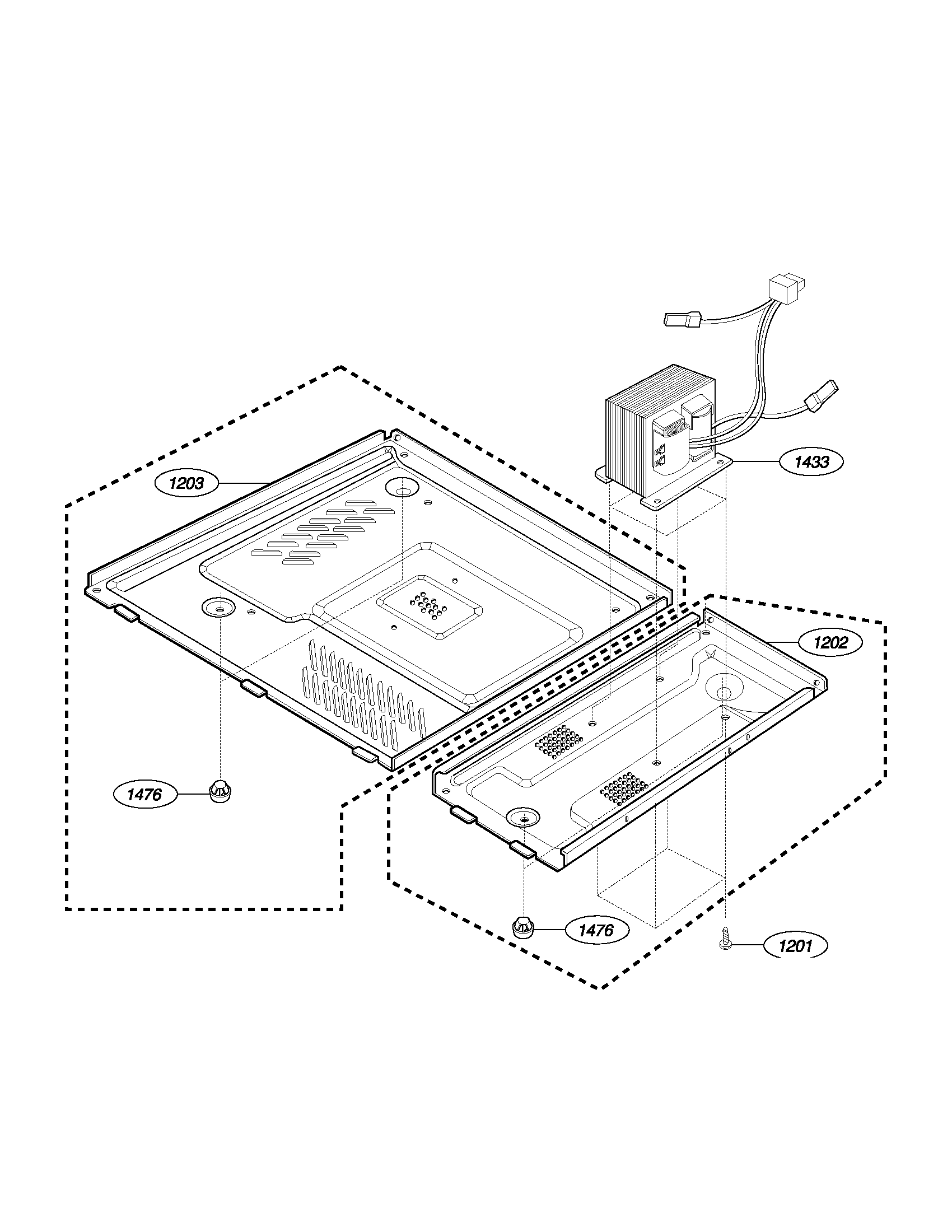

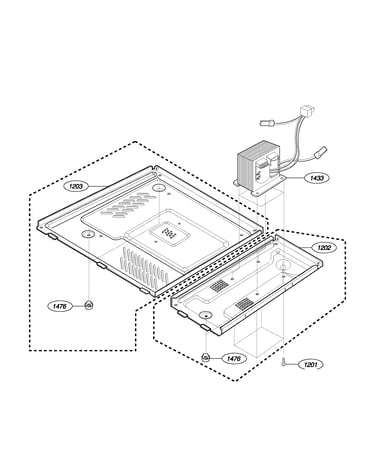

Base plate diagram

Cover

Part #5304423496

In Stock
Door Liner 5304423412
#180

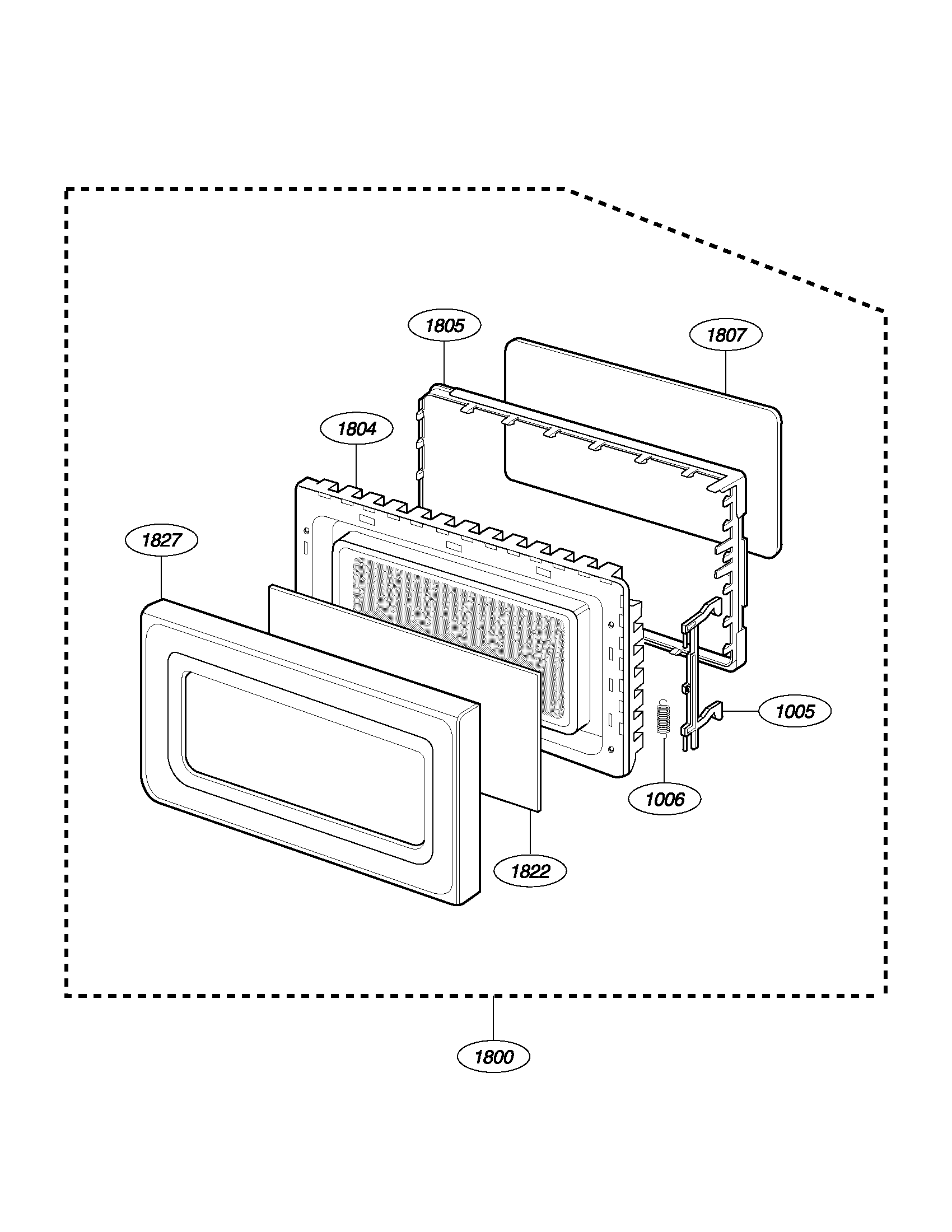

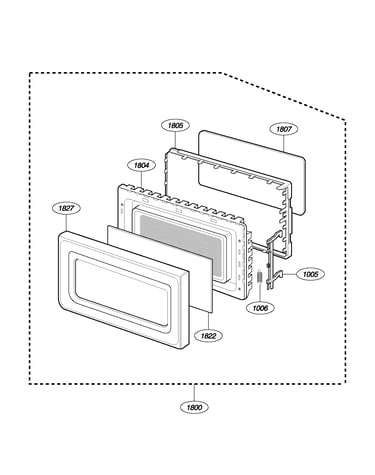

Door diagram

Door liner

Part #5304423412

In Stock
Spring 5304423431
#200

Control panel diagram

Spring

Part #5304423431

In Stock
Air Duct 5304423482
#142

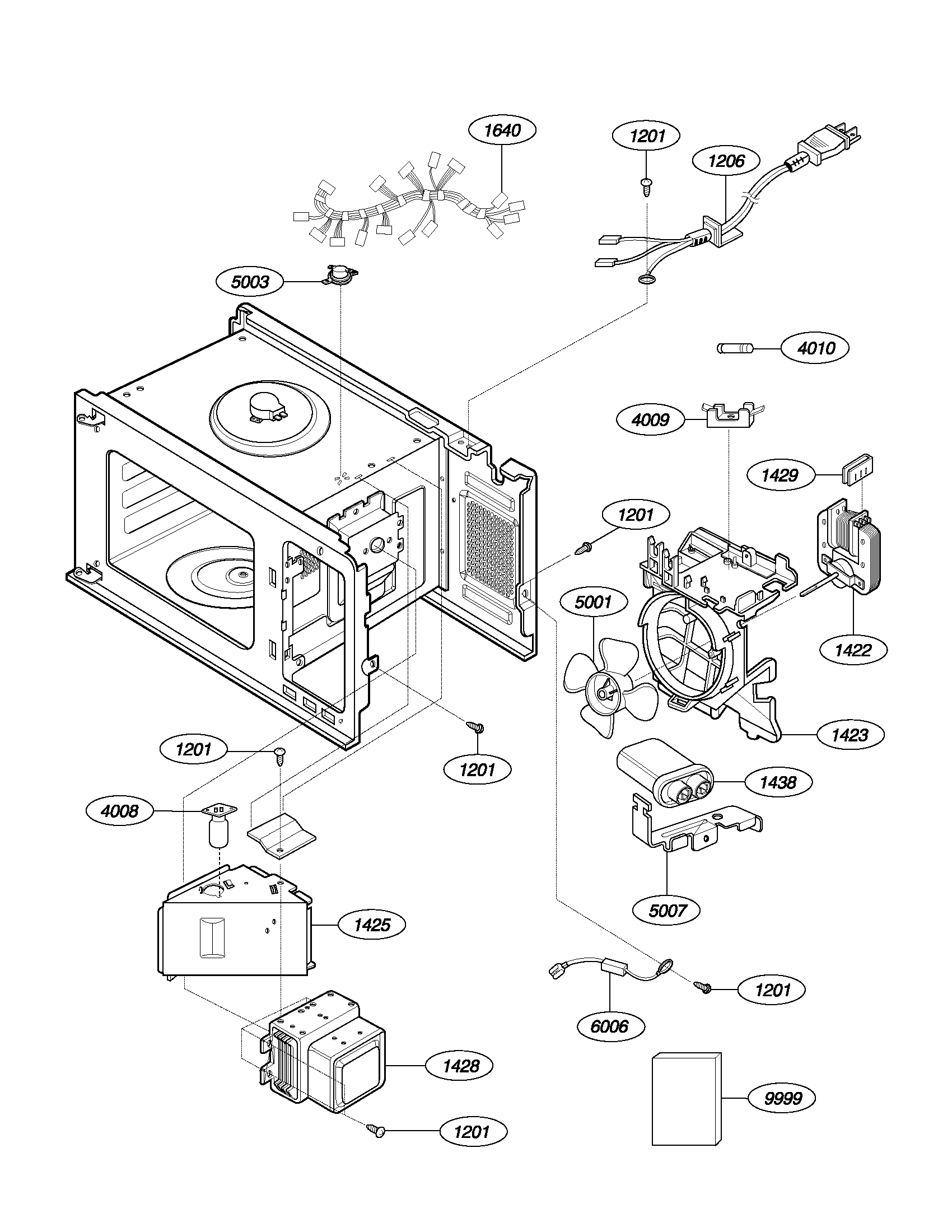

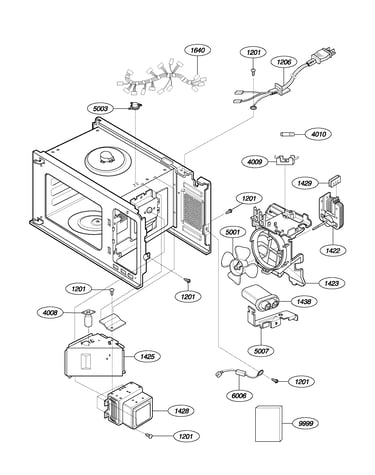

Interior diagram

Air duct

Part #5304423482

In Stock
Control Panel 5304423423
#923

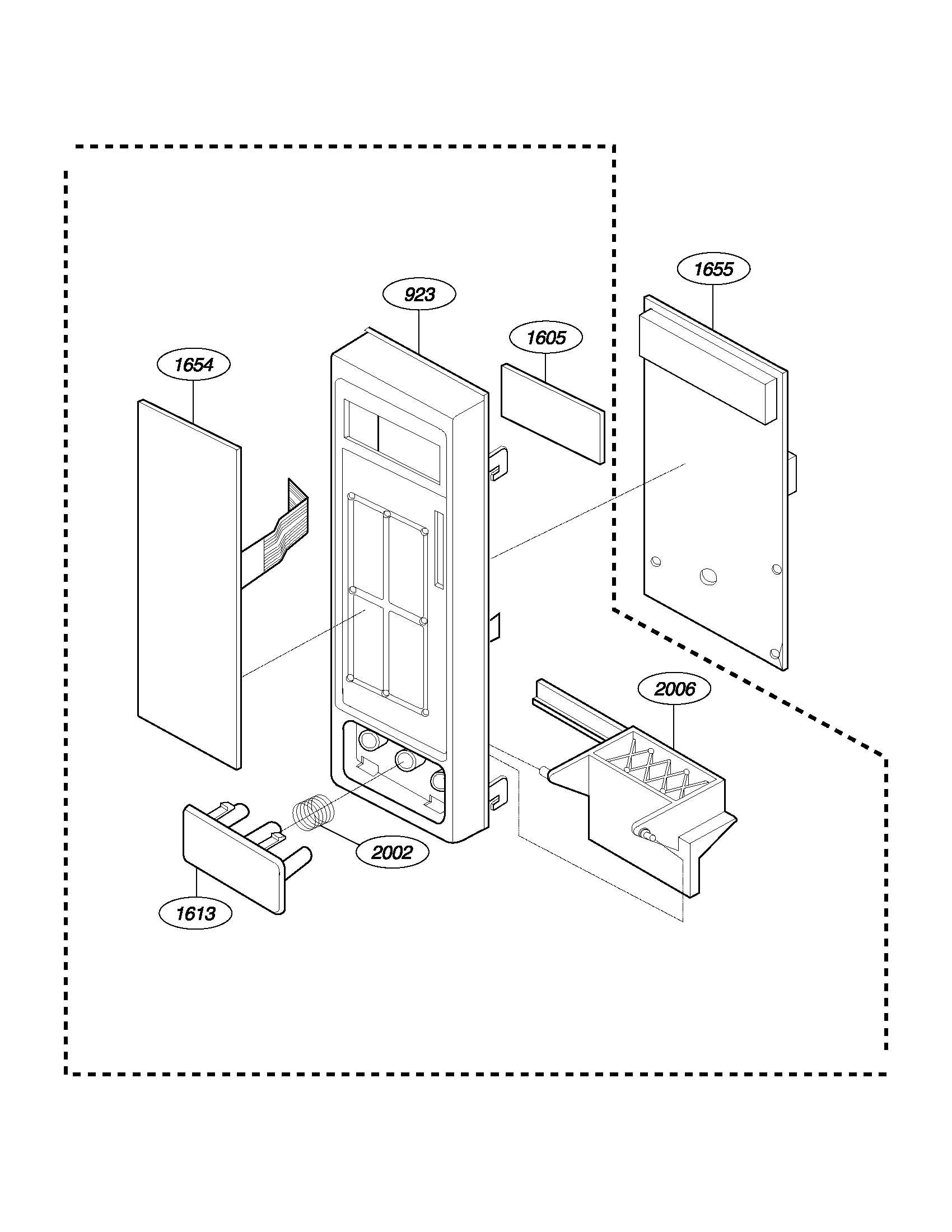

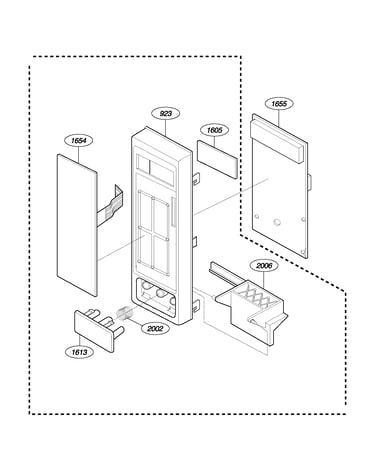

Control panel diagram

Control panel

Part #5304423423

In Stock
Frame 5304435981
#182

Door diagram

Frame

Part #5304435981

In Stock
Rivet 5304423449
#147

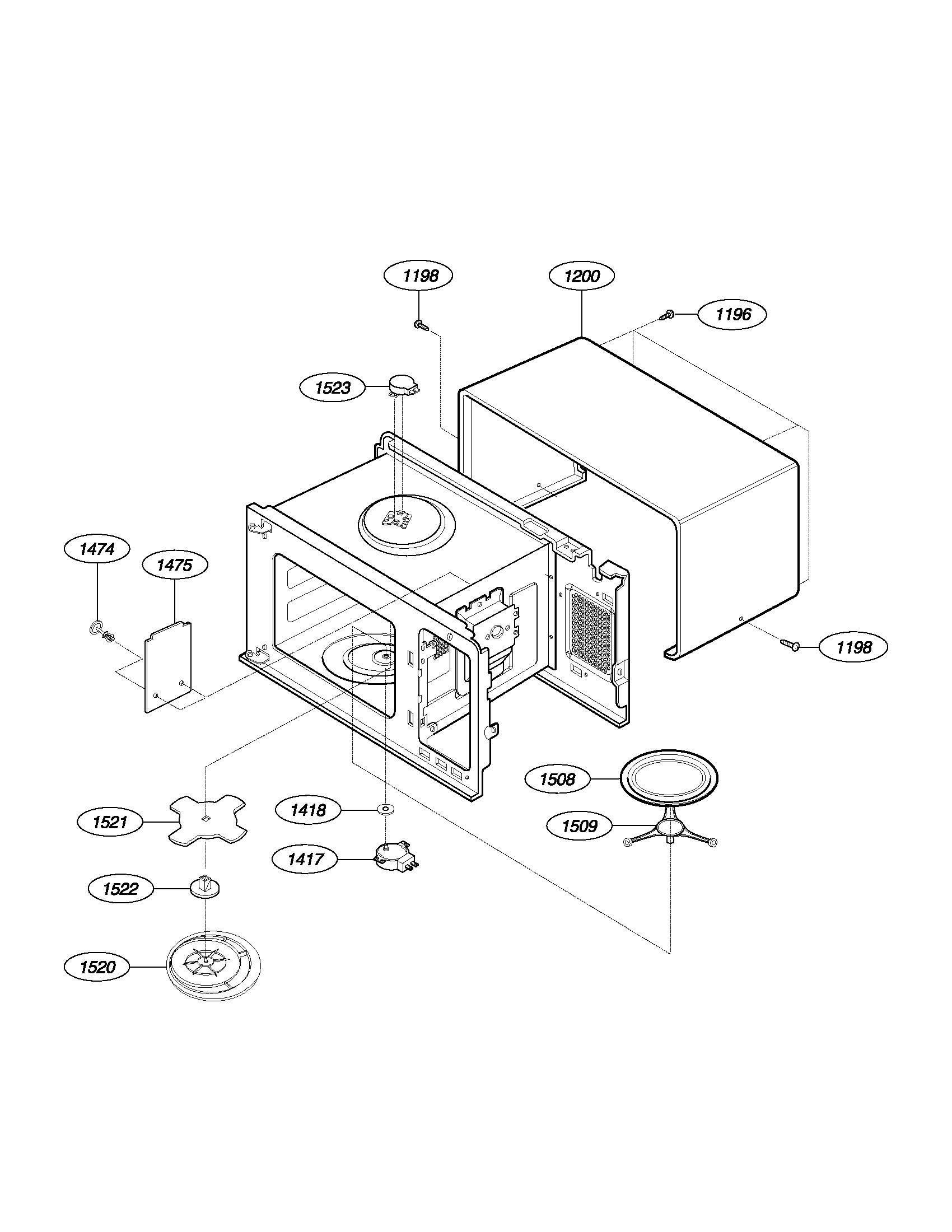

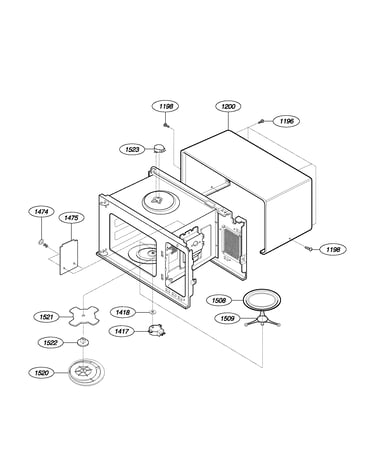

Oven cavity diagram

Rivet

Part #5304423449

In Stock
Frame 5304435979
#182

Door diagram

Frame

Part #5304435979

In Stock
Door Cover 5304423417
#182

Door diagram

Door cover

Part #5304423417

In Stock
Frame 5304435980
#182

Door diagram

Frame

Part #5304435980

In Stock
