Amana
Trash Compactor

Model # SMC-1/P18011-5T Official Amana compactor

Here are the diagrams and repair parts for Official Amana SMC-1-P18011-5T compactor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 150 parts  |
Screw M0211531
Screw

Part #M0211531

Replaced by #W11233072

?
Manufacturer substitution
This part replaces M0211531. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw M0211317
#4

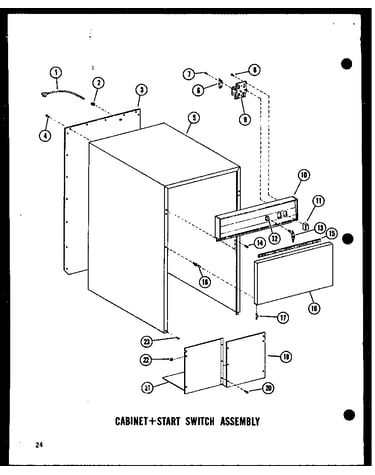

Cabinet + start switch assembly diagram

Screw

Part #M0211317

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211317. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Nut M0282005
#117

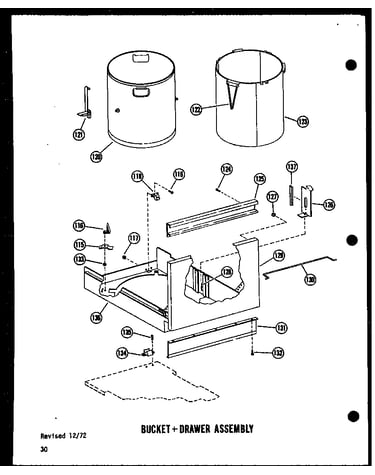

Bucket + drawer assembly diagram

Nut

Part #M0282005

Replaced by #M0282005

?
Manufacturer substitution
This part replaces M0282005. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Screw M0234029
#8

Cabinet + start switch assembly diagram

Screw

Part #M0234029

Replaced by #WPW10068250

?
Manufacturer substitution
This part replaces M0234029. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Brake Ram A1502801
#105

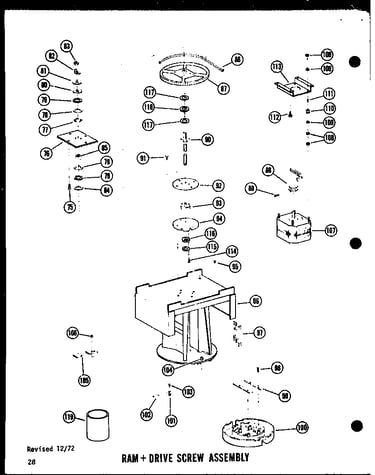

Ram + drive screw assembly diagram

Brake ram

Part #A1502801

The manufacturer no longer makes this part, and there's no substitute part

Gear Belt A1500801
#86

Ram + drive screw assembly diagram

Gear belt

Part #A1500801

The manufacturer no longer makes this part, and there's no substitute part

Pop Rivet, Ram Brake A4539611
Pop rivet, ram brake

Part #A4539611

The manufacturer no longer makes this part, and there's no substitute part

Button Control White C1704701
#11A

Cabinet + start switch assembly diagram

Button control white

Part #C1704701

The manufacturer no longer makes this part, and there's no substitute part

Weldment, Chassis, Right Side B1608501
#39A

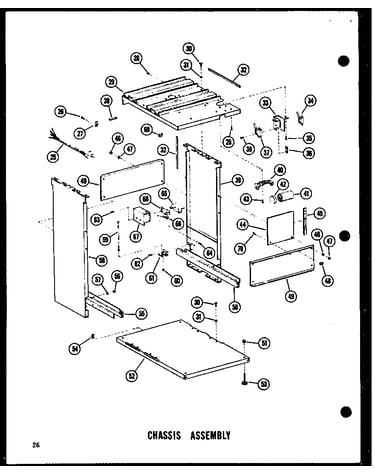

Chassis assembly diagram

Weldment, chassis, right side

Part #B1608501

The manufacturer no longer makes this part, and there's no substitute part

Screw M0253543
Screw

Part #M0253543

The manufacturer no longer makes this part, and there's no substitute part
