Model # CE60-3B Official Goodman central air condensing unit

Here are the diagrams and repair parts for Official Goodman CE60-3B central air condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 18 parts  |
Filter Drier B12192-17
#16

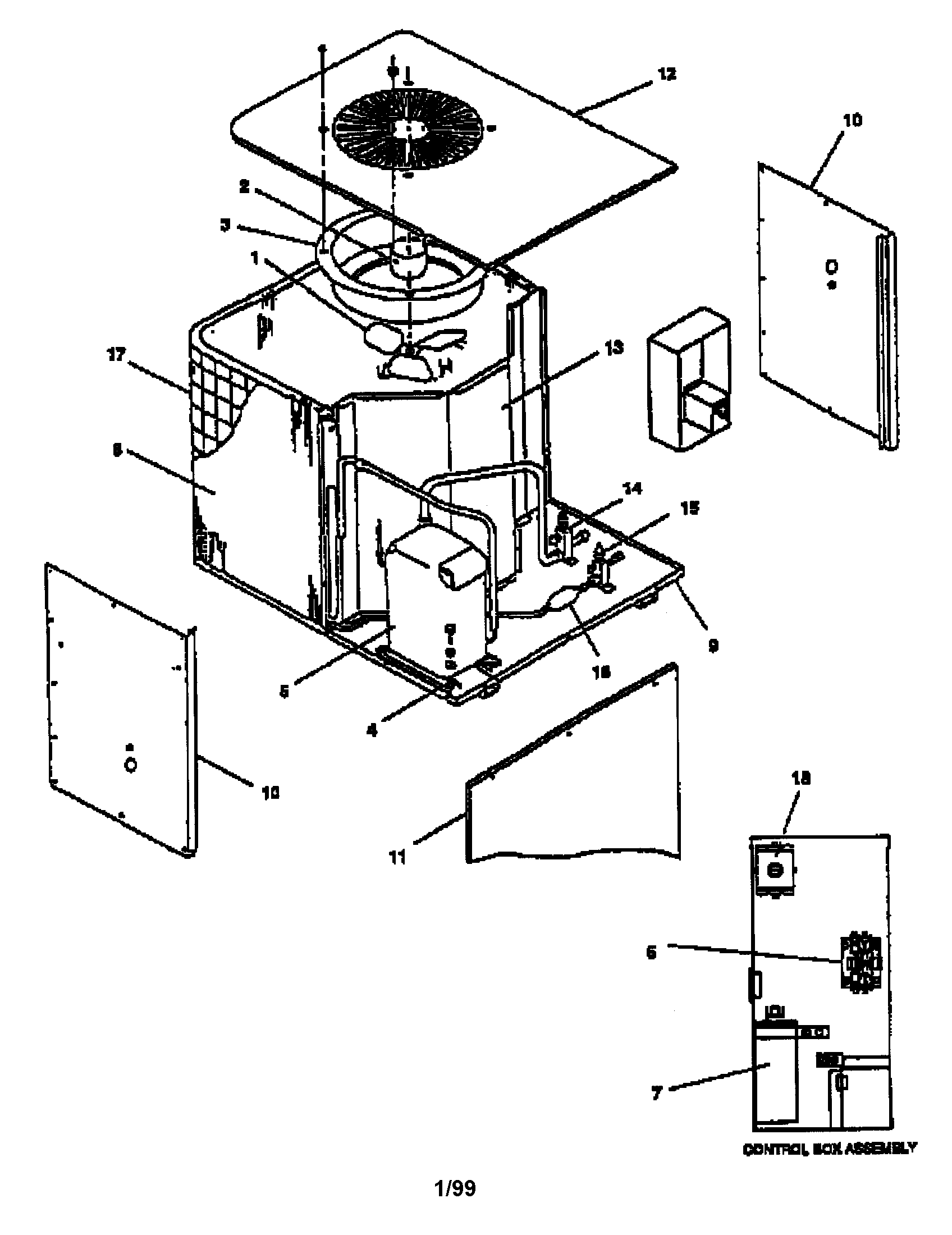

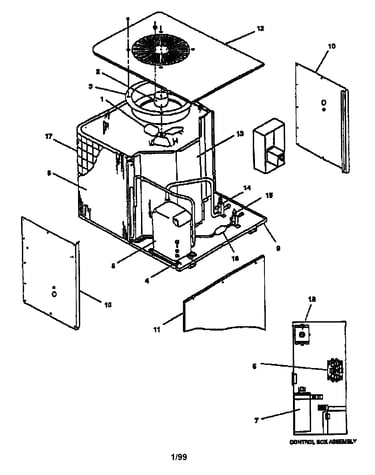

Unit parts diagram

Filter drier

Part #B12192-17

Replaced by #163S

?
Manufacturer substitution
This part replaces B12192-17. Substitute parts can look different from the original.
$48.94 |
11% OFF Phone Price : $54.94
In Stock
Capacitor 5/ B9456-50
#7

Unit parts diagram

Capacitor 5/

Part #B9456-50

Replaced by #12005

?
Manufacturer substitution
This part replaces B9456-50. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Panel,side,l 17792-32P
#10

Unit parts diagram

Panel,side,l

Part #17792-32P

The manufacturer no longer makes this part, and there's no substitute part

Base Valve 7 B12825-43
#14

Unit parts diagram

Base valve 7

Part #B12825-43

The manufacturer no longer makes this part, and there's no substitute part

Spray Paint B260S8290
#19

Unit parts diagram

Spray paint

Part #B260S8290

The manufacturer no longer makes this part, and there's no substitute part

Bottom Pan 17791-07P
#9

Unit parts diagram

Bottom pan

Part #17791-07P

The manufacturer no longer makes this part, and there's no substitute part

Top Panel W/ 17794-04P
#12

Unit parts diagram

Top panel w/

Part #17794-04P

The manufacturer no longer makes this part, and there's no substitute part

Partition Pa 17795-32
#13

Unit parts diagram

Partition pa

Part #17795-32

The manufacturer no longer makes this part, and there's no substitute part

Compressor B9266-656
#5C

Unit parts diagram

Compressor

Part #B9266-656

The manufacturer no longer makes this part, and there's no substitute part

Access Panel 17793-04P
#11

Unit parts diagram

Access panel

Part #17793-04P

The manufacturer no longer makes this part, and there's no substitute part
