Model # EPD6136SS Official Broan range hood

Here are the diagrams and repair parts for Official Broan EPD6136SS range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |
Broan Range Hood Light Socket (replaces V16569) SV16569
#2

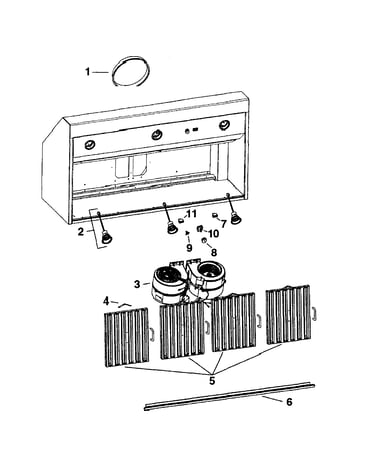

Range hood diagram

Broan range hood light socket (replaces v16569)

Part #SV16569

$70.05 |
8% OFF Phone Price : $76.05
In Stock
Light Switch SV02563
#7

Range hood diagram

Light switch

Part #SV02563

$8.06
In Stock
Spring SV08337
#4

Range hood diagram

Spring

Part #SV08337

$34.00
In Stock
Broan Range Hood Heat Sensor SV03435
#9

Range hood diagram

Broan range hood heat sensor

Part #SV03435

This item is not returnable
$28.00
In Stock
Speed Control Switch SV08968
#10

Range hood diagram

Speed control switch

Part #SV08968

The manufacturer no longer makes this part, and there's no substitute part

Main Switch,power SV08548
#11

Range hood diagram

Main switch,power

Part #SV08548

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower SV08582
#3

Range hood diagram

Range hood blower

Part #SV08582

The manufacturer no longer makes this part, and there's no substitute part

Inst Guide SV20571
#NI

Range hood diagram

Inst guide

Part #SV20571

The manufacturer no longer makes this part, and there's no substitute part

Fan Knob SV08095
#8

Range hood diagram

Fan knob

Part #SV08095

The manufacturer no longer makes this part, and there's no substitute part

Filter 11.84"x15.125" SV60675
#5

Range hood diagram

Filter 11.84"x15.125"

Part #SV60675

The manufacturer no longer makes this part, and there's no substitute part
