Ryobi
Drill/Driver

Model # CD125K Official Ryobi 12-v cordless drill

Here are the diagrams and repair parts for Official Ryobi CD125K 12-v cordless drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

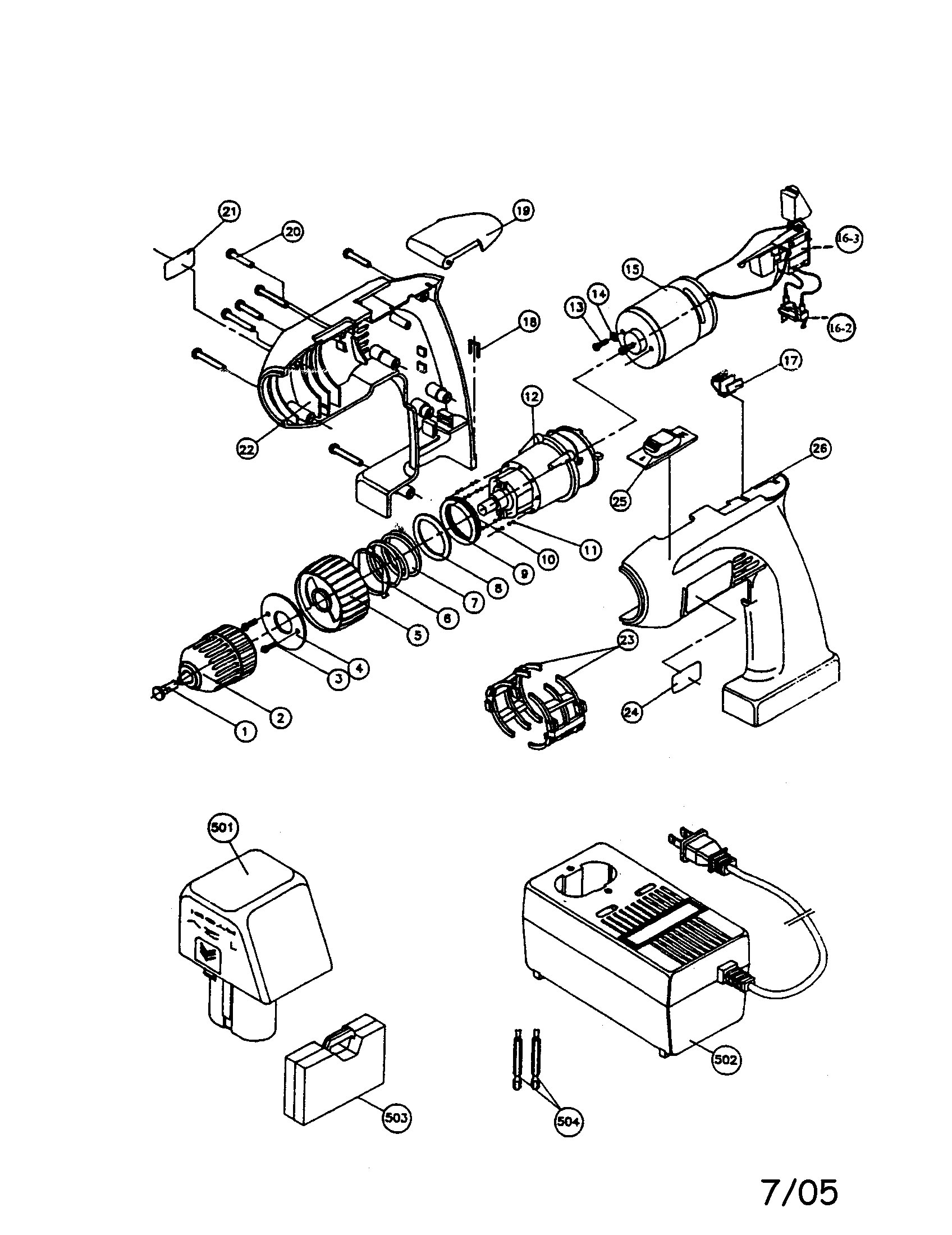

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Ring 1900001
#8

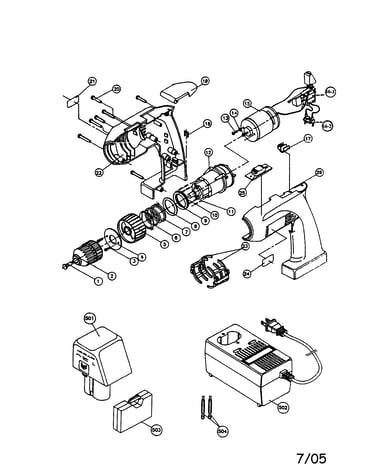

12v cordless drill diagram

Ring

Part #1900001

The manufacturer no longer makes this part, and there's no substitute part

Bracket 4800017
#23

12v cordless drill diagram

Bracket

Part #4800017

The manufacturer no longer makes this part, and there's no substitute part

Motor 4030009
#15

12v cordless drill diagram

Motor

Part #4030009

The manufacturer no longer makes this part, and there's no substitute part

Knob 4550022
#25

12v cordless drill diagram

Knob

Part #4550022

The manufacturer no longer makes this part, and there's no substitute part

Washer 1900149
#10

12v cordless drill diagram

Washer

Part #1900149

The manufacturer no longer makes this part, and there's no substitute part

Screw 1130302
#3

12v cordless drill diagram

Screw

Part #1130302

The manufacturer no longer makes this part, and there's no substitute part

Charger 4400006
#502

12v cordless drill diagram

Charger

Part #4400006

The manufacturer no longer makes this part, and there's no substitute part

Washer 1900002
#9

12v cordless drill diagram

Washer

Part #1900002

The manufacturer no longer makes this part, and there's no substitute part

Holder 1150003
#6

12v cordless drill diagram

Holder

Part #1150003

The manufacturer no longer makes this part, and there's no substitute part

Spring 1180001
#7

12v cordless drill diagram

Spring

Part #1180001

The manufacturer no longer makes this part, and there's no substitute part
