Model # 973111360 Official Craftsman cordless drill/driver

Here are the diagrams and repair parts for Official Craftsman 973111360 cordless drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

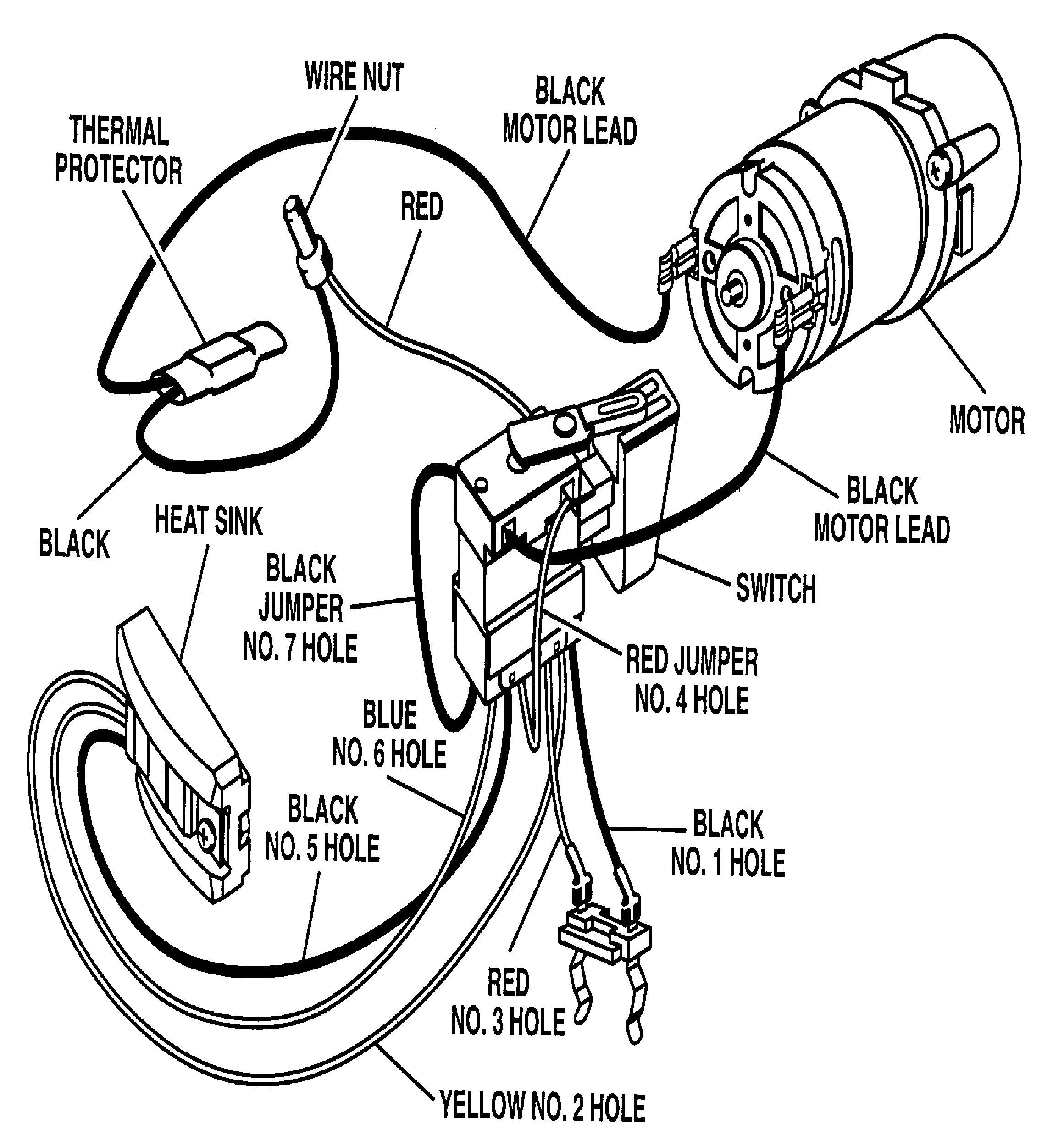

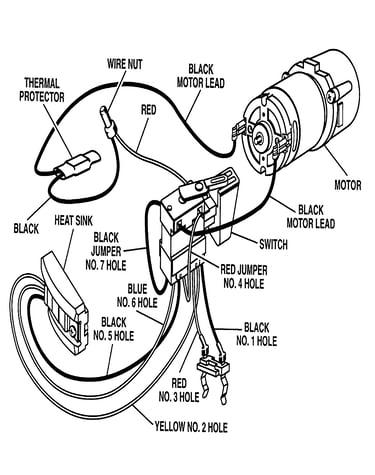

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |

Charger 982031-001
#5

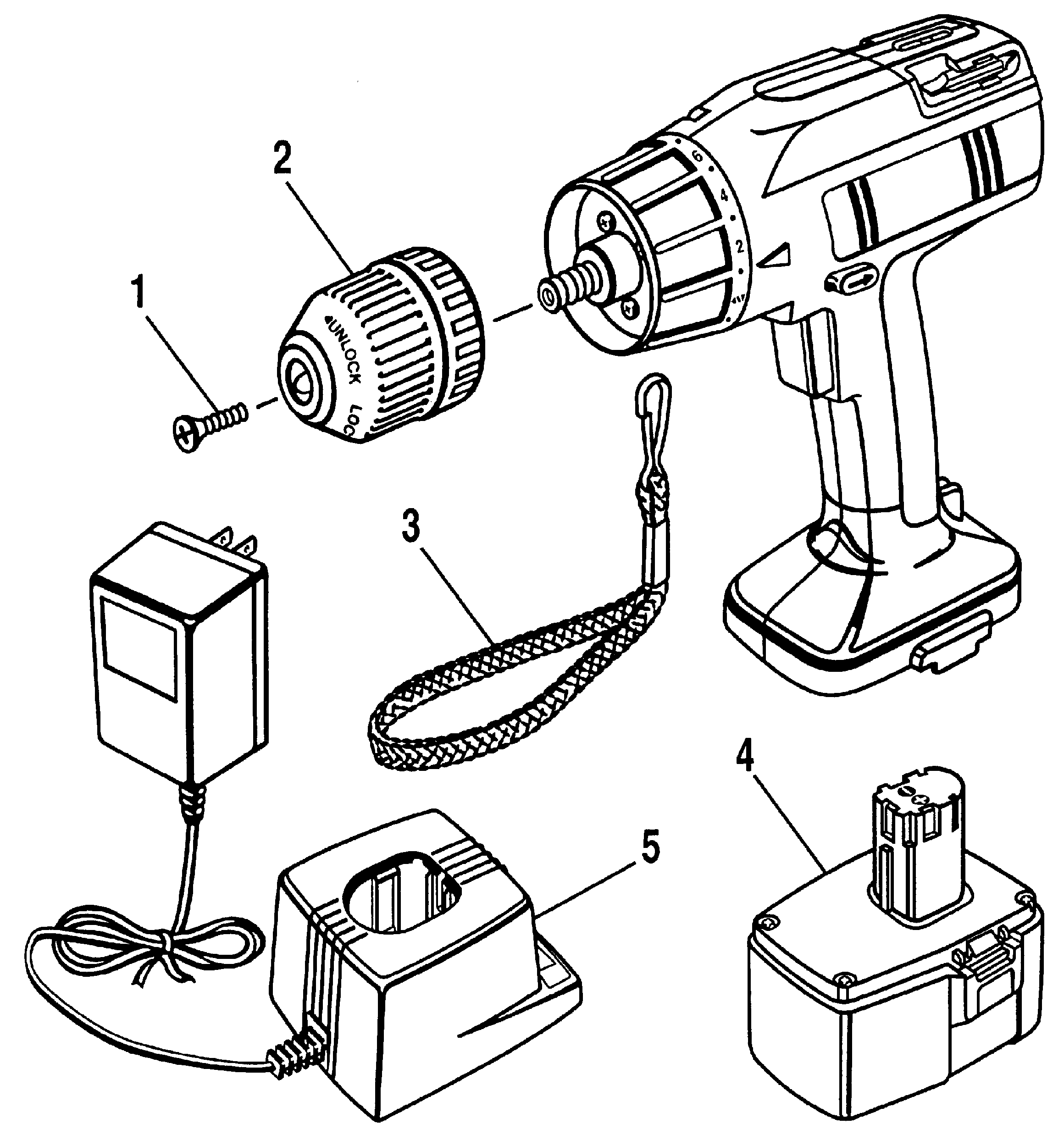

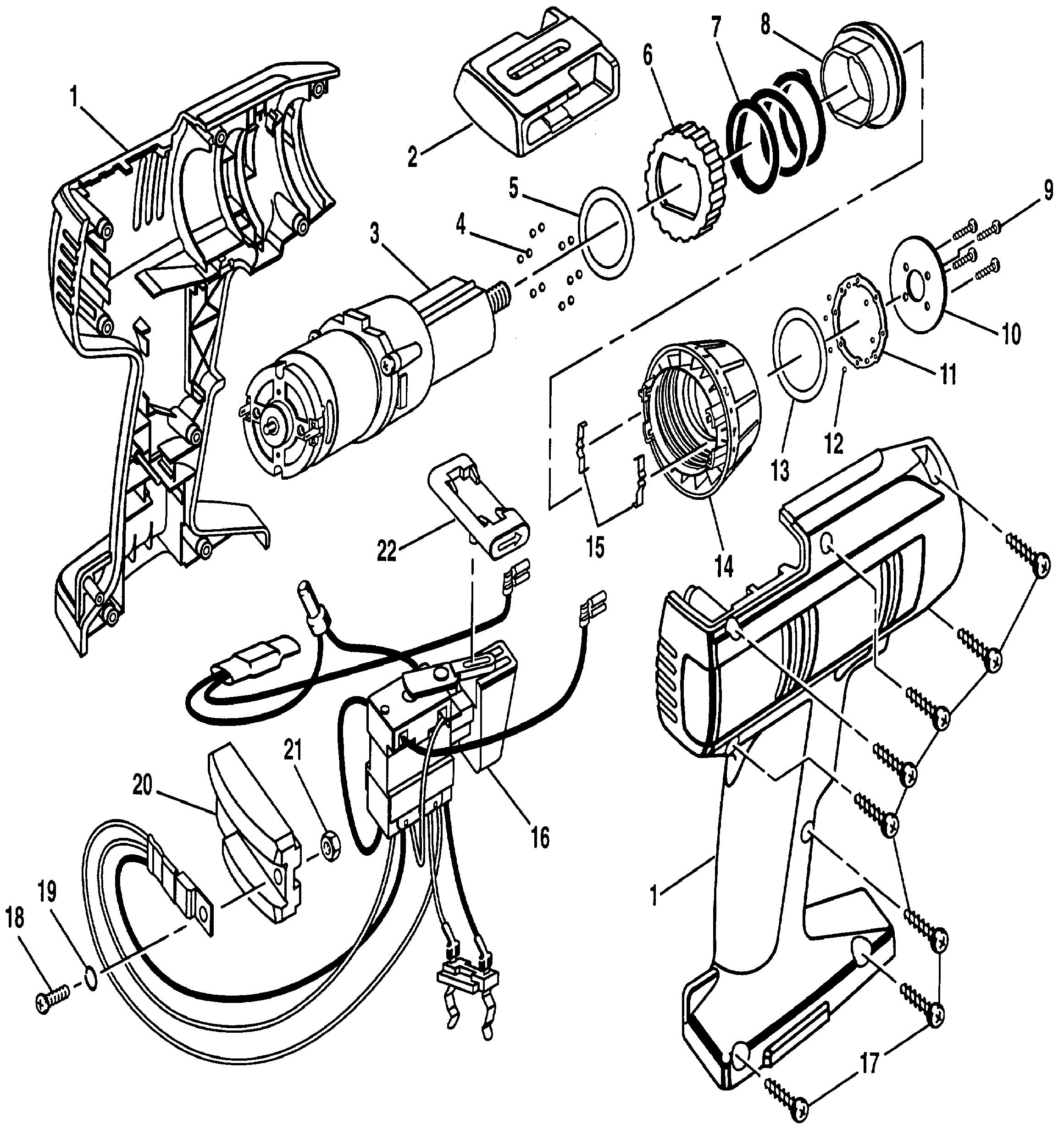

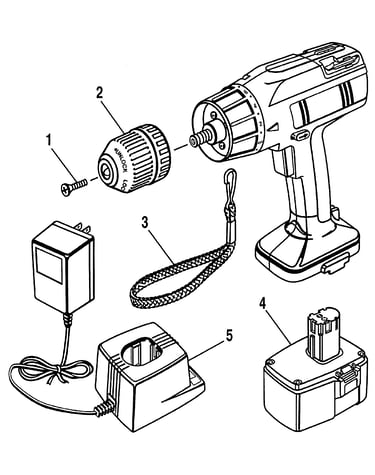

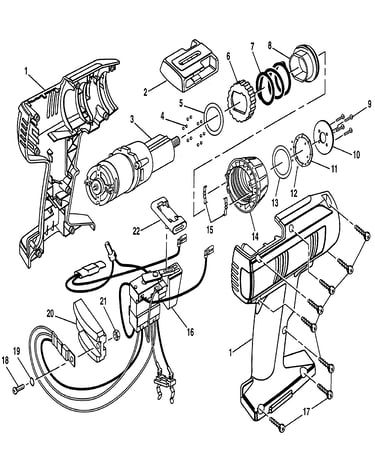

Cabinet parts diagram

Charger

Part #982031-001

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 981716-000
#21

Cabinet parts diagram

Lock nut

Part #981716-000

The manufacturer no longer makes this part, and there's no substitute part

Screw 974367-000
#9

Cabinet parts diagram

Screw

Part #974367-000

The manufacturer no longer makes this part, and there's no substitute part

Ball 974402-000
#4

Cabinet parts diagram

Ball

Part #974402-000

The manufacturer no longer makes this part, and there's no substitute part

Chuck 973094-001
#2

Cabinet parts diagram

Chuck

Part #973094-001

The manufacturer no longer makes this part, and there's no substitute part

Switch 982354-001
#16

Cabinet parts diagram

Switch

Part #982354-001

The manufacturer no longer makes this part, and there's no substitute part

Ball Ret 974361-000
#11

Cabinet parts diagram

Ball ret

Part #974361-000

The manufacturer no longer makes this part, and there's no substitute part

Screw 981715-000
#18

Cabinet parts diagram

Screw

Part #981715-000

The manufacturer no longer makes this part, and there's no substitute part

Ring 974360-000
#6

Cabinet parts diagram

Ring

Part #974360-000

The manufacturer no longer makes this part, and there's no substitute part

Spring 982353-001
#7

Cabinet parts diagram

Spring

Part #982353-001

The manufacturer no longer makes this part, and there's no substitute part
