Model # 9116138710 Official Kenmore gas range
Here are the diagrams and repair parts for Official Kenmore 9116138710 gas range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

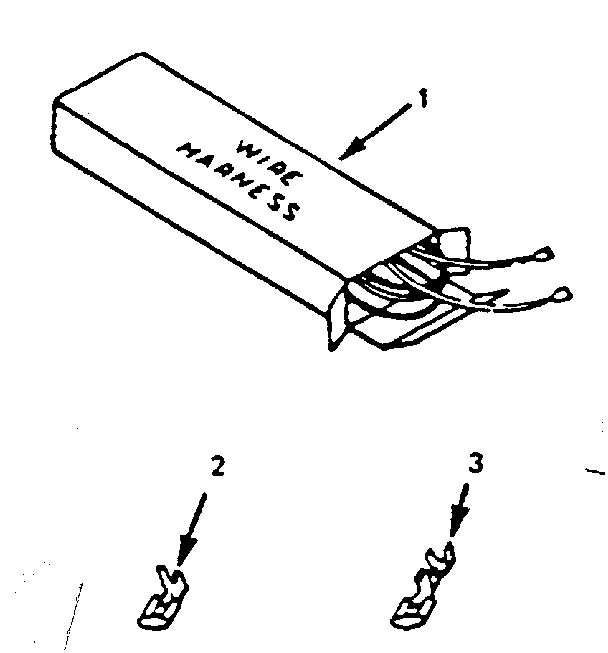

SELECT DIAGRAM
Browse Parts for9116138710 Ranges
- #52

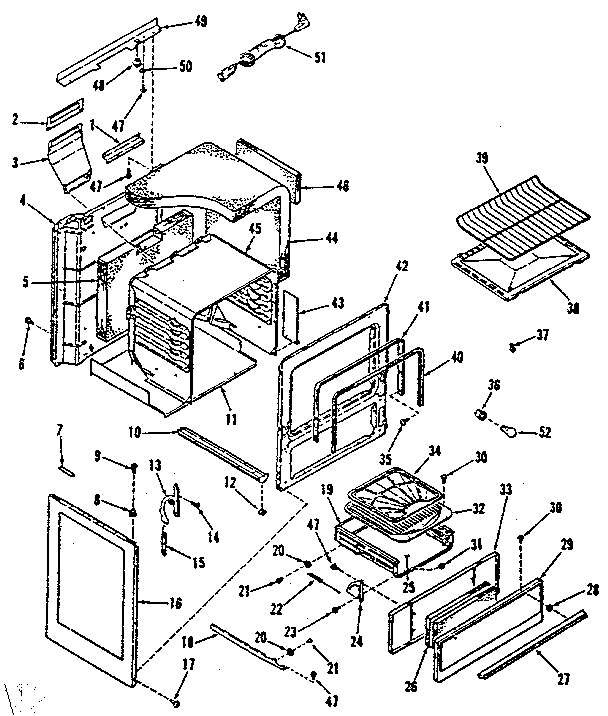

Body section diagram
Lamp bulbPart #STD372401
Replaced by #40A15
?Manufacturer substitutionThis part replaces STD372401. Substitute parts can look different from the original.$13.61 |13% OFF Phone Price : $15.61In Stock - #13B
Body section diagram
Door hingePart #332345
Replaced by #WB14X104
?Manufacturer substitutionThis part replaces 332345. Substitute parts can look different from the original.$58.97 |9% OFF Phone Price : $64.97In Stock - #13A
Body section diagram
Door hingePart #332346
Replaced by #WB14X103
?Manufacturer substitutionThis part replaces 332346. Substitute parts can look different from the original.$52.20 |10% OFF Phone Price : $58.20In Stock - #35
Body section diagram
Gm screwPart #9420793
Replaced by #WB1X1137
?Manufacturer substitutionThis part replaces 9420793. Substitute parts can look different from the original.$7.95 |11% OFF Phone Price : $8.95In Stock - Screw (white)
Part #327621
Replaced by #WB1X1118
?Manufacturer substitutionThis part replaces 327621. Substitute parts can look different from the original.$7.40 |12% OFF Phone Price : $8.40In Stock - #2

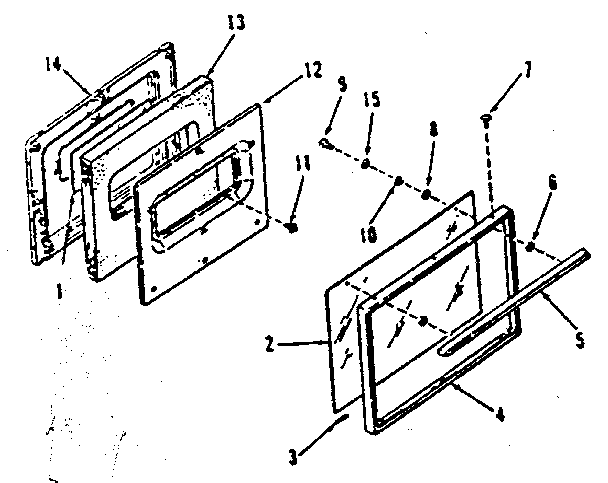

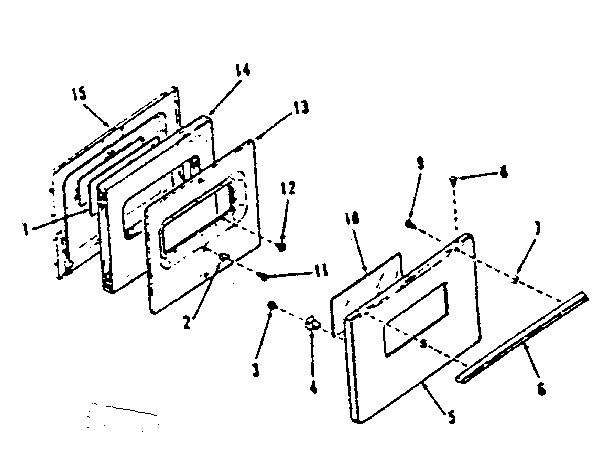

Oven door section for 911.6158710, 911.6178710, 911.6198710 diagram
Door glass (black)Part #332067
Replaced by #WB56X1902
?Manufacturer substitutionThis part replaces 332067. Substitute parts can look different from the original.$252.17 |5% OFF Phone Price : $264.17In Stock - #37

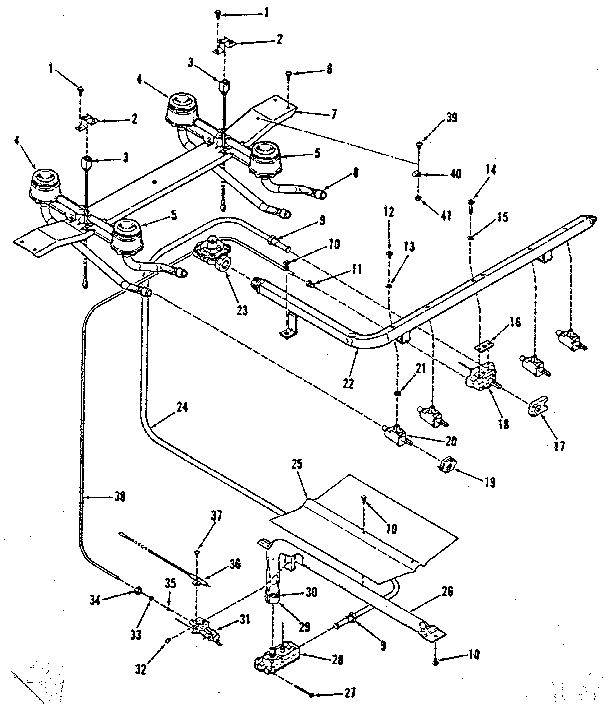

Burner section diagram
Ge screwPart #120855
$8.37In Stock - #49
Body section diagram
Wire coverPart #327355
This item is not returnable$3.49In Stock - #9
Body section diagram
ScrewPart #327256
Replaced by #WB1X1131
?Manufacturer substitutionThis part replaces 327256. Substitute parts can look different from the original.$7.04 |12% OFF Phone Price : $8.04In Stock - #10

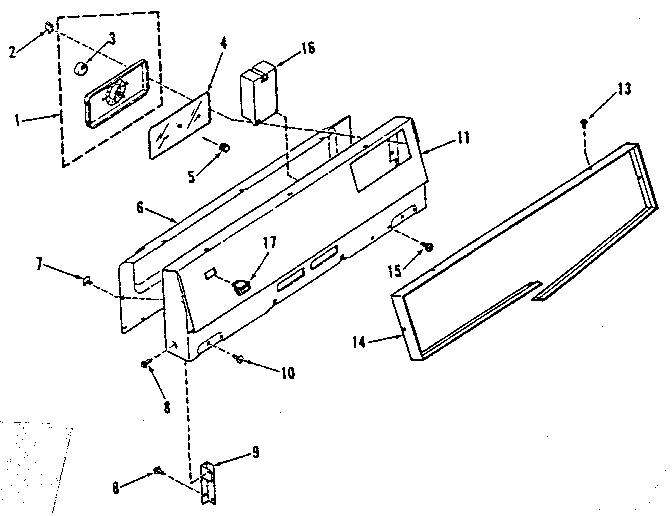

Main top section diagram
Valve knobPart #333785
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your ranges
Choose a symptom to see related range repairs.
Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…
