Model # R9906 Official Roadmaster whisper air exerciser bike

Here are the diagrams and repair parts for Official Roadmaster R9906 whisper air exerciser bike, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |

Screw HH-0691
#10

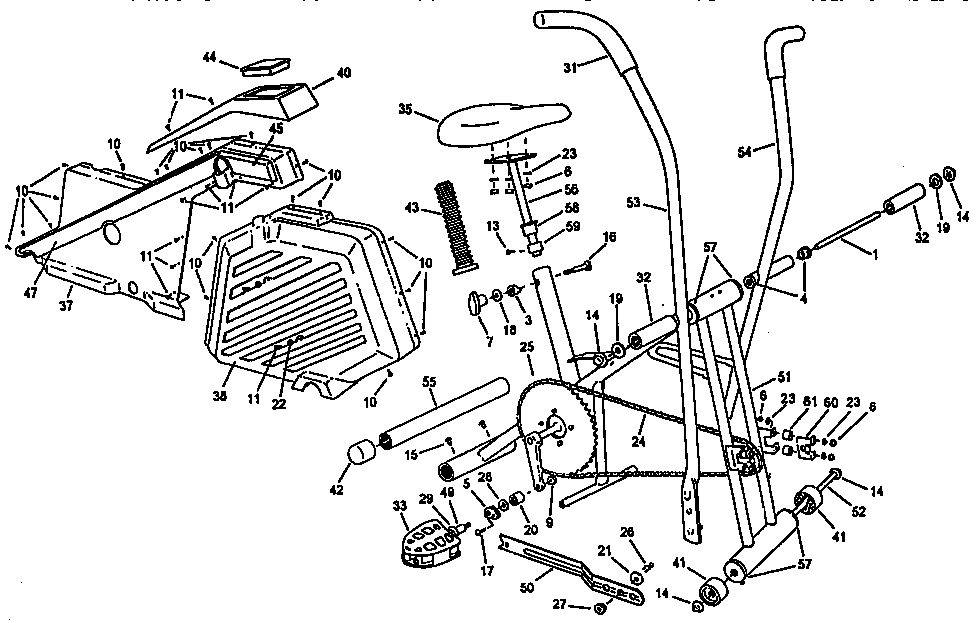

Frame assembly diagram

Screw

Part #HH-0691

The manufacturer no longer makes this part, and there's no substitute part

Washer HH-0987
#8

Fan wheel assembly diagram

Washer

Part #HH-0987

The manufacturer no longer makes this part, and there's no substitute part

Screw HH-0740
#13

Frame assembly diagram

Screw

Part #HH-0740

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer HH-0968
#18

Frame assembly diagram

Flat washer

Part #HH-0968

The manufacturer no longer makes this part, and there's no substitute part

Speed Nut HH-0243
#2

Frame assembly diagram

Speed nut

Part #HH-0243

The manufacturer no longer makes this part, and there's no substitute part

Tab Washer HH-1083
#11

Crank and pulley plate assembly diagram

Tab washer

Part #HH-1083

The manufacturer no longer makes this part, and there's no substitute part

Plate 17-8310
#12

Fan wheel assembly diagram

Plate

Part #17-8310

The manufacturer no longer makes this part, and there's no substitute part

Spring Pin HH-2925
#26

Frame assembly diagram

Spring pin

Part #HH-2925

The manufacturer no longer makes this part, and there's no substitute part

Bearing HH-0450
#5

Frame assembly diagram

Bearing

Part #HH-0450

The manufacturer no longer makes this part, and there's no substitute part

Fan Wheel MM-1201
#9

Fan wheel assembly diagram

Fan wheel

Part #MM-1201

The manufacturer no longer makes this part, and there's no substitute part
