Hoover
Upright Vacuum

Model # U5760-910 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U5760-910 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |

Edf Cover 37944027
#40

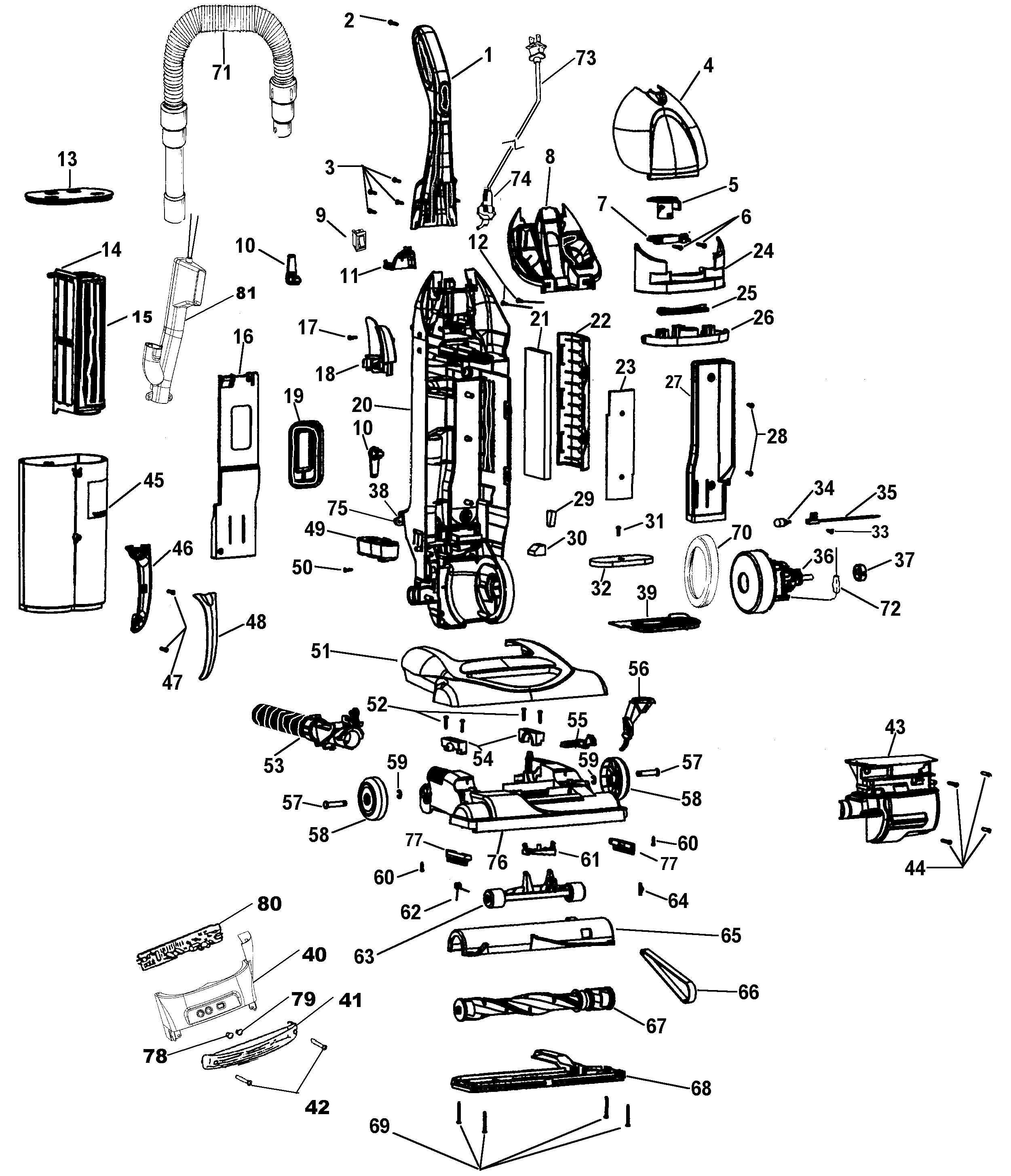

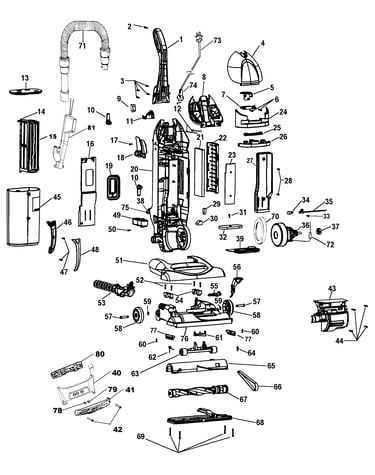

Complete assembly diagram

Edf cover

Part #37944027

The manufacturer no longer makes this part, and there's no substitute part

Switch Rod Support 36923004
#11

Complete assembly diagram

Switch rod support

Part #36923004

The manufacturer no longer makes this part, and there's no substitute part

Cover 37259016
#27

Complete assembly diagram

Cover

Part #37259016

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Trunnion Cover 36131094
#54

Complete assembly diagram

Vacuum trunnion cover

Part #36131094

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447121
#69

Complete assembly diagram

Vacuum screw

Part #21447121

The manufacturer no longer makes this part, and there's no substitute part

Foam 34131009
#29

Complete assembly diagram

Foam

Part #34131009

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Crevice Tool 38617031
#82A

Complete assembly diagram

Vacuum crevice tool

Part #38617031

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447072
Regina vacuum screw

Part #21447072

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447230
#44

Complete assembly diagram

Vacuum screw

Part #21447230

The manufacturer no longer makes this part, and there's no substitute part

Lens Cover 39383107
#41

Complete assembly diagram

Lens cover

Part #39383107

The manufacturer no longer makes this part, and there's no substitute part
