Model # TB14SBM Official GE refrigerator - x series

Here are the diagrams and repair parts for Official GE TB14SBM refrigerator - x series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |
Refrigerator Water Tubing Clip WR1X5278
#626

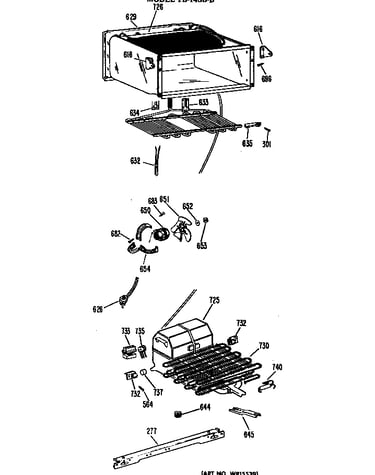

Unit diagram

Refrigerator water tubing clip

Part #WR1X5278

$7.57 |
12% OFF Phone Price : $8.57
In Stock
Support Cover WR2X4478
#247

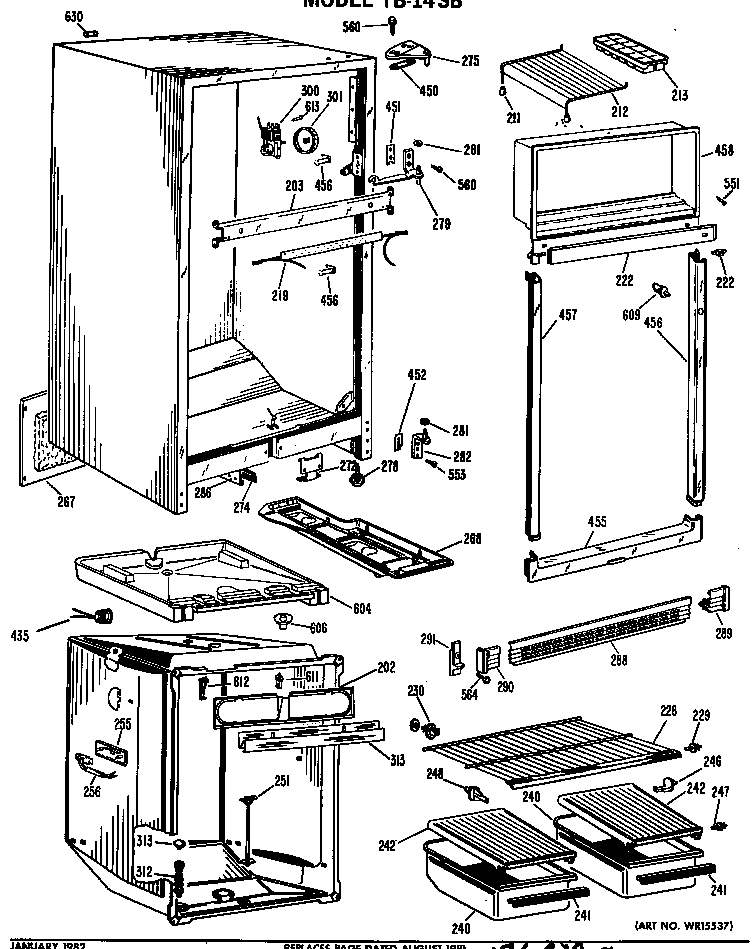

Cabinet assembly diagram

Support cover

Part #WR2X4478

This item is not returnable
$5.99
In Stock
Refrigerator Cabinet Sealer Plug WR2X4097
#630

Cabinet assembly diagram

Refrigerator cabinet sealer plug

Part #WR2X4097

$17.96 |
10% OFF Phone Price : $19.96
In Stock
Screw WR1X1591

#NI

All parts diagram

Screw

Part #WR1X1591

This item is not returnable
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Glide WR2X4978
#278

Cabinet assembly diagram

Glide

Part #WR2X4978

$38.44
In Stock
Refrigerator Screw, 2-pack WR1X5048

#NI

All parts diagram

Refrigerator screw, 2-pack

Part #WR1X5048

Replaced by #WZ5X158D

?
Manufacturer substitution
This part replaces WR1X5048. Substitute parts can look different from the original.
$34.63 |
15% OFF Phone Price : $40.63
In Stock
Refrigerator Ice Tray WR30X196
#213

Cabinet assembly diagram

Refrigerator ice tray

Part #WR30X196

Replaced by #WR30X311

?
Manufacturer substitution
This part replaces WR30X196. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Fan Motor WR60X77
#650

Unit diagram

Refrigerator fan motor

Part #WR60X77

Replaced by #WR60X177

?
Manufacturer substitution
This part replaces WR60X77. Substitute parts can look different from the original.
$159.18 |
7% OFF Phone Price : $171.18
In Stock
Refrigerator Cover WR17X1115
#202

Cabinet assembly diagram

Refrigerator cover

Part #WR17X1115

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Clip WR2X2417
#456A

Cabinet assembly diagram

Refrigerator clip

Part #WR2X2417

The manufacturer no longer makes this part, and there's no substitute part
