Model # CDE06RP4NCW2 Official GE refrigerator drawer
Here are the diagrams and repair parts for Official GE CDE06RP4NCW2 refrigerator drawer, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
CDE06RP4NCW2 Refrigerators
#8

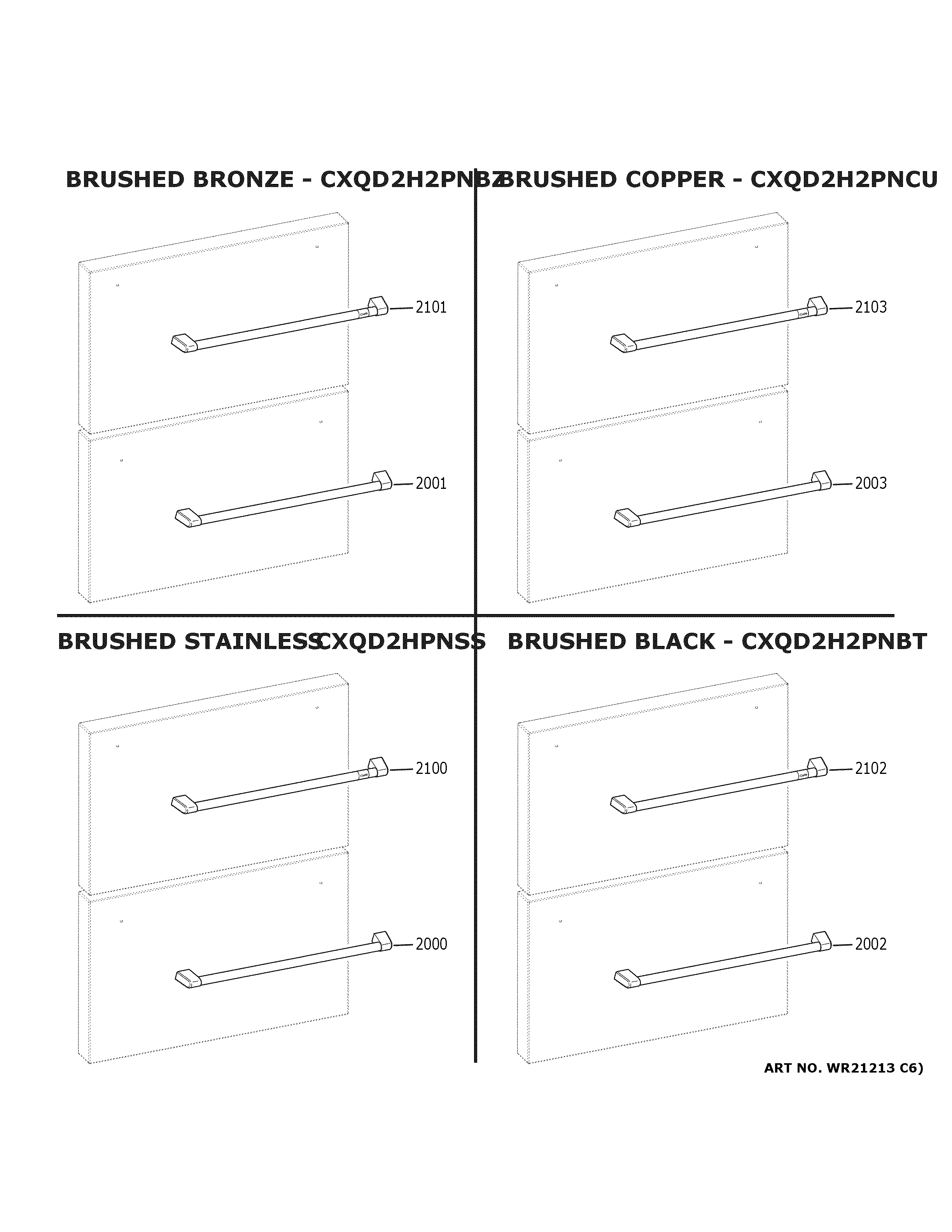

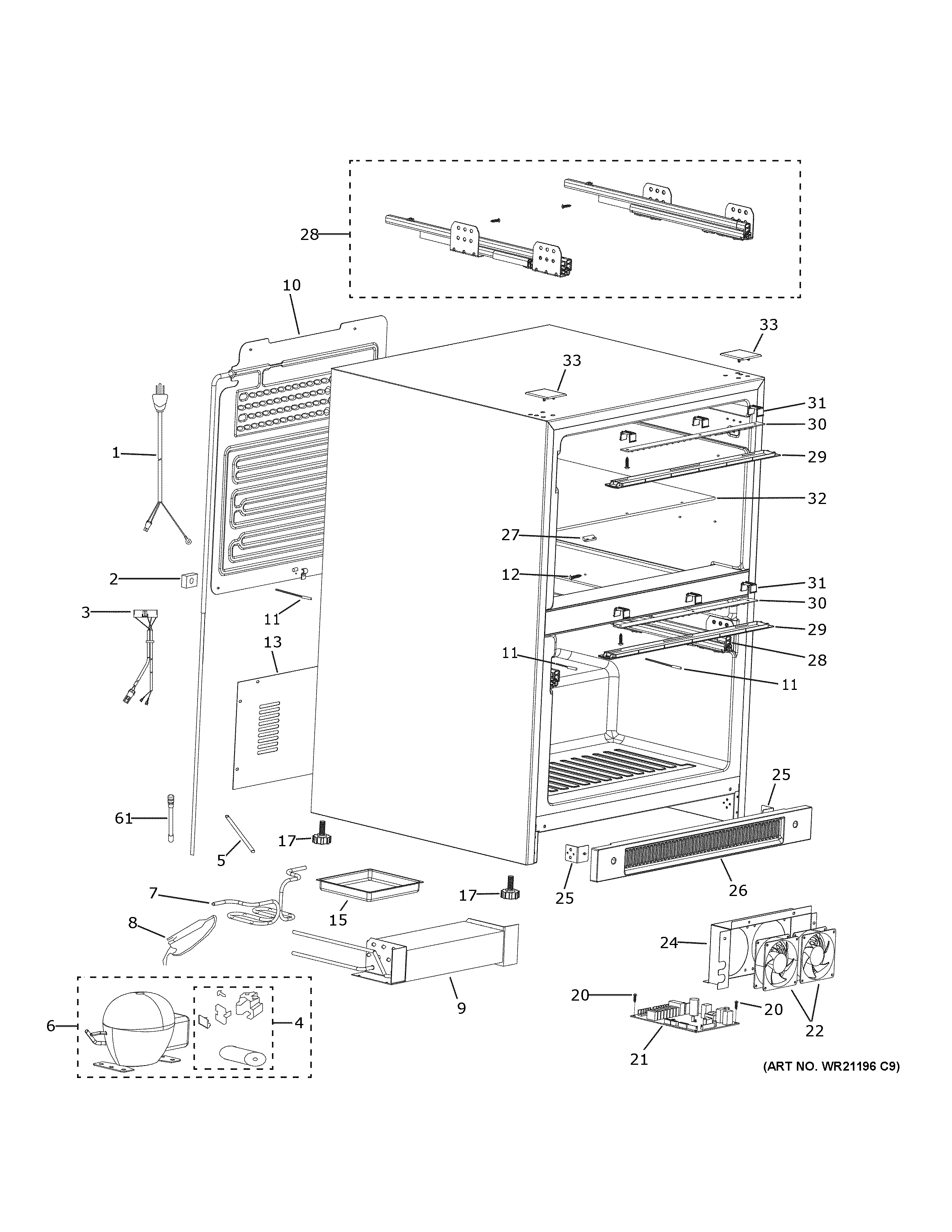

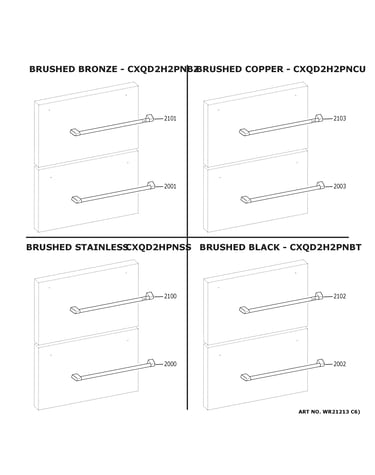

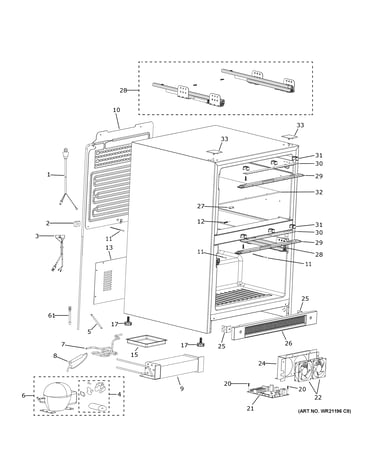

Cabinet diagram
Drier filter
Part #WR87X33866
Replaced by #WR87X30875
?
Manufacturer substitution
This part replaces WR87X33866. Substitute parts can look different from the original.
$87.58
In Stock
#61
Cabinet diagram
R600 process
Part #WR87X30876
$11.41 |
15% OFF Phone Price : $13.41
In Stock
#7002

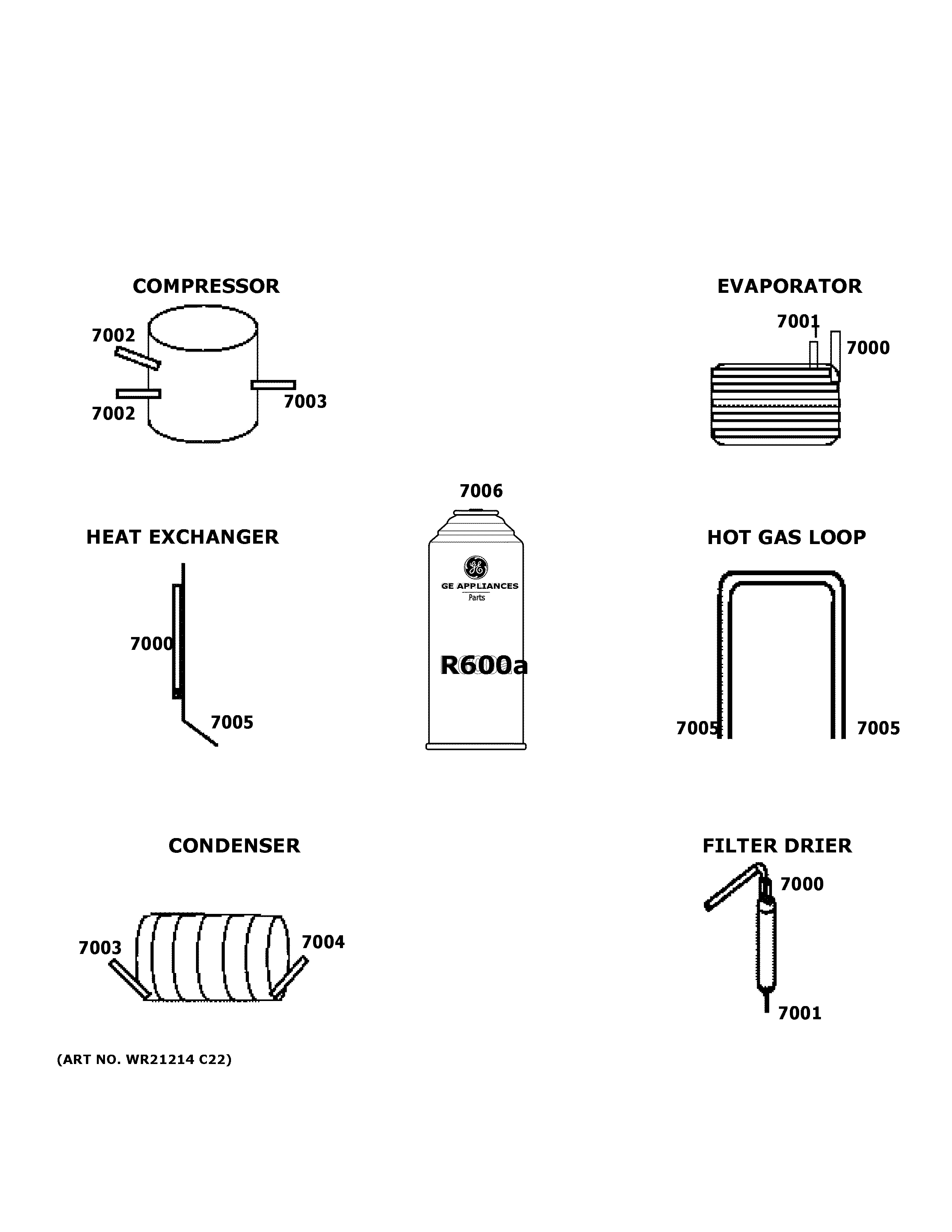

Lokring connectors diagram
Clpg5/16-1/4
Part #WR97X10036
$54.01
In Stock
#21
Cabinet diagram
Main control board
Part #WR55X32026
$168.48
In Stock
#4
Cabinet diagram
Compressor electricals
Part #WR87X33865
$62.53
In Stock
#50

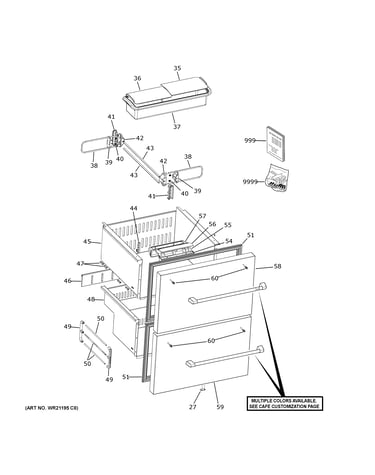

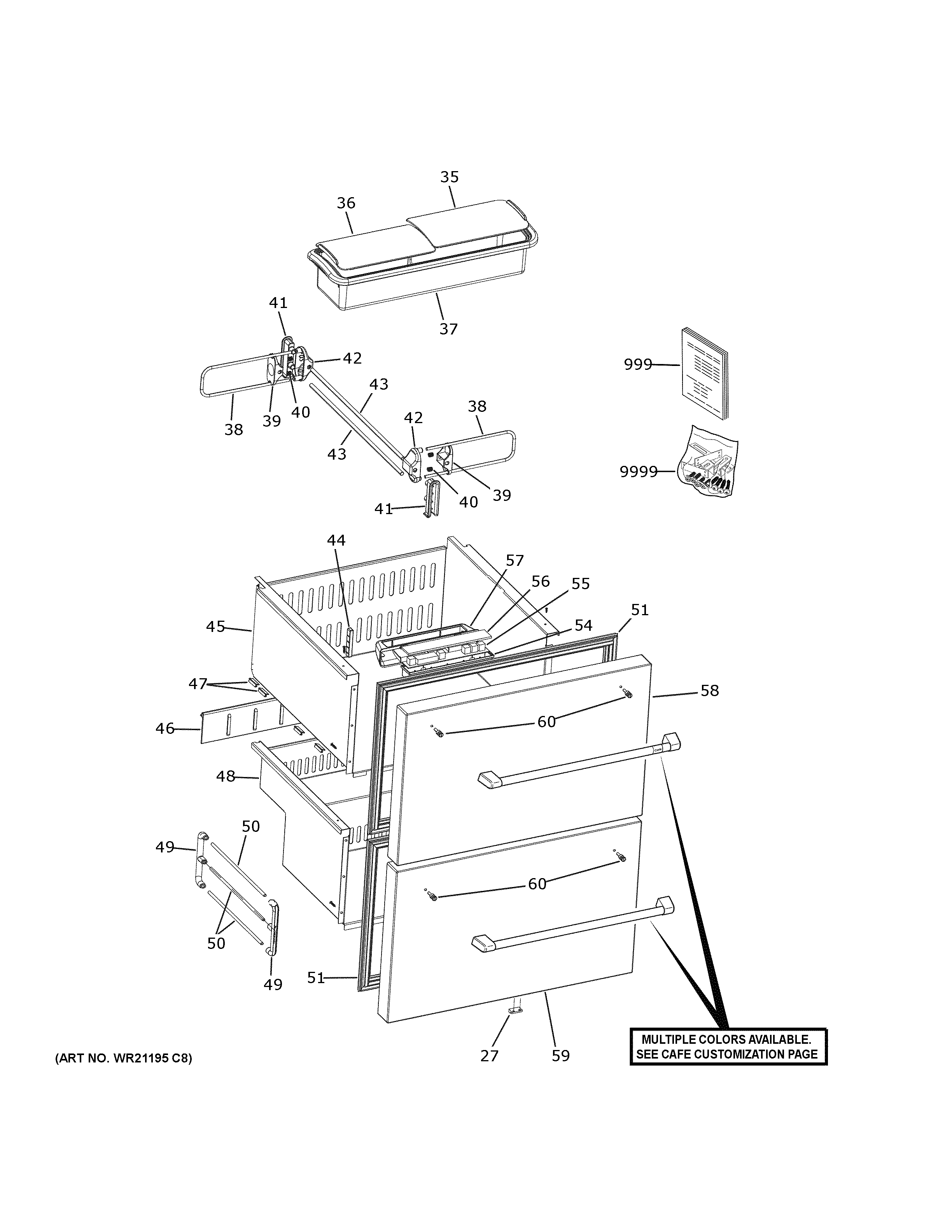

Doors & drawers diagram
Partition st
Part #WR01X28278
$24.25
In Stock
#7003
Lokring connectors diagram
Cpgl1/4-3/16
Part #WR97X10034
$60.58
In Stock
#46
Doors & drawers diagram
Lower partit
Part #WR01X28254
$17.18
In Stock
#56
Doors & drawers diagram
Display board cover
Part #WR13X33806
$21.00
In Stock
#45
Doors & drawers diagram
Upper drawer
Part #WR71X28249
$523.51
In Stock
