GE
Top-Mount Refrigerator

Model # GPS12FGHBWW Official GE refrigerator

Here are the diagrams and repair parts for Official GE GPS12FGHBWW refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Refrigerator Door Bin WR71X22032
#39

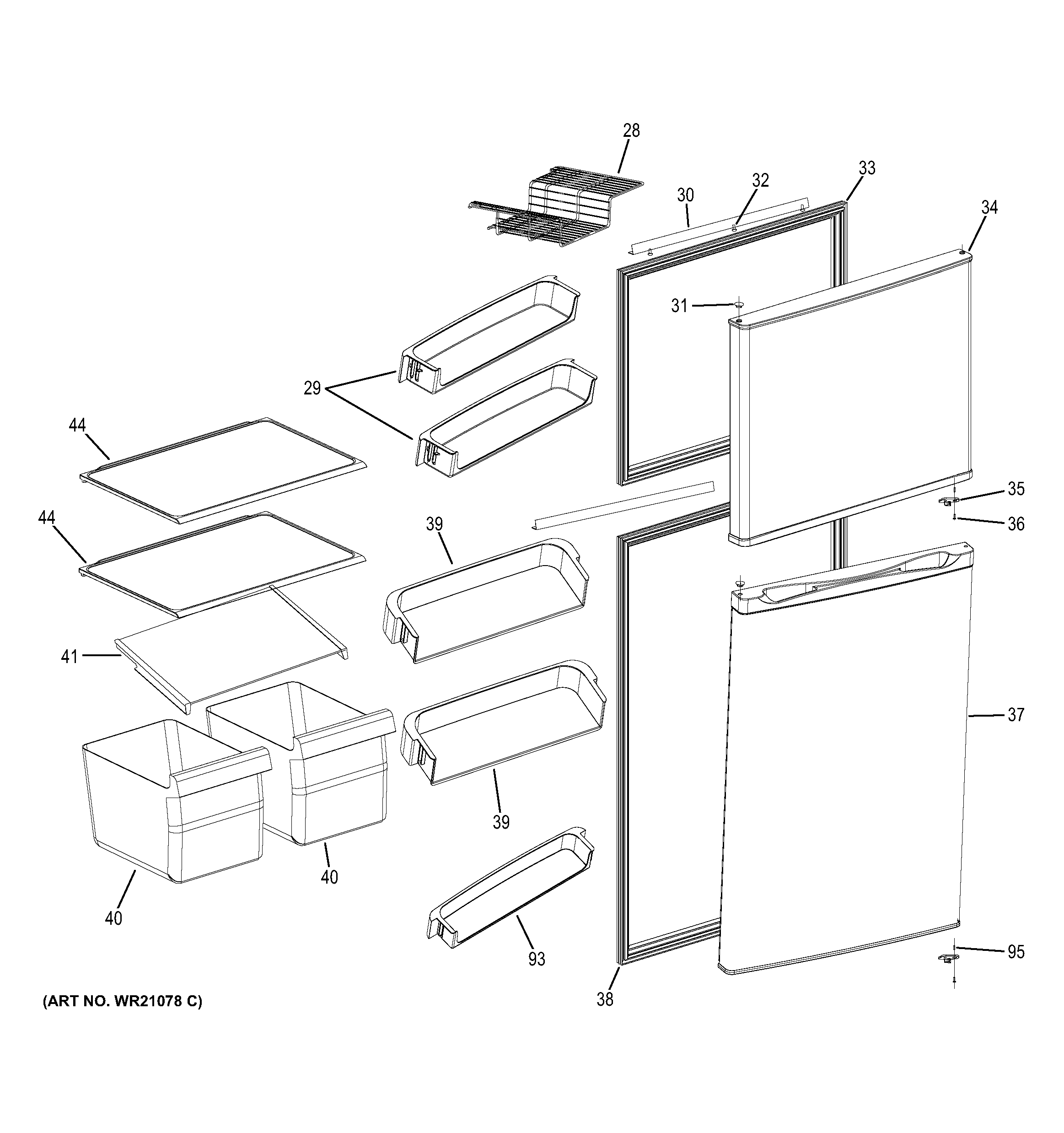

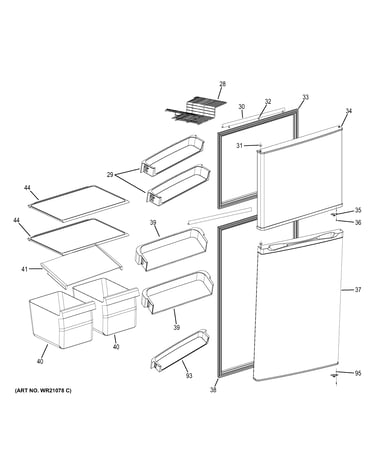

Doors & shelves diagram

Refrigerator door bin

Part #WR71X22032

$140.24 |
8% OFF Phone Price : $152.24
In Stock
Refrigerator Crisper Drawer Cover Assembly WR71X20361
#41

Doors & shelves diagram

Refrigerator crisper drawer cover assembly

Part #WR71X20361

$109.91 |
10% OFF Phone Price : $121.91
In Stock
Refrigerator Door Stopper WR01X20356
#35

Doors & shelves diagram

Refrigerator door stopper

Part #WR01X20356

$39.90 |
13% OFF Phone Price : $45.90
In Stock
Refrigerator Vegetable Pan WR71X20360
#40

Doors & shelves diagram

Refrigerator vegetable pan

Part #WR71X20360

$203.96 |
6% OFF Phone Price : $215.96
In Stock
Refrigerator Button Plug WR02X20372
#56

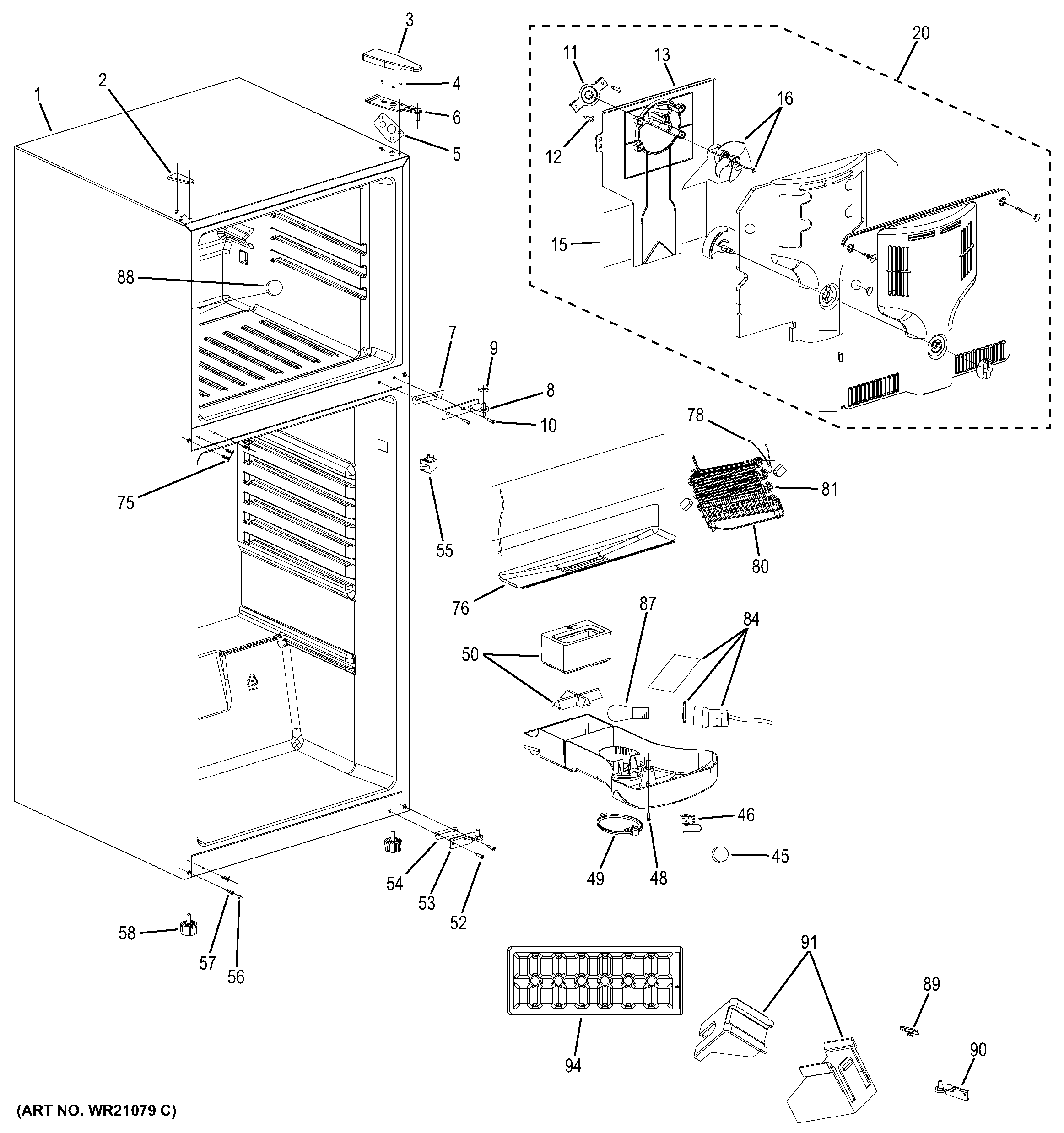

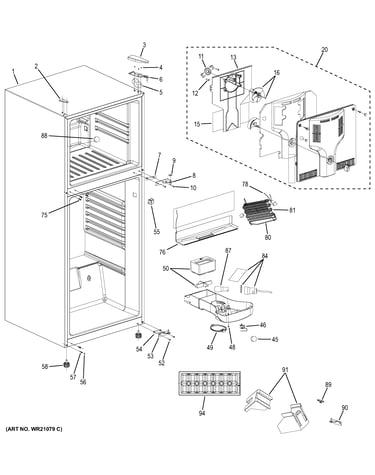

Cabinet diagram

Refrigerator button plug

Part #WR02X20372

This item is not returnable
$5.00
In Stock
Water Connector WR13X20070
#91

Cabinet diagram

Water connector

Part #WR13X20070

$30.44
In Stock
Upper Hinge WR02X20337
#5

Cabinet diagram

Upper hinge

Part #WR02X20337

$8.40
In Stock
Defrost Timer WR09X22029
#59

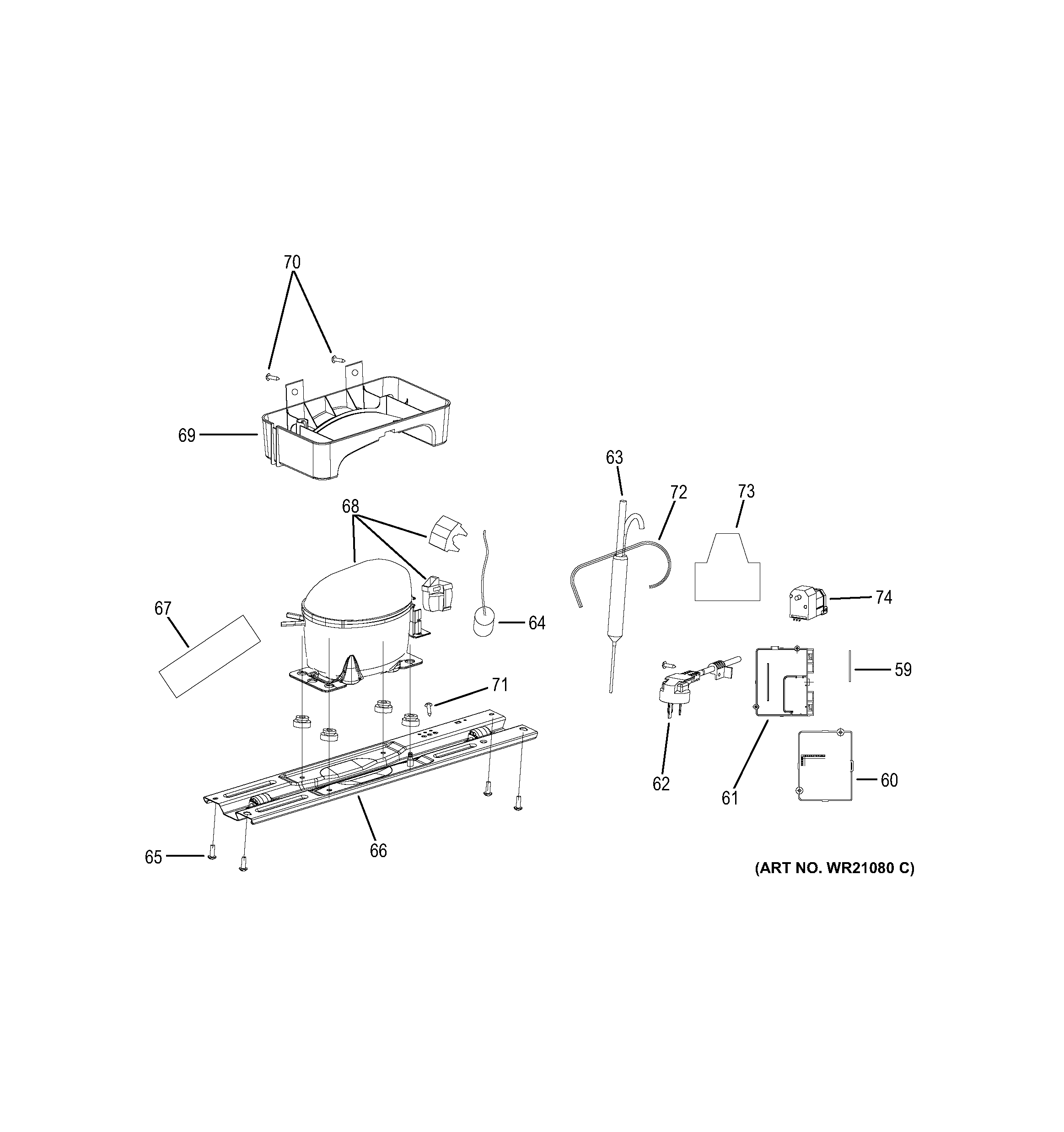

Machine compartmen diagram

Defrost timer

Part #WR09X22029

$75.79 |
7% OFF Phone Price : $81.79
In Stock
I/m Junction WR13X20396
#88

Cabinet diagram

I/m junction

Part #WR13X20396

$46.60
In Stock
Refrigerator Fixed Shelf WR71X22033
#29

Doors & shelves diagram

Refrigerator fixed shelf

Part #WR71X22033

$154.36
In Stock
