Model # MC-V7400D Official Panasonic vacuum cleaner

Here are the diagrams and repair parts for Official Panasonic MC-V7400D vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 115 parts  |
Panasonic Lamp AC28GADFZ00
#A-23

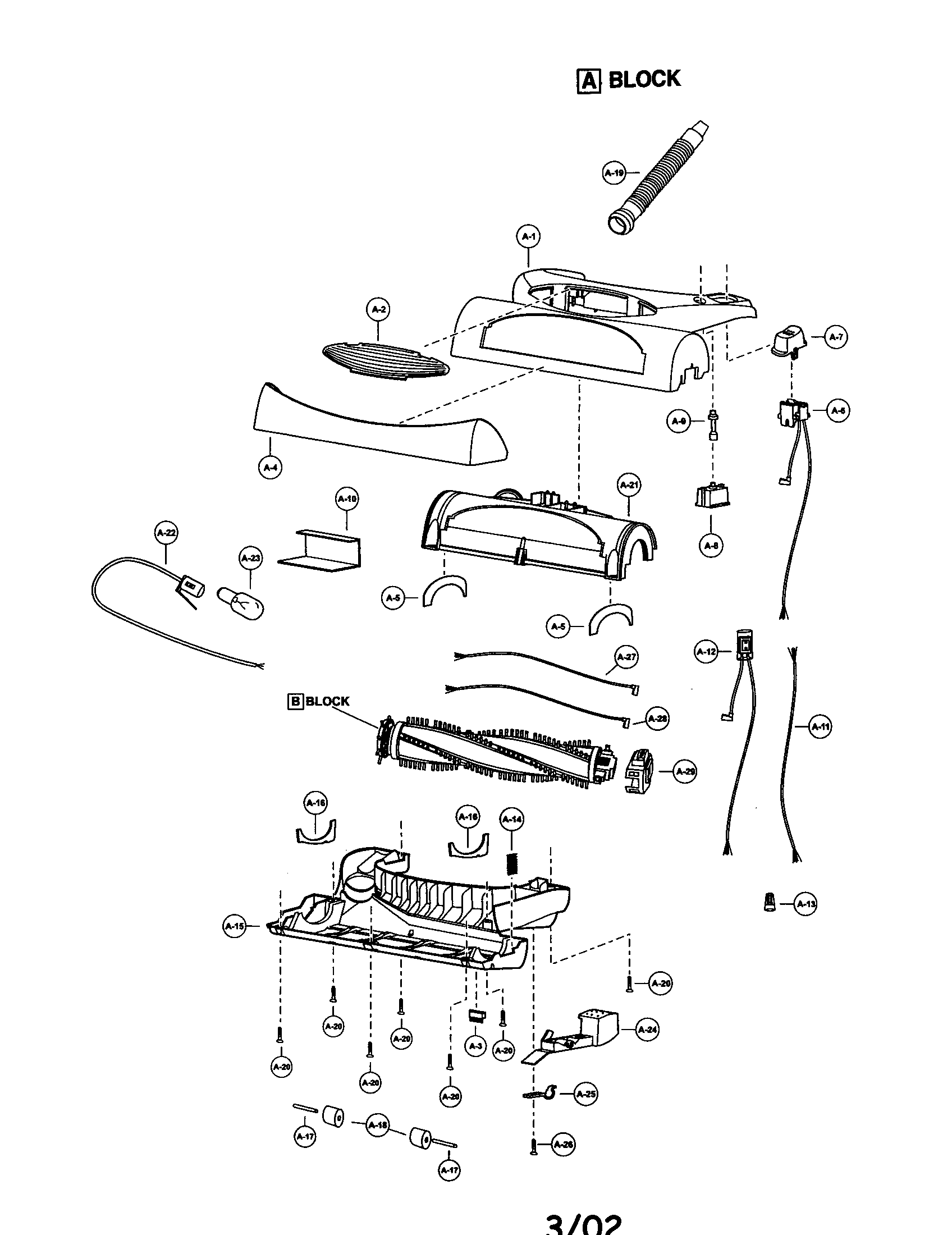

Nozzle housing diagram

Panasonic lamp

Part #AC28GADFZ00

This item is not returnable
$7.99
In Stock
Panasonic Shaft AC16CUSZ00
#C-11

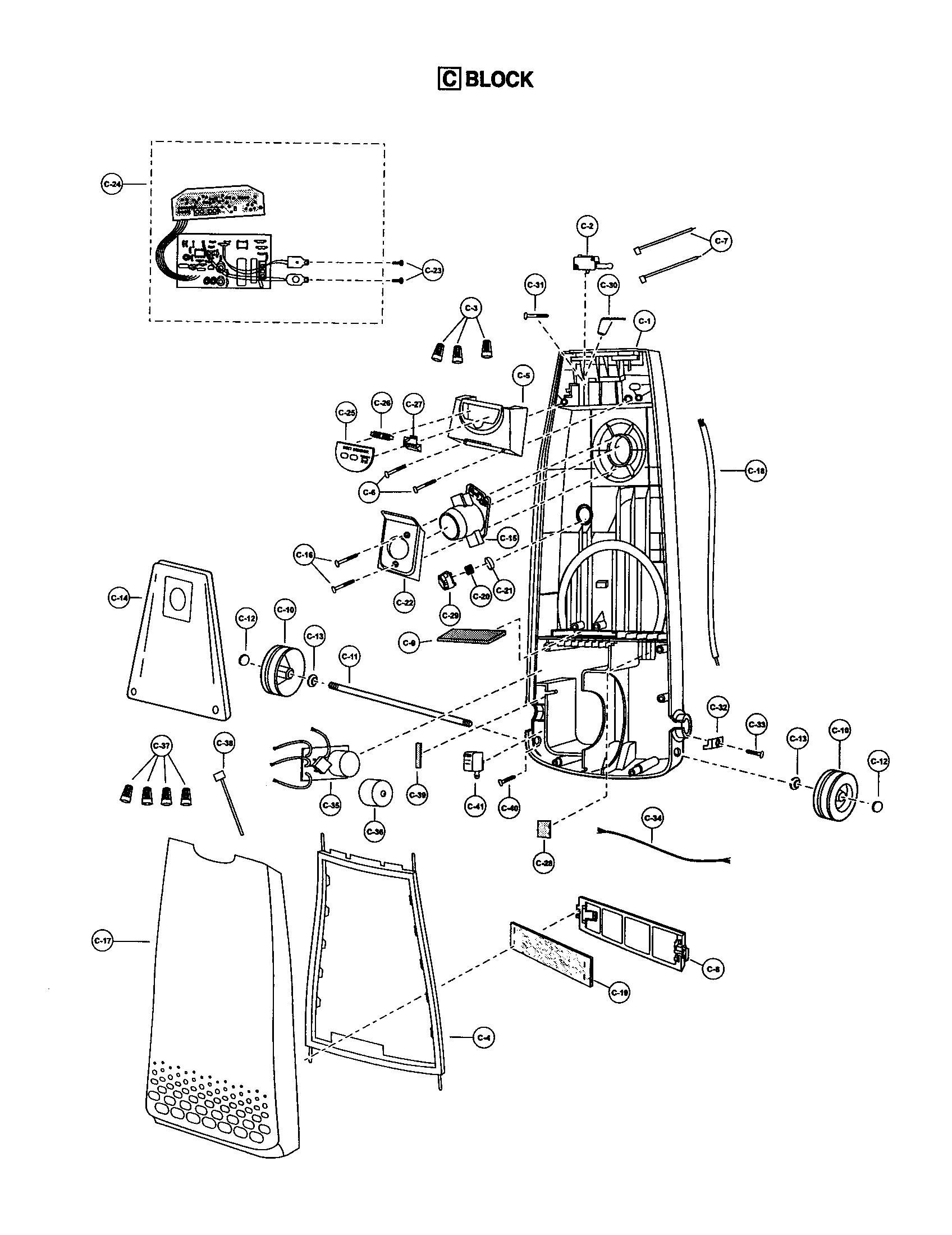

Body diagram

Panasonic shaft

Part #AC16CUSZ00

$9.99
In Stock
Panasonic Protector AC69KJMZV07
#C-21

Body diagram

Panasonic protector

Part #AC69KJMZV07

$17.49
In Stock
Panasonic Knob AC04EAFWZU01
#C-27

Body diagram

Panasonic knob

Part #AC04EAFWZU01

This item is not returnable
$4.49
In Stock
Panasonic Stopper AC74SUSZ00
#C-12

Body diagram

Panasonic stopper

Part #AC74SUSZ00

$28.78
In Stock
Panasonic Cord Guide AC14NATCZ00
#D-21

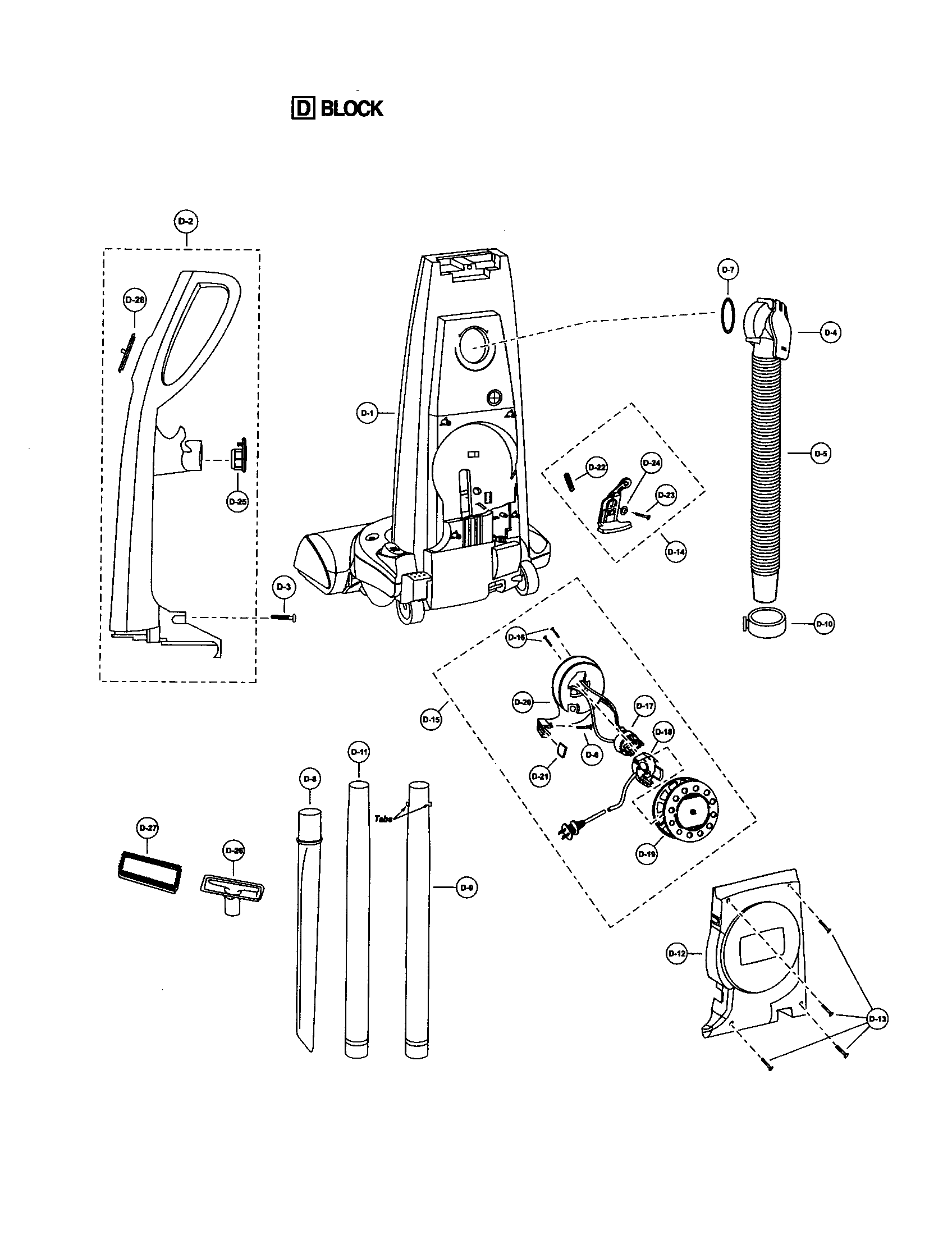

Handle/rear dust compartment/reel diagram

Panasonic cord guide

Part #AC14NATCZ00

This item is not returnable
$6.49
In Stock
Panasonic Lead Wire AC56VAVGZ00
#C-34

Body diagram

Panasonic lead wire

Part #AC56VAVGZ00

$51.99
In Stock
Panasonic Button AC05EAVGZV06
#A-07

Nozzle housing diagram

Panasonic button

Part #AC05EAVGZV06

$13.49
In Stock
Panasonic Pcb Ay AC87GAGSZ00
#C-24

Body diagram

Panasonic pcb ay

Part #AC87GAGSZ00

$67.49
In Stock
Panasonic Suppressor AC99GAMMZ00
#E-06

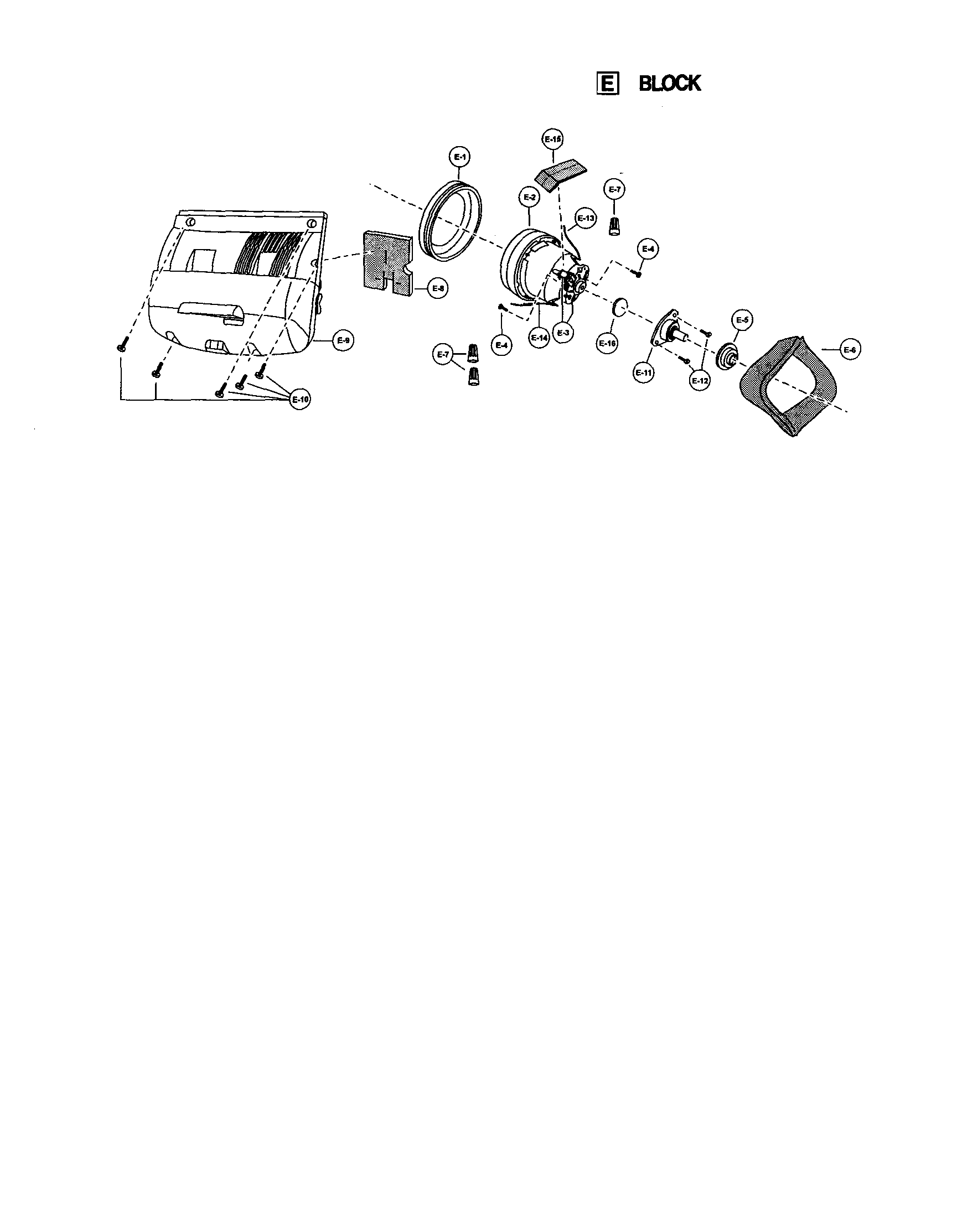

Motor case and motor diagram

Panasonic suppressor

Part #AC99GAMMZ00

$44.49
In Stock
