Model # MER5555QCB Official Maytag electric freestanding range

Here are the diagrams and repair parts for Official Maytag MER5555QCB electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

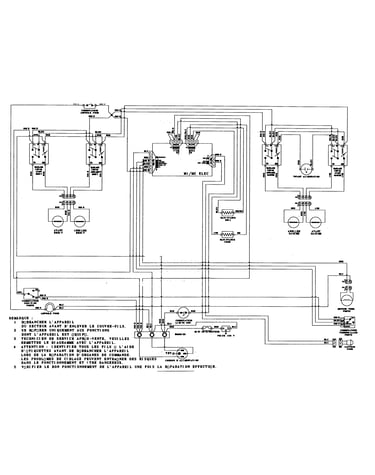

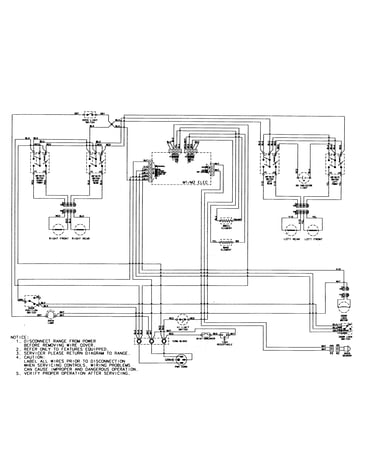

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |
Oven Bulb 7407P103-60
#5

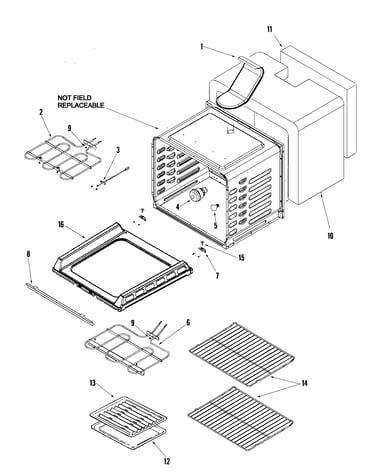

Cavity diagram

Oven bulb

Part #7407P103-60

Replaced by #40A15

?
Manufacturer substitution
This part replaces 7407P103-60. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Terminal Block 7401P039-60
#26

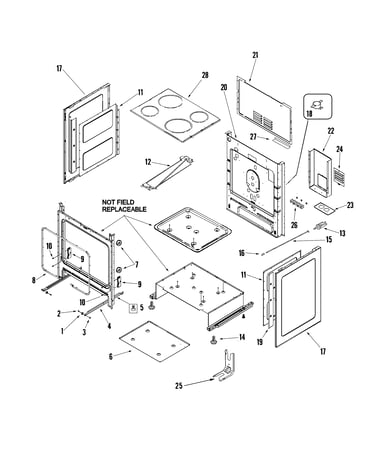

Cabinet diagram

Terminal block

Part #7401P039-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P039-60. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Range Oven Temperature Sensor (replaces 12001554, 74004471, 74004943, 74005193, 7430p042-60, 8189679, W10127323, Y04000052, Y04100258, Y704657) 12001656
#3

Cavity diagram

Range oven temperature sensor (replaces 12001554, 74004471, 74004943, 74005193, 7430p042-60, 8189679, w10127323, y04000052, y04100258, y704657)

Part #12001656

BEST SELLER
$35.18 |
15% OFF Phone Price : $41.18
In Stock
Range Surface Element Receptacle Kit (replaces 4381814, 4381831, 700125, Y04100394, Y0b03600499, Y0r01500199, Y0r01500299, Y0r01500399, Y0r01500599, Y712143, Y712361) 12001676
#21

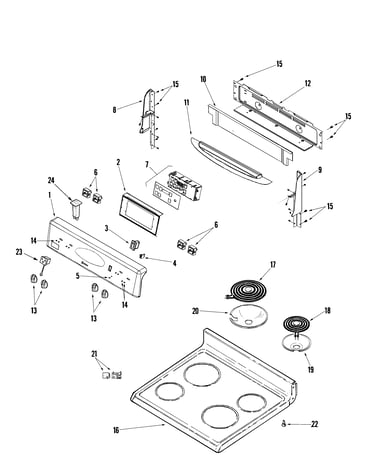

Control panel/top assembly diagram

Range surface element receptacle kit (replaces 4381814, 4381831, 700125, y04100394, y0b03600499, y0r01500199, y0r01500299, y0r01500399, y0r01500599, y712143, y712361)

Part #12001676

$10.73 |
16% OFF Phone Price : $12.73
In Stock
Oven Bake Element 74008693
#6

Cavity diagram

Oven bake element

Part #74008693

Replaced by #WPW10276482

?
Manufacturer substitution
This part replaces 74008693. Substitute parts can look different from the original.
$113.54 |
10% OFF Phone Price : $125.54
In Stock
Range Oven Door Inner Glass (replaces 7902p436-60) 74003645
#4

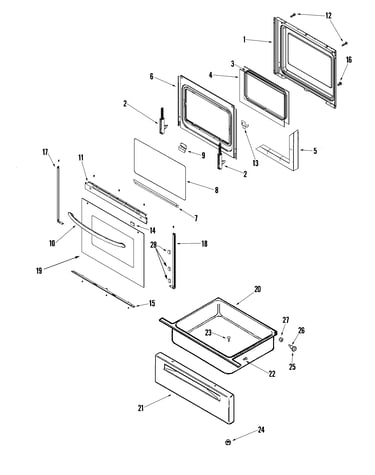

Door/drawer diagram

Range oven door inner glass (replaces 7902p436-60)

Part #74003645

$104.75 |
10% OFF Phone Price : $116.75
In Stock
Gasket 74008696
#8

Cabinet diagram

Gasket

Part #74008696

Replaced by #W11562931

?
Manufacturer substitution
This part replaces 74008696. Substitute parts can look different from the original.
$45.67
In Stock
Surface Element 74007157
#18

Control panel/top assembly diagram

Surface element

Part #74007157

Replaced by #WPW10259868

?
Manufacturer substitution
This part replaces 74007157. Substitute parts can look different from the original.
$76.43 |
7% OFF Phone Price : $82.43
In Stock
Bracket Screw 7101P040-60
#11B

Door/drawer diagram

Bracket screw

Part #7101P040-60

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 7101P040-60. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Door Handle 74008942
#10A

Door/drawer diagram

Door handle

Part #74008942

Replaced by #WP74011768

?
Manufacturer substitution
This part replaces 74008942. Substitute parts can look different from the original.
$84.55 |
7% OFF Phone Price : $90.55
In Stock
