DeWalt
Generator

Model # DG6300B Official DeWalt generator

Here are the diagrams and repair parts for Official DeWalt DG6300B generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

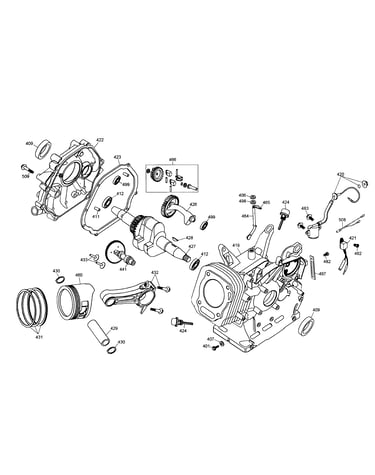

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 238 parts  |
Dewalt Label 285816-44
#511

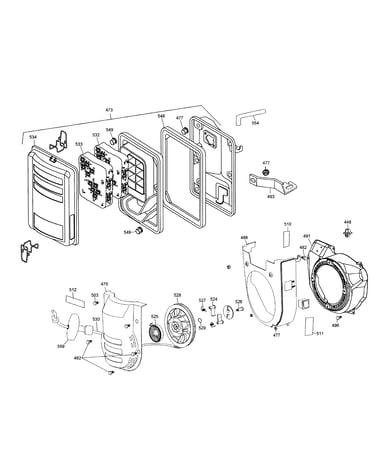

Filter/starter diagram

Dewalt label

Part #285816-44

The manufacturer no longer makes this part, and there's no substitute part

Stud 285816-24
#496

Filter/starter diagram

Stud

Part #285816-24

The manufacturer no longer makes this part, and there's no substitute part

Bolt 285815-85
#551

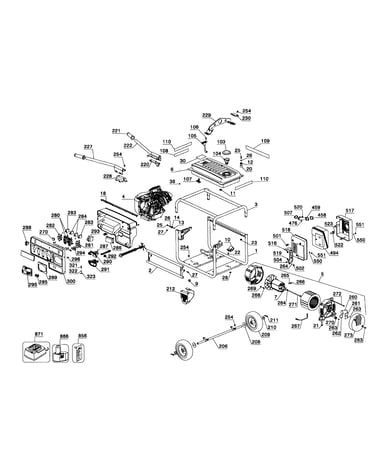

Frame assy diagram

Bolt

Part #285815-85

The manufacturer no longer makes this part, and there's no substitute part

Spring 285816-77
#525

Filter/starter diagram

Spring

Part #285816-77

The manufacturer no longer makes this part, and there's no substitute part

O-ring 285816-91
#539

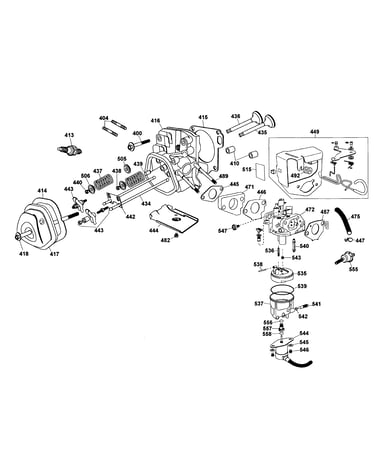

Carburetor diagram

O-ring

Part #285816-91

The manufacturer no longer makes this part, and there's no substitute part

Cover Muff 285816-63
#518

Frame assy diagram

Cover muff

Part #285816-63

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Grommet 285815-24
#454

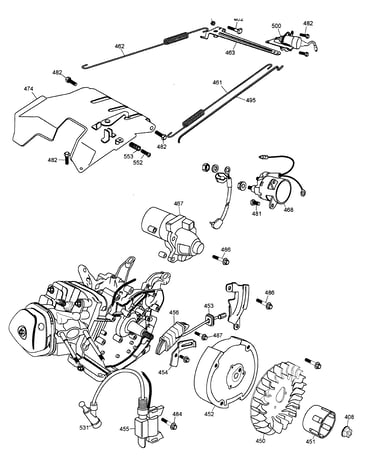

Ignition assy diagram

Dewalt grommet

Part #285815-24

The manufacturer no longer makes this part, and there's no substitute part

Pulley 285816-80
#528

Filter/starter diagram

Pulley

Part #285816-80

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Flywheel 285815-22
#452

Ignition assy diagram

Dewalt flywheel

Part #285815-22

The manufacturer no longer makes this part, and there's no substitute part

Seal 285817-04
#548

Filter/starter diagram

Seal

Part #285817-04

The manufacturer no longer makes this part, and there's no substitute part
