Model # 48624206 Official Craftsman disc cultivator

Here are the diagrams and repair parts for Official Craftsman 48624206 disc cultivator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 18 parts  |

Screw 43020
#16

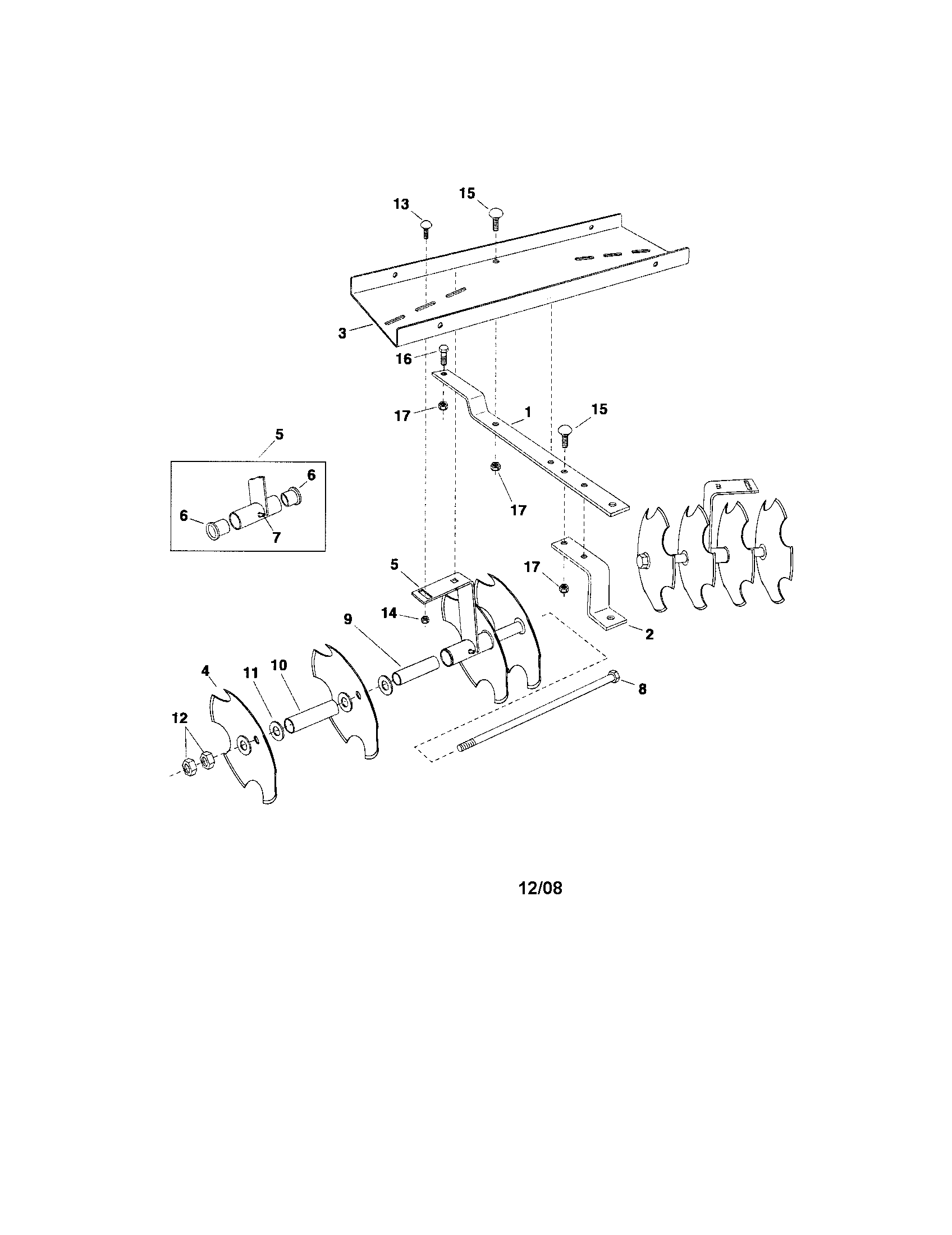

Disc cultivator diagram

Screw

Part #43020

This item is not returnable
In Stock
Lawn & Garden Equipment Washer 1540-162
#11

Disc cultivator diagram

Lawn & garden equipment washer

Part #1540-162

This item is not returnable
In Stock
Craftsman Cultivator Attachment Hex Bolt 46857
#8

Disc cultivator diagram

Craftsman cultivator attachment hex bolt

Part #46857

In Stock
Grease Fitting 46858
#7

Disc cultivator diagram

Grease fitting

Part #46858

This item is not returnable
In Stock
Craftsman Spacer, .80i 46859
#10

Disc cultivator diagram

Craftsman spacer, .80i

Part #46859

This item is not returnable
In Stock
Craftsman Nut, 3/4-10 46860
#12

Disc cultivator diagram

Craftsman nut, 3/4-10

Part #46860

This item is not returnable
In Stock
Lawn & Garden Equipment Carriage Bolt 47660
#15

Disc cultivator diagram

Lawn & garden equipment carriage bolt

Part #47660

This item is not returnable
In Stock
Craftsman Spacer, .80i 24240
#9

Disc cultivator diagram

Craftsman spacer, .80i

Part #24240

This item is not returnable
In Stock
Craftsman Bearing Hanger Bracket 63510
#5

Disc cultivator diagram

Craftsman bearing hanger bracket

Part #63510

In Stock
Lawn Tractor Dump Cart Attachment Wheel Bearing 44488
#6

Disc cultivator diagram

Lawn tractor dump cart attachment wheel bearing

Part #44488

This item is not returnable
In Stock
