Craftsman
Gas Walk-Behind Mower

Model # 917377750 Official Craftsman gas walk-behind lawn mower

Here are the diagrams and repair parts for Official Craftsman 917377750 gas walk-behind lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

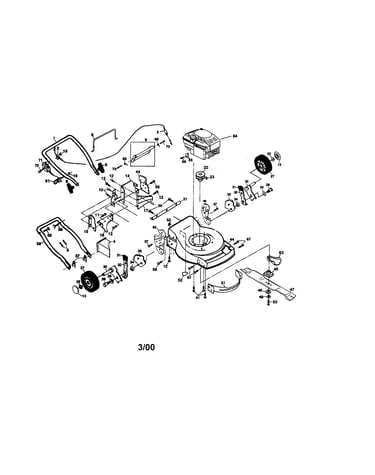

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 251 parts  |
Lawn Mower Height Adjuster Knob 701037
Lawn mower height adjuster knob

Part #701037

Replaced by #532701037

?
Manufacturer substitution
This part replaces 701037. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Lawn Mower Blade Adapter 851514
#46

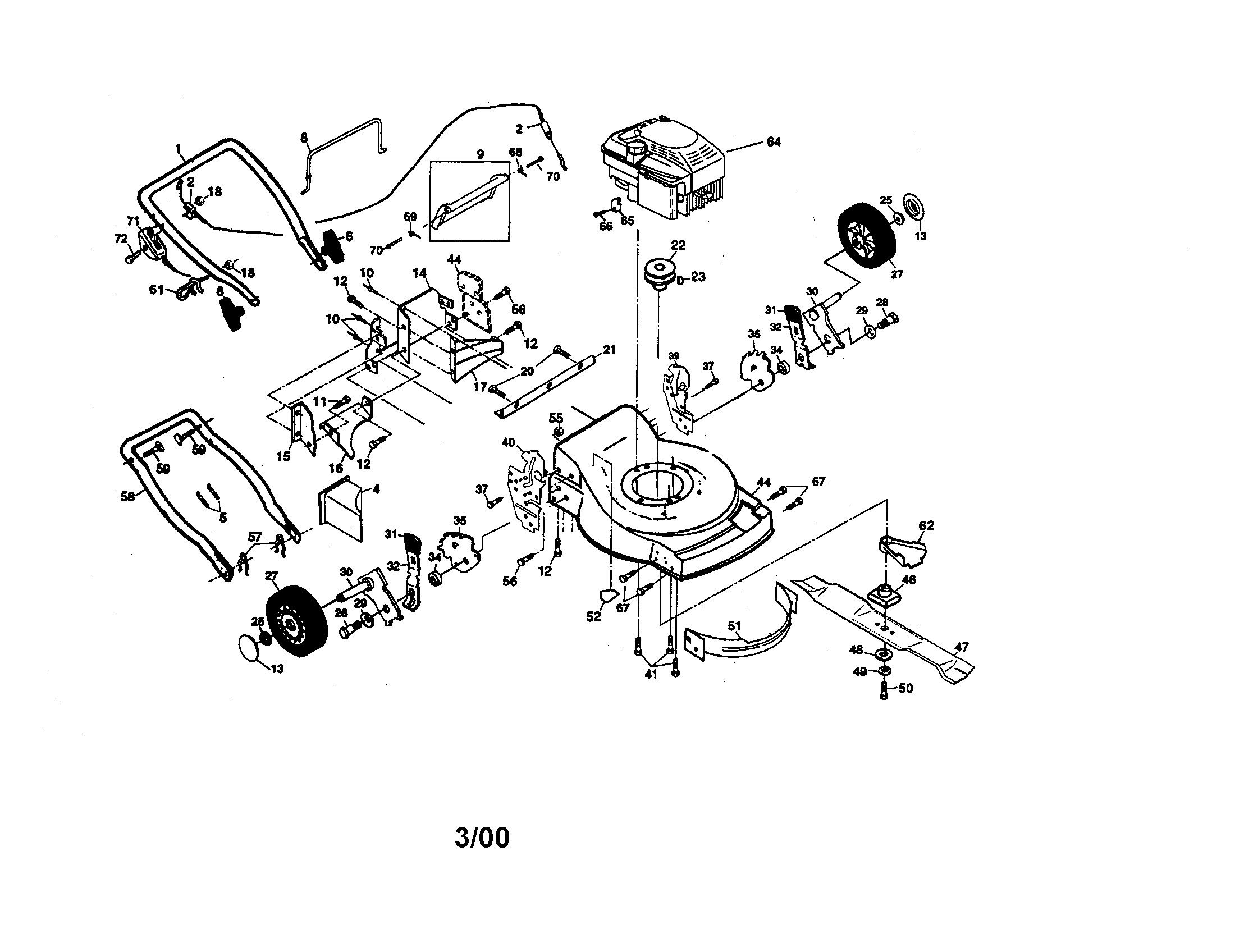

Lawn mower diagram

Lawn mower blade adapter

Part #851514

Replaced by #581547901

?
Manufacturer substitution
This part replaces 851514. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Lawn Mower Wheel 151158
#27

Lawn mower diagram

Lawn mower wheel

Part #151158

Replaced by #582976701

?
Manufacturer substitution
This part replaces 151158. Substitute parts can look different from the original.
BEST SELLER
$41.98 |
13% OFF Phone Price : $47.98
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#56

Lawn mower diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Throttle 700417
#71

Lawn mower diagram

Throttle

Part #700417

Replaced by #532700417

?
Manufacturer substitution
This part replaces 700417. Substitute parts can look different from the original.
This item is not returnable
$23.98 |
20% OFF Phone Price : $29.98
In Stock
Rope Guide 132001
#61

Lawn mower diagram

Rope guide

Part #132001

Replaced by #586122501

?
Manufacturer substitution
This part replaces 132001. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Lawn Mower E-ring (replaces 12000057) 12000058
#12

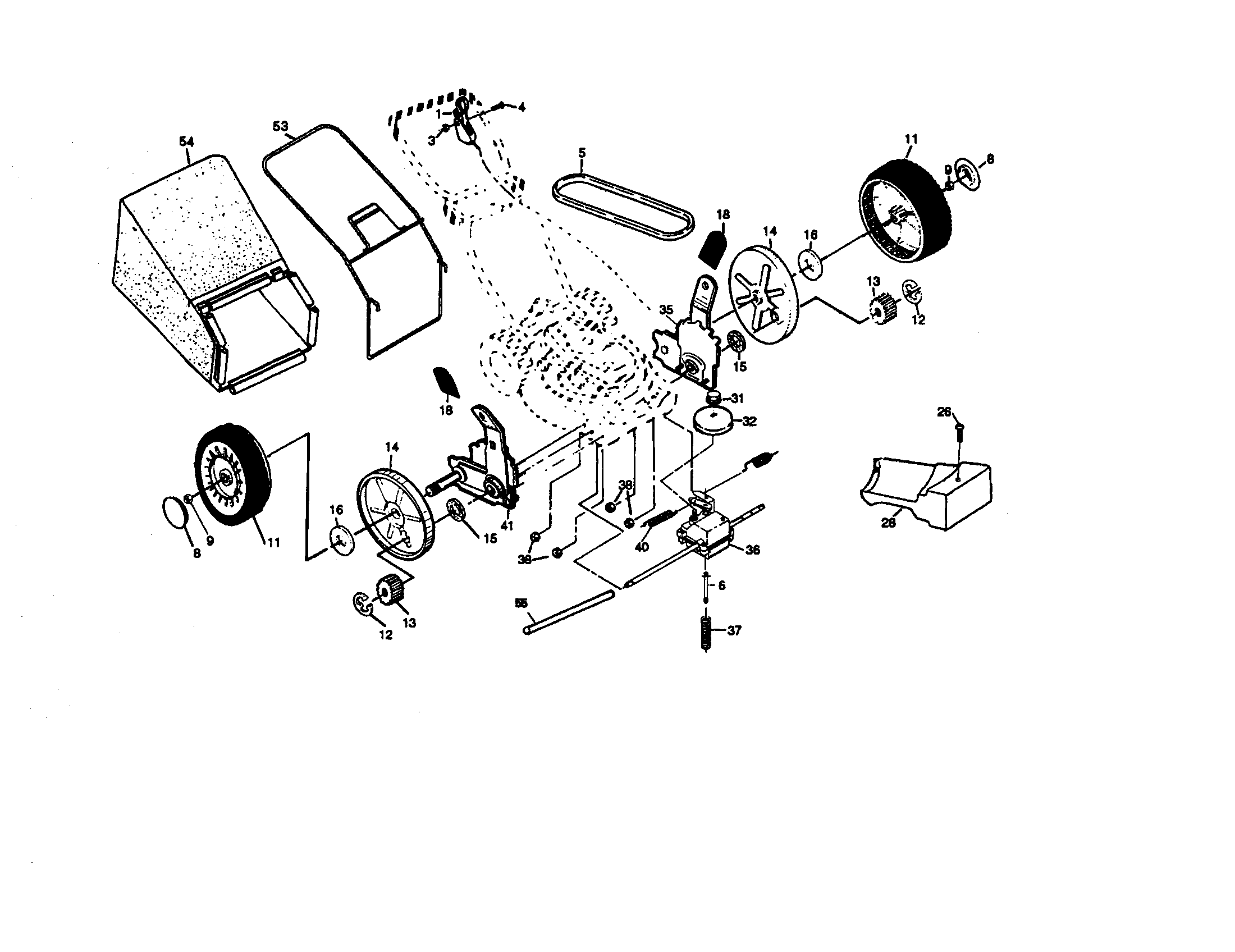

Wheels diagram

Lawn mower e-ring (replaces 12000057)

Part #12000058

Replaced by #812000058

?
Manufacturer substitution
This part replaces 12000058. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Belt 146527
#5

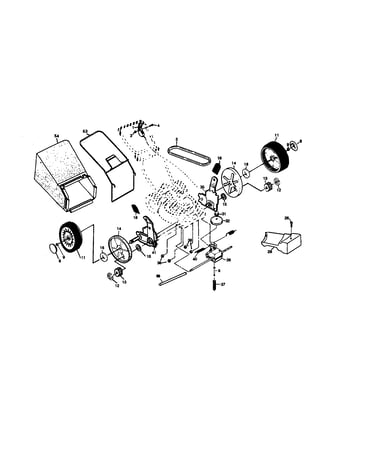

Wheels diagram

Belt

Part #146527

Replaced by #532157769

?
Manufacturer substitution
This part replaces 146527. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$25.69
In Stock
Spring 700331X004
#32

Lawn mower diagram

Spring

Part #700331X004

Replaced by #532401621

?
Manufacturer substitution
This part replaces 700331X004. Substitute parts can look different from the original.
$8.54
In Stock
Screw.hxhd.1 143603
#26

Wheels diagram

Screw.hxhd.1

Part #143603

Replaced by #582961101

?
Manufacturer substitution
This part replaces 143603. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
