Gas Snowblower

Model # 91788777 Official Craftsman snow thrower

Here are the diagrams and repair parts for Official Craftsman 91788777 snow thrower, as well as links to manuals and error code tables, if available.

By Schematic
By Part

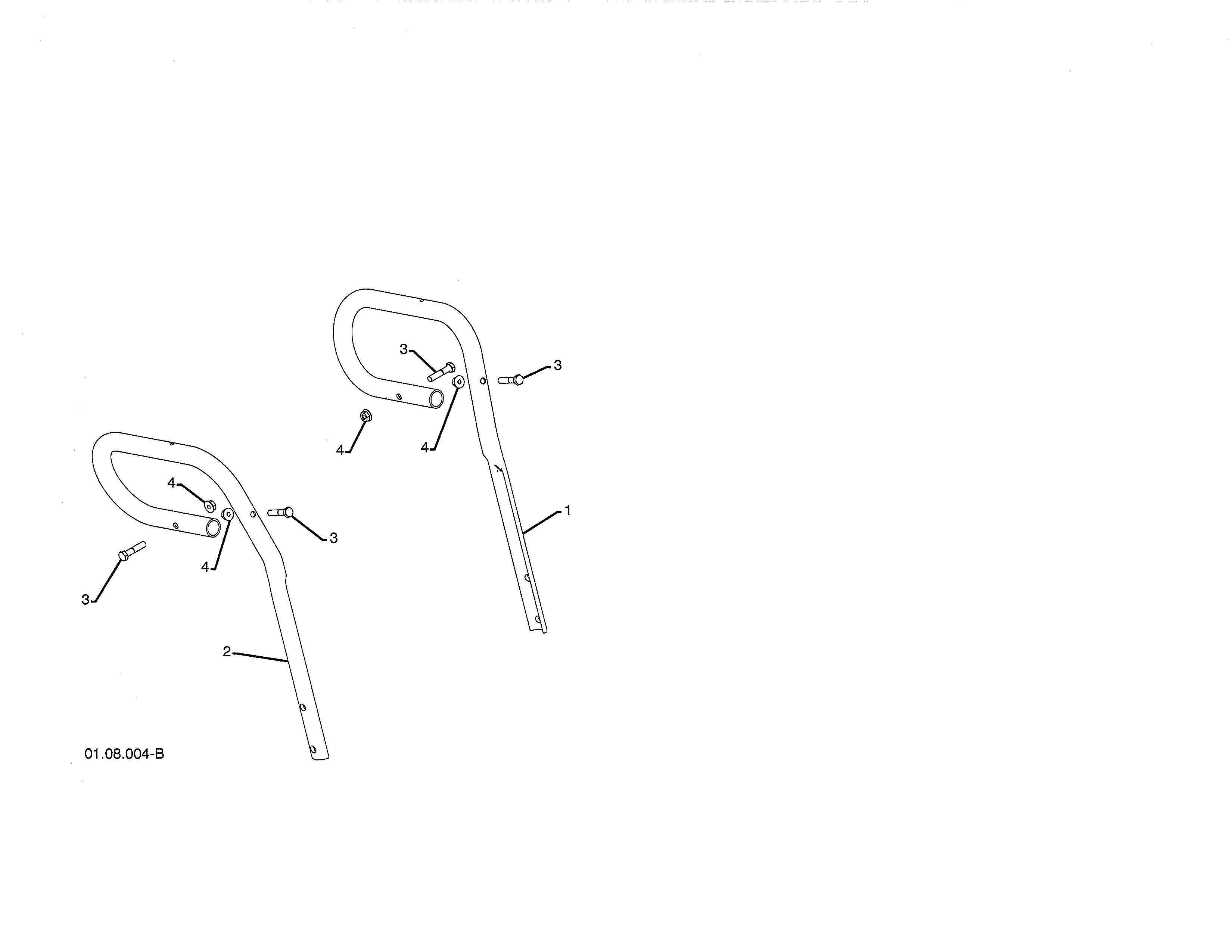

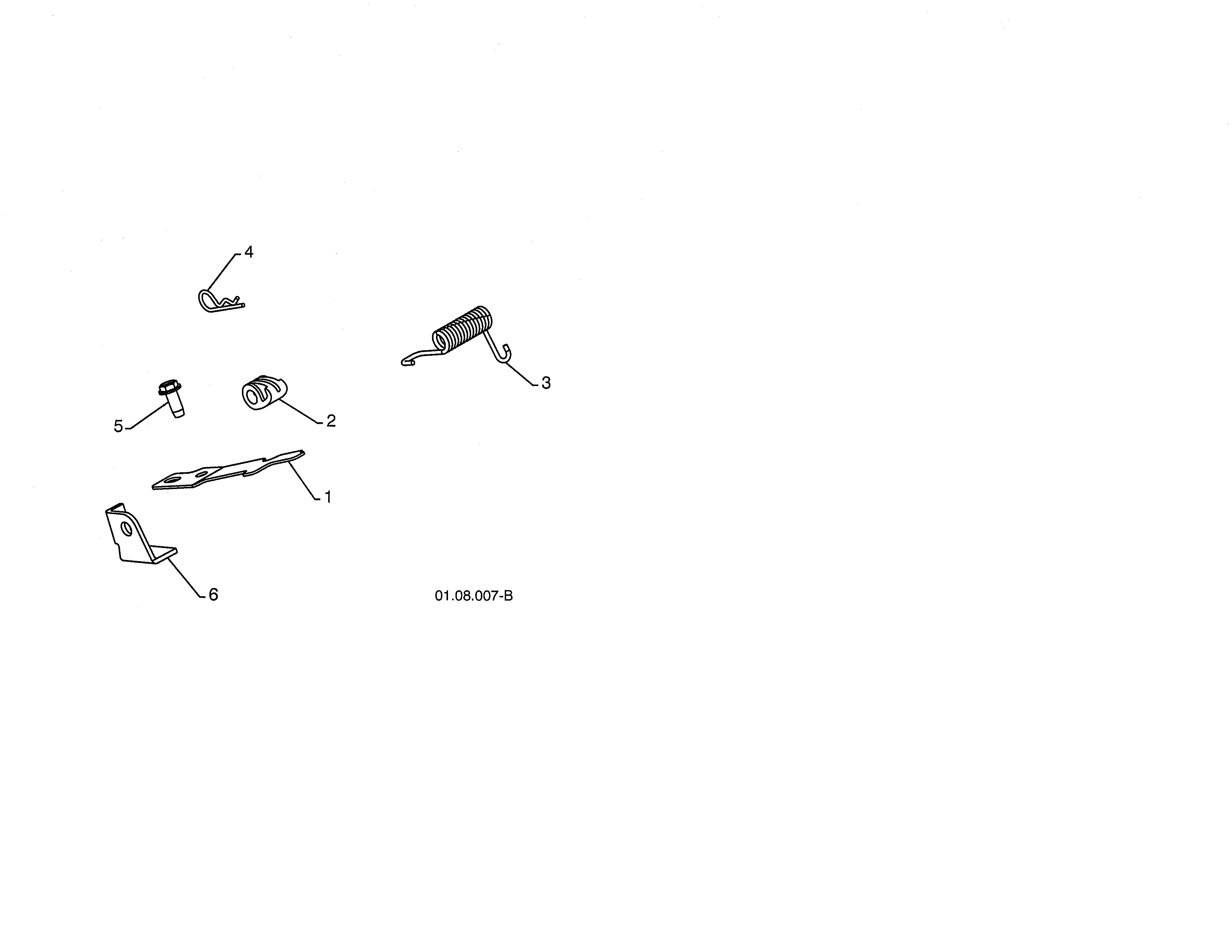

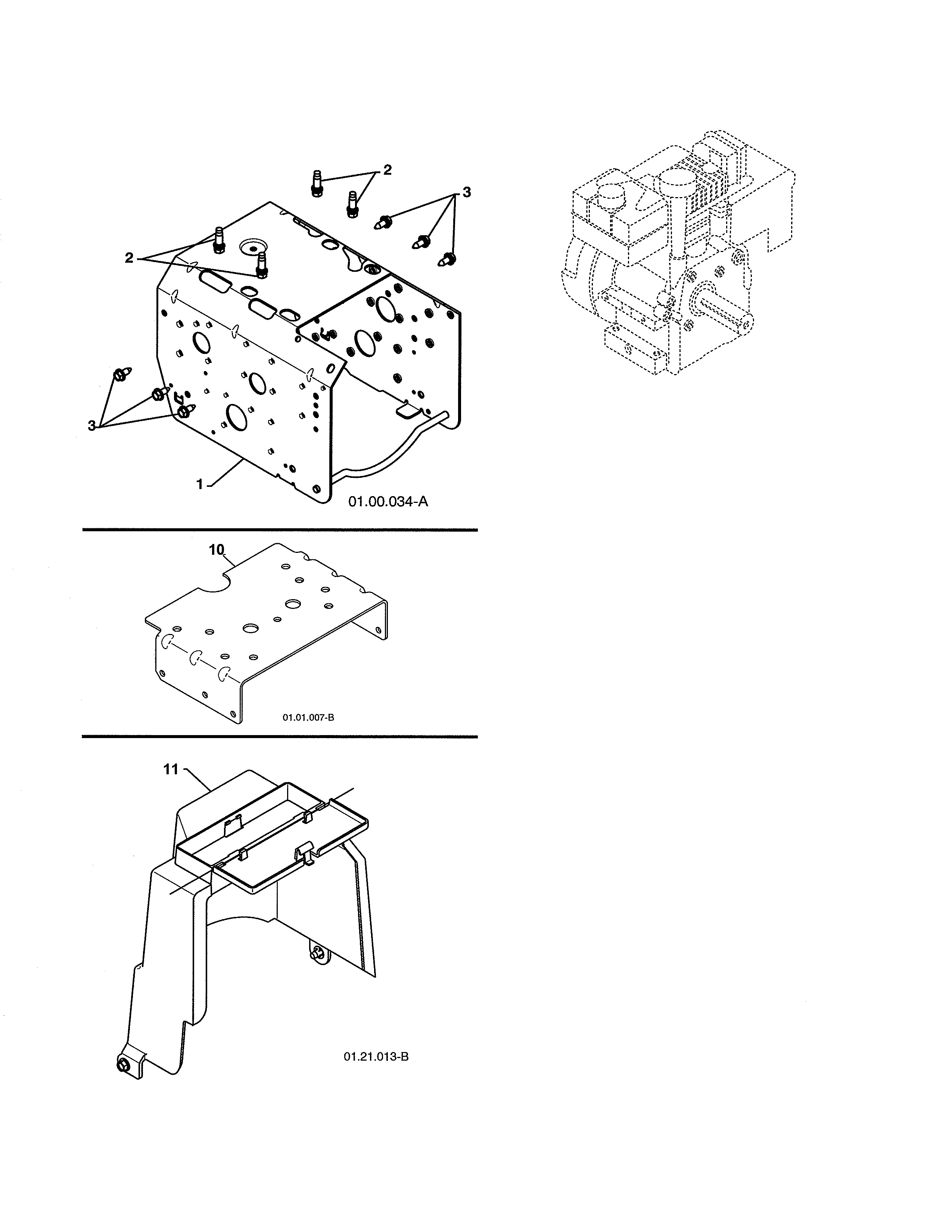

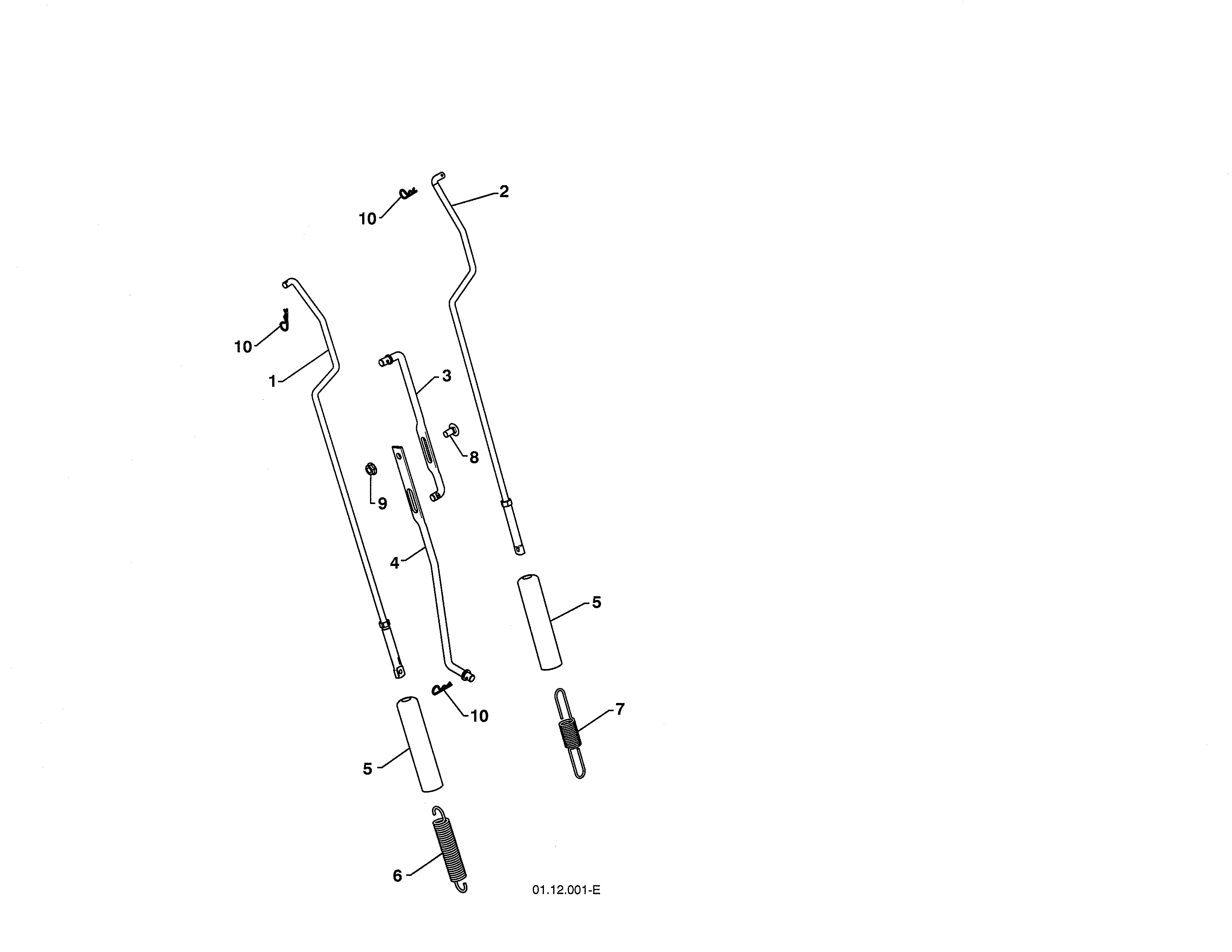

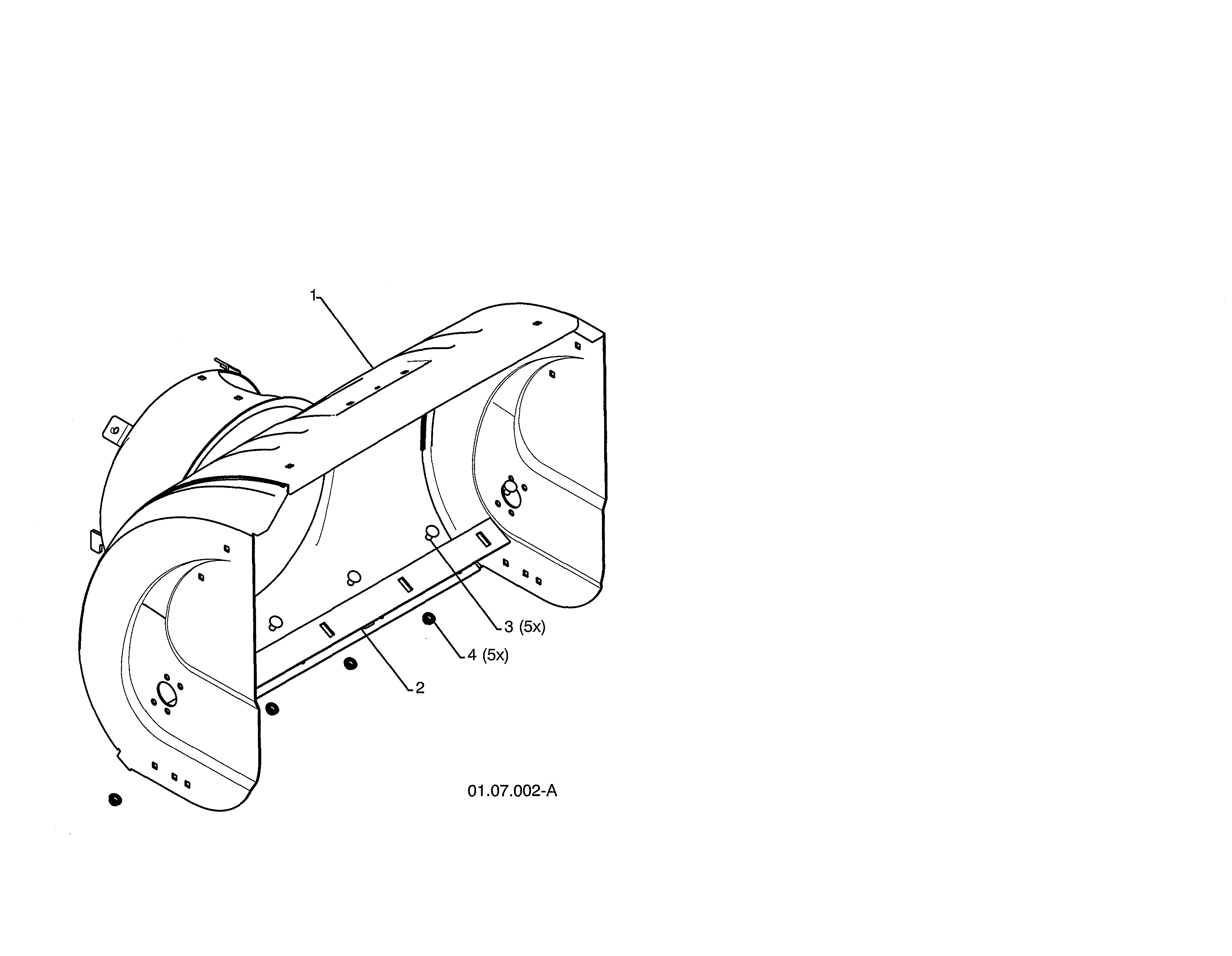

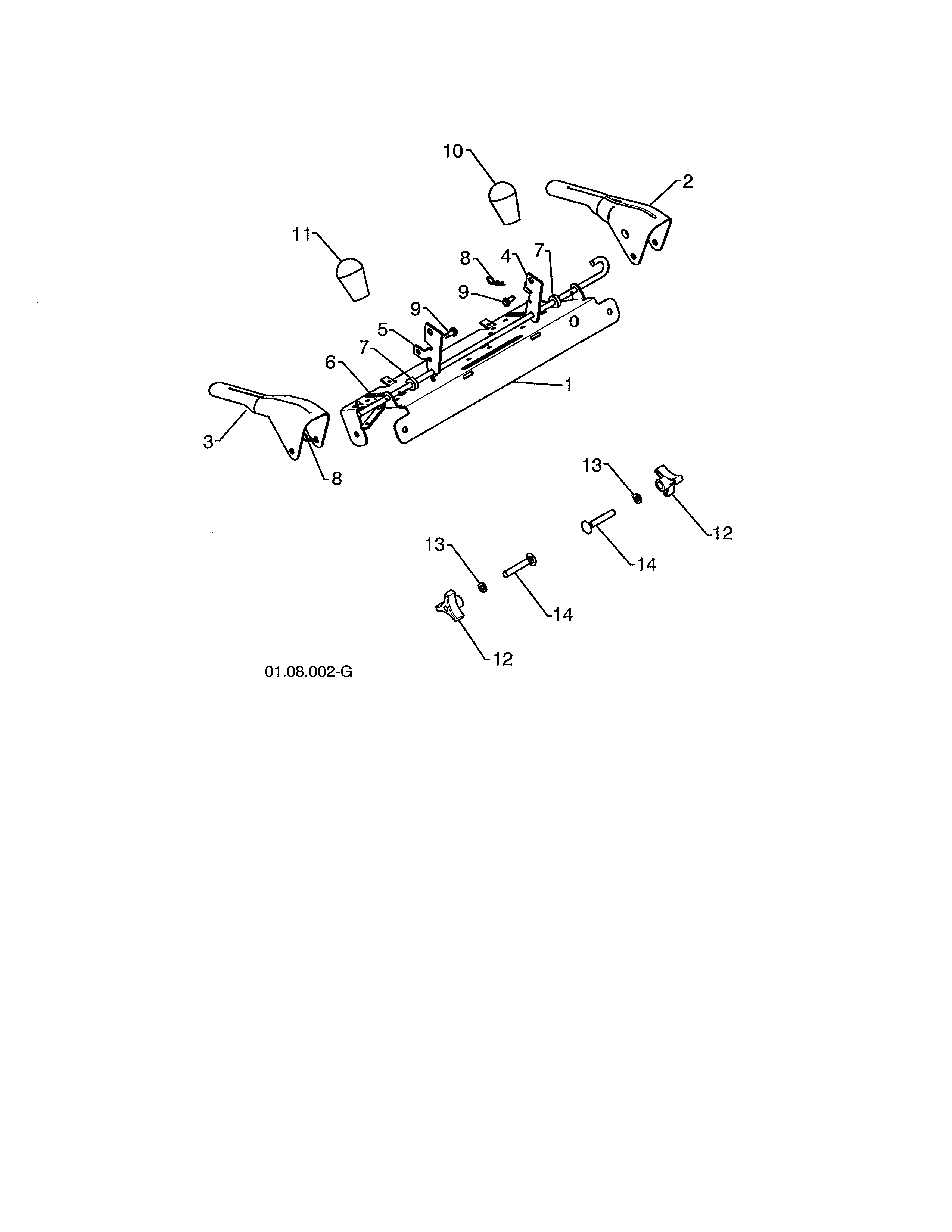

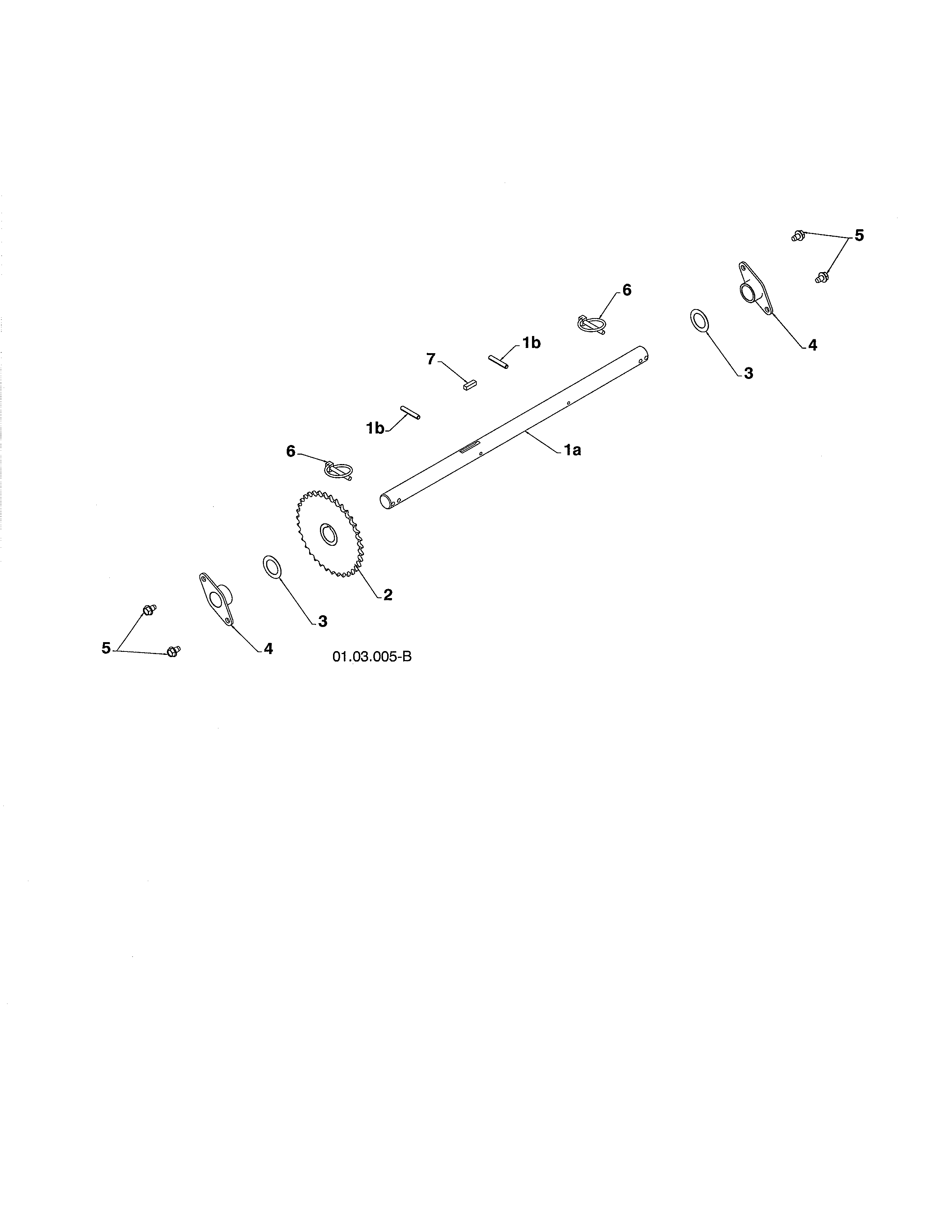

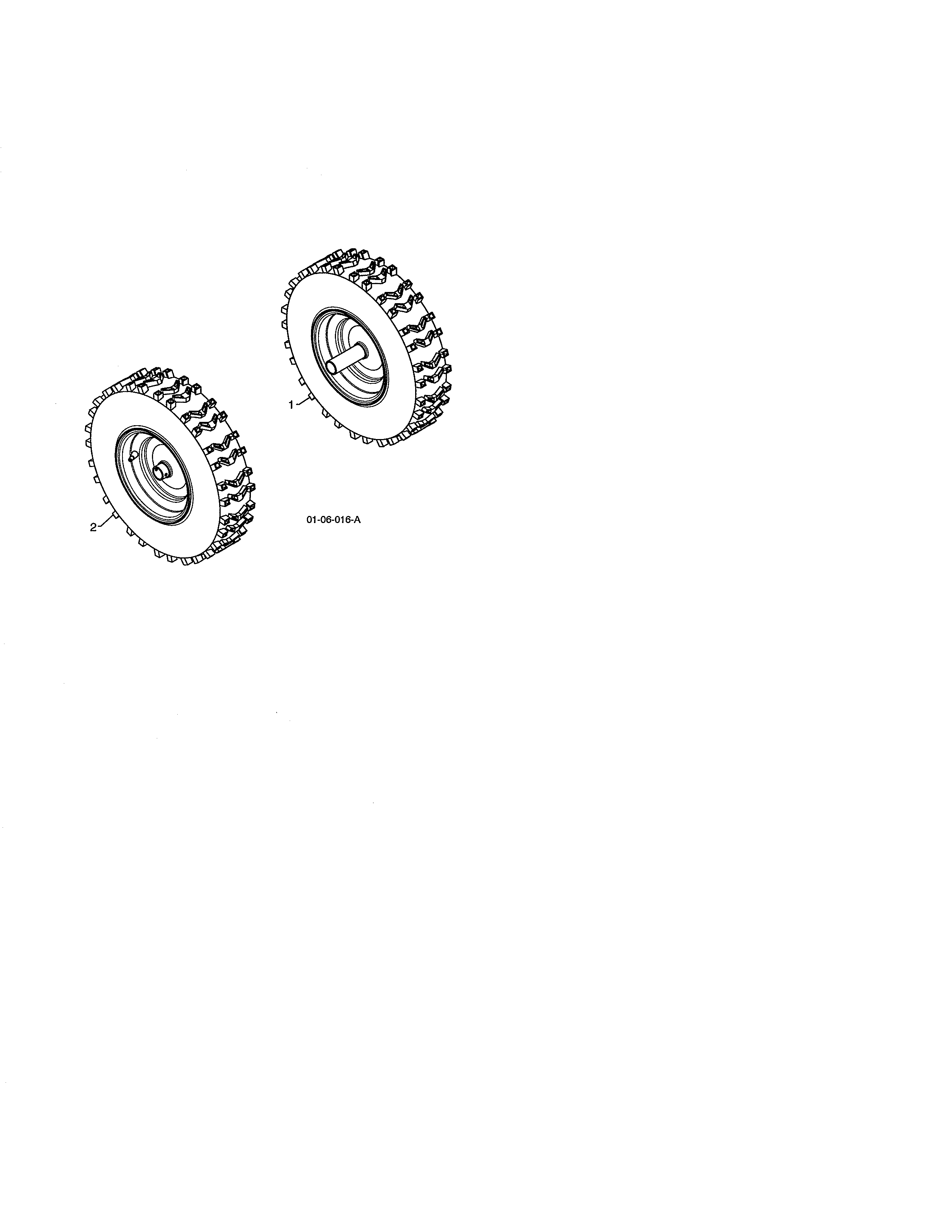

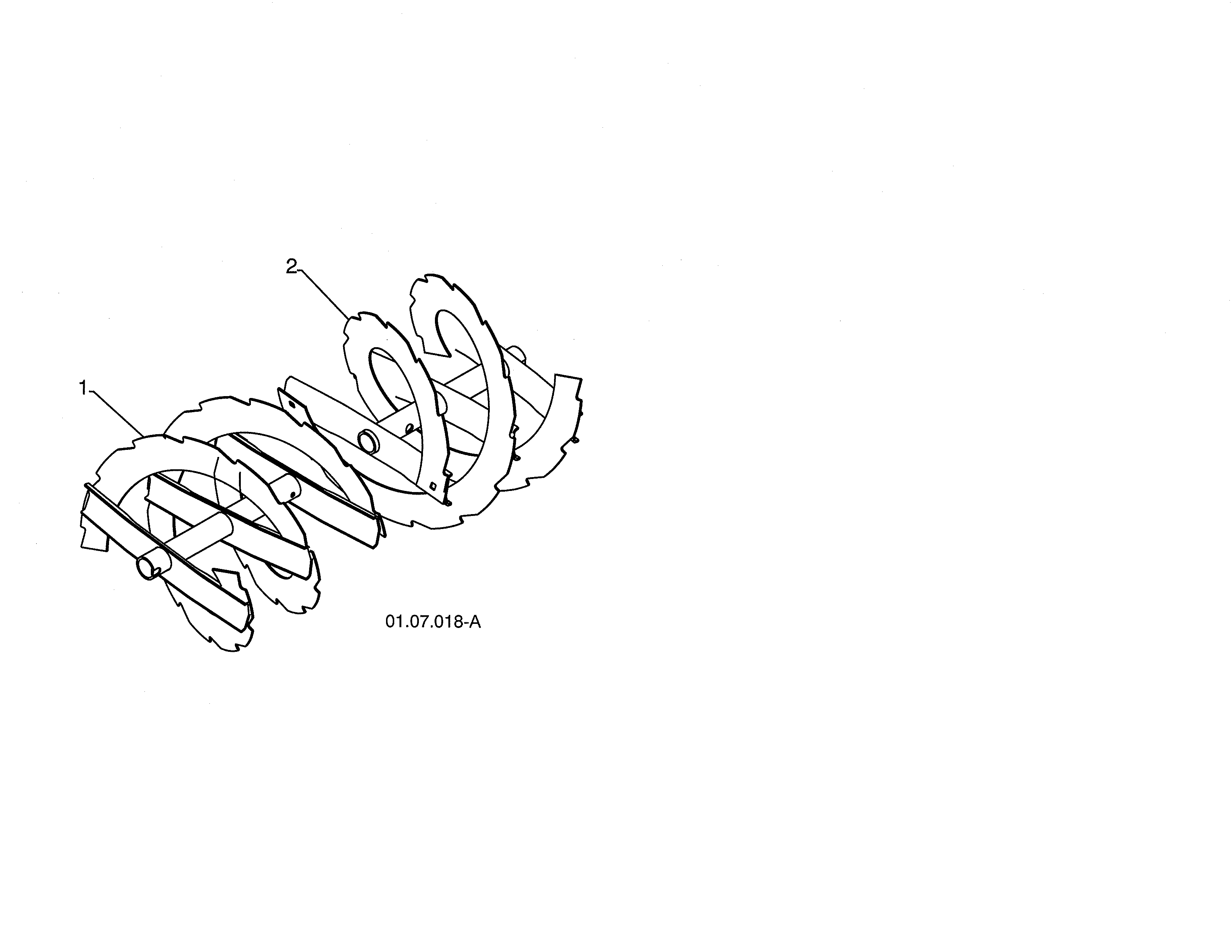

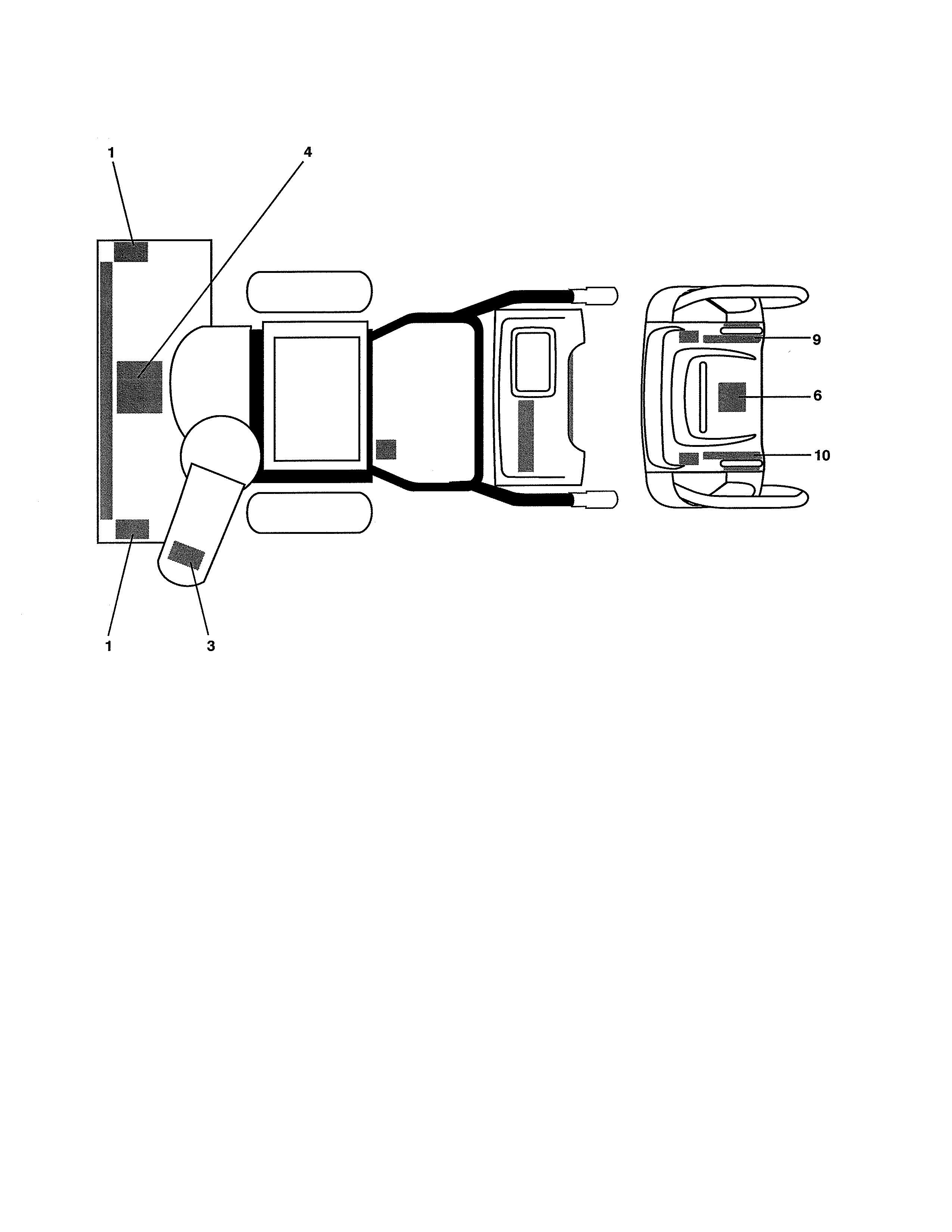

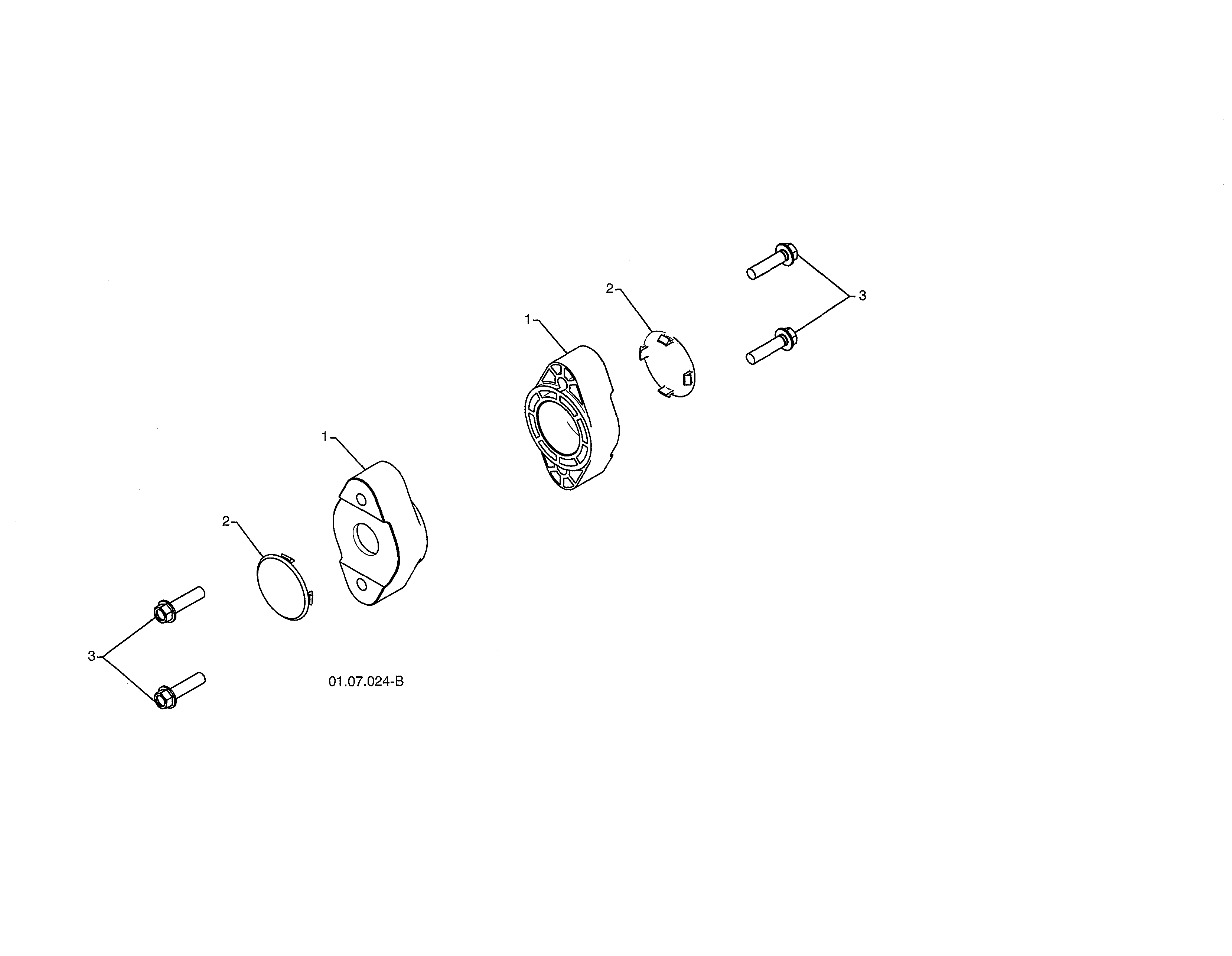

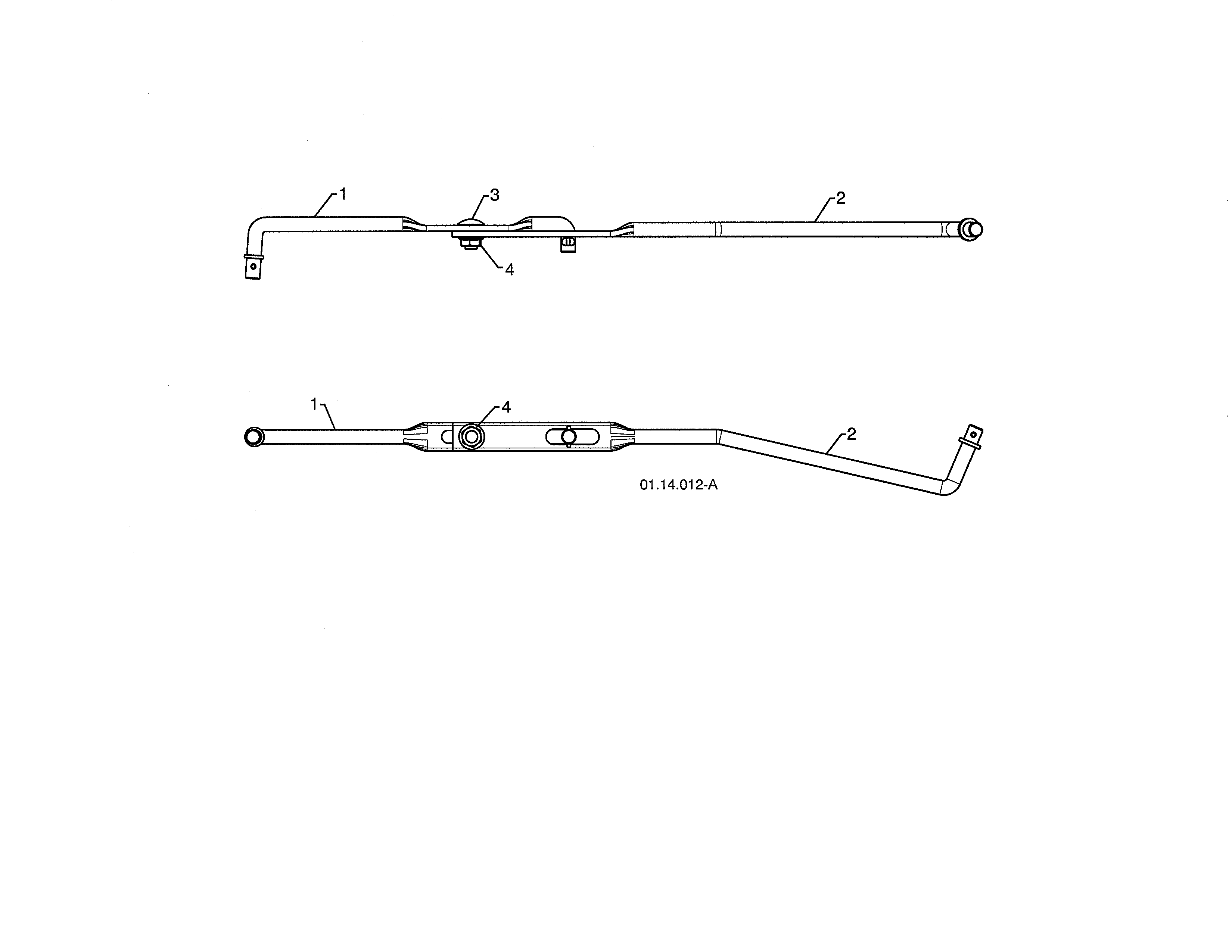

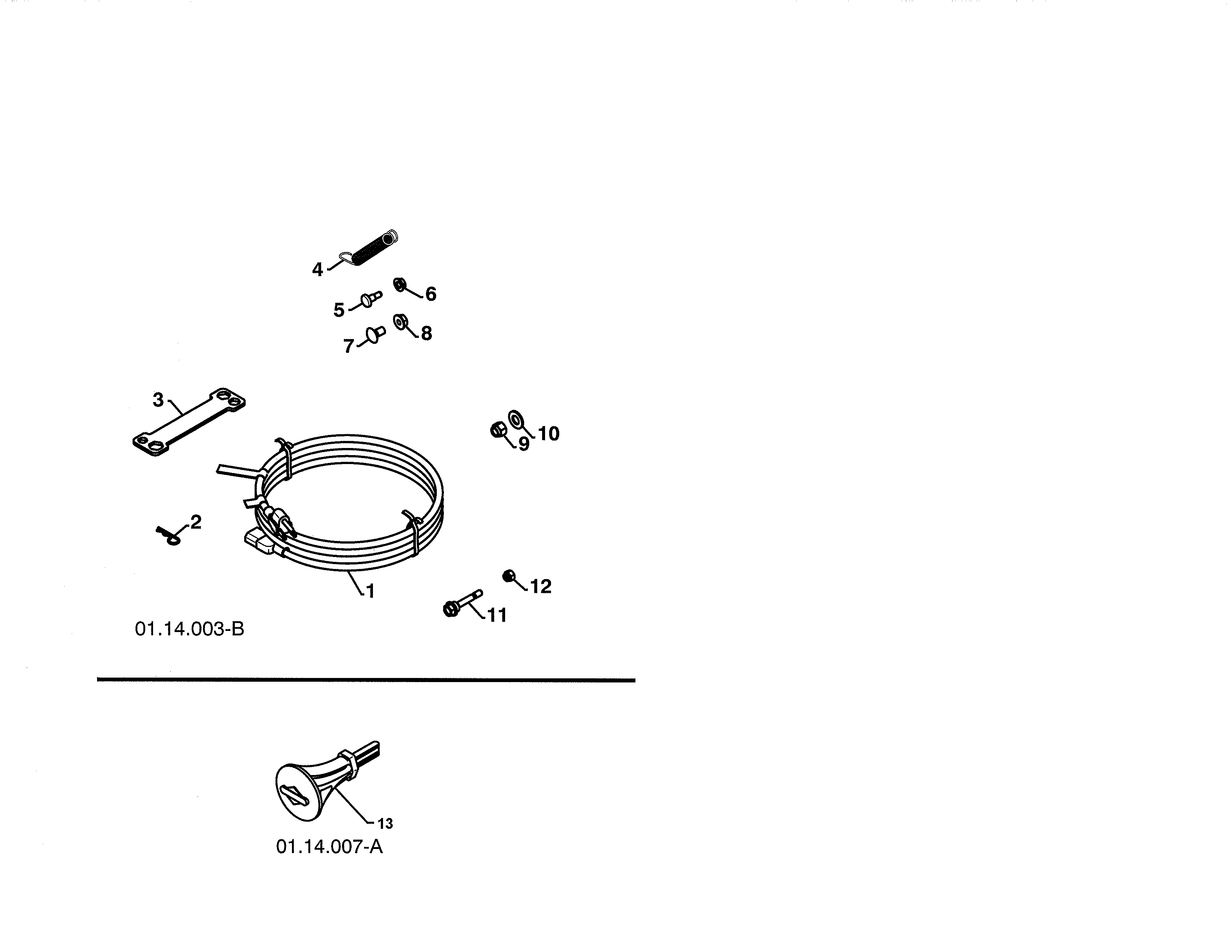

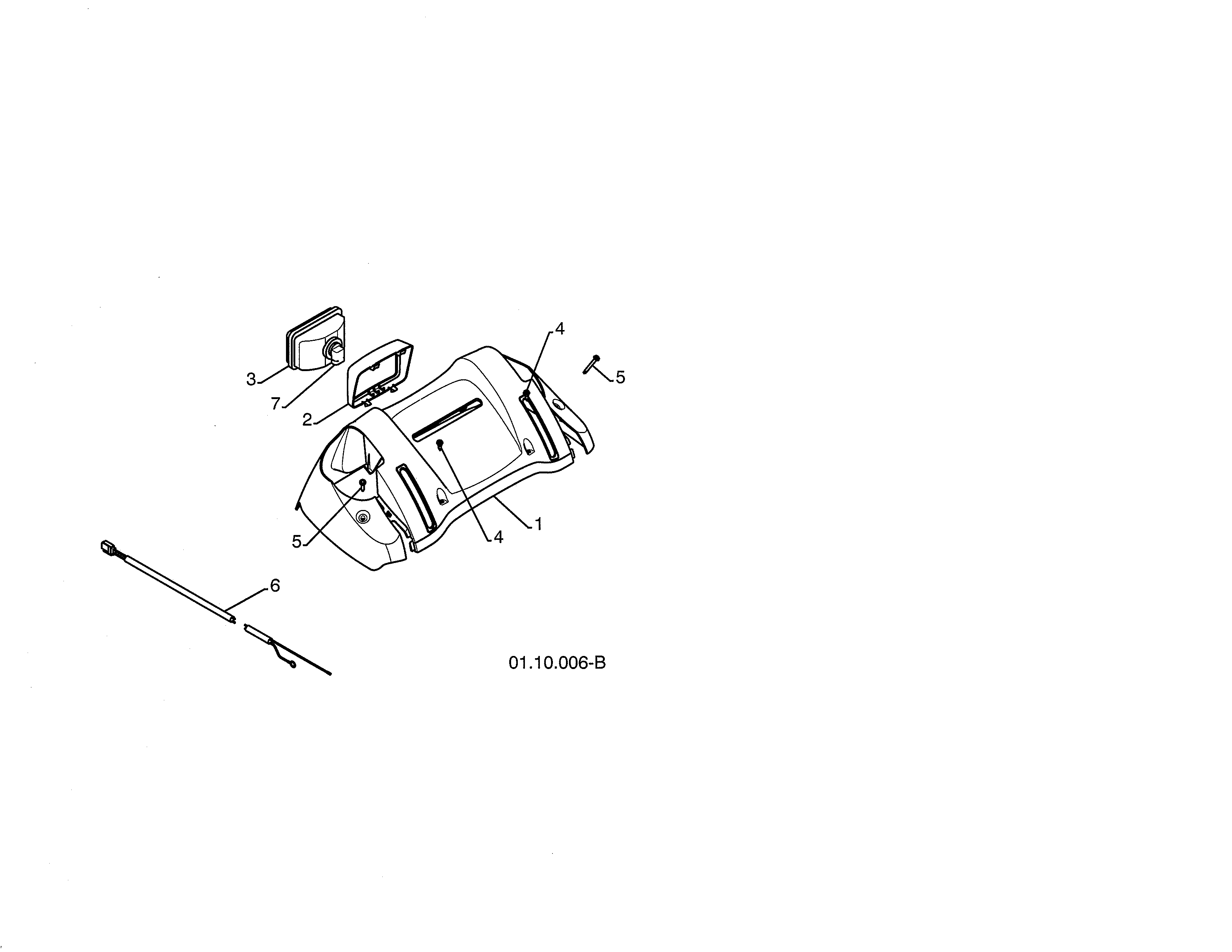

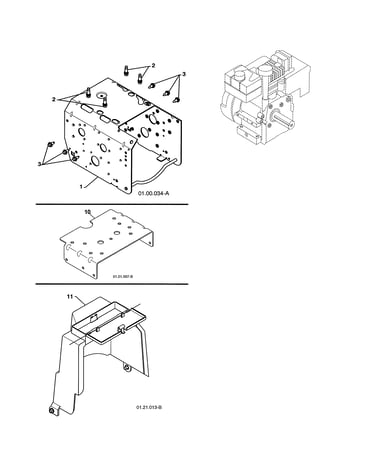

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
91788777 Snowblowers
Lawn & Garden Equipment Lock Nut 73800400
Lawn & garden equipment lock nut

Part #73800400

Replaced by #582478602

?
Manufacturer substitution
This part replaces 73800400. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.87
26% OFF Phone Price : $3.87
In Stock
Snowblower Auger Drive Belt 408007
#1

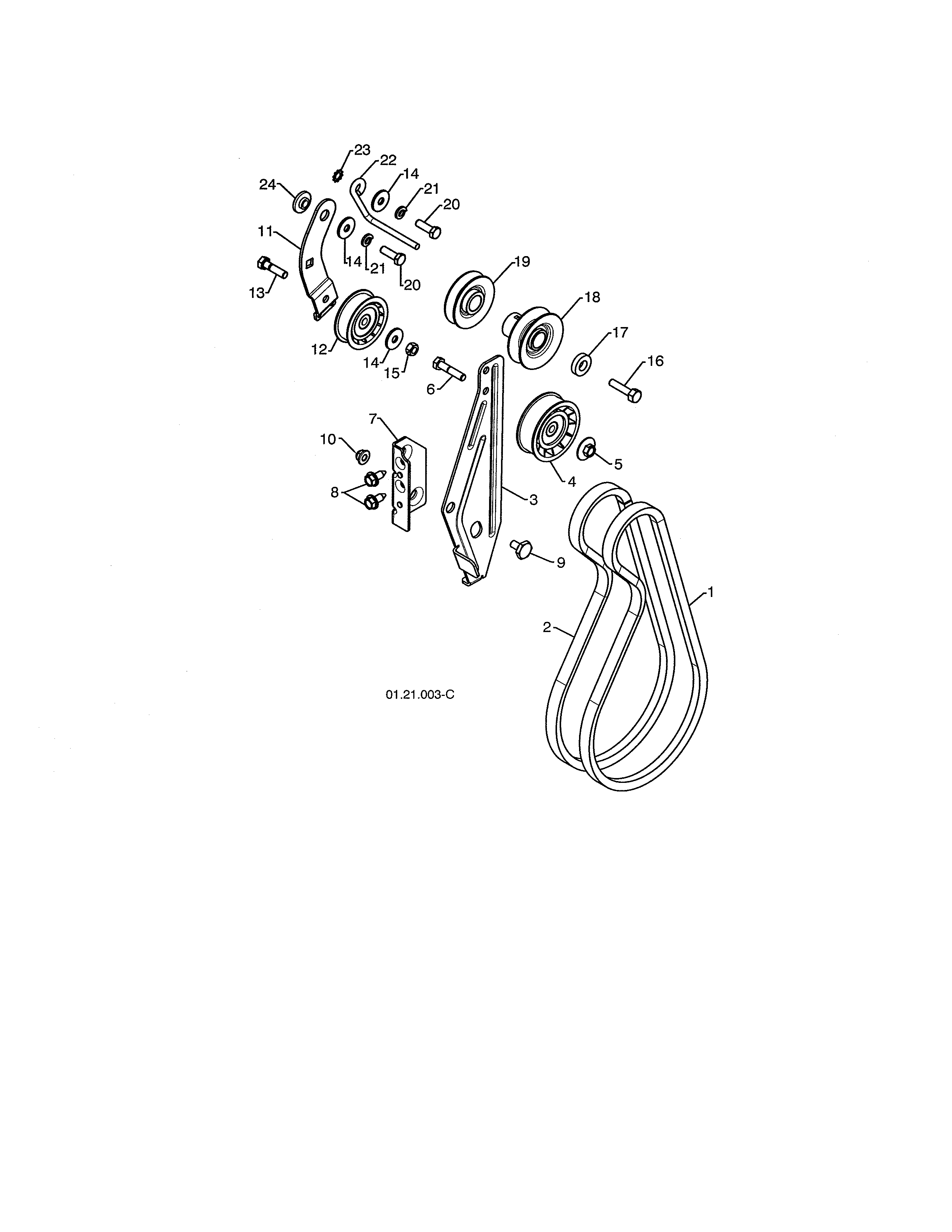

Impeller & traction belts diagram

Snowblower auger drive belt

Part #408007

Replaced by #532408007

?
Manufacturer substitution
This part replaces 408007. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$41.78
13% OFF Phone Price : $47.78
In Stock
Snowblower Gearbox (replaces 174659, 532427148) 427148
#2

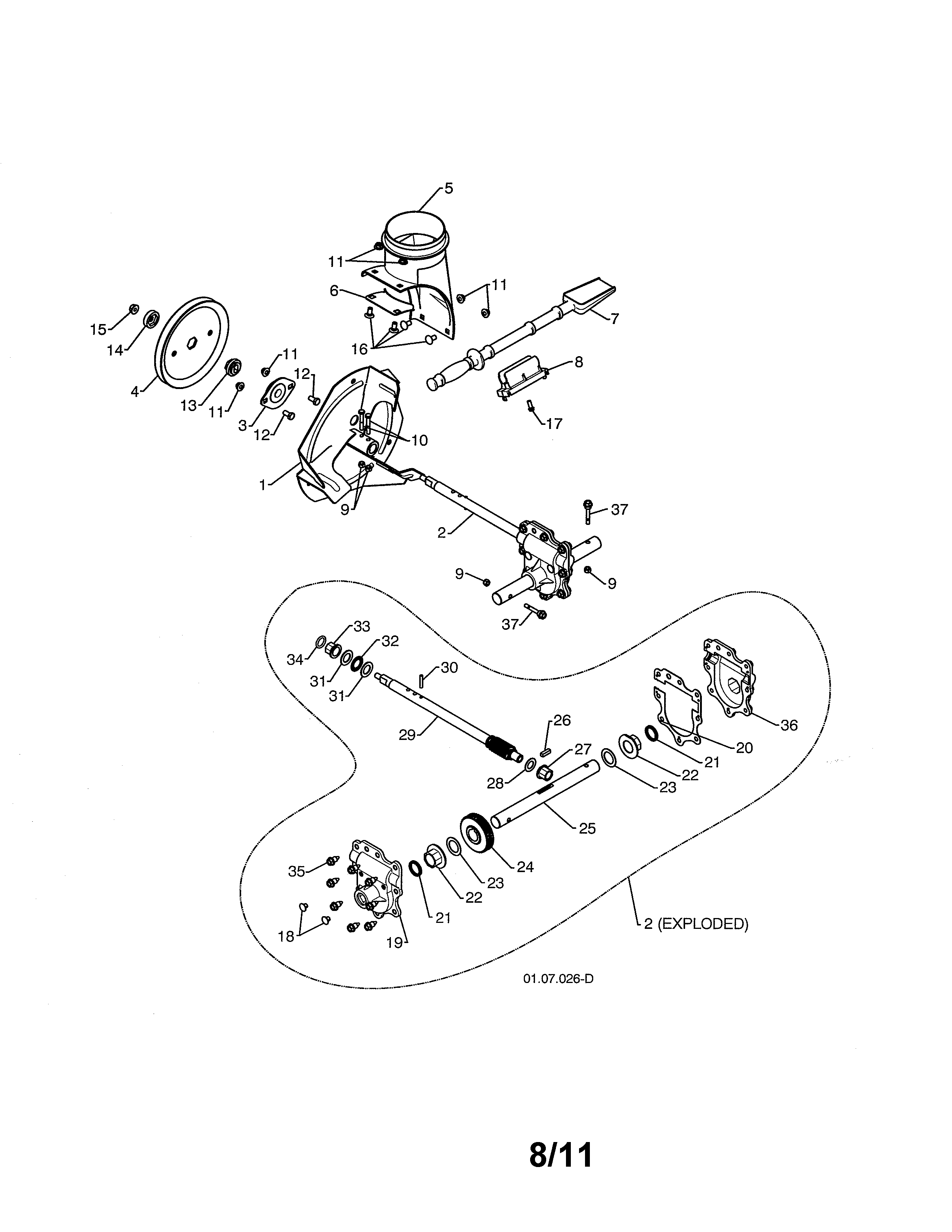

Impeller & gear box diagram

Snowblower gearbox (replaces 174659, 532427148)

Part #427148

Replaced by #598831601

?
Manufacturer substitution
This part replaces 427148. Substitute parts can look different from the original.
$200.45
6% OFF Phone Price : $212.45
In Stock
Auger Worm Gear 407763
#24

Impeller & gear box diagram

Auger worm gear

Part #407763

Replaced by #598831601

?
Manufacturer substitution
This part replaces 407763. Substitute parts can look different from the original.
$200.45
6% OFF Phone Price : $212.45
In Stock
Discharge Base 175322
#5

Impeller & gear box diagram

Discharge base

Part #175322

Replaced by #585056901

?
Manufacturer substitution
This part replaces 175322. Substitute parts can look different from the original.
This item is not returnable
$17.31
10% OFF Phone Price : $19.31
In Stock
Bottom Pan 410877
#40

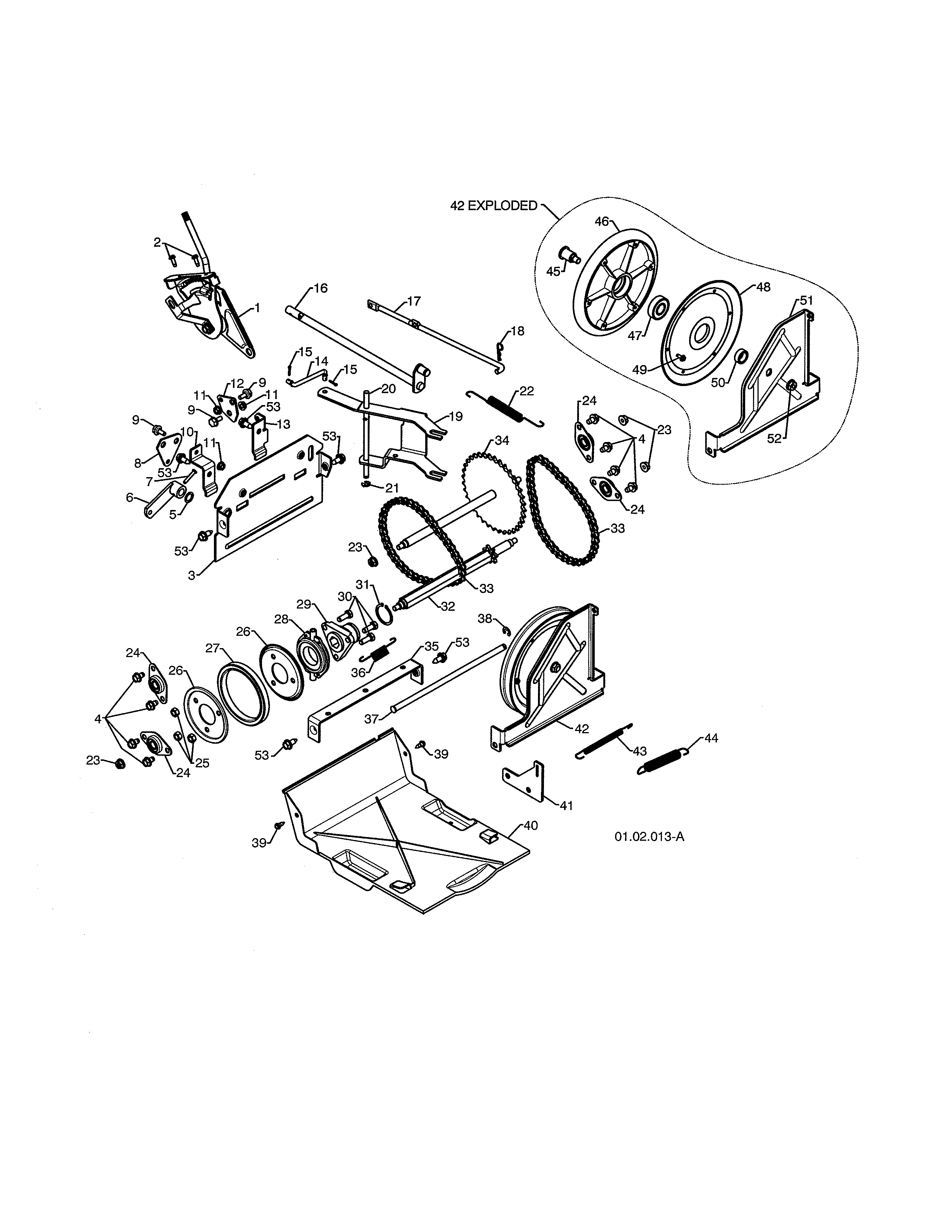

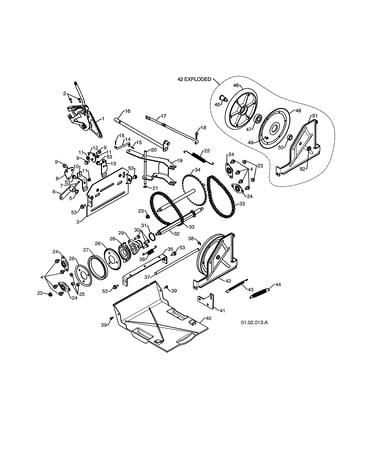

Drive diagram

Bottom pan

Part #410877

Replaced by #532410877

?
Manufacturer substitution
This part replaces 410877. Substitute parts can look different from the original.
In Stock
Snowblower Nut 427942
#11

Impeller & gear box diagram

Snowblower nut

Part #427942

Replaced by #594944401

?
Manufacturer substitution
This part replaces 427942. Substitute parts can look different from the original.
This item is not returnable
In Stock
Plate Skid 174762X431
#1

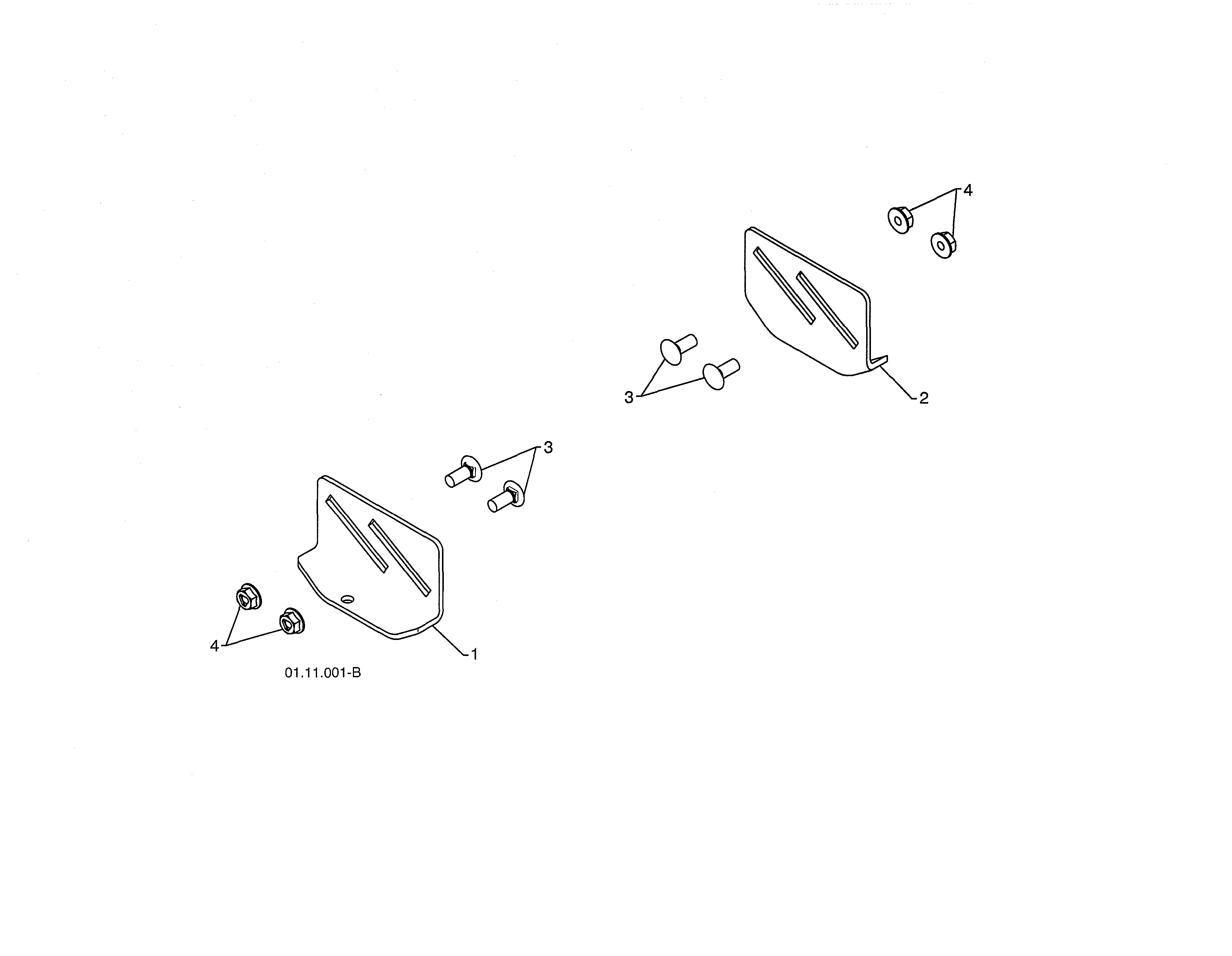

Skid plates diagram

Plate skid

Part #174762X431

Replaced by #532174762

?
Manufacturer substitution
This part replaces 174762X431. Substitute parts can look different from the original.
In Stock
Tower Lawn & Garden Equipment Head Bolt (replaces 17060616, 17490616, 25x6, 53217000616, 817000616, 8170006-16, 817490616) 17000616
#4

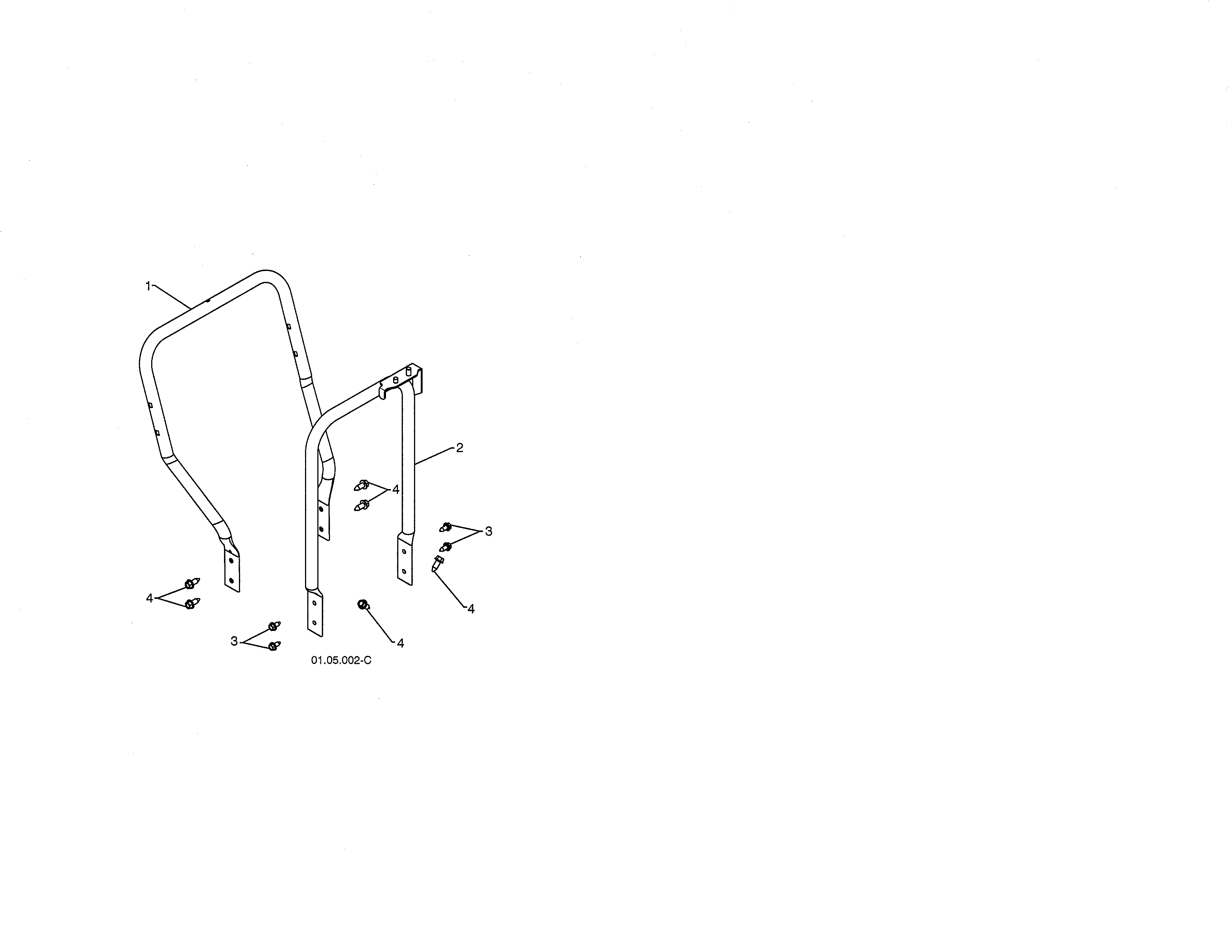

Lower handle/pivot support weldment diagram

Tower lawn & garden equipment head bolt (replaces 17060616, 17490616, 25x6, 53217000616, 817000616, 8170006-16, 817490616)

Part #17000616

Replaced by #817000616

?
Manufacturer substitution
This part replaces 17000616. Substitute parts can look different from the original.
In Stock

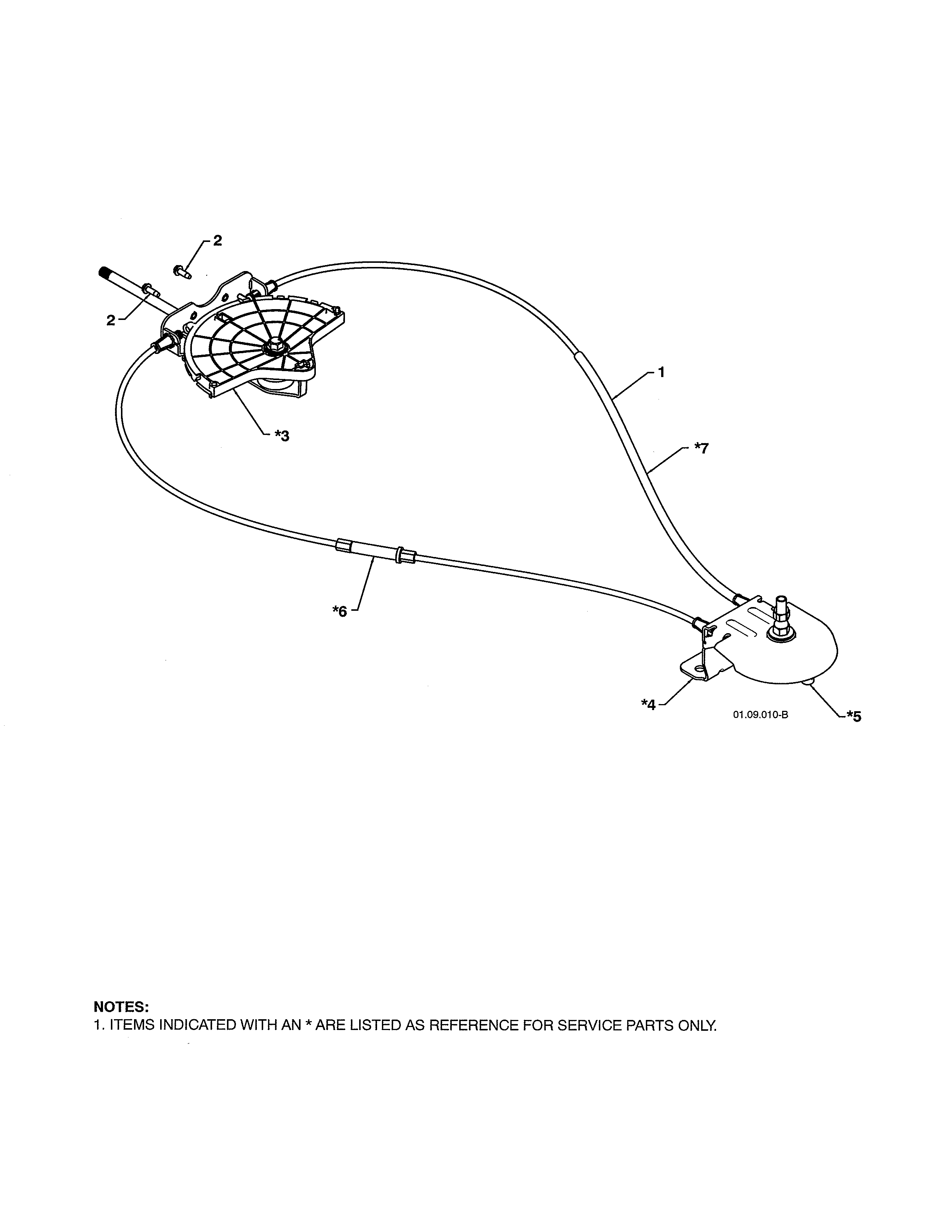

Snowblower Deflector Control Assembly 420673
#3

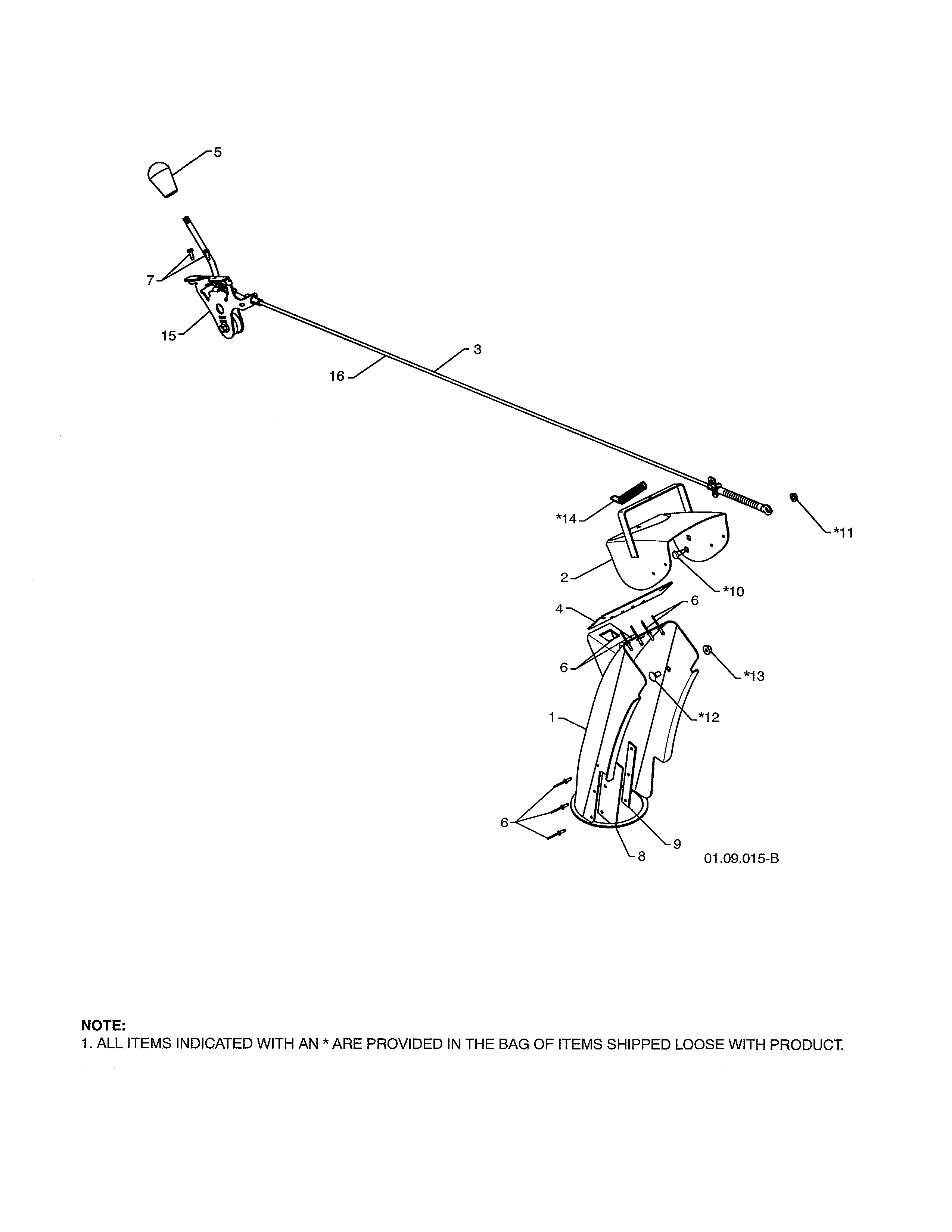

Chute & deflector weldments diagram

Snowblower deflector control assembly

Part #420673

Replaced by #587030801

?
Manufacturer substitution
This part replaces 420673. Substitute parts can look different from the original.
$73.00
8% OFF Phone Price : $79.00
In Stock
